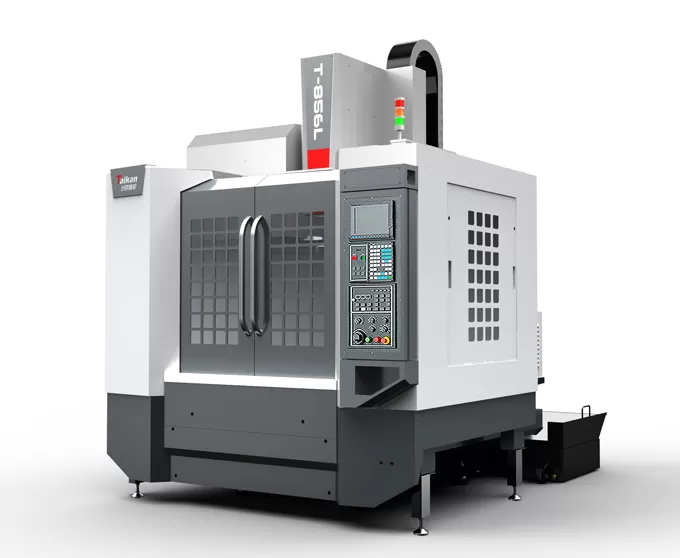

Name: T-856L High-speed and High-precision Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of T-856L High-speed and High-precision Vertical Machining Center

Structural Design

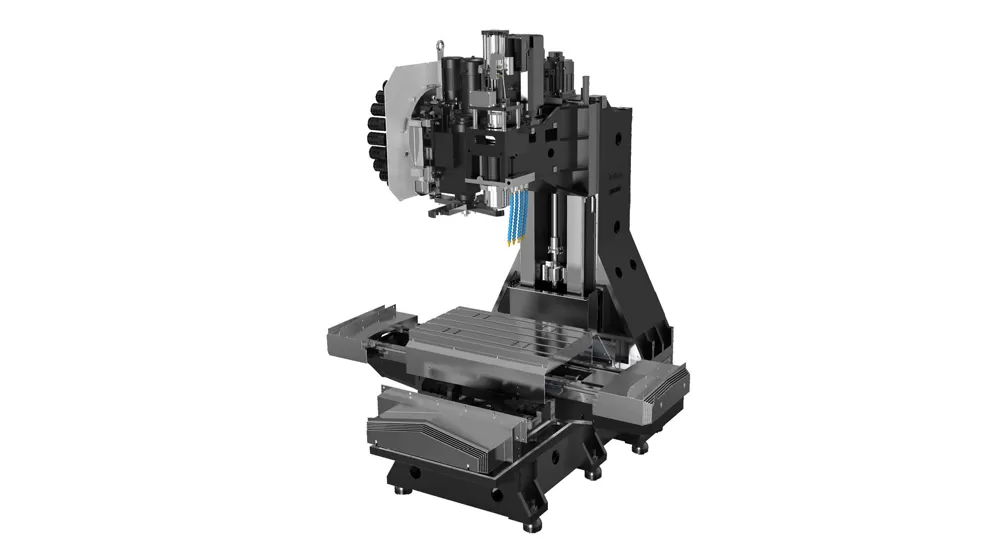

The column-type and cross-slide table structure ensures the stability and high precision of the machine.

The large, stable base and high-rigidity A-frame column help reduce vibration and deformation during high-speed cutting.

Guide Rail System

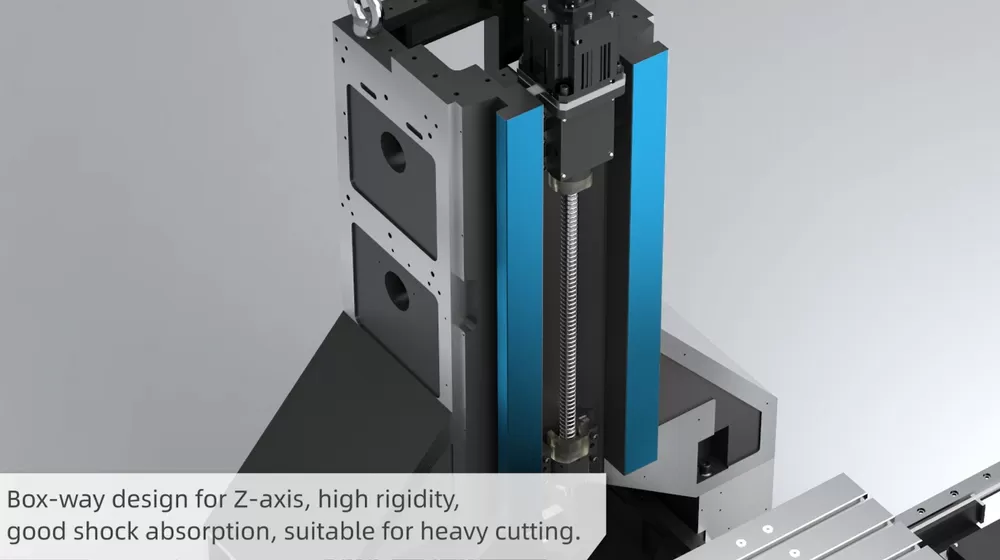

The X and Y axes are equipped with large-spec, high-precision roller linear guides, while the Z axis uses high-rigidity rectangular hard rails, combining high-speed capabilities with high rigidity. This setup is suitable for heavy cutting and provides good vibration damping.

Spindle

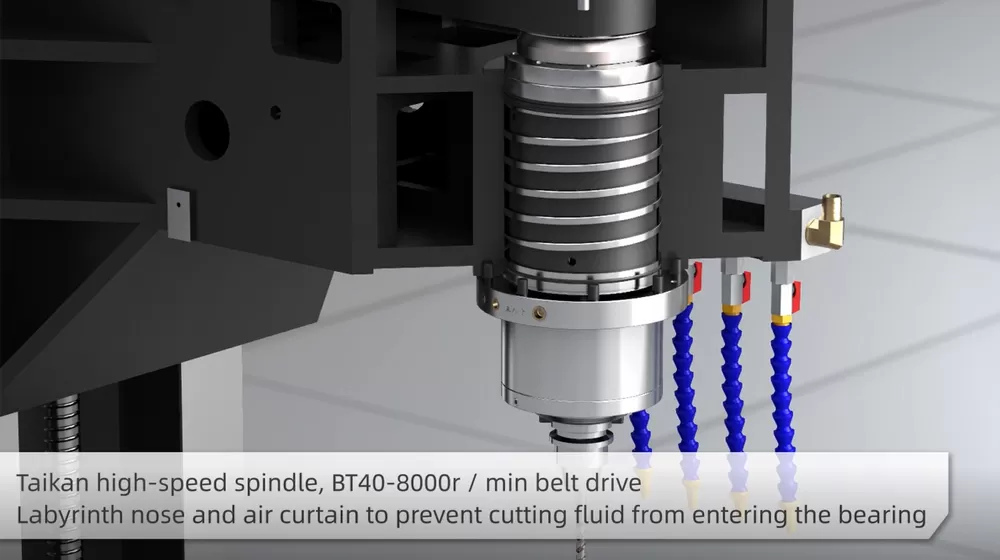

High-speed spindle unit (BT40, 8000r/min) with a labyrinth design and air curtain protection, preventing cutting fluid from entering the spindle bearings.

Tool Magazine

The 24-tool arm-type tool magazine from Taikan is known for its high stability and reliable performance.

Application of T-856L High-speed and High-precision Vertical Machining Center

The machine features enhanced dynamic responsiveness, enabling high-speed cutting and low-speed, no-crawl operation. It is ideal for multi-variety, small-batch processing of complex parts such as small and medium-sized boxes, plates, discs, valves, casings, and molds. This machine is widely applied in industries including precision parts manufacturing, 5G products, hardware, automotive components, and medical devices.

Difference Between Horizontal and Vertical Machining Center

Workpiece Example 1

Workpiece Example 2

Specifications of T-856L High-speed and High-precision Vertical Machining Center

Item			Unit	T-856L	Remarks
Travel	Table travel (X axis)		mm	800
	Saddle travel (Y axis)		mm	500
	Headstock travel (Z axis)		mm	600
	Distance from spindle nose to table surface		mm	125～725
	Distance from spindle center to column guide surface		mm	565
Worktable	Table size		mm	1000*500
	Max. load (even load-bearing)		kg	500
	T-slot (number of slots - slot width * spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	7.5/11
	Motor torque (rated/short time)		N.m	35.8/95.5
	Speed range		r/min	50~8000 (belt)
	Spindle diameter		mm	φ150
	Spindle taper		/	BT40
	Rivet specifications		/	P40T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	36/36/24
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.008/0.008/0.01	GB/T18400.4 (Full travel)
Accuracy	Repeatability (X/Y/Z)		mm	0.005/0.005/0.008	GB/T18400.4 (Full travel)
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Φ75/Φ150
Others	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥280（ANR)
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	25
	Coolant tank capacity		L	300
	Machine size		mm	224031443033	Corresponding to XYZ axis
	Weight (approx.)		Kg	4800

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
