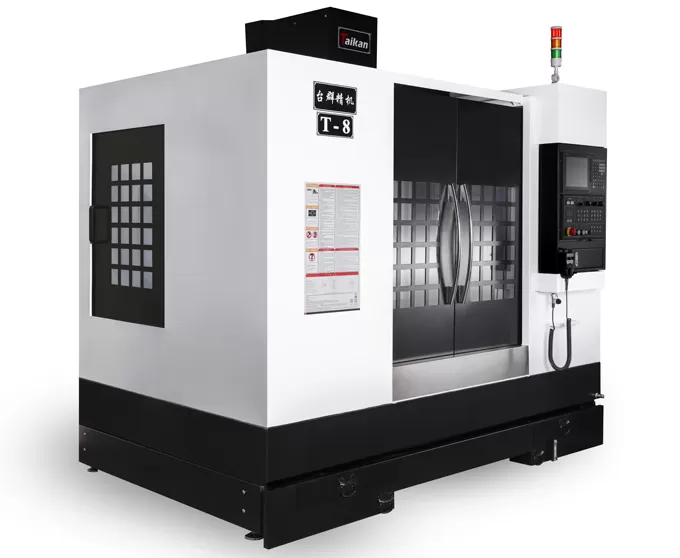

Name: T-8 Boxway Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of T-8 Boxway Vertical Machining Center

Machine Structure

Fixed column cross-slide structure with an oversized stable base to ensure high load-bearing capacity.

Made of high-strength cast iron, providing excellent rigidity and stable precision.

Three-Axis Box Guideway

The X, Y, and Z axes are equipped with precision-hardened, ground cast iron guideways, with a surface composite bonded with a PTFE (polytetrafluoroethylene) coating.

This design offers high rigidity and excellent shock absorption, making it ideal for heavy cutting of high-hardness mold steel.

Spindle

High-speed spindle unit (BT40, 8000r/min) with a labyrinth design and air curtain protection, preventing cutting fluid from entering the spindle bearings.

Z-axis Counterweight

Counterweight with central guide aids headstock movement

Optimizing load characteristics of Z-axis

Application of T-8 Boxway Vertical Machining Center

Mainly used in the mold manufacturing industry, it is also widely applicable in aerospace, energy equipment, automotive manufacturing, medical devices, and other industries.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of T-8 Boxway Vertical Machining Center

Item			Unit	T-8	Remarks
Travel	Table Travel (X-axis)		mm	800
	Saddle Travel (Y-axis)		mm	500
	Headstock Travel (Z-axis)		mm	500
	Spindle Nose to Table		mm	130～630
	Spindle Center to Column		mm	500
Table	Table Size		mm	1050×500
	Table Loading Capacity		kg	600
	T-Slots (Qty-Width×Pitch)		mm	5-18×90
Spindle	Motor Power (Cont./30min)		kW	7.5/11
	Speed Range		rpm	50～8000(Belt-driven)
	Spindle Diameter		mm	φ150
	Tool Holder Type		–	BT40
	Pull Stud Type		–	P40T-I（MAS403）
Speed	Feed Rate Range		mm/min	1-10000
Speed	Rapid Traverse Speed(X/Y/Z)		m/min	16/16/16
Accuracy	Positioning Accuracy(X/Y/Z)		mm	0.008	GB/T18400.4 (Full Travel)
Accuracy	Repeatability(X/Y/Z)		mm	0.005
Other	CNC System		–	Mitsubishi M80VA
	Air Supply	Flow	L/min
	Air Supply	Pressure	MPa
	Power Requirement		kVA	25
	Coolant Tank Capacity		L	200
	Machine Dimensions		mm	2710×2320×2740	X/Y/Z axis directions
	Machine Weight(approx.)		kg	4950

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
