Name: HQ5 High Rigidity Horizontal Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of HQ5 Horizontal Machining Center_copy20251114

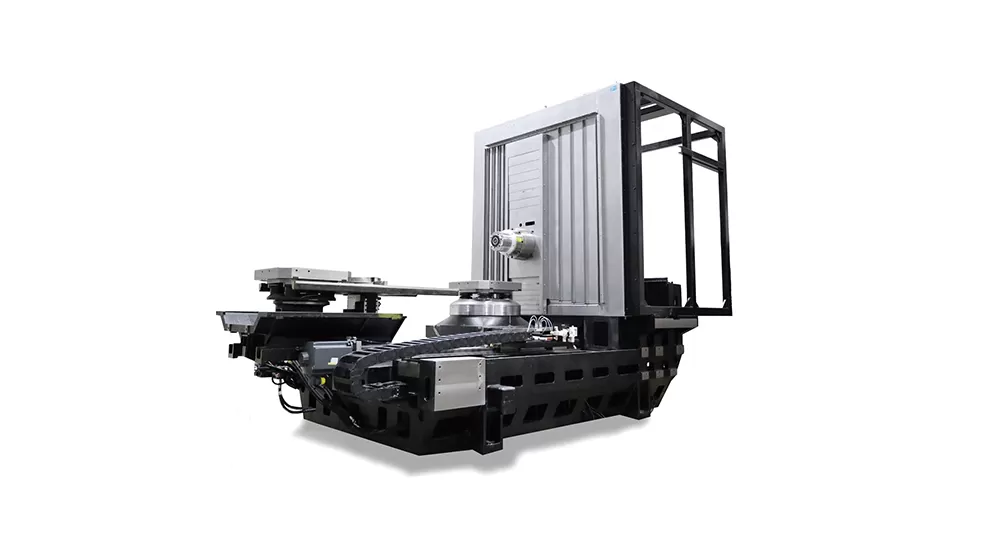

High-rigidity structure

T-shaped integrated casting bed
Thermosymmetric shape
Stepped column, lightweight, high rigidity
Stepped guide rail surface configuration, lighter column, shorter force closed-loop

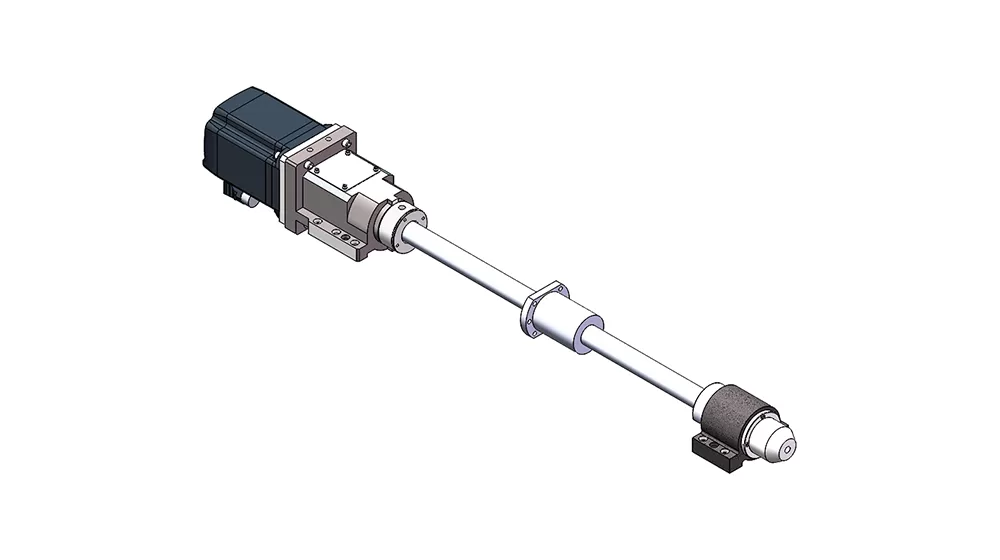

Guide rail lead screw

The three-axis guideways utilize THK roller linear guides, offering high rigidity, low friction, and low noise.
The three-axis ball screws are from NSK, featuring a hollow cooling design. A temperature-controlled coolant circulates within the screw shaft via a cooling unit, rapidly cooling the ball screw during high-speed feeds and maintaining a constant temperature for stable machining accuracy.

Spindle

The B-axis utilizes an internationally advanced DD direct-drive motor for high-precision and high-efficiency part rotation.
It employs a high-torque, high-speed electric spindle with automatic dual-winding switching, meeting diverse needs for high speed and high torque. High speed, high precision, and low noise fully satisfy the requirements of boring, milling, and drilling operations.

CNC system

Equipped with a high-performance Siemens 828D CNC system, all three axes are driven by Siemens motors, ensuring the stability of machine tool control and guaranteeing the CNC machining and auxiliary functions required by users.

Application of HQ5 Horizontal Machining Center

It is mainly used in the processing of parts in industries such as engineering machinery, automobiles, energy, information technology, and mold making. It is suitable for processing box-shaped parts and shell-shaped parts, and is especially suitable for processing complex and irregularly shaped parts.

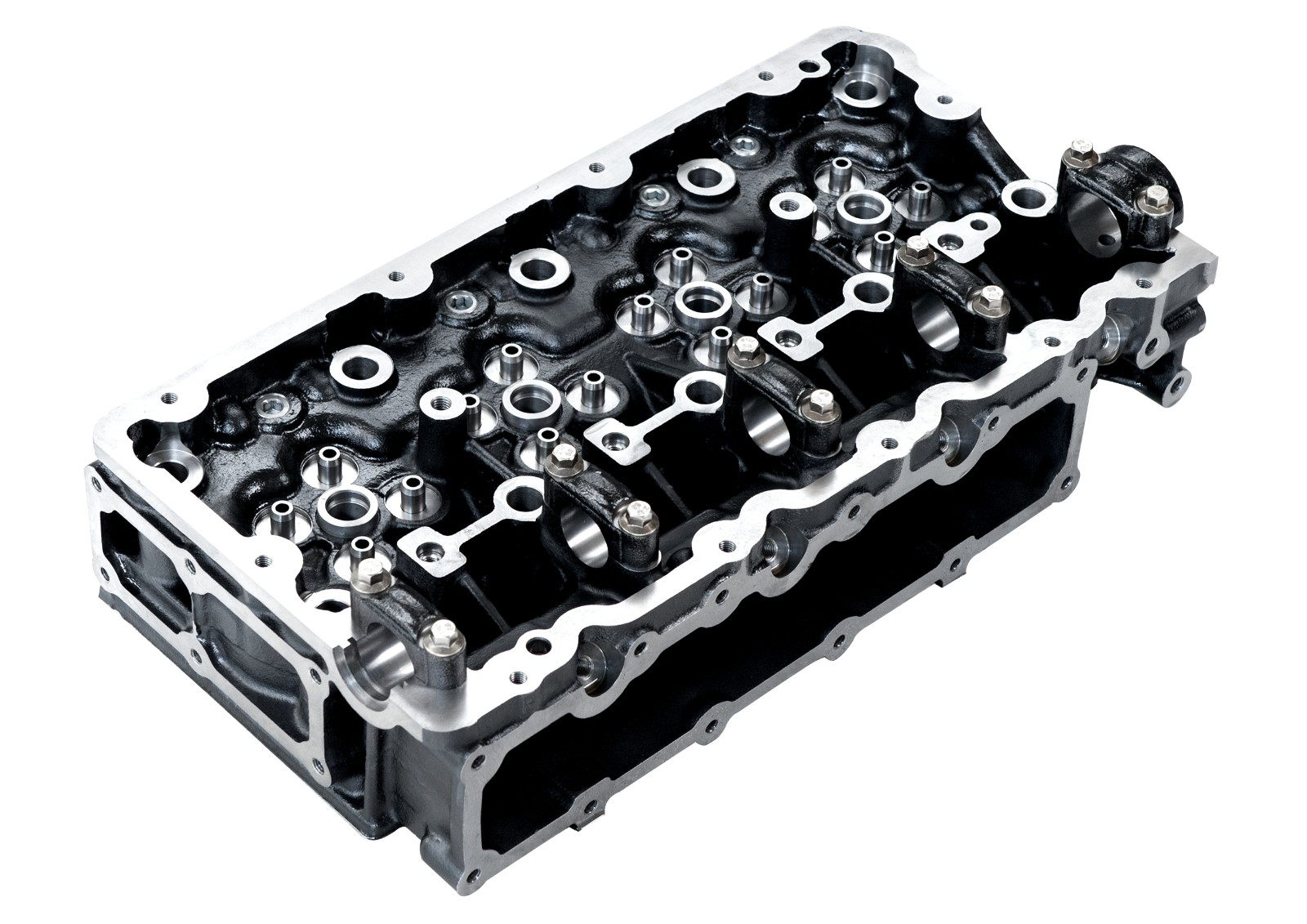

Workpiece Example 1

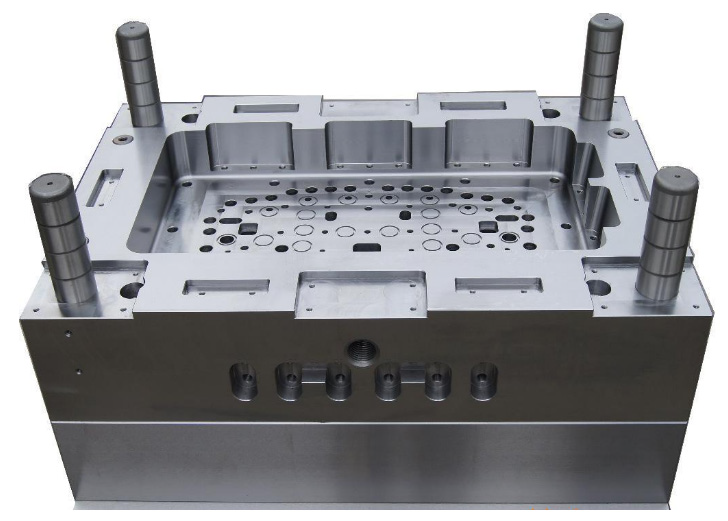

Workpiece Example 2

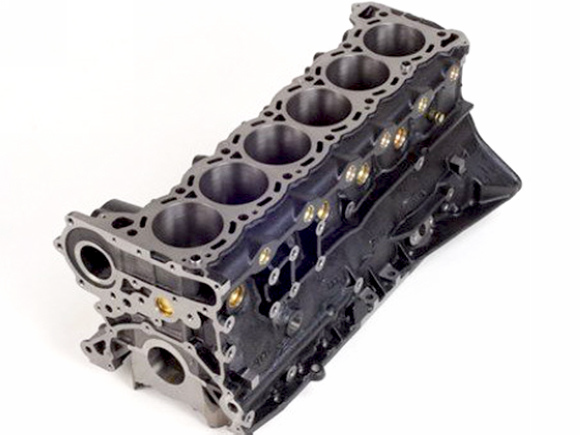

Workpiece Example 3

Workpiece Example 4

Specifications of HQ5 High Rigidity Horizontal Machining Center

	Name	Unit	Spec.	Remarks
	CNC System		Siemens 828D
Travel	X/Y/Z	mm	750/750/800
	B Axis	°	360
	Distance from Spindle End Face to Table Center	mm	150-950
	Distance from Spindle Center to Table Surface	mm	120-870
	Max. Workpiece Size	mm	φ850×1000
Table	Table Size	mm	500*500(2 pcs)
Table	Table Load Capacity	Kg	800
Spindle	Spindle Power (S1/S6)	Kw	22/37
	Spindle Torque (S1/S6)	Nm	122/205
	Max. Speed	r/min	15000
	Tool Holder Spec.	-	HSK-A63
Speed	X, Y, Z axis rapid speed	m/min	60/60/60
Speed	X, Y, Z axis cutting feed	mm/min	1~50,000
Accuracy	Positioning accuracy (X/Y/Z)	mm	0.01 0.006(Full Closed Loop)	VDI3441
	Repeatability (X/Y/Z)	mm	0.006 0.004(Full Closed Loop)	VDI3441
	Positioning accuracy (B)	arcsec	8（(Full Closed Loop)	VDI3441
	Repeatability (B)	arcsec	6(Full Closed Loop)	VDI3441
Tool magazine	Tool magazine capacity	T	40
	Tool length	mm	500
	Tool diameter (full/adjacent empty)	mm	80/150
	Max. tool weight	Kg	12
Others	Total electrical capacity	KVA	57
	Machine height	mm	3205
	Machine external sizes (length * width)	mm	6025×3985
	Total weight (approx.)	Kg	17,000

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
