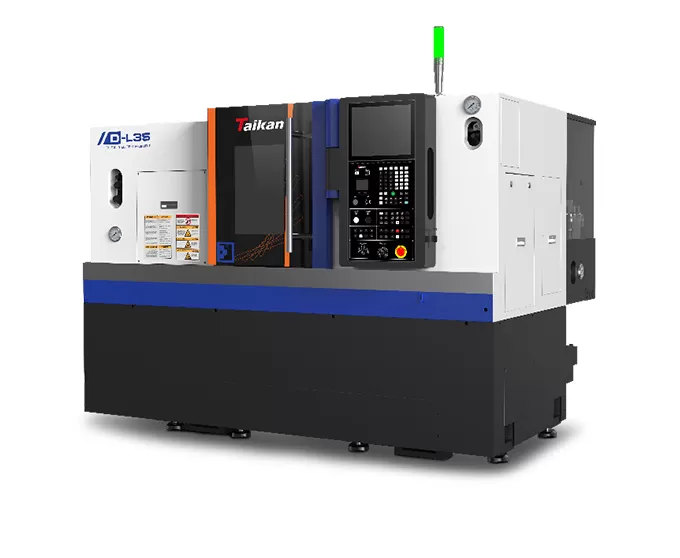

D-L35 CNC horizontal lathe

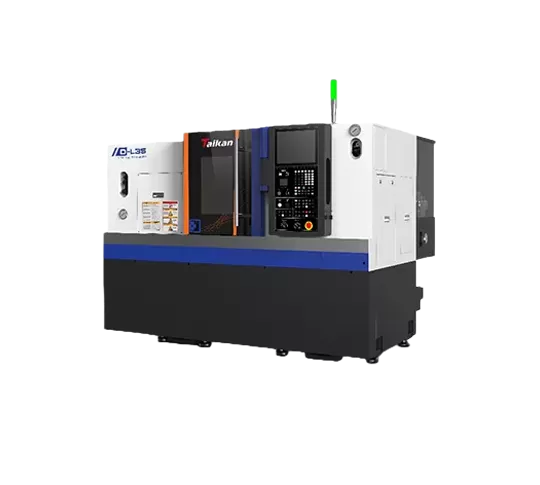

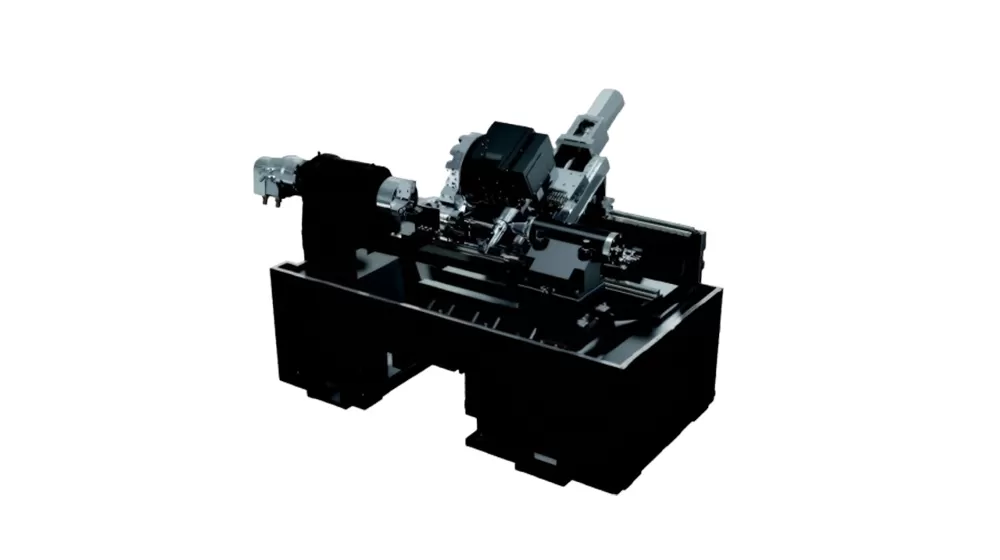

• The structural characteristics of the overall machine bed with 30° high and low rails. After finite element analysis, the layout of the reinforcing ribs is optimized, so that the machine tool has excellent rigidity, low vibration, and at the same time achieves the smallest floor space.

• All castings undergo long-term natural aging treatment and undergo secondary vibration aging treatment before finishing to eliminate residual stress inside the castings and ensure long-lasting and stable accuracy.

• The X/Z axis adopts an imported P-class heavy-duty 35mm roller guide rail with large span structure design, which can meet high-load operations.

• It adopts P4 grade special bearings for machine tools and is lubricated with special bearing grease to maintain good accuracy and long service life.

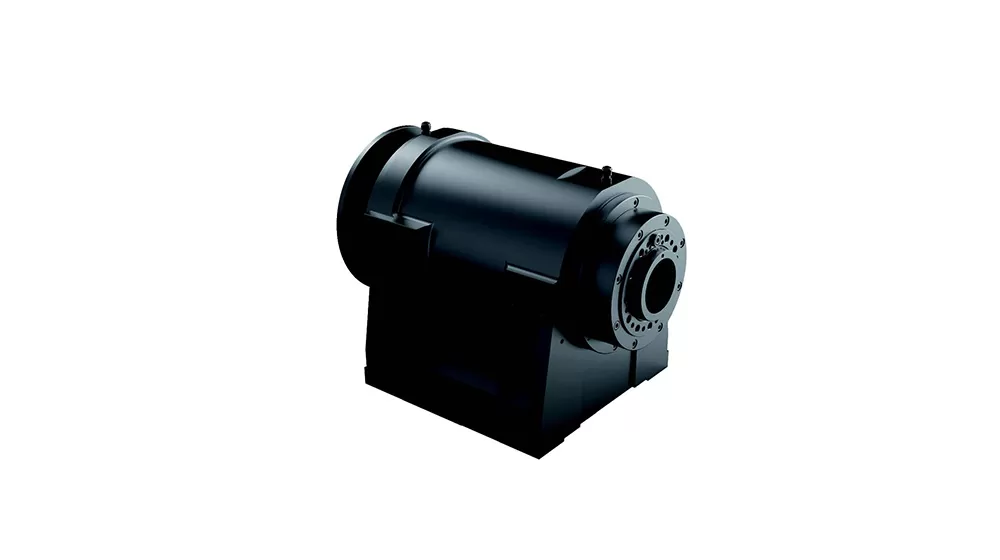

• The characteristics of high rigidity and high torque of the motorized spindle greatly improve production and processing efficiency and achieve an excellent re-cutting effect of the spindle.

• The spindle is directly driven by a built-in motor, with compact structure, reduced transmission error, high positioning accuracy, and good stability.




The spindle components are water-cooled or oil-cooled to reduce the impact of spindle heating on machining accuracy.

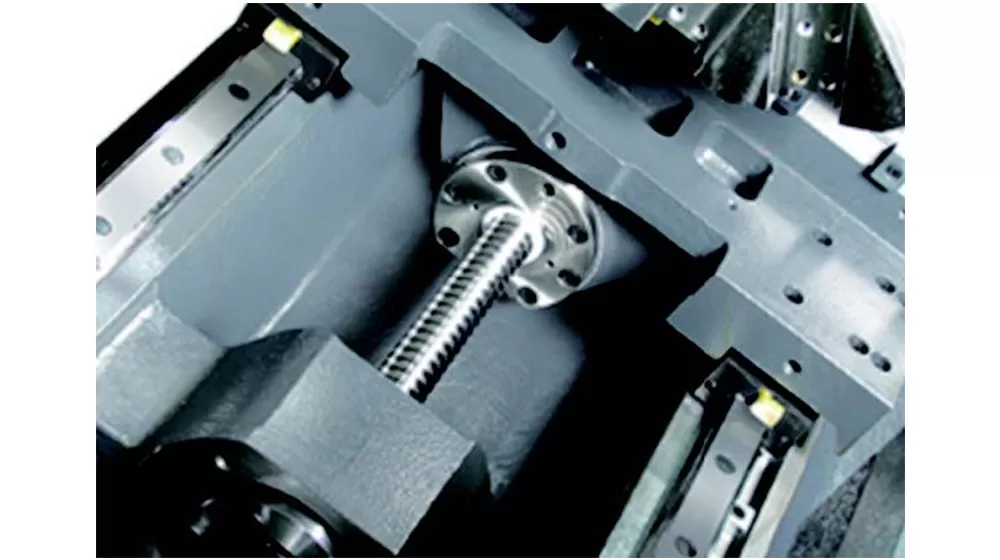

• The X/Z axis uses an imported 32 high-speed, silent ball hollow screw. The screw adopts a prestretching process to effectively reduce the impact of screw heating on transmission accuracy.




Rapid feed can reach 30m/min, positioning accuracy is 0.003mm; X/Z axes all use 35mm roller

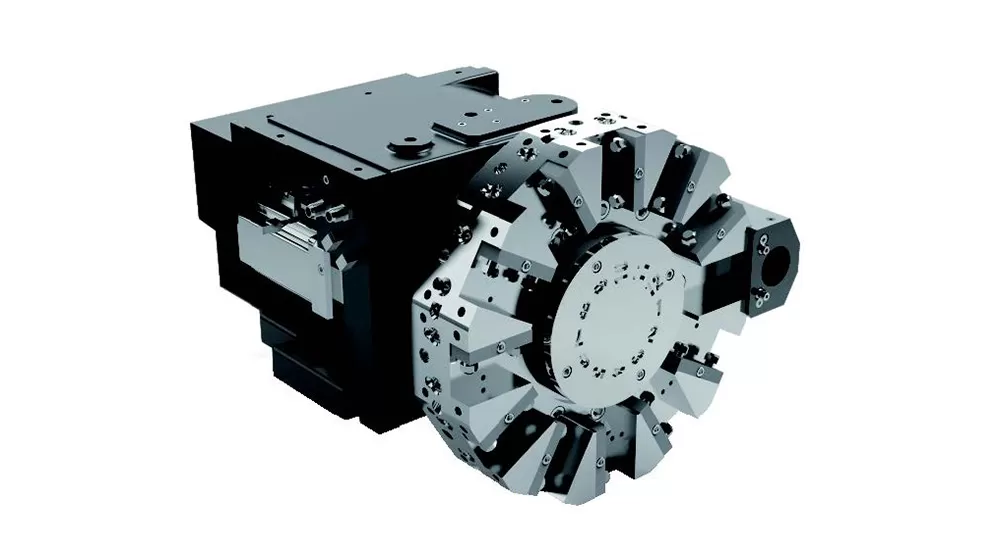

• The standard tool turret is driven by a servo motor and has an internal reduction mechanism for precise and reliable movement.

• The tool turret can rotate in both directions, and the response speed of tool change is fast and smooth.

• Three-piece end gear plate, no lifting required for tool change, good protection, hydraulic clamping, large clamping force, stable and reliable, suitable for heavy cutting.




The CNC horizontal lathe machine is equipped with special tools to effectively avoid iron filings and significantly increase tool life.
