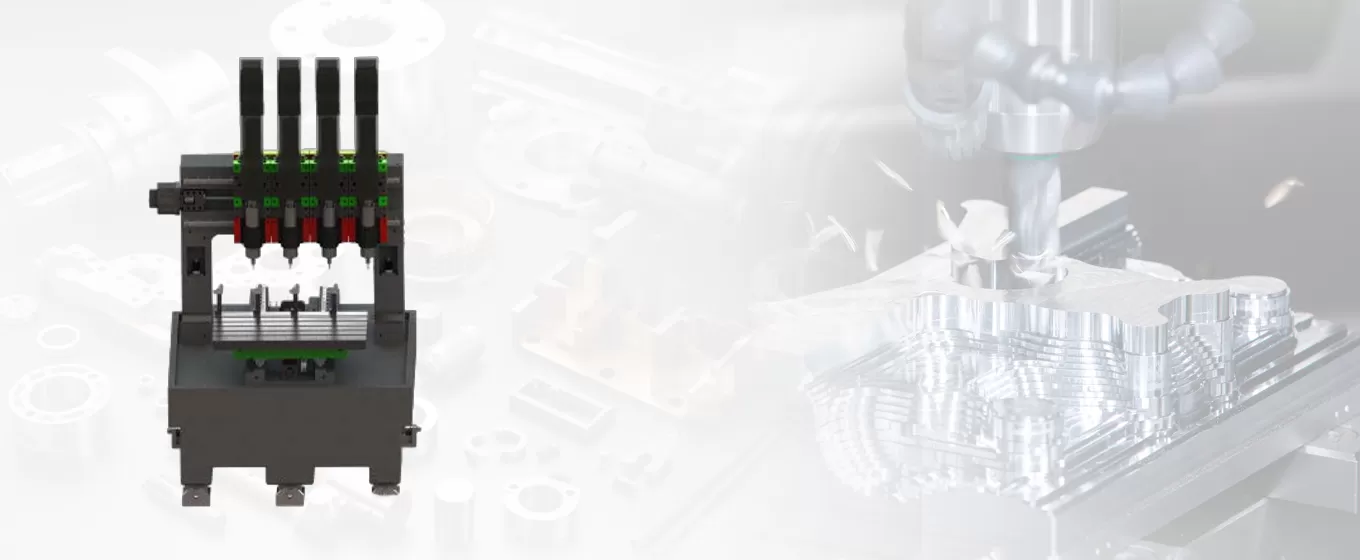

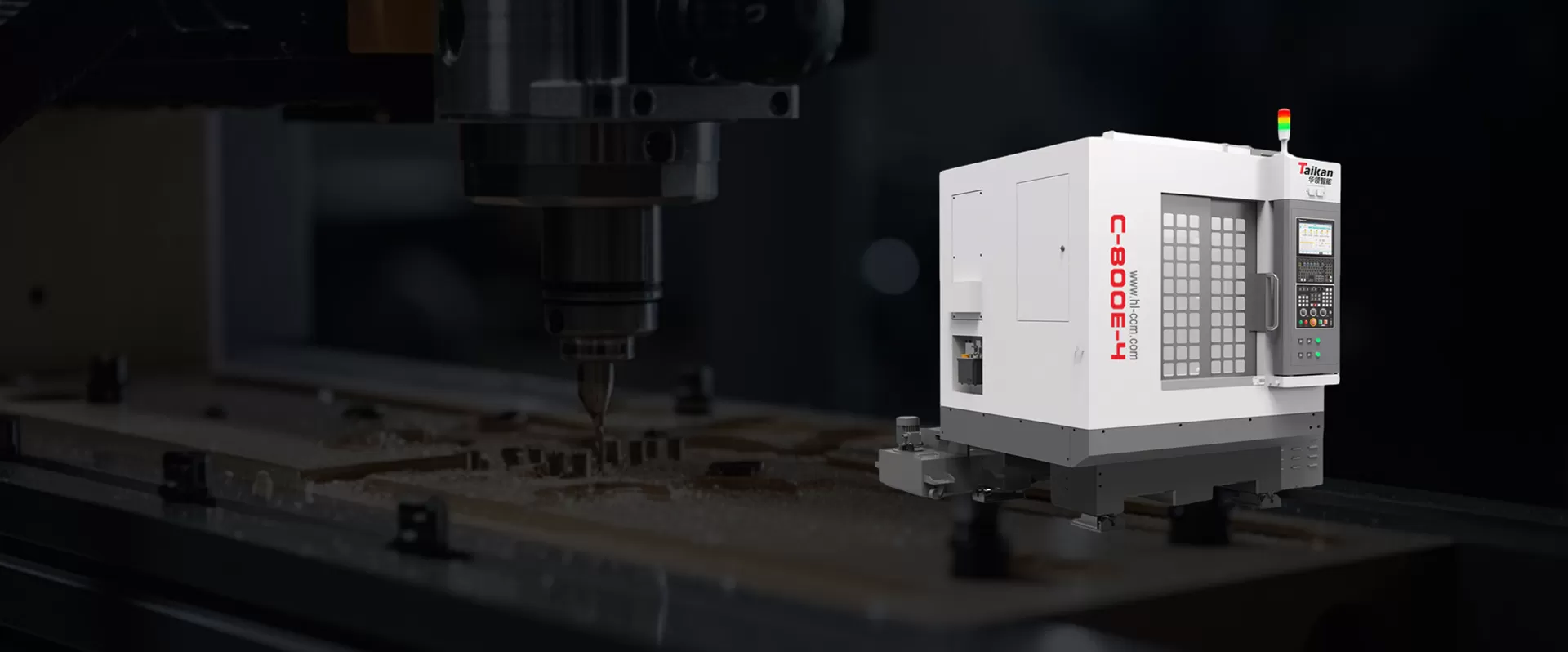

Multi-Head High-Speed Engraving Machining Center

Table size

mm

700×500

840×500

840×500

840×500

X/Y/Z axis travel

mm

350/500/150

420/500/150

280/500/150

210/500/150

Spindle

60,000 r/min, 2.5 kW

60,000 r/min, 2.5 kW

60,000 r/min, 2.5 kW

60,000 r/min, 2.5 kW

Tool holder specifications

/

T11

T11

T11

T11

Tool magazine

PCS

12T×2

25T×2

25T×3

25T×4

Table size

mm

1,100×500

1,100×500

1,100×500

840×500

1,260×500

X/Y/Z axis travel

mm

520/500/150/200

380/500/150/200

280/500/150/200

210/500/150

210/450/150

Spindle

36,000/30,000 r/min, 6.0/7.5 kW

36,000/30,000 r/min, 6.0/7.5 kW

36,000/30,000 r/min, 6.0/7.5 kW

30,000 r/min, 2.5 kW

60,000 r/min, 2.5 kW

Tool holder specifications

/

T11

T11

T11

BT30

IS020

Tool magazine

PCS

16T×2/21T×2

16T×3/21T×3

16T×4/21T×4

16T×4/21T×4

20T×6
