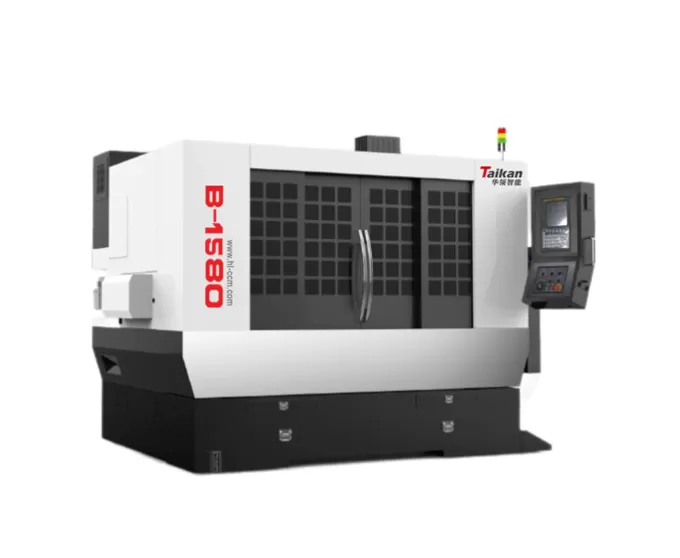

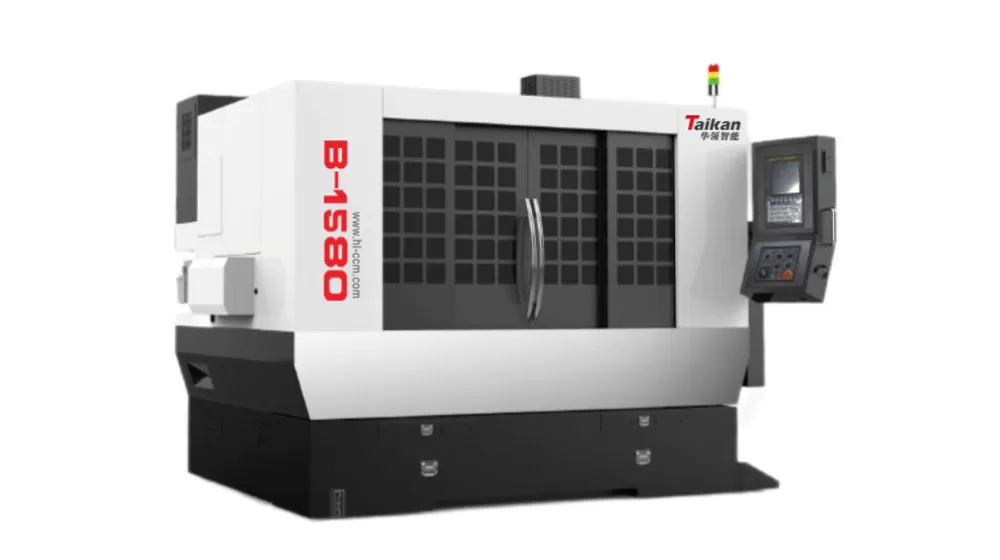

Name: B-1580 Single-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of B-1580 Single-Head High-Speed Precision Engraving Center

Natural Granite Bed and Beam

The bed and beam are made from natural granite, offering excellent vibration absorption and corrosion resistance.

Imported High-Precision Components

Equipped with high-precision imported components, including guides with strong load-bearing capabilities, high positioning accuracy, and minimal mechanical error.

XY-Axis Travel of 1500*800mm

Suitable for processing large workpieces with this extended travel range.

Application of B-1580 Single-Head High-Speed Precision Engraving Center

B-1580 is ideal for the edge grinding, hole drilling, chamfering, and thinning of automotive display glass, tablet cover glass, and other glass materials.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of B-1580 Single-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm)	1500 * 800
	Distance from table to spindle nose (mm)	90～310
	Maximum load-bearing weight ( Kg)	150
journey	X-direction travel (mm)	1500
	Travel in Y direction (mm)	800
	Z travel (mm)	220
Spindle	Spindle power (K w)	6.0
	Spindle maximum speed (rpm)	36000
	Spindle diameter (mm)	Φ100
	Spindle tool change method	Pneumatic tool changer
	Shank form	ISO 25
Feed rate	Maximum dry run feed speed (m/min)	30/30/15
Feed rate	Maximum cutting feed rate (m/min)	0-10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	.018/ 0.018 / 0.018 (300mm)
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.015/ 0.015 / 0.015
Tool magazine	Tool magazine capacity	10T
Tool magazine	Tool magazine form	Semi-umbrella servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	13
Other parameters	Dimensions (front and rear * left and right * up and down mm)	242130322536
	Weight (Approx. weight: Kg)	6500
	Whether to configure network transmission and monitoring functions	YES
	Whether to configure the tool setter	YES

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
