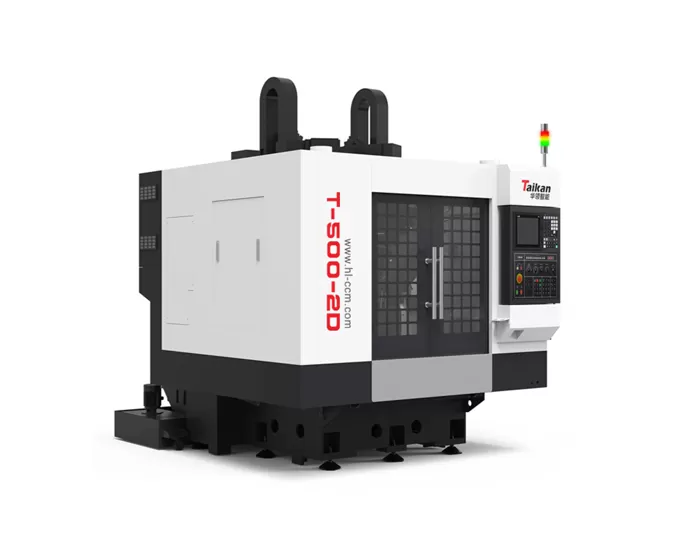

Name: T-500-2D Multi-Worktable High-Speed Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of T-500-2D Multi-Worktable High-Speed Machining Center

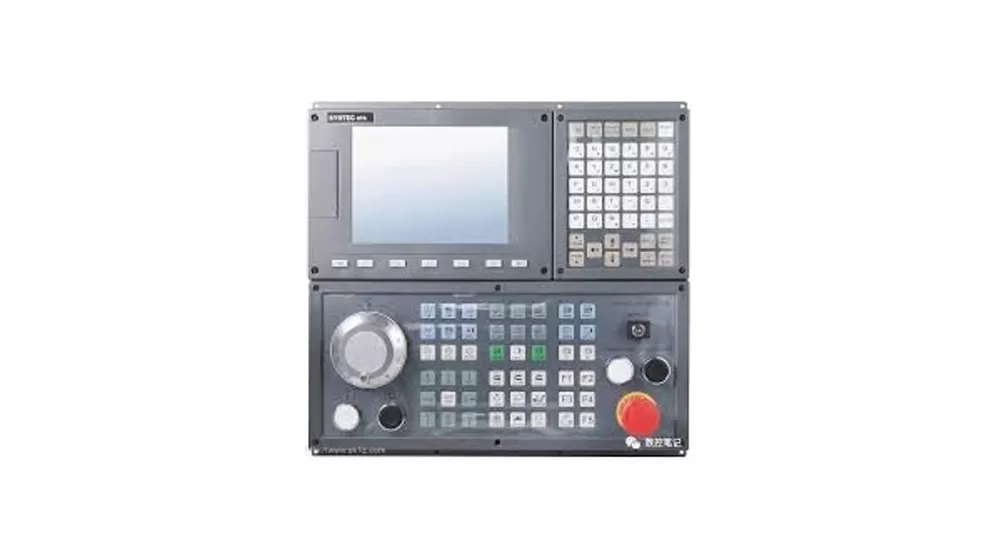

High-Stability, High-Performance CNC System

Equipped with a SyntecCNC system that ensures both stability and high performance.

Heavy-Duty Marble Bed and High-Rigidity Cast Beam

Provides a stable foundation with high rigidity, minimizing deformation during high-speed cutting.

High-Speed Cutting

Capable of stable, high-speed cutting without deformation, ensuring consistent machining quality.

Dual High-Torque Spindles

Allows for simultaneous machining of multiple products, increasing efficiency.

High-Stability, High-Performance CNC System

Heavy-Duty Marble Bed and High-Rigidity Cast Beam

Application of T-500-2D Multi-Worktable High-Speed Machining Center

The T-500-2D is ideal for the automatic, continuous machining of complex parts such as medium and small-sized box components, plates, discs, valves, and shells in a single clamping. It is widely used in industries such as precision parts, 5G products, hardware, automotive components, medical devices, and fields like 3C (computer, communication, and consumer electronics) and new energy.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of T-500-2D Multi-Worktable High-Speed Machining Center

name	project	Parameters
workbench	Table size (mm)	620*400
	Distance from table to spindle nose (mm)	180~500
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	400
	Travel in Y direction (mm)	500
	Z travel (mm)	320
Spindle	Spindle power (Kw)	3.7/5.5
	Spindle maximum speed (rpm)	20000
	Spindle diameter (mm)	φ100
	Spindle tool change method	Pneumatic tool changer
	Shank form	BT30
Feed rate	Maximum dry run feed speed (m/min)	36
Feed rate	Maximum cutting feed rate (m/min)	20
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.008
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.005
Tool magazine	Tool magazine capacity	21T*2
Tool magazine	Tool magazine form	Inclined disc knife magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	24
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	5200
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
