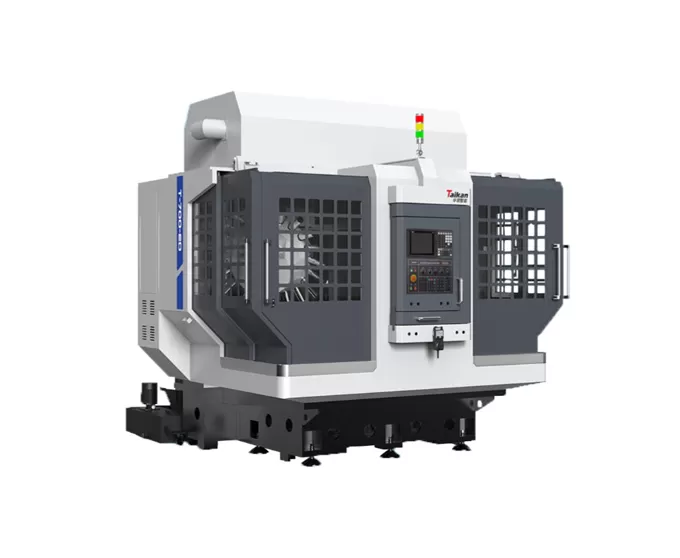

Name: T-700-2D Multi-Worktable High-Speed Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of T-700-2D Multi-Worktable High-Speed Machining Center

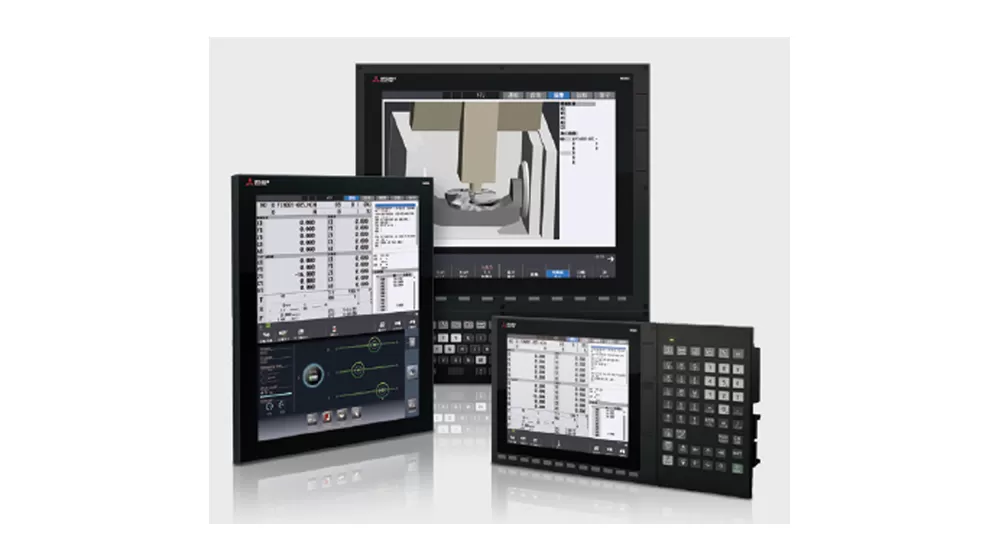

High-Performance Mitsubishi CNC System

Equipped with the high-performance, highly stable Mitsubishi CNC control system.

Robust Cast Iron Bed and Beam

The stable cast iron bed and beam provide excellent precision retention, minimizing deformation during high-speed cutting.

High-Speed Cutting

Ensures stable and precise machining at high speeds without any deformation.

Dual Mechanical Spindles

Capable of machining multiple products simultaneously, improving productivity.

Application of T-700-2D Multi-Worktable High-Speed Machining Center

The T-700-2D is suitable for the mass production of box components, battery end plates, and other similar parts. It is ideal for batch production in the new energy, 5G, LED frame, and 3C industries, as well as for hardware and automotive component manufacturing.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of T-700-2D Multi-Worktable High-Speed Machining Center

name	project	Parameters
workbench	Table size (mm)	400*700
	Distance from table to spindle nose (mm)	180~500
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	400
	Travel in Y direction (mm)	700
	Z travel (mm)	320
Spindle	Spindle power (Kw)	3.7/5.5
	Spindle maximum speed (rpm)	20000
	Spindle diameter (mm)	φ100
	Spindle tool change method	Pneumatic tool changer
	Shank form	BT30
Feed rate	Maximum dry run feed speed (m/min)	36
Feed rate	Maximum cutting feed rate (m/min)	20
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.005
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	21T*2
Tool magazine	Tool magazine form	Inclined disc knife magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	24
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	5500
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
