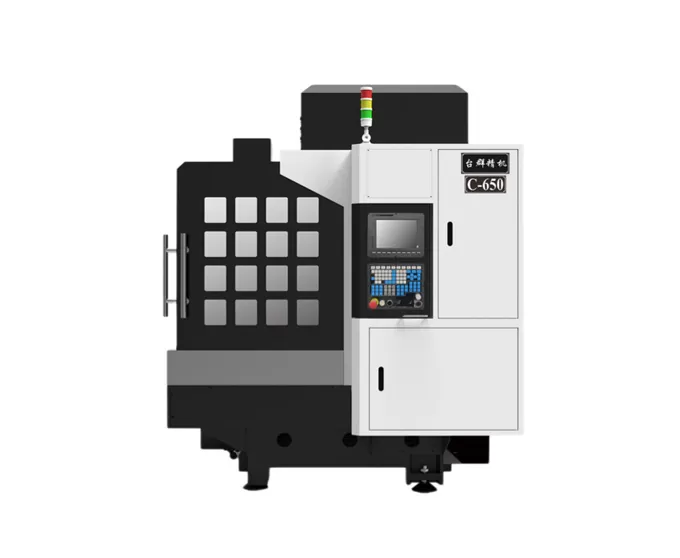

Name: C-650 Single-Head High-Speed Precision Engraving Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-650 Single-Head High-Speed Precision Engraving Center

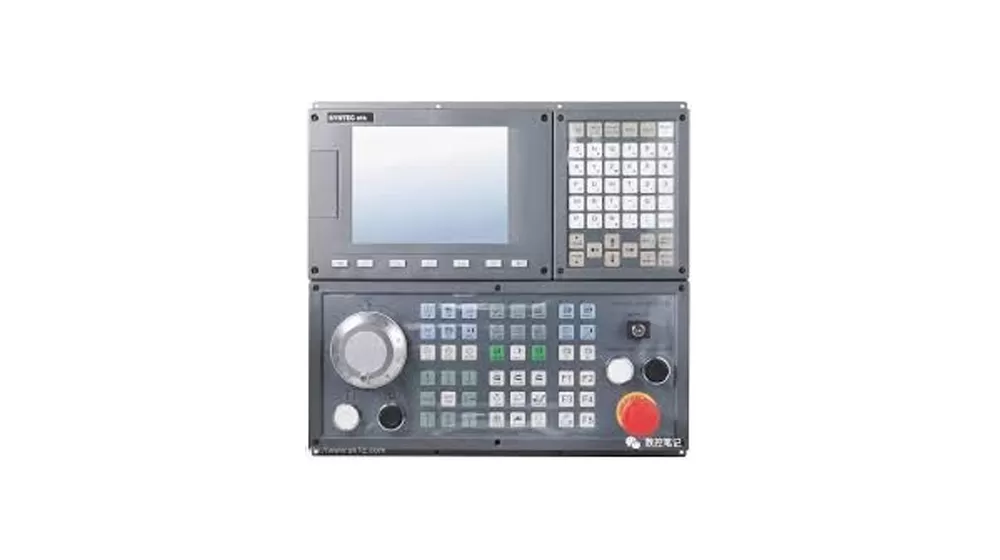

Syntec 22MA CNC System

Equipped with the advanced Syntec 22MA CNC system for reliable control and precision.

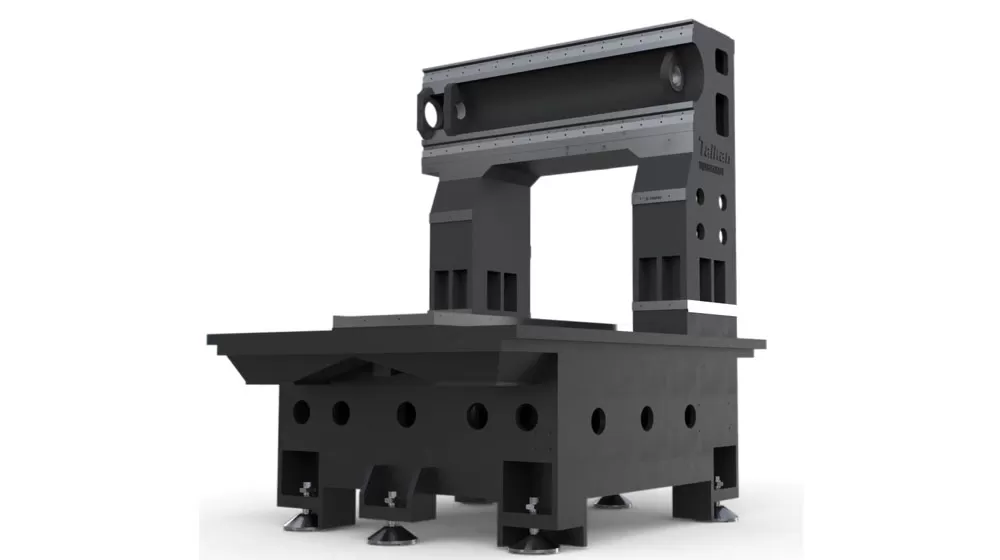

Sturdy Cast Iron Bed and Beam

Provides a highly stable and rigid foundation for precise machining.

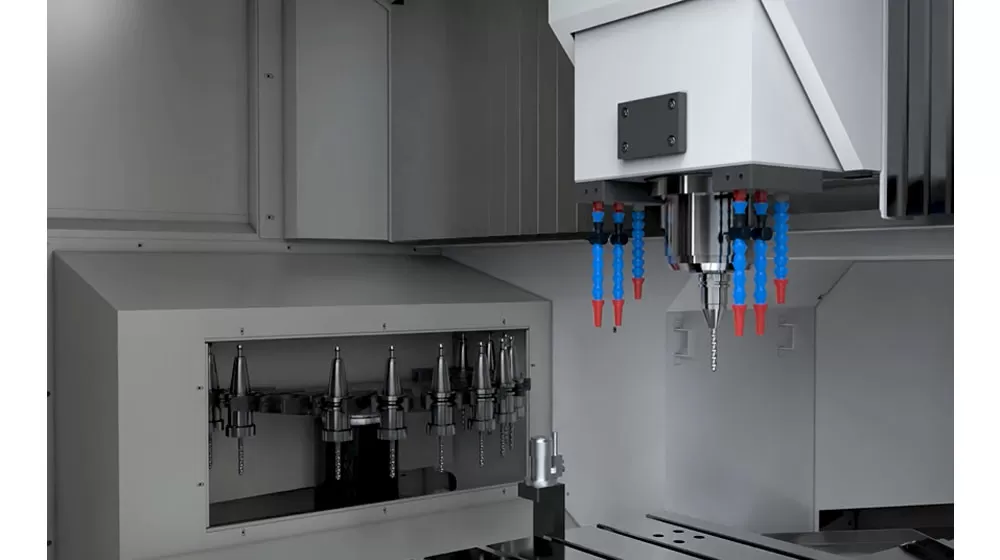

Optional Upgrades

Offers optional accessories such as a probe, 4th axis, 12-tool magazine, and oil mist collector to enhance functionality.

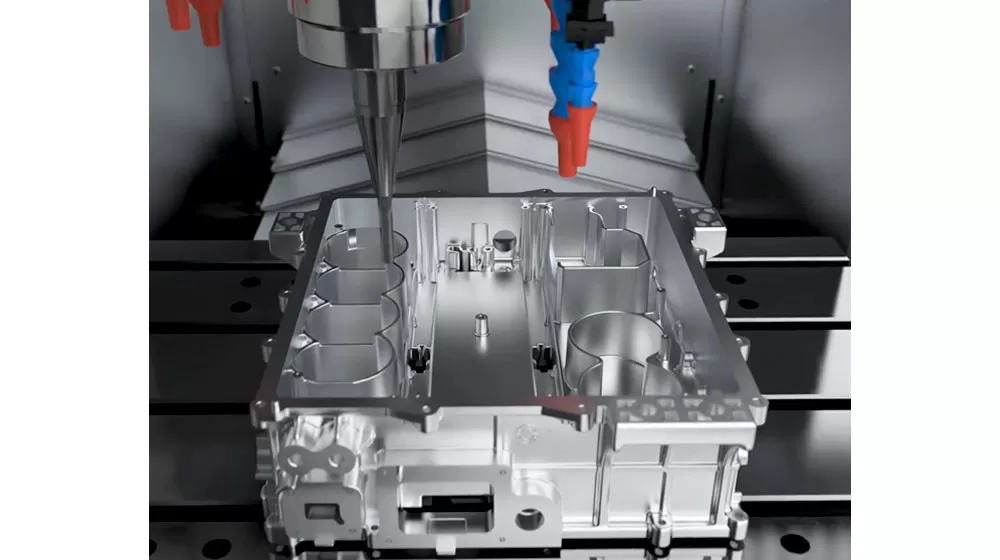

High Load-Bearing and Positioning Accuracy

Designed to handle heavy loads with high positioning precision for demanding machining tasks.

High Load-Bearing and Positioning Accuracy

Application of C-650 Single-Head High-Speed Precision Engraving Center

The C-650 is widely used for precision mold core machining, copper electrodes for molds, batch processing of aluminum products, shoe mold manufacturing, jig processing, and in the watch and eyewear industries. It is also ideal for precision machining of aluminum alloy, stainless steel parts, copper electrodes, and small copper molds.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-650 Single-Head High-Speed Precision Engraving Center

name	project	Parameters
workbench	Table size (mm)	600*500
	Distance from table to spindle nose (mm)	120~380
	Maximum load-bearing weight (Kg)
journey	X-direction travel (mm)	600
	Travel in Y direction (mm)	500
	Z travel (mm)	260
Spindle	Spindle power (Kw)	7.5
	Spindle maximum speed (rpm)	24 000
	Spindle diameter (mm)	φ120
	Spindle tool change method	Pneumatic tool changer
	Shank form	BT30
Feed rate	Maximum dry run feed speed (m/min)	15
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.008
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.005
Tool magazine	Tool magazine capacity	12T
Tool magazine	Tool magazine form	Semi-umbrella servo tool magazine
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	13.5
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	3500
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
