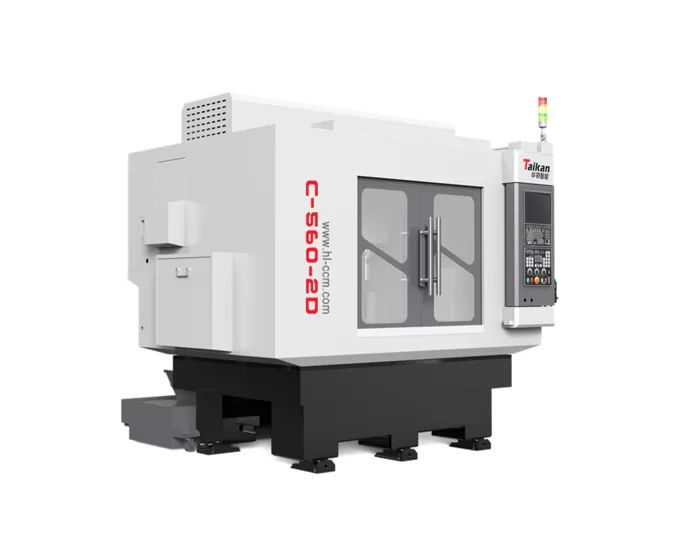

Name: C-560-2D Multi-Worktabel Hight-Speed Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of C-560-2D Multi-Worktabel Hight-Speed Machining Center

Fixed-Beam Gantry Structure

The machine features a fixed-beam gantry structure for enhanced stability during machining.

Marble Body Structure

Constructed with a marble body, offering excellent vibration resistance and thermal stability.

Dual-Channel CNC System

Equipped with a single CNC system that controls two independent channels, allowing for separate compensation for precise machining.

Standard 21-Tool Servo Tool Magazine

Comes standard with a 21-tool servo-driven tool magazine for efficient tool changes and multi-process capability.

Application of C-560-2D Multi-Worktabel Hight-Speed Machining Center

C-560-2D is ideal for precision machining of aluminum alloy components in the 3C industry, such as mobile phone frames, buttons, SIM card trays, camera brackets, tablet components, and laptop parts.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of C-560-2D Multi-Worktabel Hight-Speed Machining Center

name	project	Parameters
workbench	Table size (mm )	500*600
	Distance from table to spindle nose (mm)	155~355
	Maximum load-bearing weight ( Kg)
journey	X-direction travel (mm)	500
	Travel in Y direction (mm)	600
	Z travel (mm)	200
Spindle	Spindle power (K w)	4.0
	Spindle maximum speed (rpm)	40 000
	Spindle diameter (mm)	φ80
	Spindle tool change method	Pneumatic tool changer
	Shank form	ISO 20
Feed rate	Maximum dry run feed speed (m/min)	15
Feed rate	Maximum cutting feed rate (m/min)	10
Machine tool accuracy	Positioning accuracy: X/Y/Z (mm)	0.006
Machine tool accuracy	Repeated positioning accuracy: X/Y/Z (mm)	0.004
Tool magazine	Tool magazine capacity	21T*2
Tool magazine	Tool magazine form	Full Umbrella Servo Tool Changer
power source	Air pressure (Mpa)	≥0.6
power source	Electricity demand (Kw)	16
Other parameters	Dimensions (front and rear * left and right * up and down mm)
	Weight (Approx. weight: Kg)	5000
	Whether to configure network transmission and monitoring functions	Have
	Whether to configure the tool setter	Have

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
