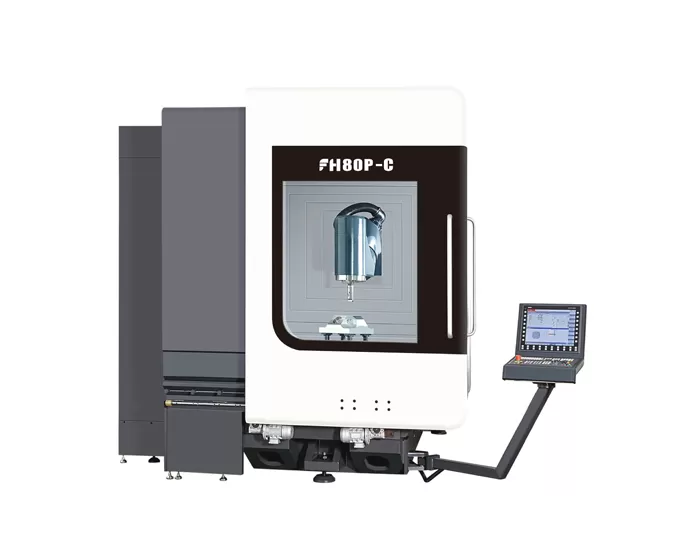

Item | FH80P-C |
X/Y/Z axis travel | 800×1050×800mm |
Distance from horizontal milling head center to working table | 39~839mm |
Rotary table speed | 300rpm |
Working table size | φ880mm |
Max table load | Milling 3000kg Turning 1500kg |
Swing milling head (B axis) | Standard |
Swing range (0=Vertical/180=Level) | -15°~ +180° |
B axis rated speed | 50rpm |
Distance from vertical spindle nose to table | 162~962mm |
Electric spindle Max. speed | 12000rpm |
Power（S1-100%/40%DC） | 34/42kW |
Torque（S1-100%/40%DC） | 132/192Nm |
Spindle taper | 1:10 Taper |
Tool interface | HSK-A63 |
Tool magazine capacity | 40T |
Max. tool diameter/length/weight | φ85mm/300mm/8kg |
Tool changing time (Tool to Tool) | 4s |
Drilling (Normalizing medium carbon steel) | φ40mm |
Tapping (Normalizing medium carbon steel) | M24 |
Rapid traverse | 40m/min |
X/Y/Z positioning accuracy | 0.006mm |
X/Y/Z repeat positioning accuracy | 0.004mm |
B/C positioning accuracy | 8" |
B/C repeat positioning accuracy | 4" |
Infrared probe | Renishaw OMP60 |
Tool setting gauge | Renishaw NC4F230 |
Machine height (Standard machine) | 3350mm |
Main body occupied area(L*W) | 4800×2930mm |
Tool magazine occupied area (L*W) | 1710×1350mm |
Chip conveyor occupied area (L*W) | 3070×1065mm |
Water tank occupied area(L*W) | 1785×1355mm |
Complete machine occupied area | 5610×3600mm |
Machine weight | 30000kg |
Control system | Siemens ONE |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
