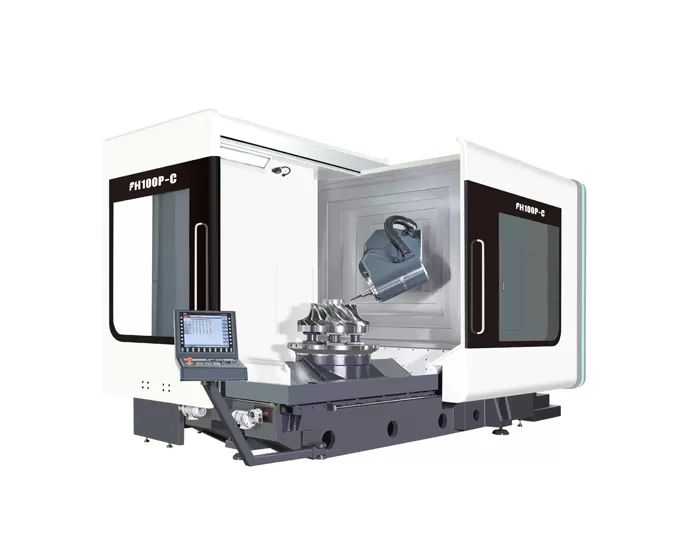

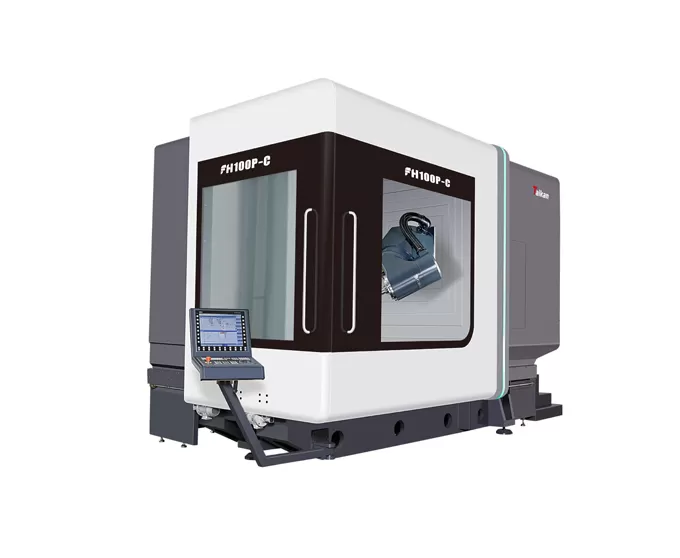

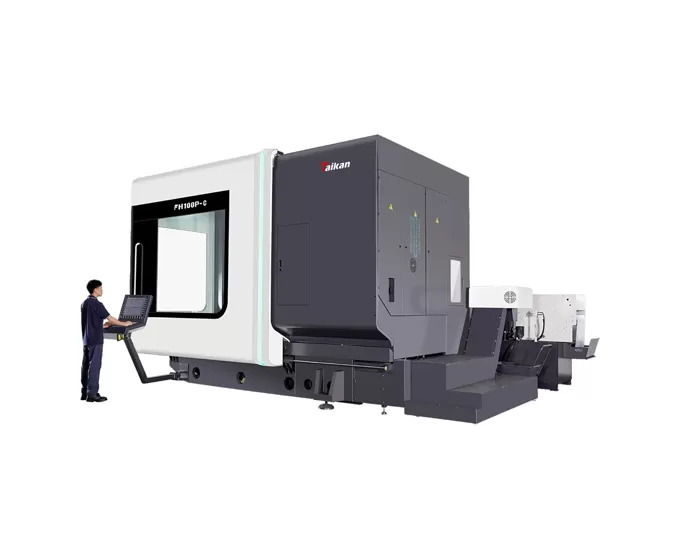

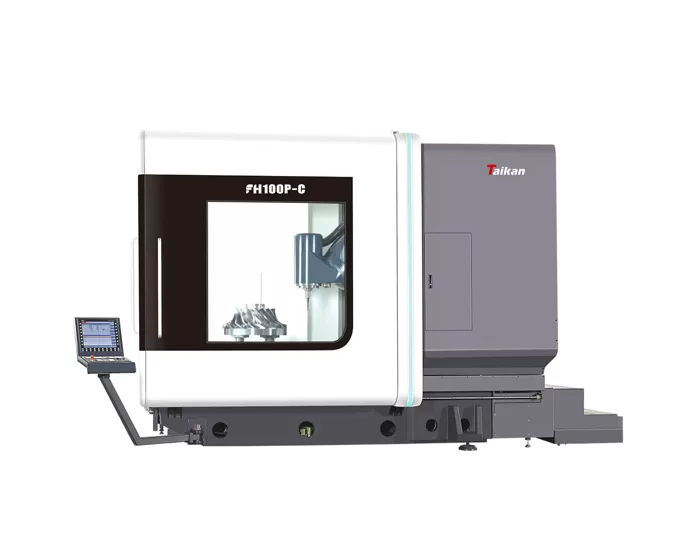

Item | FH100P-C |
X/Y/Z axis travel | 1000×1150×1000mm |
Distance from horizontal milling head center to working table | 30~1030mm |
Rotary table speed | 250rpm |
Working table size | φ1100mm |
Max table load | Milling 4000kg Turning 3000kg |
Swing milling head (B axis) | Standard |
Swing range (0=Vertical/180=Level) | -15°~ +180° |
B axis rated speed | 50rpm |
Distance from vertical spindle nose to table | 160~1160mm |
Electric spindle Max. speed | 10000rpm |
Power（S1-100%/40%DC） | 42/58kW |
Torque（S1-100%/40%DC） | 215/350Nm |
Spindle taper | 1:10 Taper |
Tool interface | HSK-A100 |
Tool magazine capacity | 40T |
Max. tool diameter/length/weight | φ135mm/300mm/12kg |
Tool changing time (Tool to Tool) | 4s |
Drilling (Normalizing medium carbon steel) | φ50mm |
Tapping (Normalizing medium carbon steel) | M40 |
Rapid traverse | 40m/min |
X/Y/Z positioning accuracy | 0.006mm |
X/Y/Z repeat positioning accuracy | 0.004mm |
B/C positioning accuracy | 8" |
B/C repeat positioning accuracy | 4" |
Infrared probe | Renishaw OMP60 |
Tool setting gauge | Renishaw NC4F230 |
Machine height (Standard machine) | 3650mm |
Main body occupied area(L*W) | 5170×3340mm |
Tool magazine occupied area (L*W) | 1915×1400mm |
Chip conveyor occupied area (L*W) | 3120×1065mm |
Water tank occupied area(L*W) | 1785×1355mm |
Complete machine occupied area | 6000×3750mm |
Machine weight | 35000kg |
Control system | Siemens ONE |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
