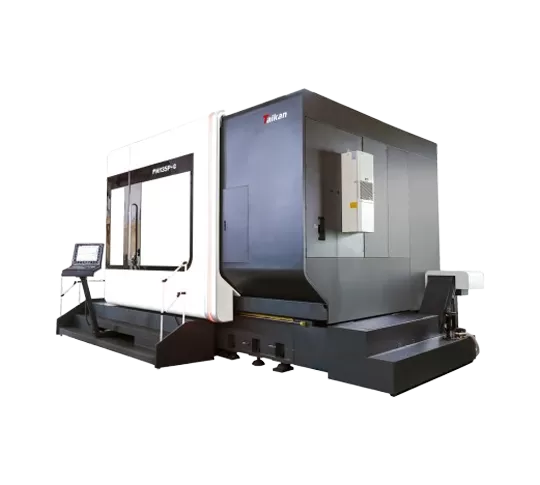

Item | FH135P-C |
X/Y/Z axis travel | 1450×1450×1000mm |
Distance from horizontal milling head center to working table | 30~1030mm |
Rotary table speed | 53rpm |
Working table size | φ1400mm |
Max table load | Milling 4000kg Turning 3000kg |
Swing milling head (B axis) | Standard |
Swing range (0=Vertical/180=Level) | -15°~ +180° |
B axis rated speed | 50rpm |
Distance from vertical spindle nose to table | 160~1160mm |
Electric spindle Max. speed | 10000rpm |
Power（S1-100%/40%DC） | 42/58kW |
Torque（S1-100%/40%DC） | 215/350Nm |
Spindle taper | 1:10 Taper |
Tool interface | HSK100A |
Tool magazine capacity | 40T |
Max. tool diameter/length/weight | φ135mm/300mm/12kg |
Tool changing time (Tool to Tool) | 4s |
Drilling (Normalizing medium carbon steel) | φ50mm |
Tapping (Normalizing medium carbon steel) | M40 |
Rapid traverse | 40m/min |
X/Y/Z positioning accuracy | 0.006mm |
X/Y/Z repeat positioning accuracy | 0.004mm |
B/C positioning accuracy | |
B/C repeat positioning accuracy | |
Infrared probe | |
Tool setting gauge | |
Machine height (Standard machine) | 4150mm |
Main body occupied area(L*W) | 5905×4100mm |
Tool magazine occupied area (L*W) | 2200×1600mm |
Chip conveyor occupied area (L*W) | 3700×1250mm |
Water tank occupied area(L*W) | |
Complete machine occupied area | |
Machine weight | 42000kg |
Control system |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
