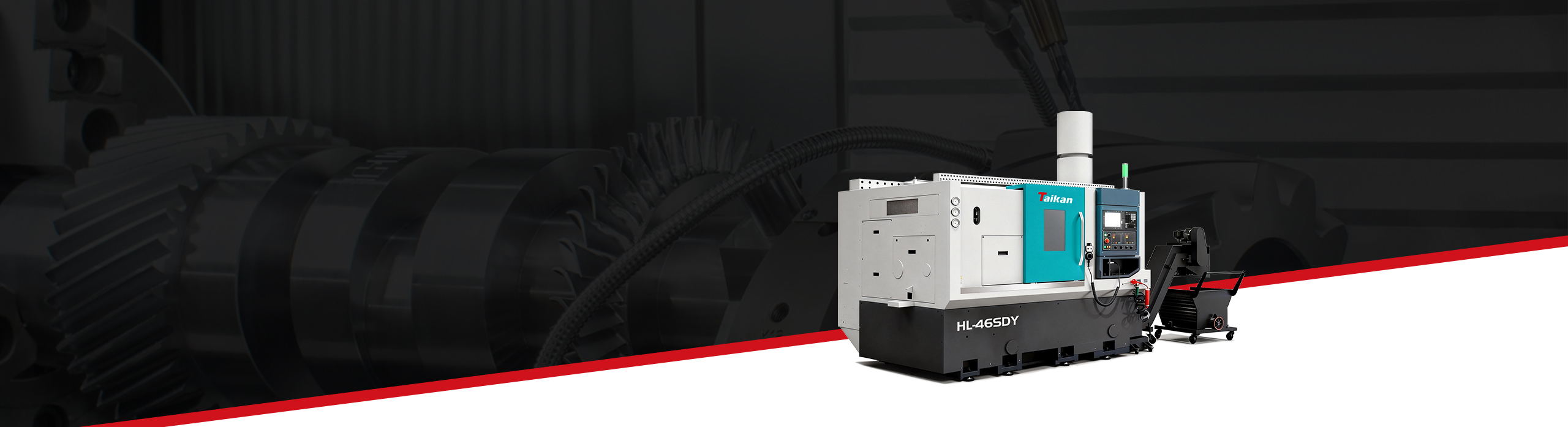

SDY Series CNC Horizontal Lathe

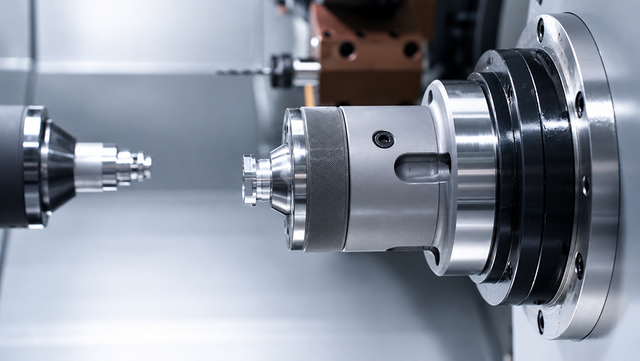

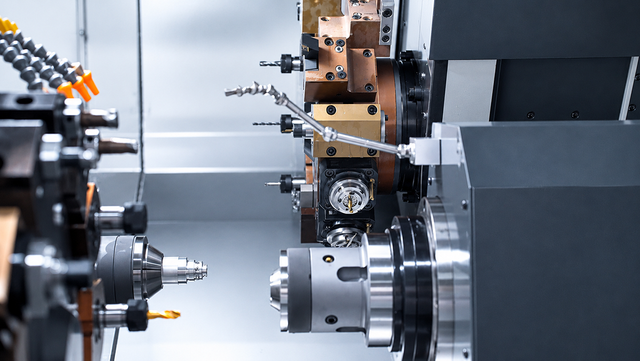

SDY Series adopts full-closed control with dual spindle, dual tool holder, grating scale, and dual-channel design, which can easily carry various power heads and turning tools.
Types of SDY Series CNC Horizontal Lathe
This area can be fully edited and gives you the opportunity to introduce yourself.

SDY Series Highlights

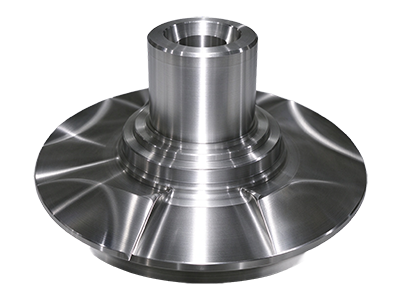

Machining Application

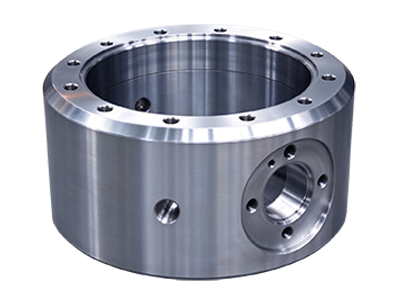

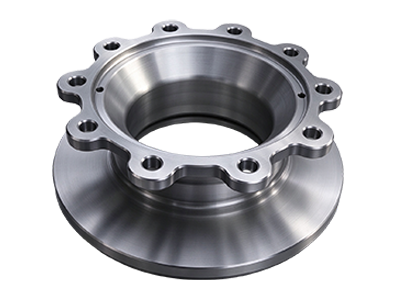

Capable of completing turning, milling, drilling, boring, tapping, engraving, and other combined machining in a single setup, it is mainly used for batch machining of precision hardware, shaft-type, special-shaped, and non-standard parts.

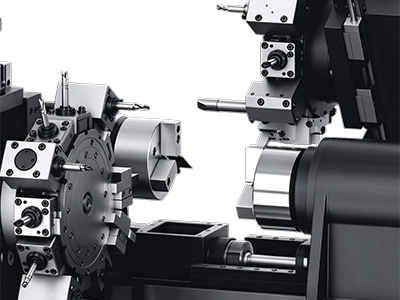

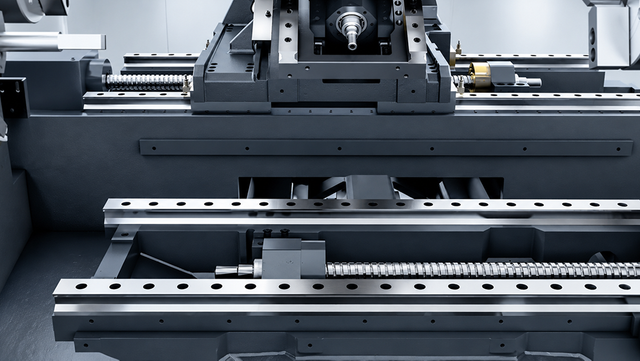

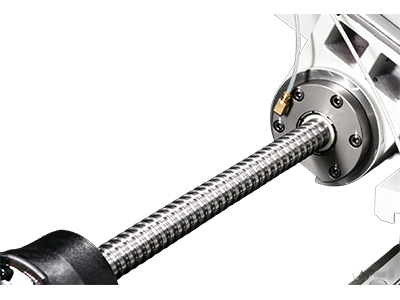

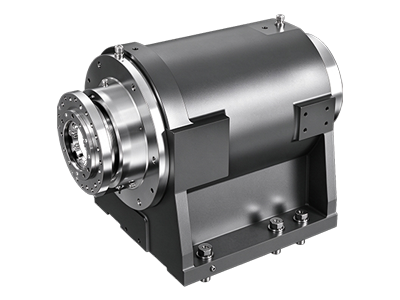

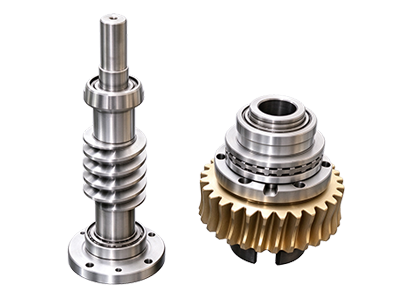

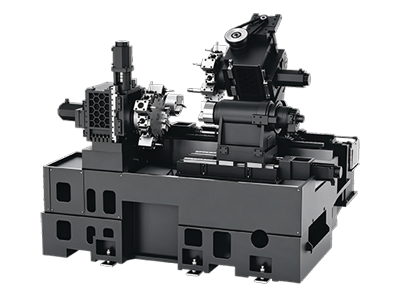

Key Components

Technical Specifications

Item

Unit

HL-46SDY

HL-52SDY

Machining range Max. swing diameter on the bed

mm

∅570 ∅570
Max. turning diameter on the saddle

mm

∅320 ∅320
Max. turning diameter

mm

∅130 ∅130
Max. turning length mm 130 130
Travel X1, X2 axis travel

mm

200,300 200,300
Y1 axis travel mm ±50 ±50
Y1 machining travel mm ±45 ±45
Z1, Z2 axis travel

mm

320,300 320,300
Main/Sub-spindle Chuck size inch 6" 8"
Max. speed

rpm

6000 4500
Basic speed rpm 2000 1500
Spindle end type / A2-5 A2-6
Motorized spindle power KW 15/17.8
Bar diameter

mm

∅45 ∅52
Milling spindle Max. speed

rpm

4000 4500
Drilling capacity mm ∅16*1.5 ∅16*1.5
Tapping capacity / M12*1.75 M12*1.75
Milling spindle motor KW 2.7 2.3
Turret interface

/

BMT45 BMT45
Feed speed X rapid speed

rpm

18000 18000
Z rapid speed rpm 18000 18000
Y rapid speed rpm 10000 10000
Motor Spindle motor KW >11 >11
Cooling pump motor KW 0.75 0.75
cooling Water tank capacity L 130 130
Others Machine height mm 2060 2060
Occupied area mm 2410*2210 2410*2210
Machine weight kg 5000 5000
