High-Speed Machining Center

Multiple spindles and multi-channel control for significantly higher throughput and flexibility
.
Home » Products index » High-Speed Machining Center » High-Speed Machining Centers

Types of High-Speed Machining Center

Best-Selling High-Speed Machining Centers​​​​​​​
This area can be fully edited and gives you the opportunity to introduce yourself.
READ MORE

Machining Video

Diverse Performance Models of High-Speed Machining Centers

● Single-Spindle Series: Agile and versatile. Engineered for ultra-precise 3D profiling and exceptional surface finishes. Ideal for prototyping, custom parts, and precision molds.

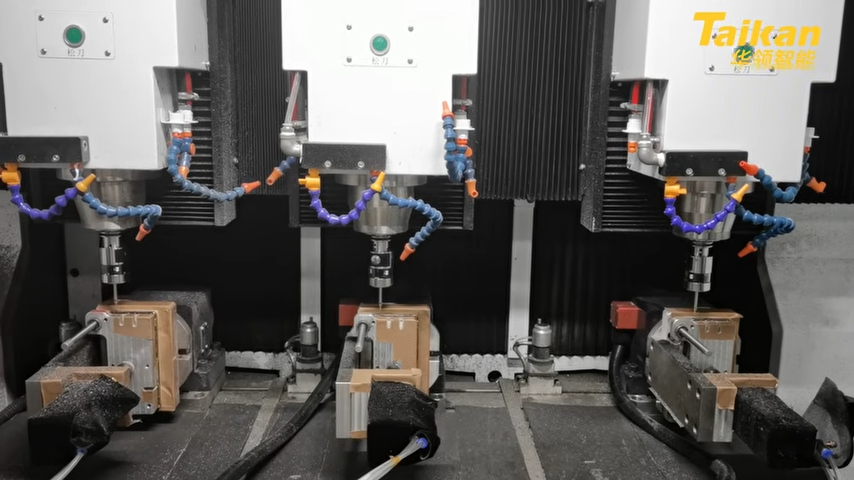

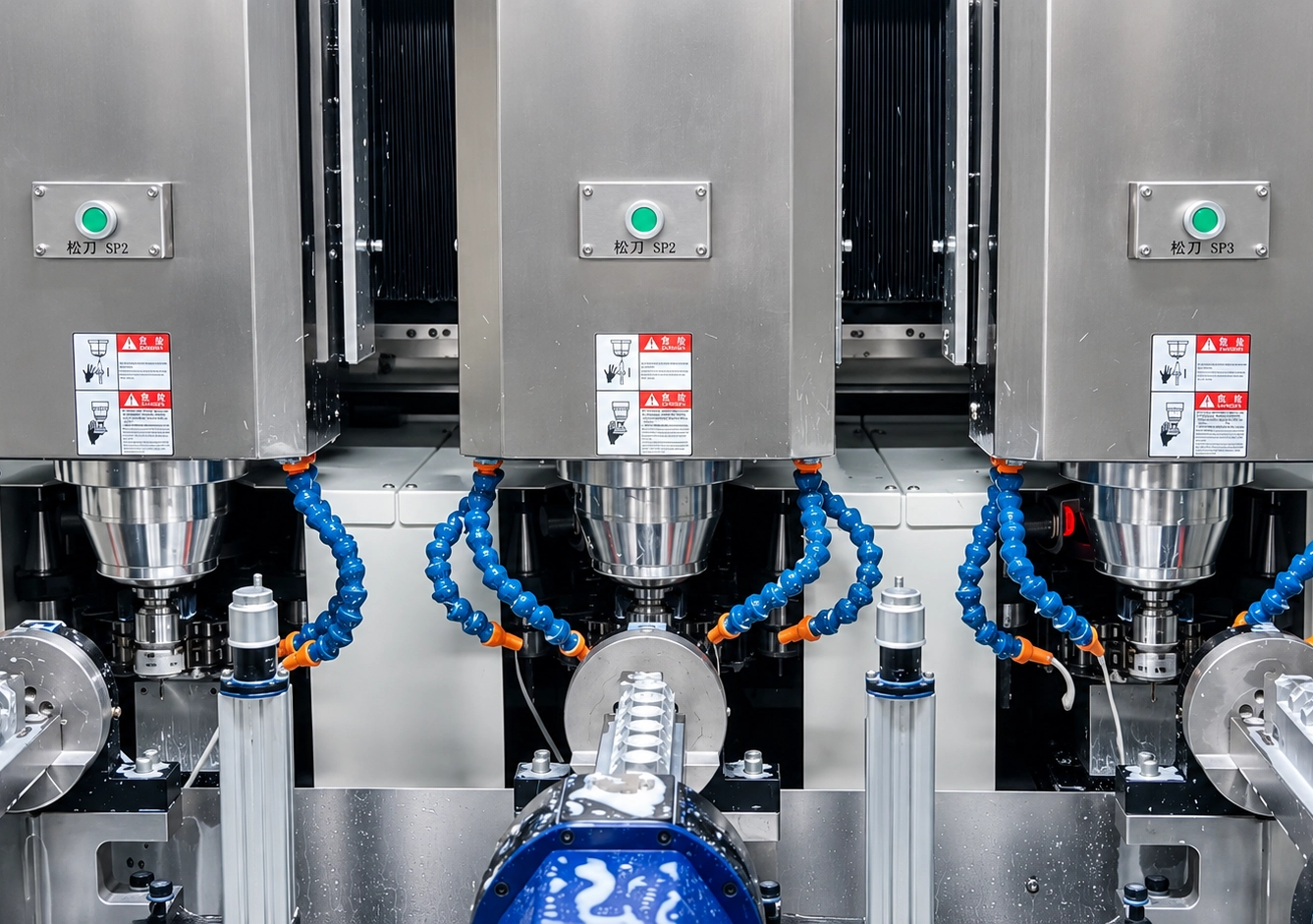

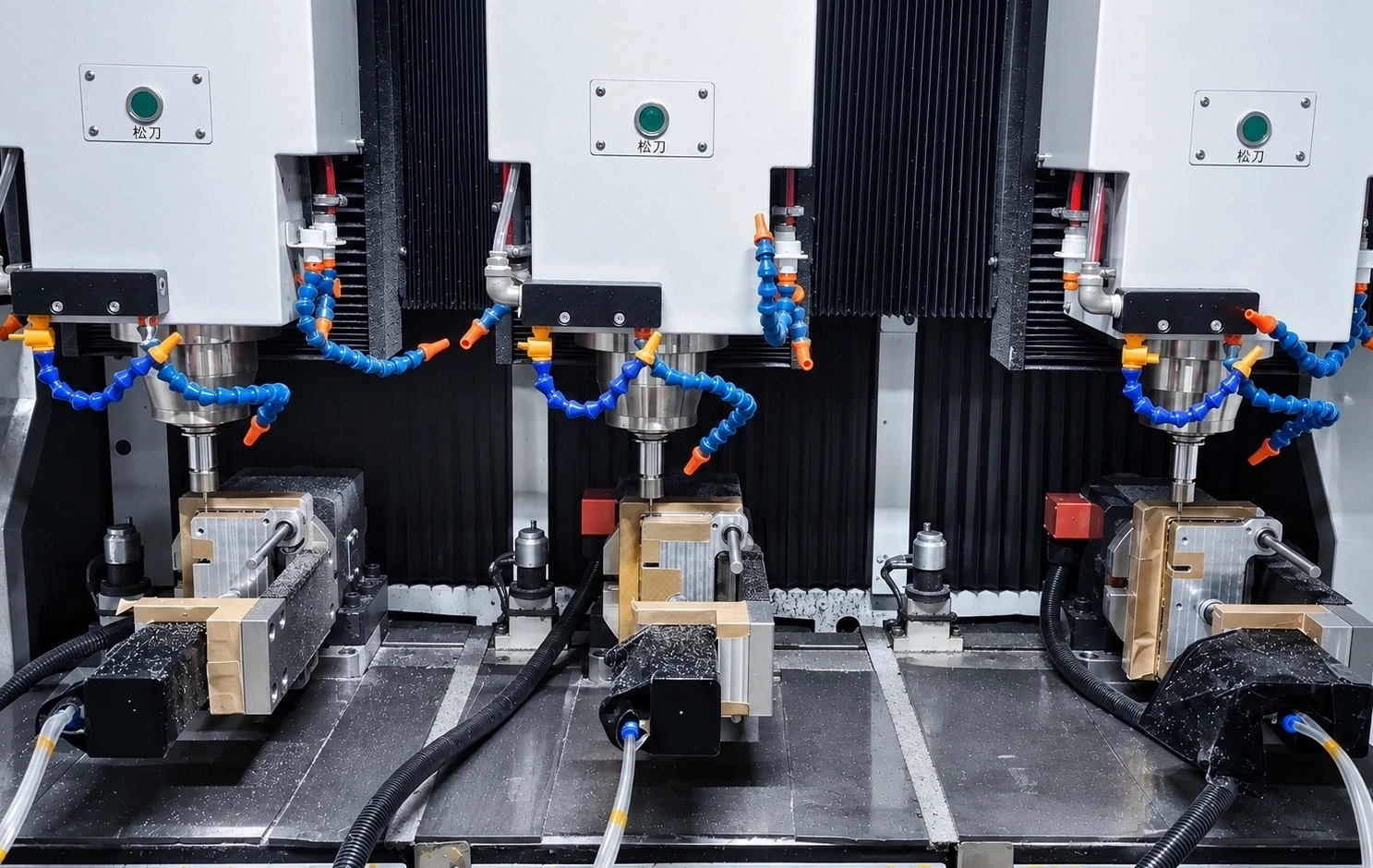

● Multi-Spindle Series: The mass-production powerhouse. Utilizes three or more spindles to simultaneously machine multiple high-precision parts per cycle for massive, consistent output.

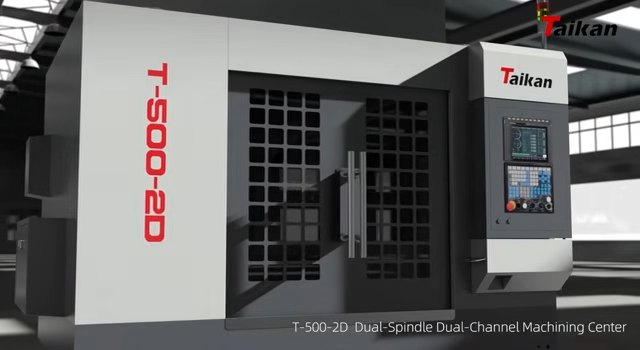

● Multi-Channel Series: Built for complex, multi-process parts. Enables different spindles or axes to execute independent toolpaths simultaneously, minimizing idle time and maximizing OEE.

● Gantry-Type Series: Combines high-speed dynamics with heavy-duty stability. The closed-loop bridge structure provides unparalleled rigidity to handle larger workpieces while maintaining micro-level accuracy and high-gloss finishes.
crop_1792044715765
crop_1792044910742

Key Industry Applications

 3C Electronics & Smart Wearables
High-efficiency milling of smartphone housings, tablet frames, smartwatch bodies, camera lens modules, and intricate electronic hardware.

Precision Molds & Die Making
Ideal for processing graphite and copper electrodes and small precision injection molds, achieving mirror-surface finishes that often eliminate the need for secondary EDM (Electrical Discharge Machining).

Medical Devices
Delivering the micro-precision required for orthopedic implants, surgical instruments, and dental components using tough materials like titanium and medical-grade stainless steel.

 Automotive & NEV Components
Machining lightweight aluminum structural parts, customized dashboard elements, and high-quality interior trim pieces for new energy vehicles.

 Aerospace
Manufacturing small, complex, thin-walled structural components that require strict dimensional tolerances and excellent surface integrity.

Machine Architecture & Core Technologies

 High-Speed, High-Rigidity Gantry Architecture
Features a compact, space-saving portal layout with a closed-loop structure that dampens vibrations for high-speed cutting stability. Paired with a large-capacity servo ATC for single-setup, multi-process machining.

 Premium Imported Core Components
Equipped with imported high-precision linear guideways, high-speed electro-spindles, and advanced motion control systems to guarantee continuous operation and sub-micron precision.

 Optional Smart Configurations
1) On-Machine Measurement Probes: Automated in-process part and tool inspection to reduce scrap rates.
2) 4th / 4.5th Axis Rotary Tables: Enables multi-sided machining in a single setup, eliminating manual repositioning and maximizing first-pass yield.
crop_1792044244600
crop_1792044542183

What to Know About High-Speed Machining Centers

  • What is a CNC High-Speed Machining Center, and how does it differ from a standard CNC mill?

    A CNC High-Speed Machining Center is a precision machine tool engineered for high-RPM, high-feed, and micro-accuracy cutting.
    Unlike standard CNC milling machines designed for heavy material removal with high torque at lower speeds, a high-speed machining center utilizes high-frequency motorized electro-spindles (typically 20,000 to 60,000+ RPM) paired with small-diameter cutting tools.  It excels at machining complex 3D contours, thin-walled parts, and micro-features while achieving near-mirror surface finishes (Ra ≤ 0.1 µm)—making it indispensable for 3C electronics, precision mold making, graphite processing, and medical device manufacturing.

  • Can a High-Speed Machining Center replace EDM for mold making?

    Yes. Driven by high-RPM electro-spindles (up to 24,000–60,000 RPM) and dynamic vibration-dampening bed structures, Taikan high-speed machining centers achieve mirror-surface finishes on copper, graphite, and hardened steel mold cavities. This drastically reduces or eliminates the need for time-consuming secondary manual polishing and EDM processes, cutting overall mold lead times.

  • What are the main benefits of motorized electro-spindles in high-speed micro-milling?

    Motorized electro-spindles integrate the motor directly into the spindle shaft, eliminating transmission belts and gears. This design drastically reduces inertia, minimizes vibration, and enables rapid acceleration. Paired with active closed-loop liquid cooling, it prevents heat buildup and thermal displacement, ensuring sub-micron positioning accuracy during long-duration, high-speed cutting routines.

  • Can Taikan High-Speed Machining Centers process abrasive materials like graphite or technical ceramics?

    Yes. For processing graphite electrodes, 3C glass/ceramics, or abrasive composites, our machines can be equipped with fully sealed enclosure protection, positive-pressure air curtains for linear scales, and specialized vacuum dust-extraction or wet-filtration systems. These features keep fine abrasive dust out of critical motion components like linear guides and ball screws, maintaining long-term accuracy.

  • How do Multi-Spindle High-Speed Centers ensure identical dimensional accuracy across all active spindles?

    On Taikan multi-spindle models, all spindles are mounted on a high-rigidity gantry crossbeam and driven by a unified high-performance motion controller. Each spindle features fine-tuning mechanical adjustments and can be individually calibrated using on-machine optical probes, guaranteeing identical micro-level tolerances across all parts produced in the same machining cycle.

Customer Success

See how Taikan’s solutions are helping manufacturers worldwide achieve precision, efficiency, and growth.
What You Know About us
3C Industry | Yihang Precision (China)

Table of Content [Hide] 1. I. Initial Connection: Mutual Recognition Based on Quality2. II. Intelligent Manufacturing Advancement: Breakthroughs in Precision and Efficiency3. III. Production Assurance: A Full-Cycle Machining Partner4. Welcome to contact us! In

Read More
Empowering Xinghuang's Camera Housing Production

Table of Content [Hide] In the prosperous and dynamic Yangtze River Delta manufacturing cluster, Ningbo Xinghuang Optoelectronics Co., Ltd. (hereinafter referred to as "Xinghuang Optoelectronics") — a manufacturing enterprise with 23 years of expertise in the

Read More
Alphacool's Heat dissipation technology with Taikan Machine

Table of Content [Hide] 1. I. A Synergy of German Roots and Localized R&D2. II. The Core of Thermal Management: Balancing Material and Process3. III. Precision Engineering: The Taikan T-1200's Superior Performance4. IV. Driving Efficiency: The T-500S as the "P

Read More

Catalog Download Center

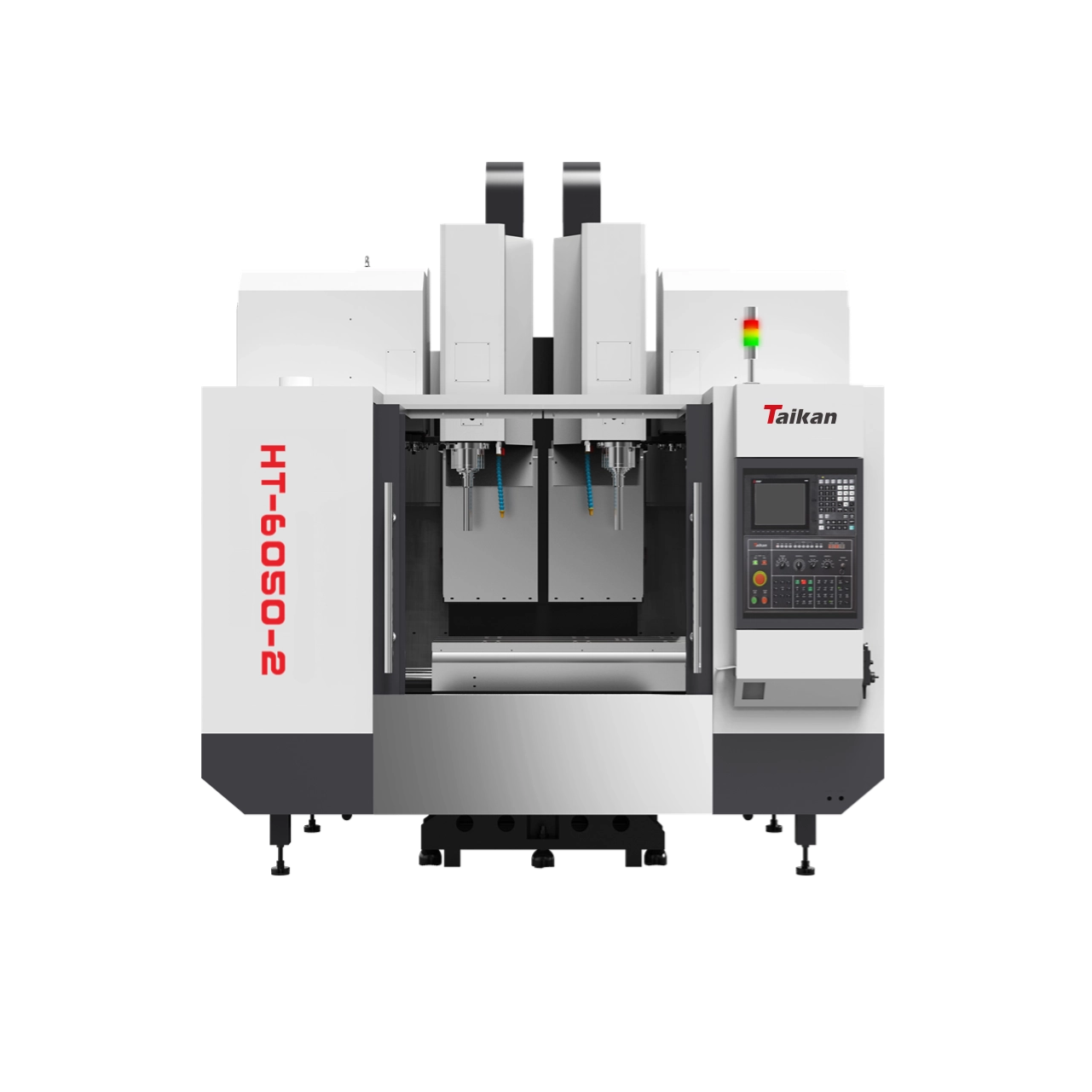

Download the Taikan High-Speed Machining Center brochure to explore our complete product range, key specifications, core features, and machining capabilities, helping you identify the right machine for your application.
