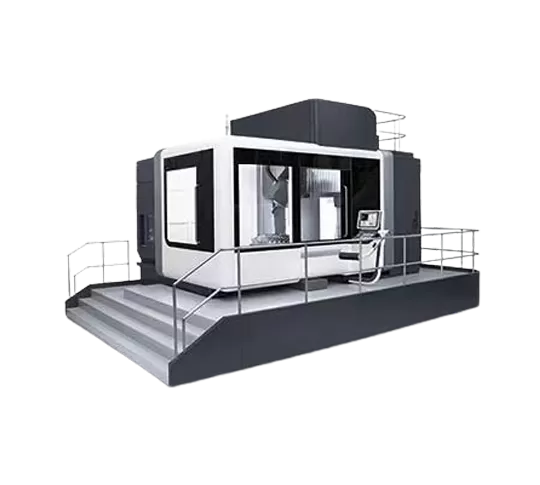

Item | FH210P |
X/Y/Z axis travel | 2100×2100×1300mm |
Distance from horizontal milling head center to working table | 130~1430mm |
Rotary table speed | 30rpm |
Working table size | φ1800mm |
Max table load | Milling 8000kg |
Swing milling head (B axis) | Standard |
Swing range (0=Vertical/180=Level) | -15°~ +180° |
B axis rated speed | 50rpm |
Distance from vertical spindle nose to table | 236~1536mm |
Electric spindle Max. speed | 10000rpm |
Power（S1-100%/40%DC） | 48/71kW |
Torque（S1-100%/40%DC） | 300/452Nm |
Spindle taper | 1:10 Taper |
Tool interface | HSK100A |
Tool magazine capacity | 40T |
Max. tool diameter/length/weight | φ135mm/300mm/12kg |
Tool changing time (Tool to Tool) | 4s |
Drilling (Normalizing medium carbon steel) | φ50mm |
Tapping (Normalizing medium carbon steel) | M40 |
Rapid traverse | 40m/min |
X/Y/Z positioning accuracy | 0.012mm |
X/Y/Z repeat positioning accuracy | 0.01mm |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
