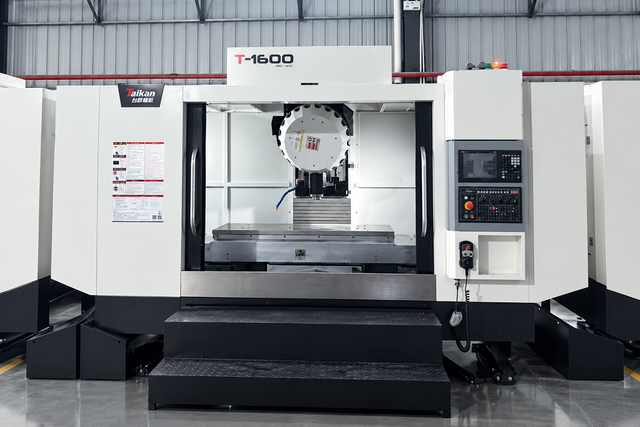

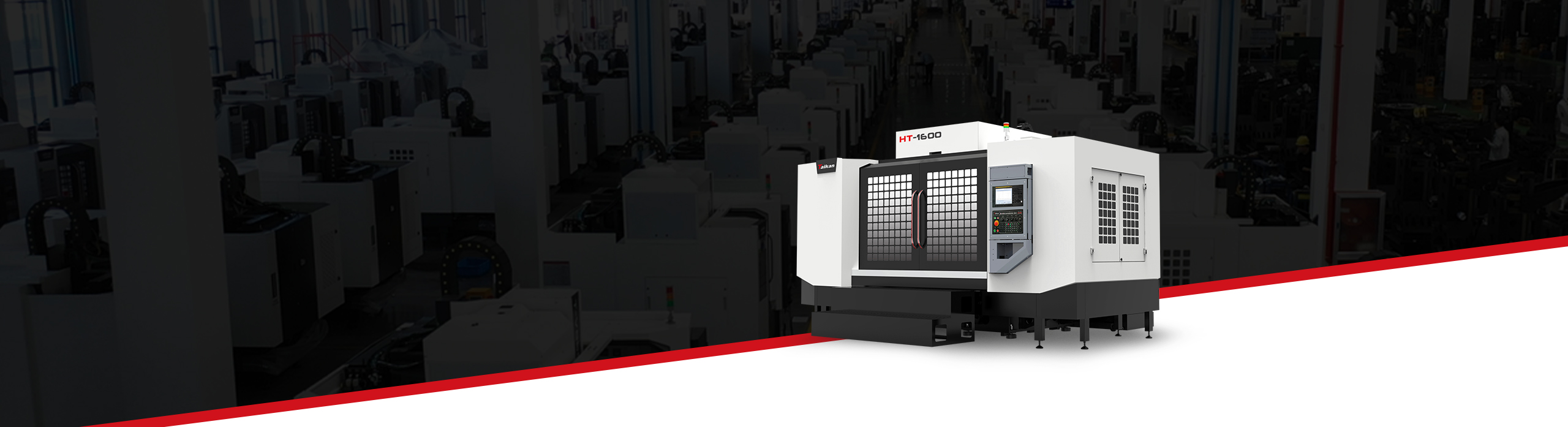

T Series Long Travel Tapping Center

Featuring an extended X-axis travel up to 2,000 mm, the Taikan T Series maximizes versatility and throughput for large-scale high-speed machining.
Home » Products index » Tapping Centers » T Series Long Travel Edition
Types of T Series Tapping Machining Centers​​​​​​​
This area can be fully edited and gives you the opportunity to introduce yourself.

T Series Highlights

It features high precision, high rigidity, and high stability, integrating drilling, tapping, milling, and other processing functions.

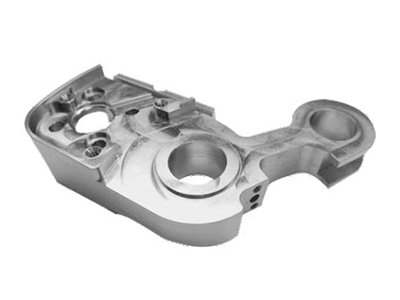

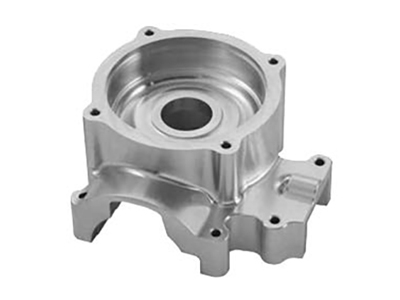

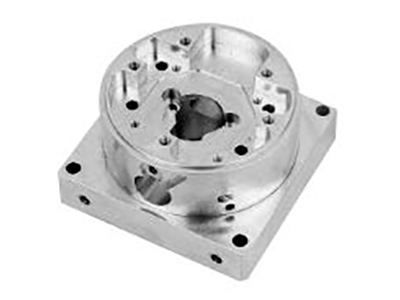

Machining Application

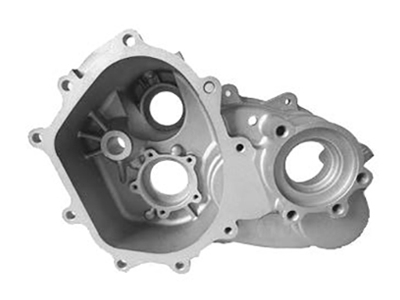

It is mainly applied in general industries, including new energy and 5G, for the light machining of box-type parts, frame parts, plate parts, disc parts, profiles, and housing parts.

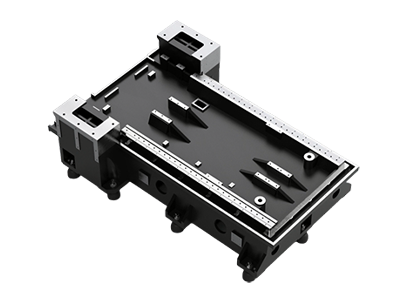

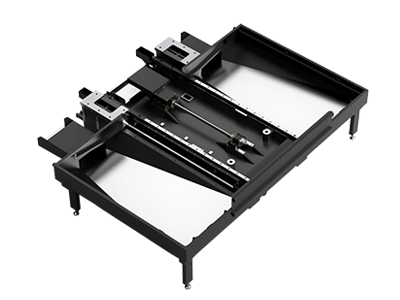

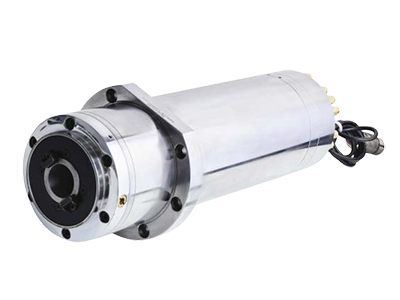

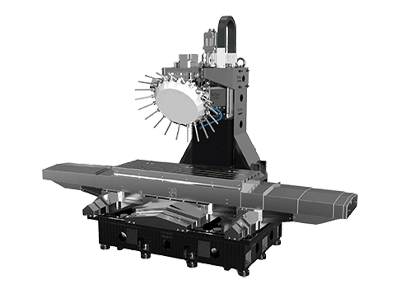

Key Components

Technical Specifications



Item

Unit

HT-1000

HT-1200

HT-1300

HT-1600

HT-1800

HT-2000

Travel

X axis

mm

1100

1200

1300

1600

1800

2000

Y axis

mm

650 650 650 650 650 650

Z axis

mm

410 410 410 475 475 475

Worktable

Table size

mm

1200*600 1300*650 1300*650 1700*650 1900*650 2000*650

Max. load

kg

600

600

600

600

600

600

Spindle

Motor power kW 3.7/5.5 3.7/5.5 3.7/5.5 3.7/5.5 3.7/5.5 3.7/5.5
Motor torque N.m 14.1/21 14.1/21

514.1/21

14.1/21 14.1/21 14.1/21
Motor speed

r/min

20-20000 20-20000 20-20000 20-20000 20-20000 20-20000

Spindle taper

/

BT30

BT30 BT30 BT30 BT30

BT30

Speed

Cutting feed

mm/min

1-15000

1-15000

1-15000

1-15000

1-15000

1-15000

X/Y/Z rapid speed

m/min

36/36/36 36/36/36 36/36/36 30/36/36

30/36/36

27/36/36

Tool magazine

Tool capacity

pcs

21

21

21

21

21

21

Others

Machine size

mm

2700*3420*2710 2960*3400*2710 2960*3400*2710 4150*3900*2550 4400*3900*2560 4800*3900*2560

Weight

kg

5500

5500

5500

6700

7500

7850
