CNC Vertical Lathe

Supports automation and multi-process integration for high-precision rotary parts manufacturing.


Home » Products index » CNC Vertical Lathe » CNC Vertical Lathes

Types of CNC Vertical Lathe

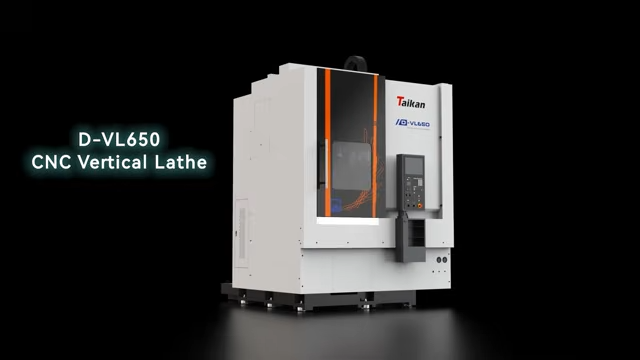

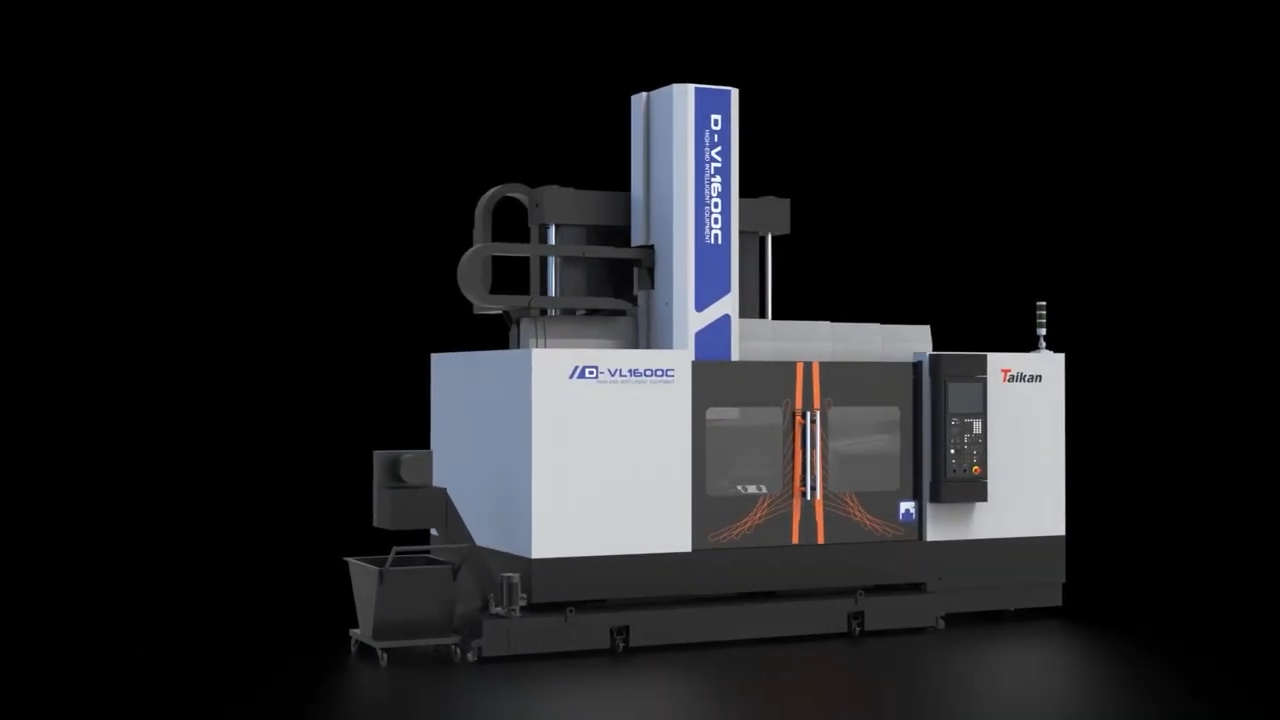

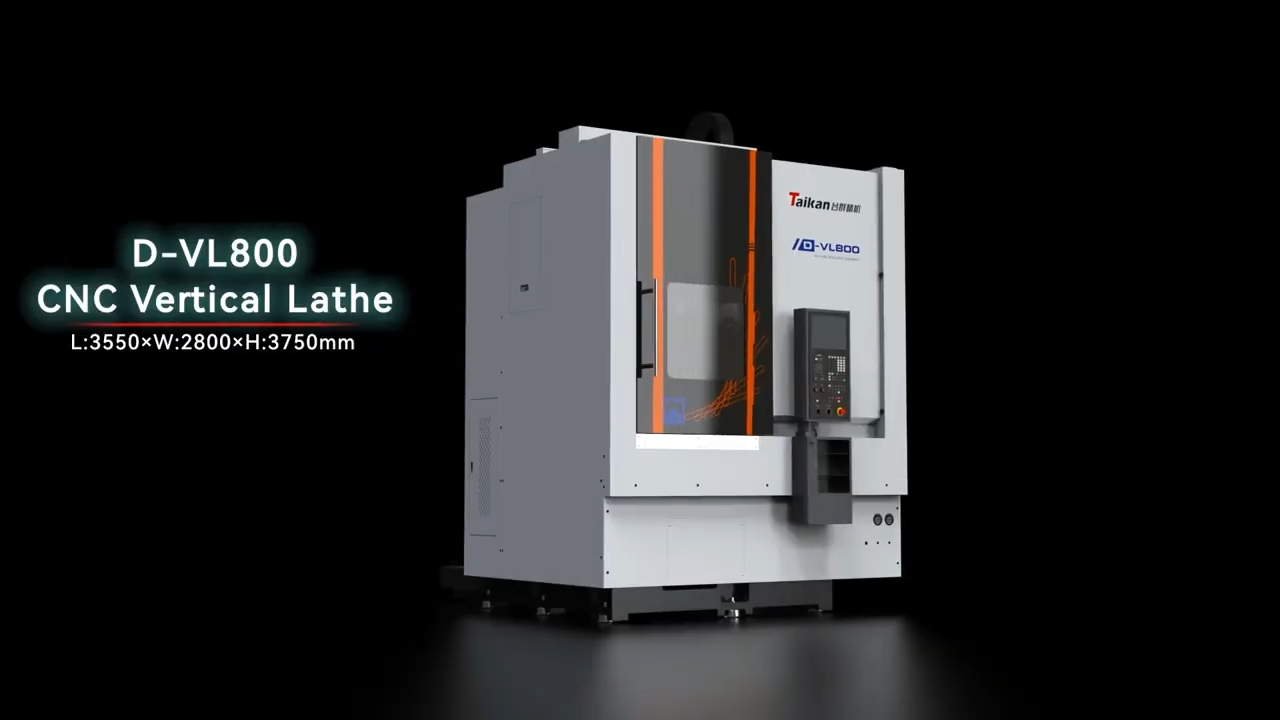

Machining Video

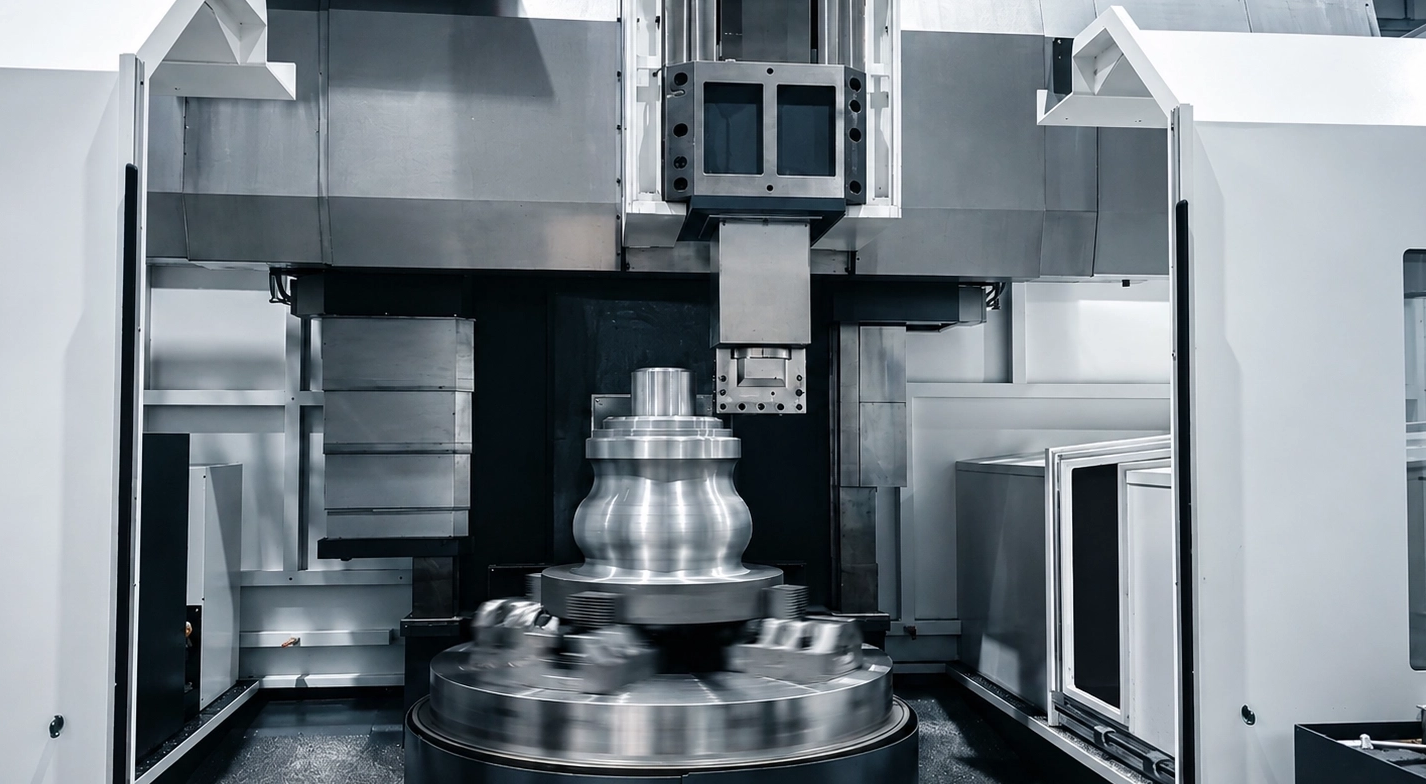

What are the advantages of Vertical Lathes compared to horizontal lathes?

 Gravity-Eliminated Distortion
The vertical configuration eliminates roundness and sagging errors caused by workpiece weight during horizontal clamping.

Enhanced Clamping Stability
Workpiece weight assists seating against the fixture, maximizing positioning accuracy and repeat precision.

Superior Heavy-Duty Capability
Integrated box-type base design optimized via Finite Element Analysis (FEA) delivers high rigidity, strength, and vibration absorption for heavy turning operations.

Footprint Efficiency & LoadingIdeal for disc-type, shell-type, flange, and ring-shaped components that are easier to load vertically via overhead crane or automated gantry.
crop_1792053344706
crop_1792053784593

What is the difference between standard "HD-VL" models and "M / CM" suffix models?

 HD-VL / HD-VL-C Series
High-precision, high-efficiency vertical turning centers designed for single-process heavy turning, boring, and facing operations.

HD-VL-M / HD-VL-CM Series
Turn-mill multitasking centers equipped with live tool turrets or milling spindles, C-axis worktable indexing, and driven tooling capability for milling, drilling, and rigid tapping in a single clamping setup.

Which industries are Taikan HD-VL series machines optimized for?

The Taikan HD-VL series vertical lathes are precision-engineered for high-efficiency, heavy-duty machining of disc-type, short-shaft, and shell-type components:

● Automotive & New Energy Vehicles: Tailored for mass production of brake discs, wheel hubs, flywheels, brake drums, electric drive motor housings, and reducer gearboxes. Vertical gravity seating prevents thin-wall clamping deformation while facilitating gantry automation.
● Wind Power & Heavy Machinery: Optimized for large slewing bearing rings, railway wheelsets, high-pressure pipe flanges, valve bodies, and impellers. High-torque drives efficiently process heavy castings and forgings.
● Robotics & Precision Transmission: Precision-suited for RV reducer housings, flexsplines, and planet carriers requiring strict concentricity and sub-micron rotational accuracy.
● Aerospace & General Engineering: Ideal for turbine disc blanks, structural casing rings, and short-shaft components. Vertical arrangement allows direct downward chip evacuation during heavy cutting of heat-resistant alloys.

By integrating structural rigidity with optional live-tooling turn-mill capabilities, the HD-VL series delivers single-setup productivity across high-precision manufacturing sectors.
crop_1792054558707
crop_1792054695588

Key Questions About CNC Vertical Lathe

  • How does Taikan ensure long-term structural stability and vibration damping?

    Major structural castings (base, column, crossbeam, saddle) are cast from high-grade Meehanite / high-strength cast iron.
    Castings undergo secondary annealing and thermal stress-relief aging to eliminate internal stress and secure long-term dimensional stability.
    Closed box-type structural framing maintains overall rigidity during continuous high-torque cutting.

  • What spindle and worktable bearing configurations are utilized?

    Compact / Medium Models (HD-VL500 / 650 / 800): Feature imported high-precision double-row short cylindrical roller bearings with adjustable radial clearance and preloading to sustain radial and axial cutting loads.
    Heavy-Duty Models (HD-VL1250C / 1600C): Utilize double-row short cylindrical roller bearings combined with thrust ball bearings, or high-precision cross-roller bearings to withstand heavy axial-radial cutting forces while maintaining high rotational runout precision.

  • What tool turret options are available for the HD-VL500 / 650 / 800 series?

    Horizontal Tool Turret: Fast tool-indexing speed suited for external turning, facing, and chamfering operations.
    Vertical Tool Turret: Extended clearance profile optimized for deep internal boring and inner diameter machining with minimal tool interference.
    Live Tool Turret (BMT65 / BMT75): Driven by dedicated turn-mill motors with 3-piece Hirth couplings, offering lift-free tool changing, high hydraulic clamping force, and rigid milling/drilling capabilities.

  • What CNC control options and interface features are offered?

    Standard System: Taikan CNC system equipped with a 15-inch color operation panel with standard ergonomic push-buttons and user-friendly interface design.
    Optional Systems: Siemens CNC (e.g., SINUMERIK) and FANUC 0i-TF series controllers.

  • What optional accessories can be added to customize the machine?

    ● Thermal & Precision Management: Hollow water-cooled ball screws, full enclosure machine guarding, linear optical scales (full closed-loop control).
    ● Probing & Measurement: Renishaw automatic tool setters and Renishaw OMP40 workpiece measuring probes.
    ● Workholding & Coolant: Hydraulic chucks (up to 24-inch), electromagnetic chucks, spindle grinding head attachments, electrical cabinet air conditioning, oil mist collectors, oil-water separators, and side-discharge chip conveyors.

Customer Success

See how Taikan’s solutions are helping manufacturers worldwide achieve precision, efficiency, and growth.
What You Know About us
3C Industry | Yihang Precision (China)

Table of Content [Hide] 1. I. Initial Connection: Mutual Recognition Based on Quality2. II. Intelligent Manufacturing Advancement: Breakthroughs in Precision and Efficiency3. III. Production Assurance: A Full-Cycle Machining Partner4. Welcome to contact us! In

Read More
Empowering Xinghuang's Camera Housing Production

Table of Content [Hide] In the prosperous and dynamic Yangtze River Delta manufacturing cluster, Ningbo Xinghuang Optoelectronics Co., Ltd. (hereinafter referred to as "Xinghuang Optoelectronics") — a manufacturing enterprise with 23 years of expertise in the

Read More
Alphacool's Heat dissipation technology with Taikan Machine

Table of Content [Hide] 1. I. A Synergy of German Roots and Localized R&D2. II. The Core of Thermal Management: Balancing Material and Process3. III. Precision Engineering: The Taikan T-1200's Superior Performance4. IV. Driving Efficiency: The T-500S as the "P

Read More

Catalog Download Center

Get a complete overview of Taikan CNC Vertical Lathe, including model specifications, performance features, and application capabilities, all in one brochure.
crop_1792054904646

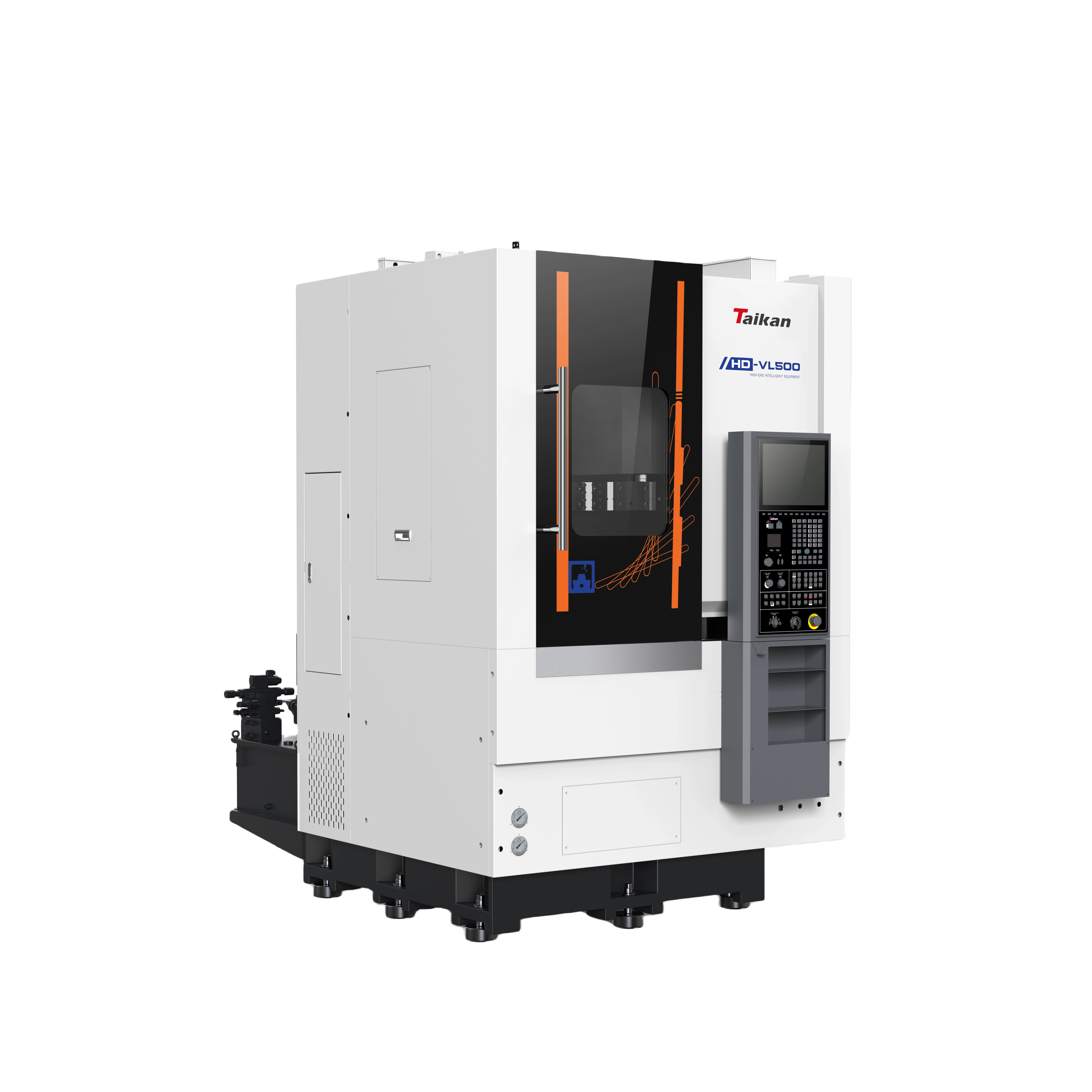

Discover Our Taikan CNC Vertical Lathe
