S Series with 3-Axis Linear Guide Rails Vertical Machining Center

A Classic Masterpiece: Engineered for high-speed, high-efficiency mass production.
Types of S Series Vertical Machining Centers​​​​​​​
This area can be fully edited and gives you the opportunity to introduce yourself.

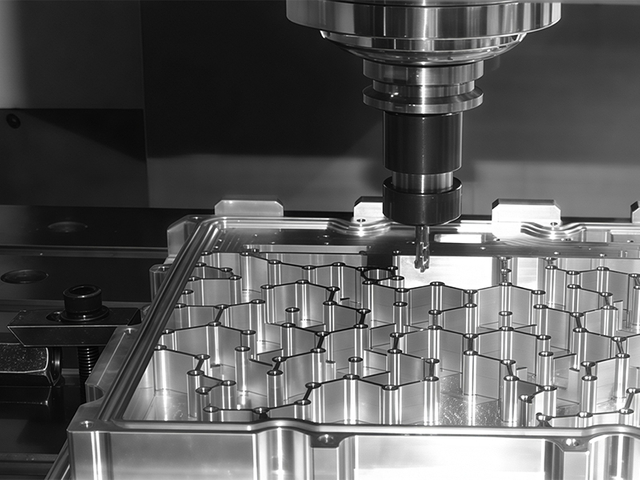

S Series Highlights

The S Series features linear guideways on all three axes for high-efficiency mass production. With an optimal balance of rigidity and speed, it is the preferred choice for machining aluminum, copper, and steel components where cycle time is critical.

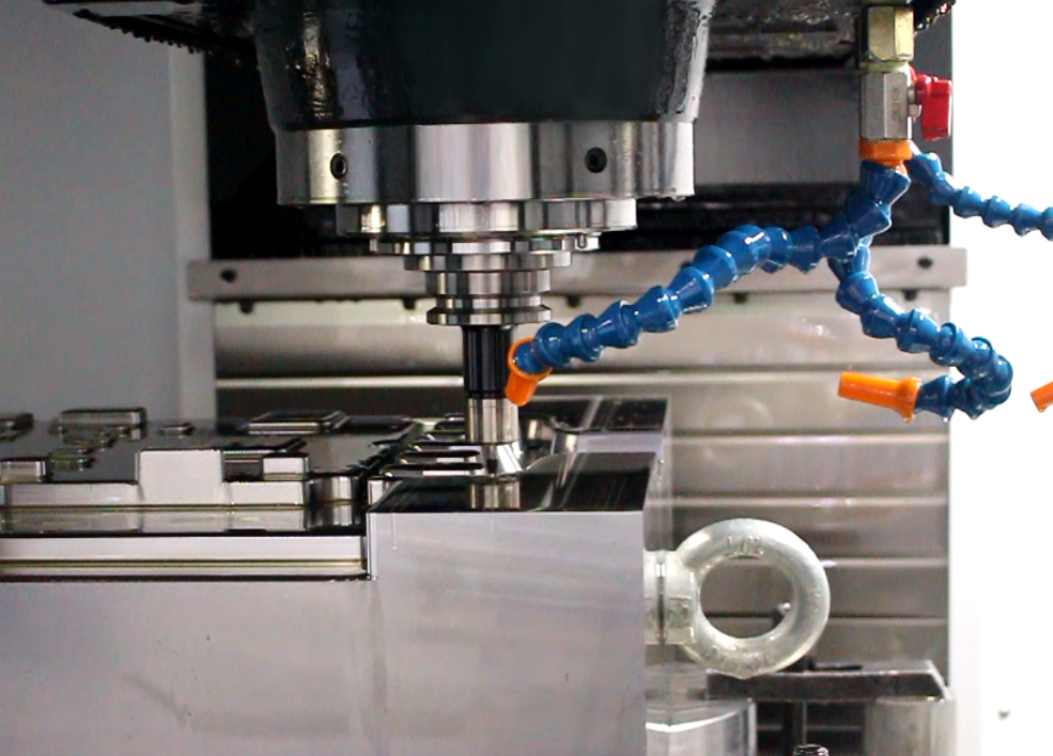

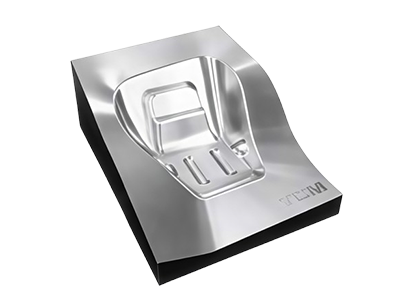

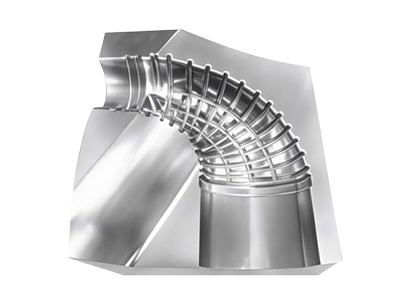

Machining Application

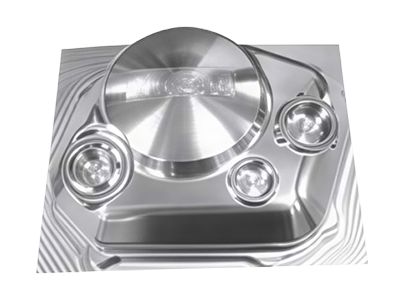

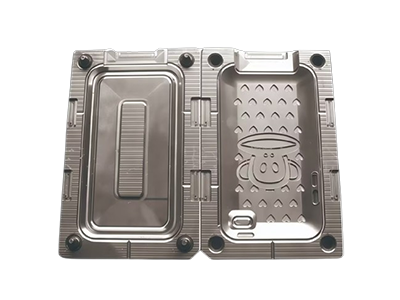

Engineered for medium- to small-batch machining of complex parts such as boxes, plates, disks, valves, housings, and molds. Widely used in precision components, 3C products, hardware, automotive parts, and medical devices.

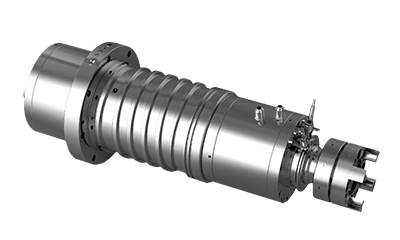

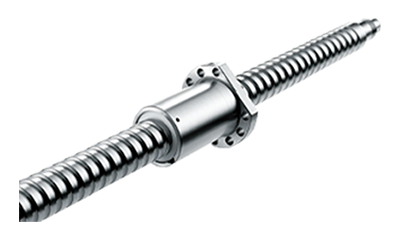

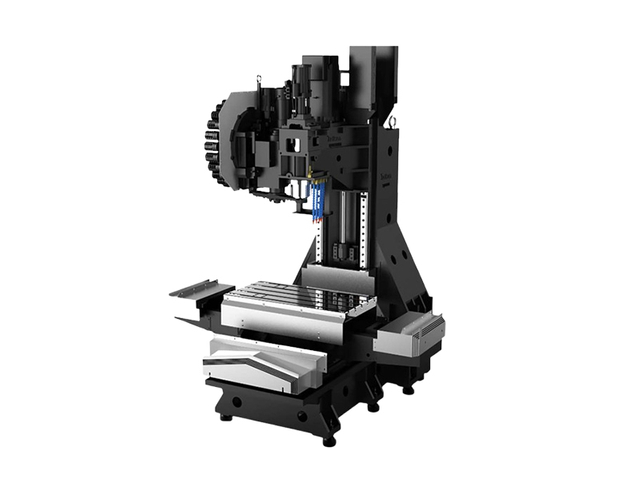

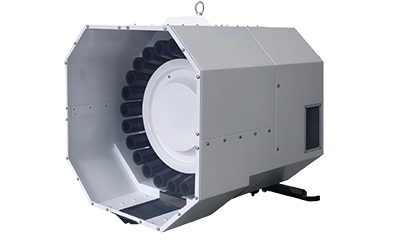

Key Components

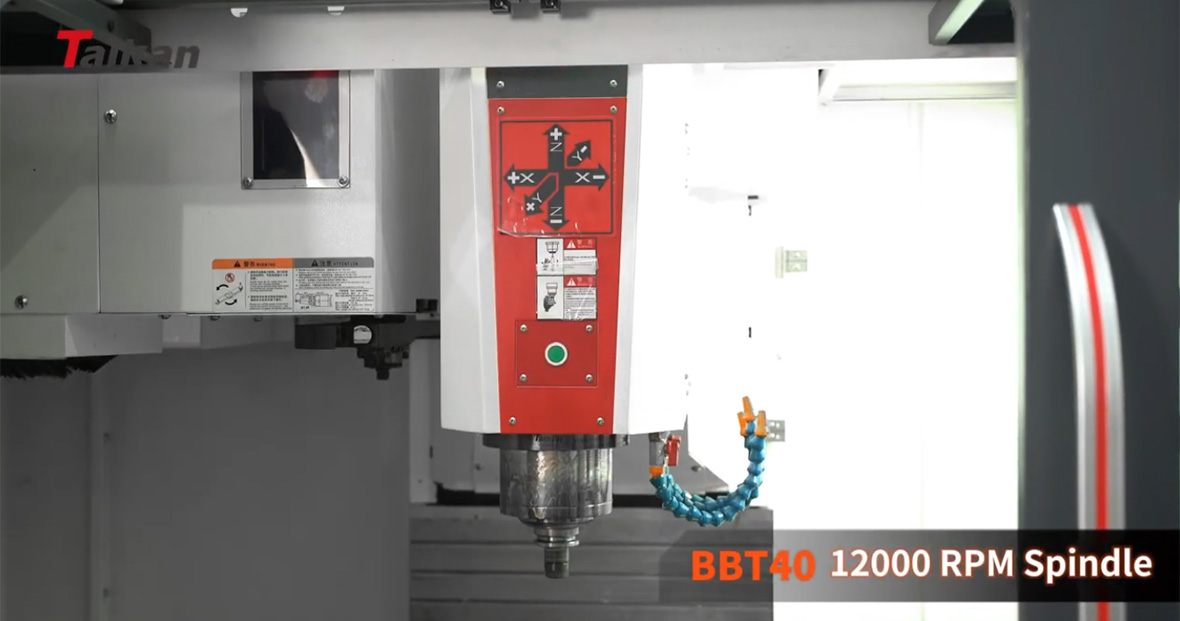

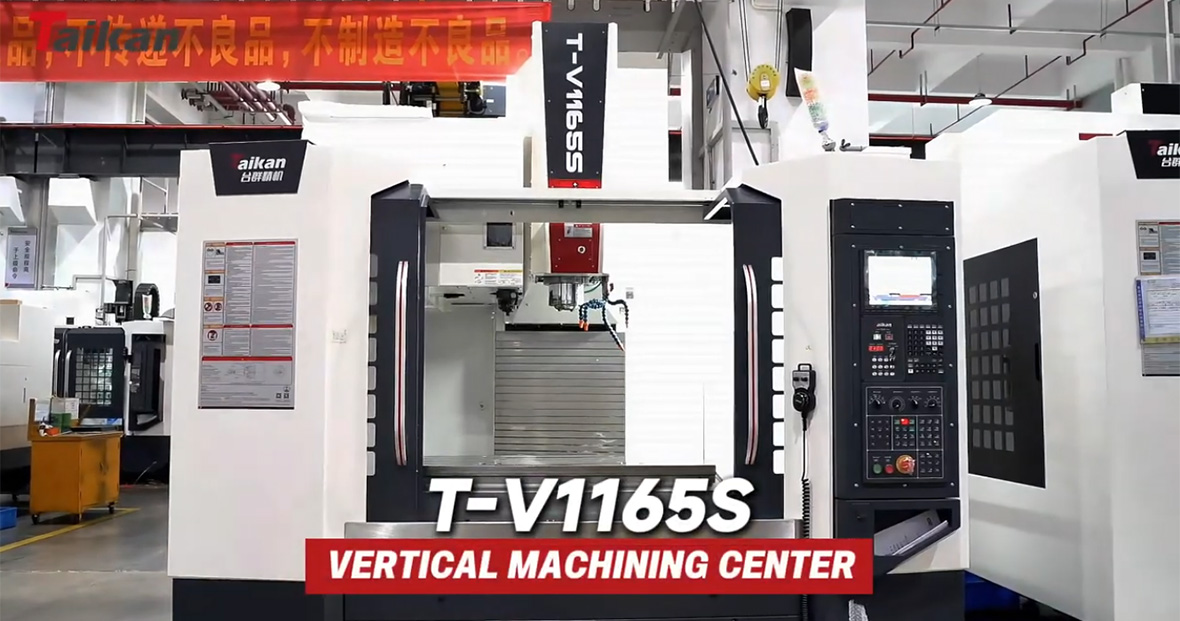

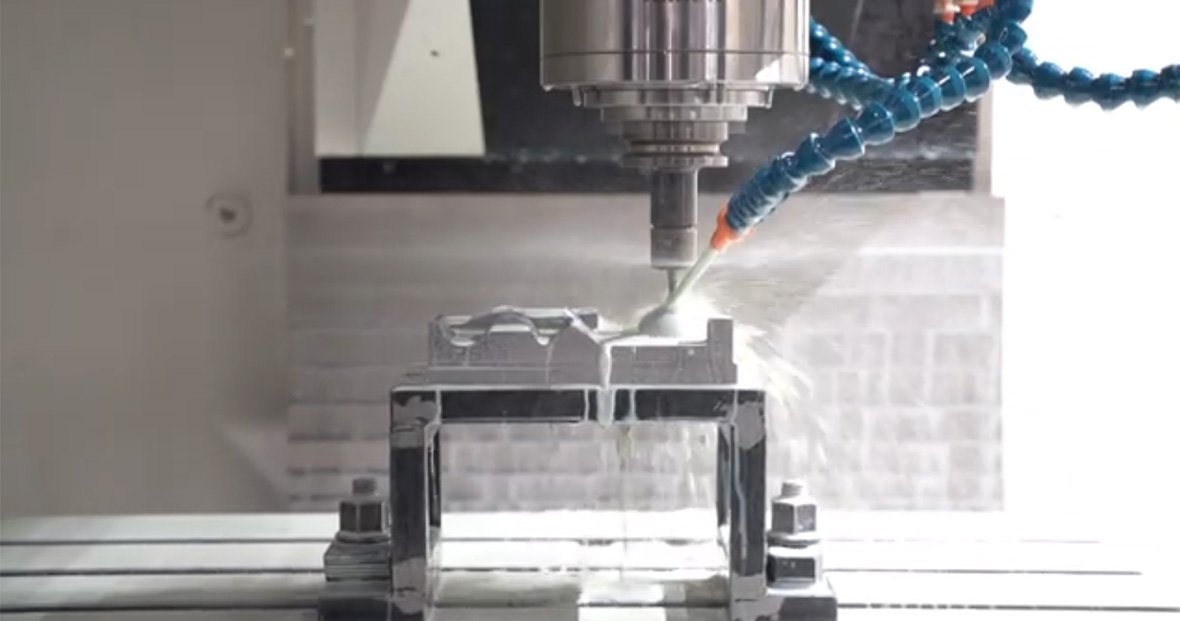

Machining Video

Technical Specifications

Item

Unit

HT-V855S

HT-V856S

HT-V857S

HT-V1055S

HT-V1165S

HT-V1265S

HT-V1270S

HT-V1370S

HT-V1375S

HT-V1475S

HT-V1585S

HT-V1685S

Travel

X axis

mm

800

800

800

1000

1200

1200

1200

1300

1350

1400

1550

1650

Y axis

mm

500

550

550

550

650

650

700

700

750

750

850

850

Z axis

mm

550

600

700

600

600

600

700

650

750

750

850

850

Worktable

Table size

mm

1000*500

1000*500

1000*500

1100*500

1200*650

1300*650

1300*650

1400*700

1500*750

1500*750

1700*850

1700*850

Max. load

kg

500

500

500

500

800

/

800

1100

1300

1400

1500

1600

Spindle

Speed range

r/min

50~12000

50~12000

50~12000

50~12000

50~12000

50~12000

50~12000

50~6000(belt)

50~6000(belt)

50~6000 (belt)

50~6000(belt)

50~6000(belt)

Spindle diameter

mm

∅150

∅150

∅150

∅150

∅150

∅150

∅150

∅155

∅190

∅190

∅190

∅190

Spindle taper

/

BT40

BBT40

BBT40

BBT-40

BBT-40

BBT-40

BT40

BT50

BT50

BT50

BT50

BT50

Speed

Cutting feed

mm/min

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

X/Y/Z rapid speed

m/min

48/48/48

48/48/48

48/48/48

48/48/48

36/36/30

36/36/30

36/36/30

36/36/24

24/24/20

24/24/20

24/24/20

24/24/20

Tool magazine

Tool capacity

pcs

24

24

24

24

24

24

24

24

24

24

24

24

Others

Machine size

mm

2210*3082*2946

2240*3121*3026

2240*3137*3027

3850*2860*3125

2700*2677*3000

3000*2677*3000

3000*3500*3100

3160*3643*3110

5050×3680×3440

5050×3680×3440

5240*4054*3662

5240×4054×3662

Weight (approx.)

kg

4400

4600

4900

4800

6300

6500

6250

7500

10500

10700

11700

11900

S Series VMC: What You Need to Know

  • What is the warranty policy and how is overseas tech support handled?

    All Taikan S-series machines come with a 12-month standard warranty covering primary machine components. International post-purchase service is backed by a robust three-tier support structure:
    1. Local Distributor Support: On-site commissioning, operator training, and local service provided by certified regional partners.
    2. Remote Technical Diagnostics: Rapid online troubleshooting and technical assistance directly from Taikan’s factory engineers.
    3. Express Spare Parts Supply: Priority global shipping of genuine replacement parts to ensure maximum machine uptime.
  • Which industries are best suited for the Taikan S-series VMC?

    Engineered for high rigidity and versatility, the Taikan S-series vertical machining center is widely deployed across key manufacturing sectors, including:
    · Automotive Parts Manufacturing: Engine components, structural brackets, and transmission housings.
    · 3C & Consumer Electronics: Precision enclosures, heat sinks, and structural frames.
    · Precision Mold & Die Making: High-accuracy mold bases, cores, and complex cavities.
    · General Mechanical Manufacturing: Hydraulic valves, industrial fittings, and custom hardware.
  • Is Coolant Through Spindle (CTS) standard or optional?

    Coolant Through Spindle (CTS) is available as an optional upgrade on the S-series. To maximize tool life and facilitate rapid chip evacuation during deep-hole drilling or heavy-duty cavity milling, Taikan offers customizable high-pressure CTS systems rated at 2 MPa (20 bar), 3 MPa (30 bar), 5 MPa (50 bar), and 7 MPa (70 bar).
  • What spindle drive options are available (Direct-drive vs. Belt-drive)?

    The Taikan S-series features high-performance BT40 spindles with speed options ranging from 8,000 to 12,000 RPM. You can choose between two drive configurations based on your machining requirements:
    · Direct-Drive Spindle: Recommended for high-speed precision milling, offering lower thermal displacement, reduced vibration, and superior surface finish quality.
    · Belt-Drive Spindle: Ideal for heavy-duty cutting and roughing operations requiring high torque output at lower RPMs.
  • Can a 4th-axis rotary table be integrated into the S-series?

    Yes. The S-series vertical machining center can be fully integrated with an optional 4th-axis CNC rotary table. Pre-wired control interfaces and drive parameters allow easy installation, enabling complex multi-side milling, angled drilling, and higher productivity in a single workpiece setup.
  • Which CNC control systems are compatible with the S-series?

    The Taikan S-series VMC supports leading industry-standard CNC controllers, including FANUC, Mitsubishi, and Siemens. This multi-system compatibility allows seamless integration into your existing shop floor network, programming workflows, and factory automation systems with minimal operator retraining.
  • What is the Taikan S Series vertical machining center?

    The Taikan S Series is a CNC vertical milling machine featuring linear guideways on all three axes. It is for high-efficiency mass production, engineered to balance rigidity with extreme velocity.
