G-VU Moving Table Series 5-Axis Machining Center

Engineered with a high-rigidity stationary-beam structure and an A/C dual-swing head, the G-VU Series delivers ultra-stable, high-precision 5-axis linkage machining for large, complex workpieces.

Home » Products index » Five-Axis Machining Center » G-VU Moving Table Series » 5-Axis Machining Centers » G-VU Moving Table Series

Types of G-VU Moving Table Series 5-Axis Machining Centers

This area can be fully edited and gives you the opportunity to introduce yourself.

/HG-VU1220

X-axis travel: 2,150 mm
Y-axis travel: 2,000 mm
Z-axis travel: 800 mm
Effective width between columns: 1,600 mm
Worktable length: 2,000 mm

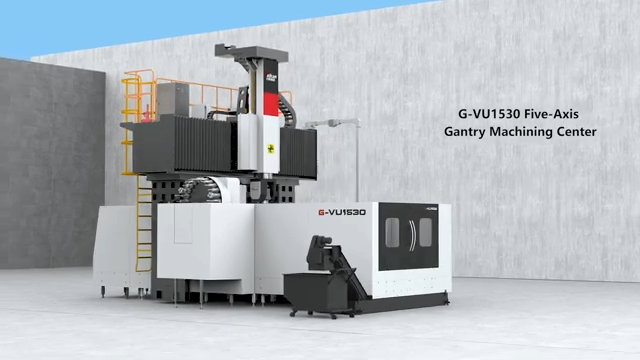

/HG-VU1530

X-axis travel: 3,200 mm
Y-axis travel: 2,700 mm
Z-axis travel: 1,000 mm
Effective width between columns: 2,450 mm
Worktable length: 3,000 mm
/HG-VU2030 / HG-VU2040 / HG-VU2050

X-axis travel: 3,200/4,200/5,200 mm
Y-axis travel: 2,700 mm
Z-axis travel: 1,000 mm
Effective width between columns: 2,450 mm
Worktable length: 3,000/4,000/5,000 mm
/HG-VU2540 / HG-VU2550 / HG-VU2560

X-axis travel: 4,200/5,200/6,200 mm
Y-axis travel: 3,200 mm
Z-axis travel: 1,000 mm
Effective width between columns: 2,950 mm
Worktable length: 4,000/5,000/6,000 mm

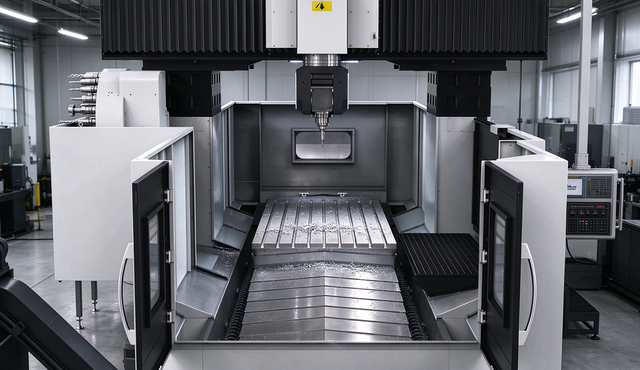

G-VU Moving Table Series Highlights

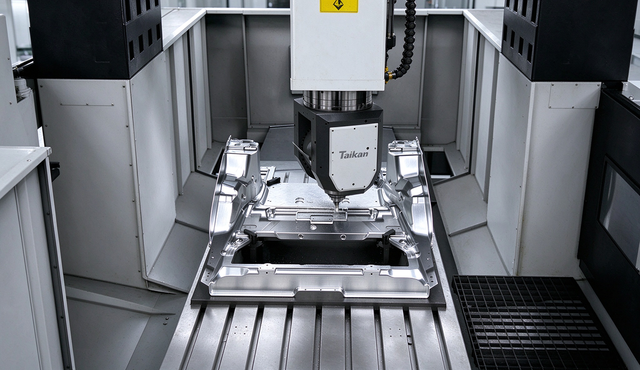

A/C dual swing head, large stroke, five-axis linkage, efficient machining of complex curved surfaces and cavities

A/C dual swing head, five-axis linkage, efficient machining of complex curved surfaces and cavities.
Extended travel range, sturdy structure and high efficiency, suitable for larger workpieces.

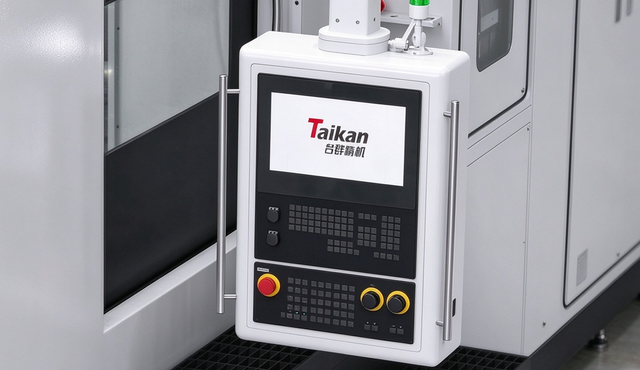

The high-performance SIEMENS CNC system is powerful and user-friendly.

Machining Application

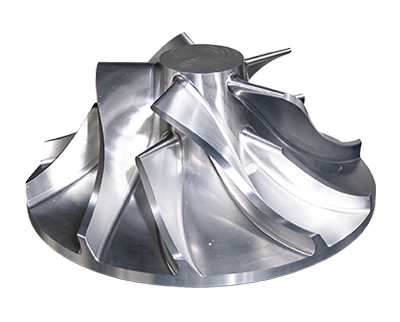

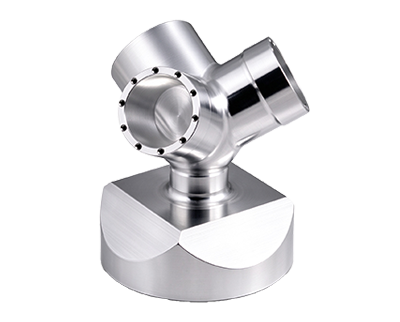

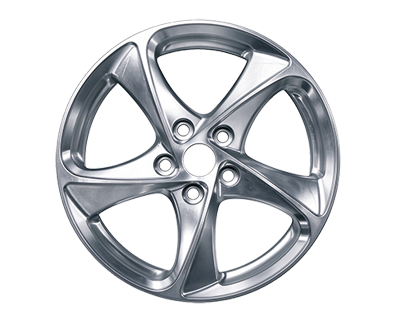

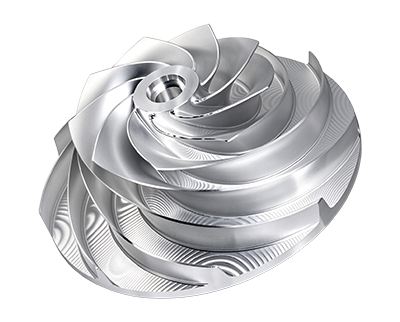

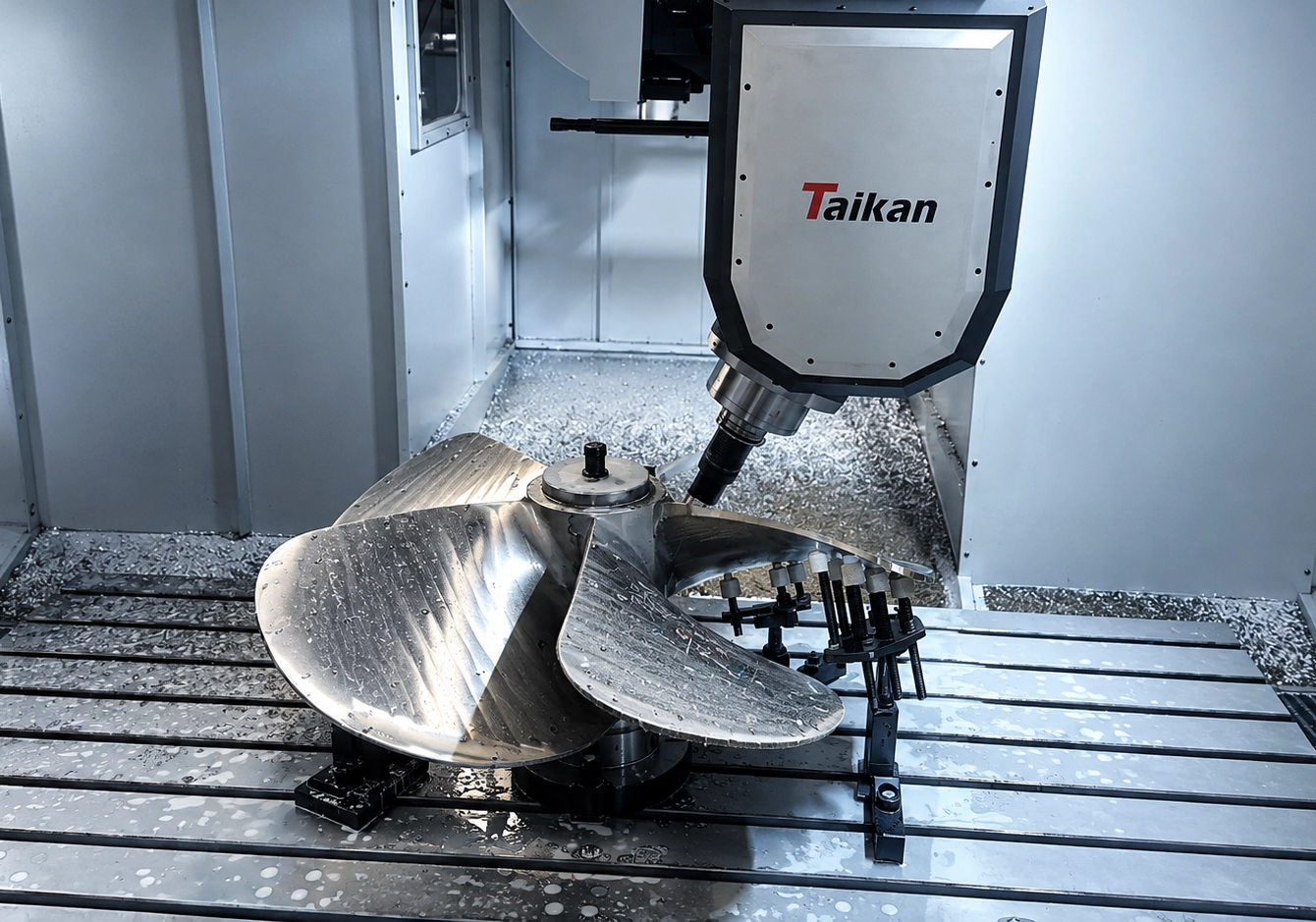

Taikan's five-axis linkage gantry machining center is designed for applications such as machining complex parts, aluminum and its alloys, and challenging-to-machine materials. It delivers high-precision, high-efficiency machining of complex spatial surfaces.

Key Components

Overall Structure

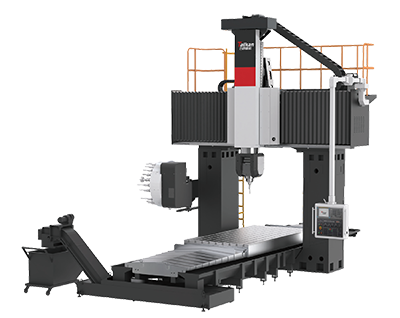

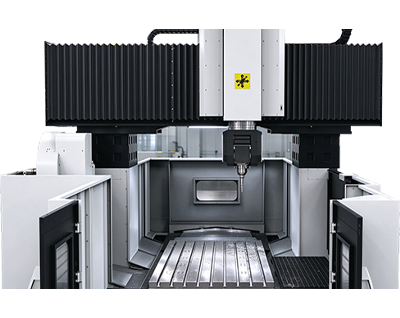

Utilizing a gantry frame for stability, with a structure where the worktable can be moved. FEA-optimized high-strength cast iron foundation parts ensure high rigidity, stable precision, and high-torque cutting.
Spindle unit

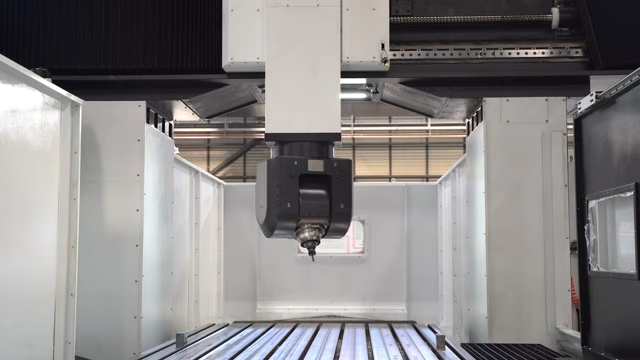

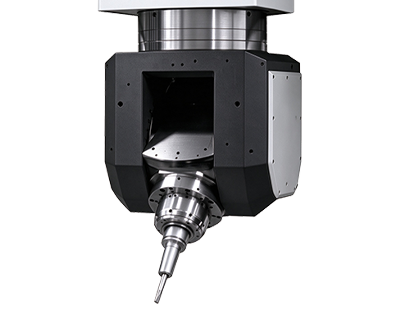

The Mepro T70.5 five-axis A/C dual swing milling head, with high-precision encoders, hydraulic clamping (C ±360°, A ±110°), and a standard 18,000 rpm motorized spindle, enables high-precision, fast, continuous five-axis machining of intricate surfaces.
Guide rail

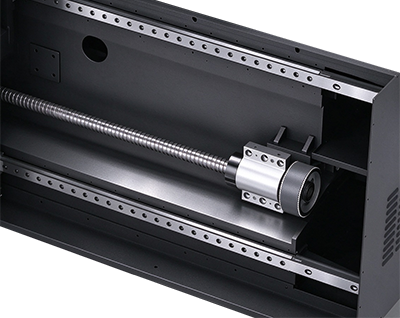

The X-, Y-, and Z-axis imported heavy-duty roller linear guide rails ensure low friction, high load capacity, minimal vibration, no low-speed crawling, and high positioning accuracy, while the stepped beam layout increases rail spacing for greater load capacity and stable cutting.
Drive
Servo-driven X, Y, and Z feed axes provide stable, reliable operation, with X/Y using high-lead ball screws and Z directly coupled to the motor and ball screw plus a nitrogen balance cylinder to offset ram weight for stable cutting.

Technical Specifications

Item		Unit	HG-VU1220	HG-VU1530	HG-VU2030 / HG-VU2040 / HG-VU2050	HG-VU2540 / HG-VU2550 / HG-VU2560
Travel	X-axis	mm	2150	3200	3200/4200/5200	4200/5200/6200
	Y-axis	mm	2000	2700	2700/2700/2700	3200/3200/3200
	Z-axis	mm	800	1000	1000/1000/1000	1000/1000/1000
	Gantry width	mm	1600	2450	2450	2950
Table	Size	mm	1250*2000	1500*3000	/	/
	Max. load	kg	3000	10000	15000/19000/22000	22000/25000/28000
	T-slot	mm	22	28	28	28
Spindle	Spindle power	KW	20	30	30	30
	Max. speed	r/min	20000	18000	18000	18000
	Torque output	N.m	35/42	72/85	72/85	72/85
	Spindle taper	/	HSK-A63	HSK-A63	HSK-A63	HSK-A63
	A-axis	°	±110°	±110°	±110°	±110°
	C-axis	°	±360°	±360°	±360°	±360°
	A/C max. speed	rpm	60	60	60	60
Speed	Feed rate	mm/min	10000	10000	10000	8000
Speed	Rapid speed	mm/min	30000/30000/20000	15000	15000	/
Others	Z counterweight	/	Oil pressure+ nitrogen balance	Hydraulic + nitrogen balance	Oil pressure+ nitrogen balance	Oil pressure+ nitrogen balance
Others	Machine size	mm	600042005000	780061006000	/	/

Common Questions about G-VU Moving Table Series

What is the core structure of the G-VU Series?

It features a five-axis gantry machining center with a stationary beam and a moving worktable. The foundation utilizes a stable gantry frame made of high-quality resin sand molding and high-strength cast iron for exceptional rigidity and stable precision.
How does the G-VU Series ensure accuracy during heavy-duty cutting?

It utilizes imported heavy-duty roller linear guide rails for the bed, cross-beam, and ram. The beam guide rail is configured in a stepped layout to increase load-bearing capacity and ensure stable cutting during machining.
Can this series accommodate large or heavy workpieces?

Yes, the G-VU series features an extended travel range and a sturdy structure tailored for larger workpieces. The load-bearing capacity of the worktable ranges from 3,000 kg on the HG-VU1220 model up to 36,000 kg on the HG-VU3080 model.
What optional CNC systems and feedback devices are available for the G-VU Series?

While the SIEMENS SINUMERIK ONE system is equipped as standard, customers can choose alternative CNC systems such as Heidenhain or Huazhong Numerical Control (HNC). For position feedback, high-precision grating scales from Fagor or Heidenhain are available as optional configurations to ensure closed-loop accuracy.
What spindle speeds and tool interface options can be customized for the G-VU Series?

Depending on your specific machining requirements, Taikan provides a flexible range of optional A/C dual swing milling heads and motorized spindle configurations:
• High-Speed Milling (HSK-A63): Optional spindle speeds up to 24,000 rpm, 20,000 rpm, or 18,000 rpm.
• Heavy-Duty Cutting (HSK-A100): High-torque spindle options including 15,000 rpm, 12,500 rpm, 10,000 rpm, or 8,000 rpm.
What auxiliary accessories and options are available to enhance machining capability and automation?

To meet various automated and high-efficiency processing needs, the G-VU Series supports the following optional accessories:
• Cooling System: High-pressure spindle center water outlet (Coolant Through Spindle - CTS) available in 2MPa or 3MPa.
• Tooling & Storage: 24-tool automatic tool magazine.
• In-Process Measurement & Maintenance: 3D workpiece measuring probe, automatic tool setter, and a water gun for chip flushing.
