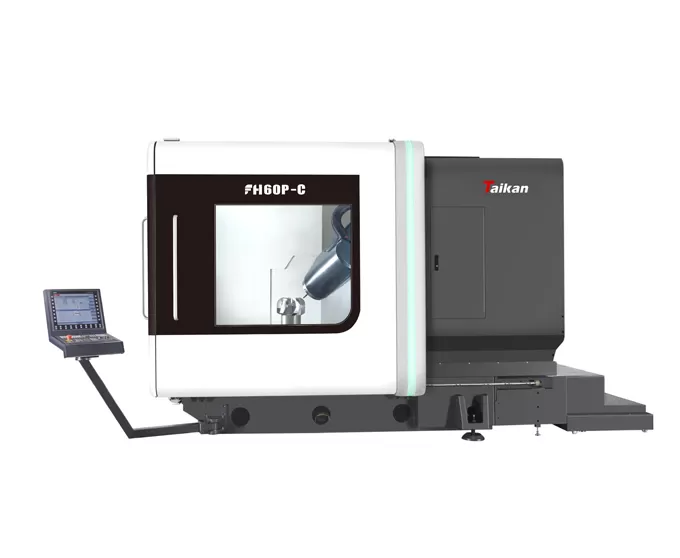

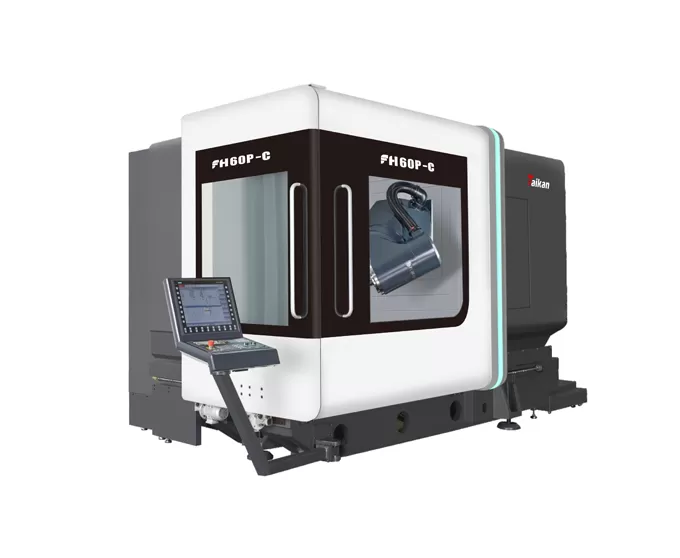

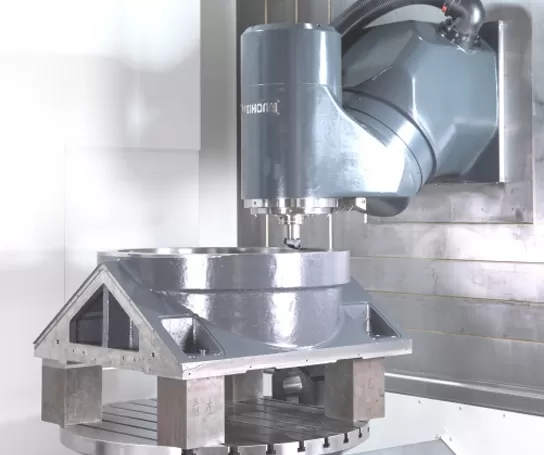

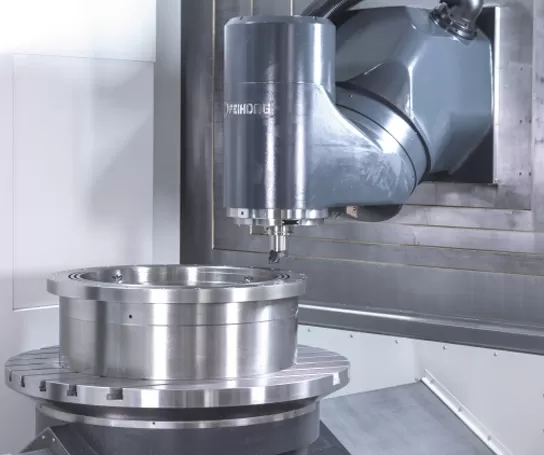

FH60P-C 5-Axis Miling and Turning Machining Center

FH60P-C 5-Axis Miling and Turning Machining Center

Five-Axis Milling and Turning Machining Center

Quantity:




Inquire Add to Basket

Characteristic of FH-60P-C 5-Axis Milling and Turning Machining Center
Application of FH-60P-C 5-Axis Milling and Turning Machining Center
Specifications of FH-60P-C 5-Axis Milling and Turning Machining Center
Control & Software

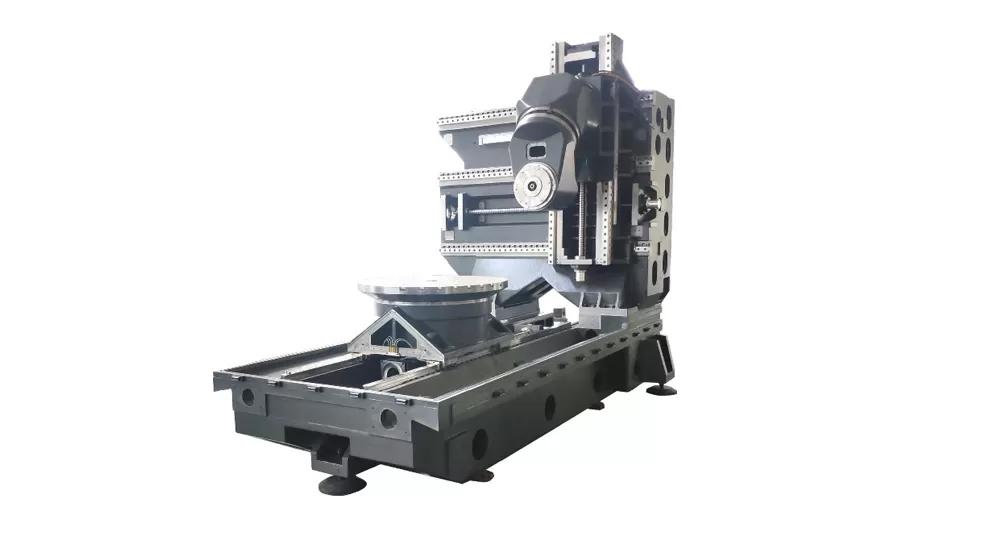

Optimal Mechanical Casting Design

The bed is made of a new mineral casting structure, while moving parts use Meehanite-grade high-quality cast iron.
Tempered and naturally aged to eliminate internal stresses.
Materials with natural frequency to eliminate vibration-induced processing stresses.
The large-area, high-rigidity column design effectively improves rigidity and static/dynamic precision.
Three-axis hollow cooling ballscrew drive.

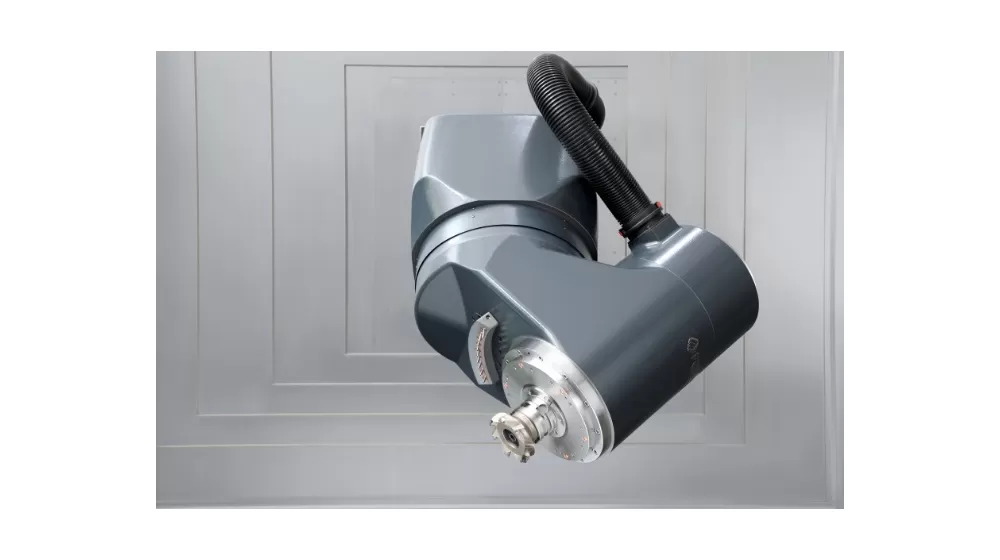

Powerful 5-Axis Milling Head

SIGNIFICANTLY IMPROVED AND IMPROVED INTERFERENCE PROFILE AND RIGIDITY

The B-axis with direct drive of DD motor improves rigidity through larger YRT bearing, which can realize high-torque cutting under the linkage state.

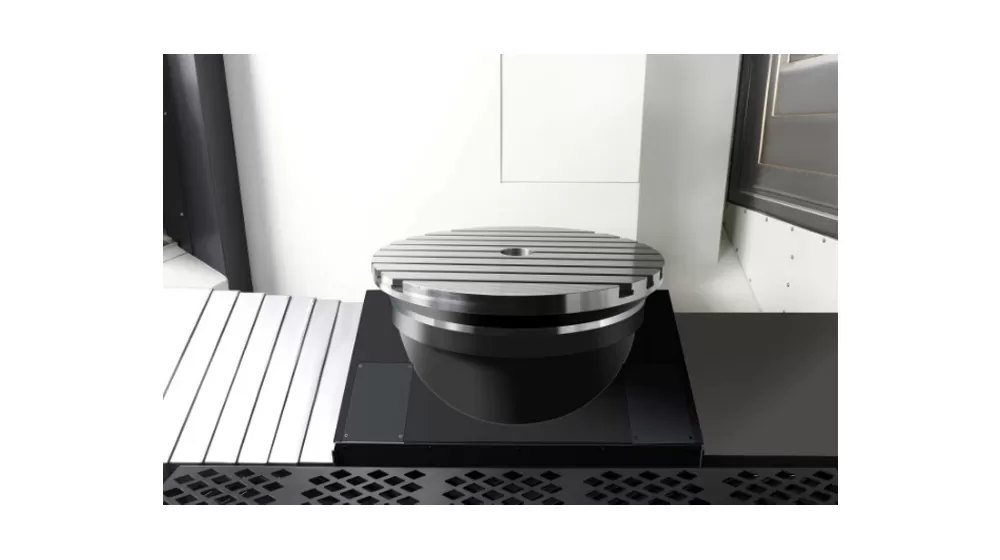

Turning and Milling Table

Independently designed and manufactured.
Internal DD motor with zero backlash, direct drive design.
High acceleration and deceleration response characteristics.
Larger YRT bearings for improved rigidity.
High rated drive torque with positioning and clamping device for the worktable.
Supports both milling and turning operations, reducing workpiece handling and improving product precision.

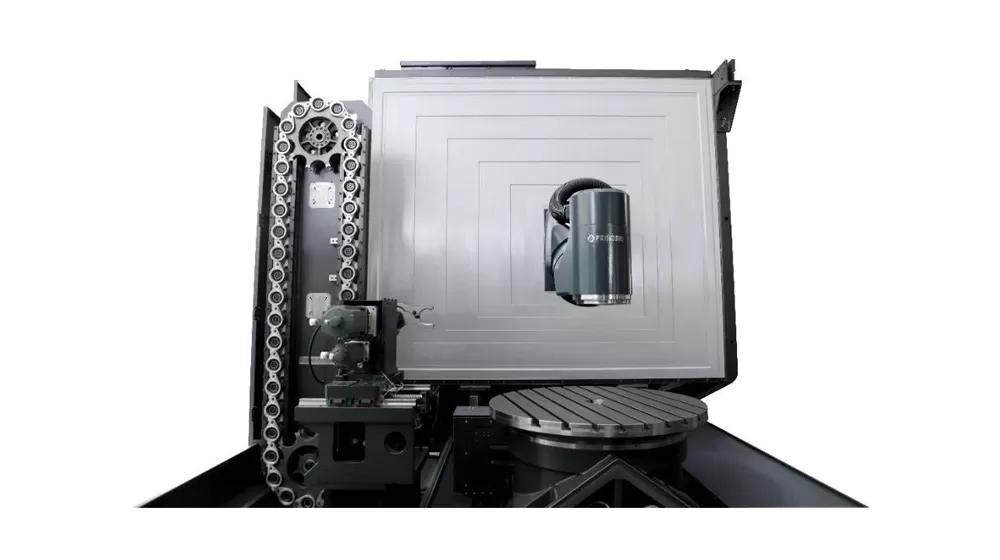

Automatic Tool Change System

Tool selection and change are controlled by a servo motor for more stable and accurate operation.

With Siemens ONE's tool management feature, tool management is more efficient.

The advanced and highly stable 5-axis machine mechanism, with a simple man-machine operation mode, focuses on improving accuracy, performance and efficiency by 30% each, achieving the highest machining performance and part accuracy under high dynamic conditions. From the hardto-cut materials in the aviation industry to the highest surface quality requirements in the mold manufacturing industry, the Feihong five-axis simultaneous milling-turning compound machining center provides the best conditions. Feihong five-axis linkage turning and milling compound machining center can realize multi-form use: vertical and horizontal conversion, milling and turning, one-time clamping, multi-process and multi-angle processing and forming.

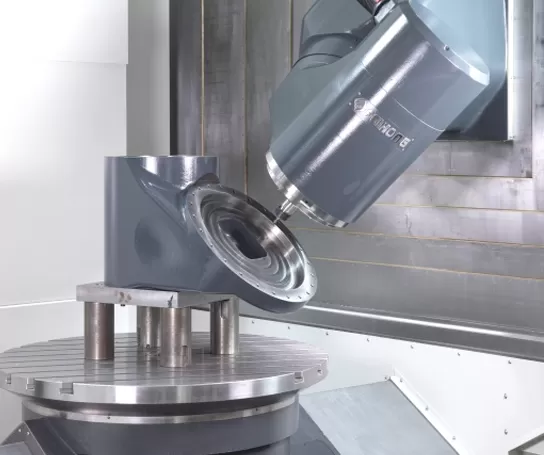

45° Inclined Surface Processing

Turning and Milling Compound One Clamping

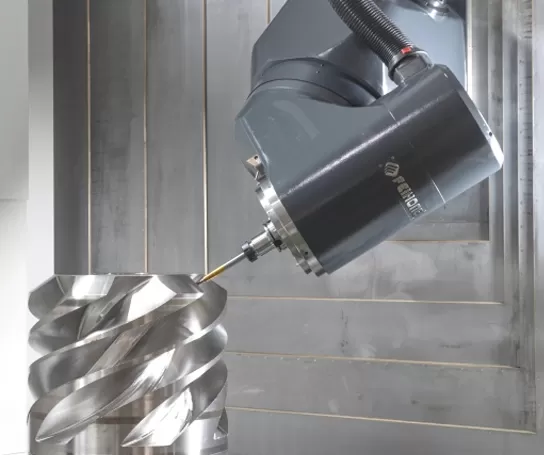

Helical Rotor Processing

Vertical Turning Function

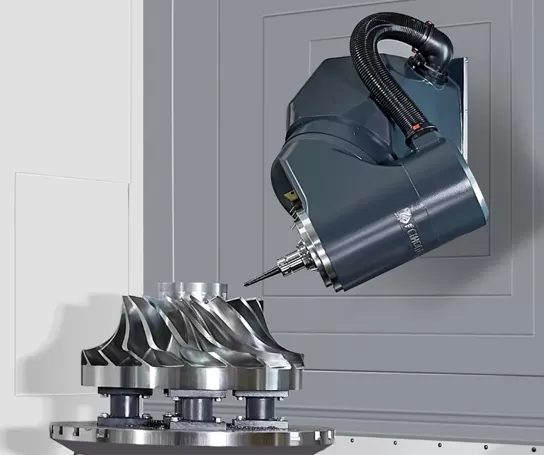

Aerospace Impeller Processing

45° Inclined Surface Processing

Turning and Milling Compound One Clamping

Helical Rotor Processing

Vertical Turning Function

Aerospace Impeller Processing

45° Inclined Surface Processing

Turning and Milling Compound One Clamping

Helical Rotor Processing

Item	FH60P-C
X/Y/Z axis travel	600×800×600mm
Distance from horizontal milling head center to working table	30~630mm
Rotary table speed	350rpm
Working table size	φ660mm
Max table load	Milling 2000kg Turning 1000kg
Swing milling head (B axis)	Standard
Swing range (0=Vertical/180=Level)	-15°~ +180°
B axis rated speed	50rpm
Distance from vertical spindle nose to table	150~750mm
Electric spindle Max. speed	12000rpm
Power（S1-100%/40%DC）	34/42kW
Torque（S1-100%/40%DC）	132/192Nm
Spindle taper	1:10 Taper
Tool interface	HSK-A63
Tool magazine capacity	40T
Max. tool diameter/length/weight	φ85mm/300mm/8kg
Tool changing time (Tool to Tool)	4s
Drilling (Normalizing medium carbon steel)	φ40mm
Tapping (Normalizing medium carbon steel)	M24
Rapid traverse	40m/min
X/Y/Z positioning accuracy	0.006mm
X/Y/Z repeat positioning accuracy	0.004mm
B/C positioning accuracy	8"
B/C repeat positioning accuracy	4"
Infrared probe	Renishaw OMP60
Tool setting gauge (Tool measuring in machining area)	Renishaw NC4F230
Machine height (Standard machine)	2985mm
Main body occupied area(L*W)	4300×2600mm
Tool magazine occupied area (L*W)	2100×1250mm
Chip conveyor occupied area (L*W)	3070×1065mm
Water tank occupied area(L*W)	1785×1355mm
Complete machine occupied area (excluding water tank) (L*W)	5200×3550mm
Machine weight	23000kg
Control system	Siemens ONE

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
