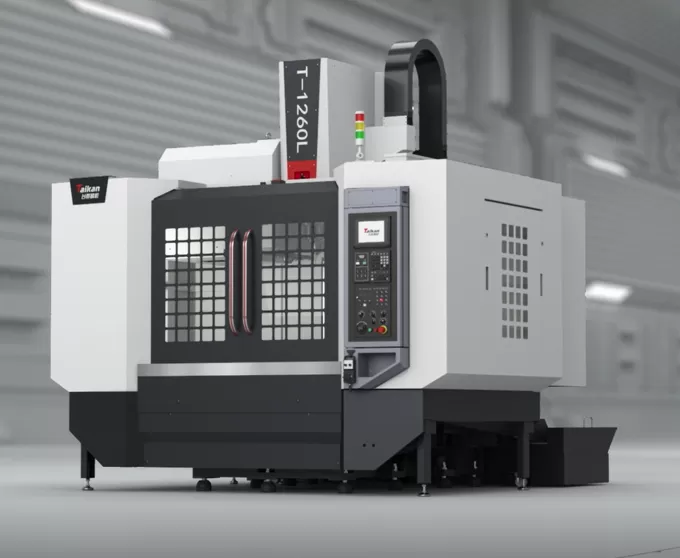

Item | Unit | HT-1260L | Remarks | ||
Travel | Table travel (X axis) | mm | 1200 | ||
Saddle travel (Y axis) | mm | 600 | |||
Headstock travel (Z axis) | mm | 570 | |||
Distance from spindle nose to table surface | mm | 140～710 | |||
Distance from spindle center to column guide surface | mm | 659 | |||
Worktable | Table size | mm | 1300*600 | ||
Max. load (even load-bearing) | kg | 1000 | |||
T-slot (number of slots - slot width * spacing) | mm | 5-18*100 | |||
Spindle | Motor power (rated/short time) | kW | 7.5/11 | ||
Motor torque (rated/short time) | N.m | 35.8/95.5 | |||
Speed range | r/min | 50~8000 (belt) | |||
Spindle diameter | mm | φ150 | |||
Spindle taper | / | BT40 | |||
Rivet specifications | / | P40T-I（MAS403） | |||
Speed | Cutting feed speed range | mm/min | 1-10000 | ||
X/Y/Z axis rapid traverse speed | m/min | 36/36/20 | |||
Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.01 | GB/T18400.4 (Full travel) | |
Repeatability (X/Y/Z) | mm | 0.007 | |||
Tool magazine | Tool capacity | pcs | 24 | ||
Max. tool weight | kg | 7 | |||
Max. tool length | mm | 250 | |||
Max. tool diameter (full /adjacent empty) | mm | Φ75/Φ150 | |||
Others | CNC system | / | Mitsubishi M80VB | ||
Air source | Flow | L/min | ≥280（ANR) | ||
Air pressure | MPa | 0.6~0.8 | |||
Equipment capacity | KVA | 25 | |||
Coolant tank capacity | L | 300 | |||
Machine size | mm | 3000×3499×3146 | Corresponding to X*Y*Z axis | ||
Weight (approx.) | Kg | 7000 | |||
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
