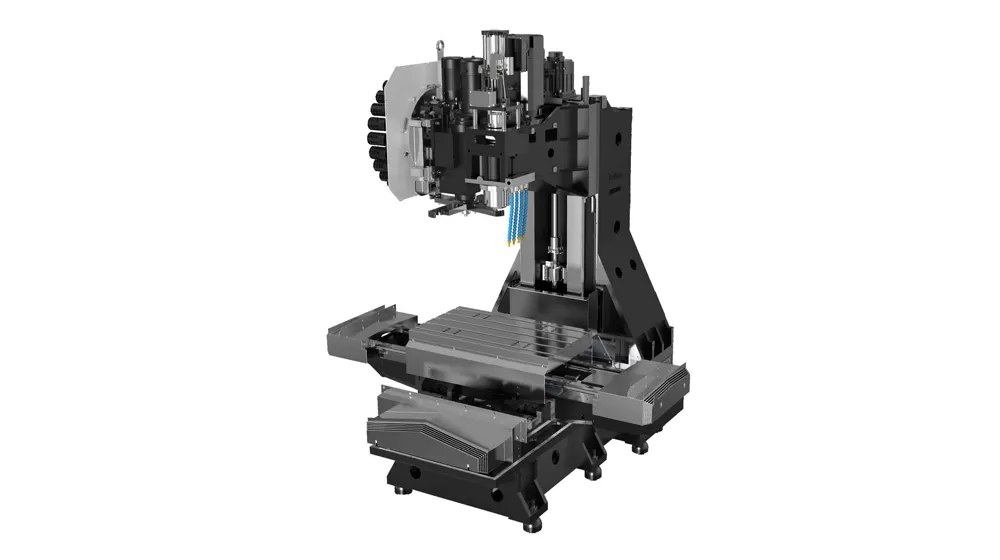

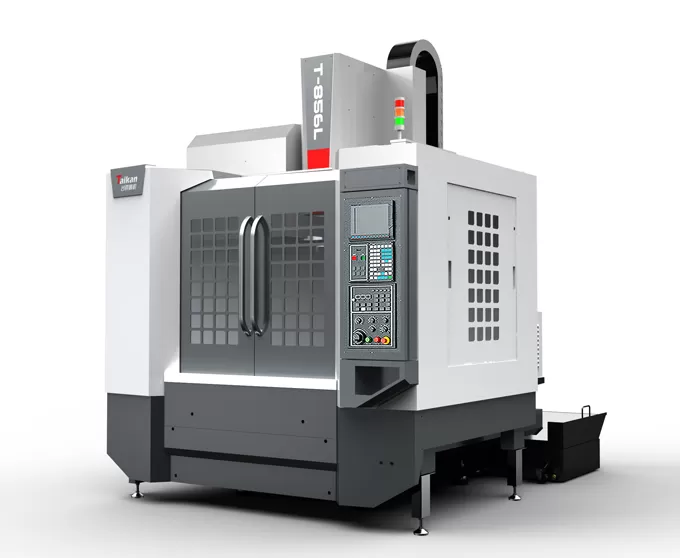

Structural Design

The column-type and cross-slide table structure ensures the stability and high precision of the machine.

The large, stable base and high-rigidity A-frame column help reduce vibration and deformation during high-speed cutting.

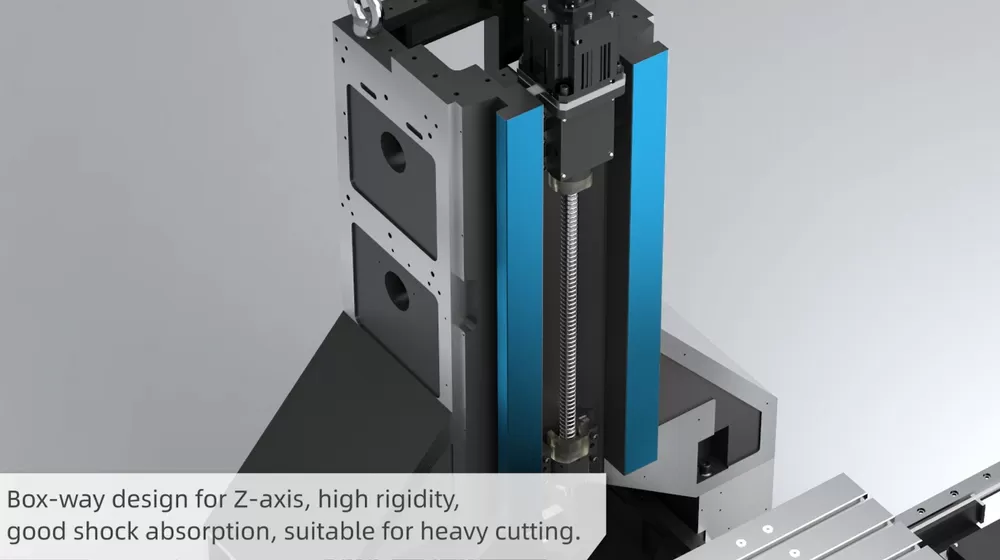

Guide Rail System

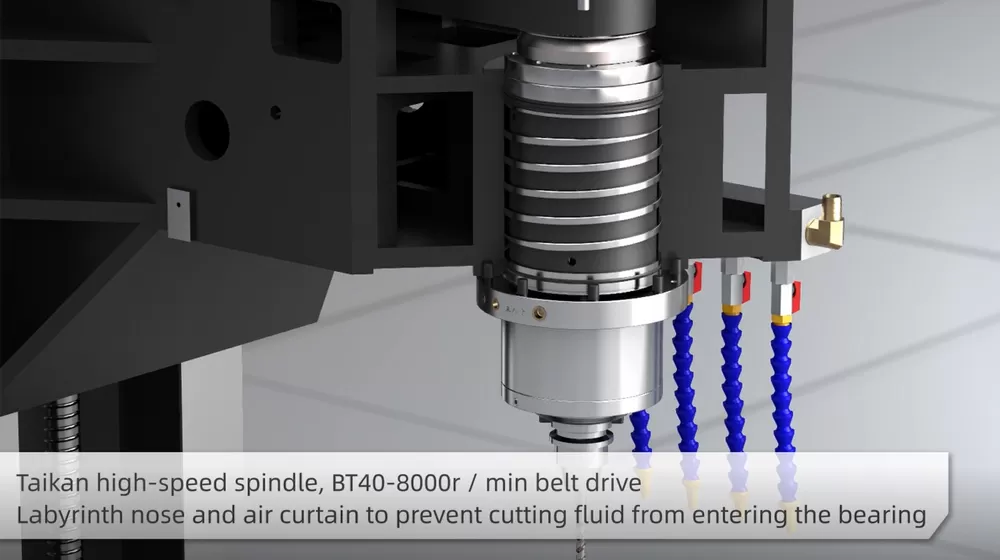

Spindle

Tool Magazine

Item			Unit	HT-856L	Remarks
Travel	Table travel (X axis)		mm	800
	Saddle travel (Y axis)		mm	500
	Headstock travel (Z axis)		mm	600
	Distance from spindle nose to table surface		mm	125～725
	Distance from spindle center to column guide surface		mm	565
Worktable	Table size		mm	1000*500
	Max. load (even load-bearing)		kg	500
	T-slot (number of slots - slot width * spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	7.5/11
	Motor torque (rated/short time)		N.m	35.8/95.5
	Speed range		r/min	50~8000 (belt)
	Spindle diameter		mm	φ150
	Spindle taper		/	BT40
	Rivet specifications		/	P40T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	36/36/24
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.008/0.008/0.01	GB/T18400.4 (Full travel)
Accuracy	Repeatability (X/Y/Z)		mm	0.005/0.005/0.008	GB/T18400.4 (Full travel)
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Φ75/Φ150
Others	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥280（ANR)
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	25
	Coolant tank capacity		L	300
	Machine size		mm	224031443033	Corresponding to XYZ axis
	Weight (approx.)		Kg	4800
