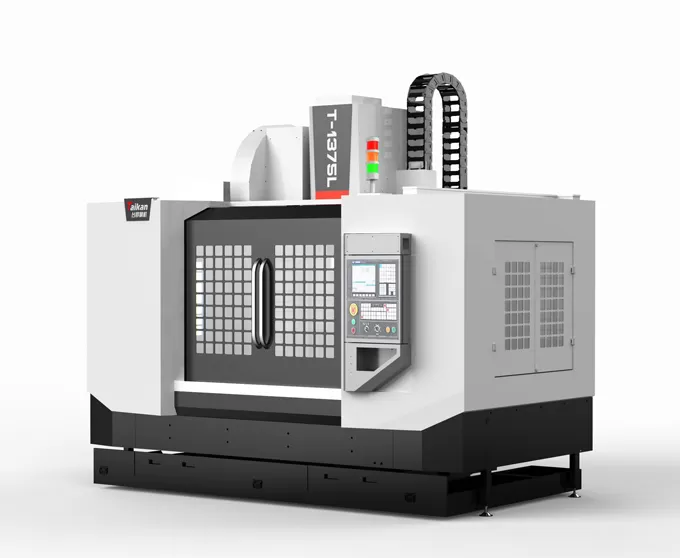

High precision and high efficiency - An outstanding masterpiece

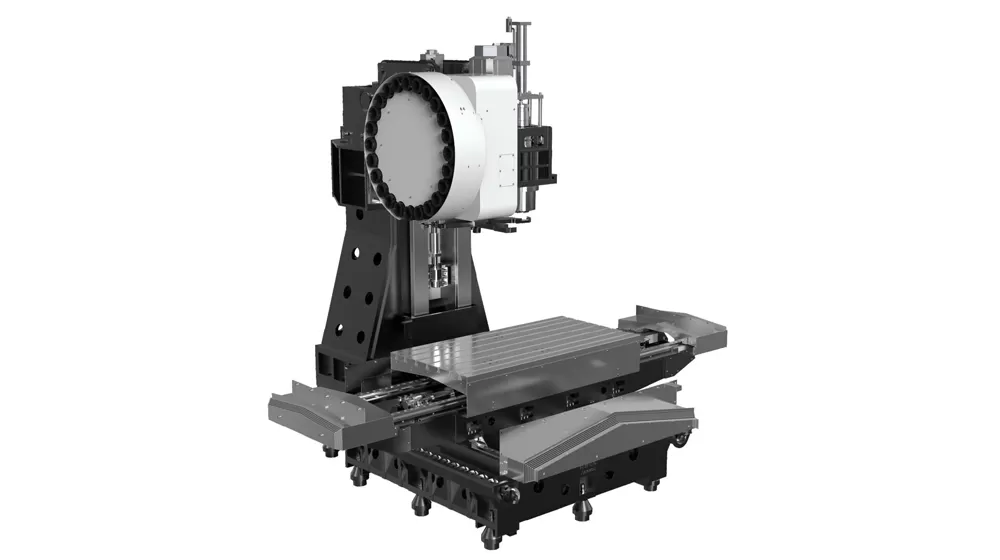

Machine Structure and Design

Column-type Cross-slide Structure: The Y-axis adopts a four-rail design, providing excellent high-load capacity and precise machining performance.
High-strength Cast Iron Components: The major base parts are made from resin sand casting and high-strength cast iron, ensuring exceptional rigidity and long-term precision stability.

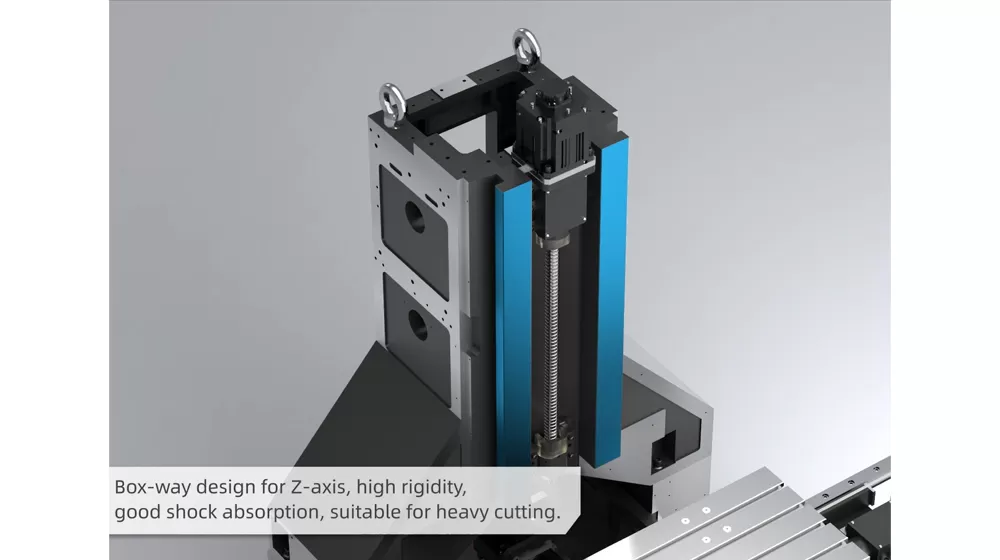

High-rigidity Feed System

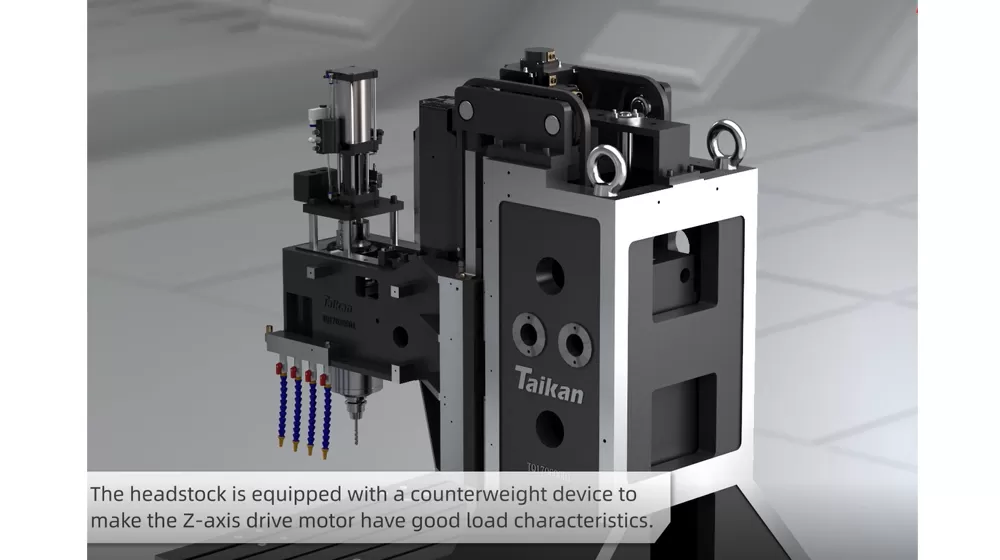

Z-axis Balancer System

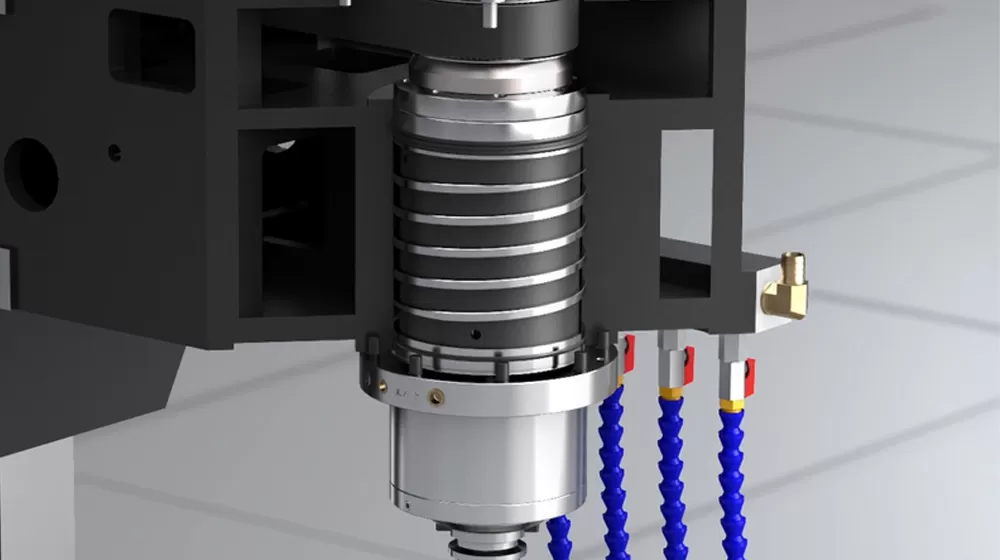

High-efficiency Spindle System

Item			Unit	HT-1375L	Remarks
Travel	Table travel (X axis)		mm	1350
	Saddle travel (Y axis)		mm	750
	Headstock travel (Z axis)		mm	750
	Distance from spindle nose to table surface		mm	120～870
	Distance from spindle center to column guide surface		mm	810
Table	Table size		mm	1500*750
	Max. load (even load-bearing)		kg	1300
	T-slot (number of slots - slot width * spacing)		mm	5-18*150
Spindle	Motor power (rated/short time)		kW	15/18.5
	Motor torque (rated/short time)		N.m	143/191
	Speed range		r/min	50～6000（belt）
	Spindle diameter		mm	Φ190
	Spindle taper		/	BT50
	Rivet specifications		/	P50T-I（MAS403）
Speed	Cutting feed speed range		mm/min	24
Speed	X/Y/Z axis rapid traverse speed		m/min	15
Tool magazine	Tool capacity		mm	300
	Max. tool weight		mm	Φ105/Φ210
	Max. tool length		pcs	1-10000
	Max. tool diameter (full /adjacent empty)		kg	24/24/15
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.015	GB/T18400.4 (Full travel)
Accuracy	Repeatability (X/Y/Z)		mm	0.008	GB/T18400.4 (Full travel)
Others	Z-axis counterweight			Counterweight
	CNC system		/	FANUC 0i-MF Plus
	Air source	Flow	L/min	280（ANR）
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	35
	Coolant tank capacity		L	400
	Machine size		mm	5050×3680×3550	With chip conveyor pedal
	Weight (approx.)		Kg	11200
