How to Choose the Right CNC Spindle: A Complete Guide
In the world of precision manufacturing, the spindle is the undeniable heart of your CNC machine tool. It dictates the limits of your cutting speed, the quality of your surface finish, and the lifespan of your cutting tools.
If you want to improve your machining profitability and yield rates, you must understand how to evaluate CNC spindle performance. How do you know which is right for you? This complete guide will break down the core parameters, explain different drive technologies, and provide a clear framework to help you choose the right spindle for your production lines.
What is a CNC Machine Spindle and How Does It Work?

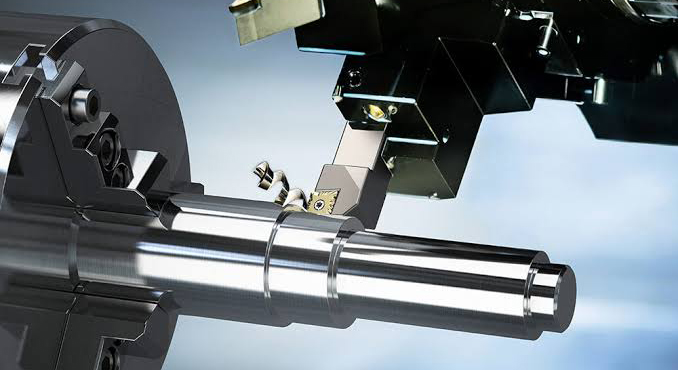

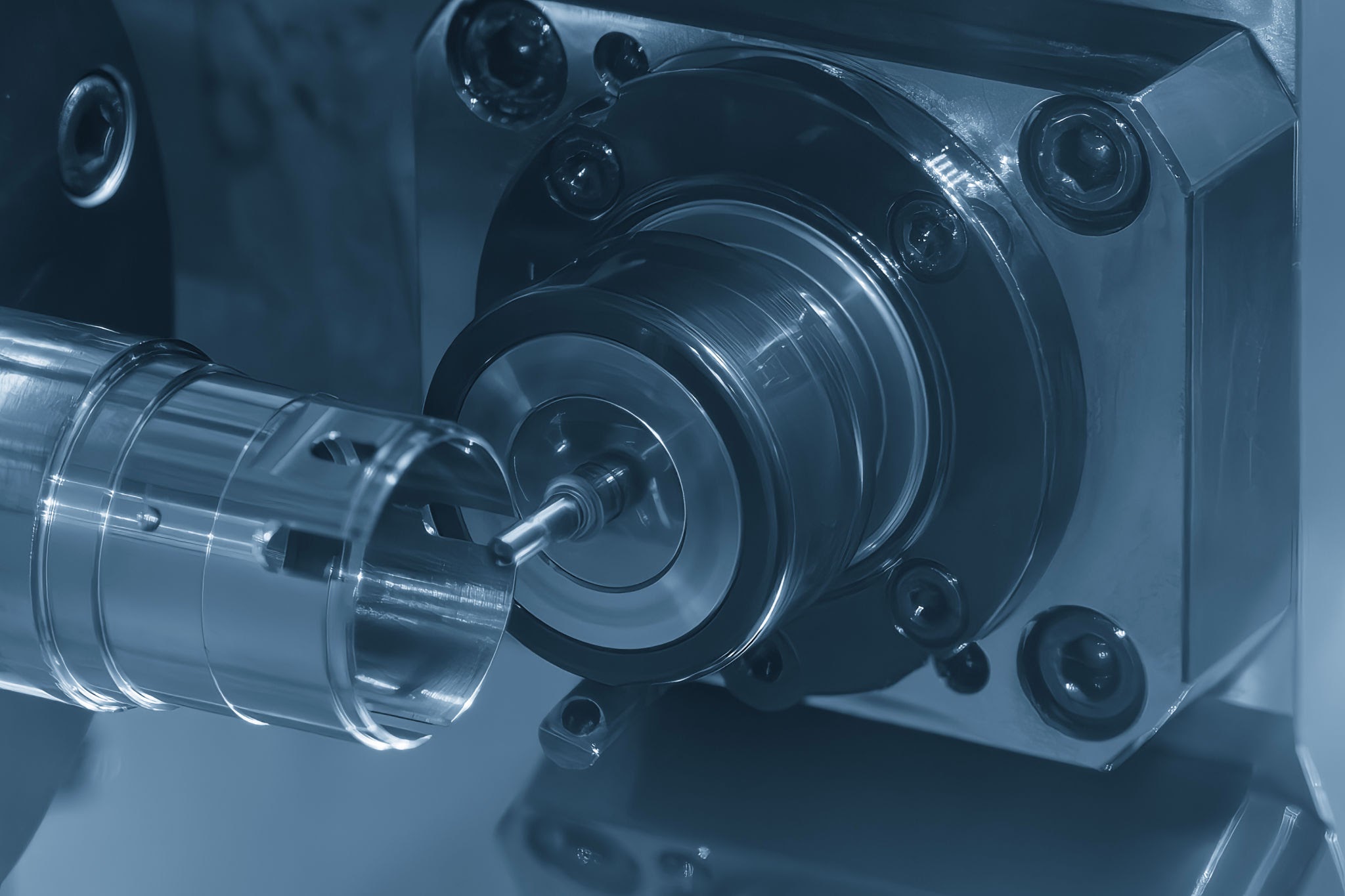

At its core, a CNC spindle is a motorized rotating axis. It has two primary jobs: securing the cutting tool (or the workpiece, in the case of a lathe) and providing the rotational force needed to cut through material.
A high-quality spindle does not just spin fast. It must maintain extreme stability under heavy cutting forces, resist thermal expansion during long operations, and deliver precise torque exactly when the tool engages the metal.
5 Core Parameters That Define True Spindle Performance
When comparing CNC machines, looking only at the maximum RPM is a common mistake. True spindle performance is defined by a combination of five critical factors.
1. RPM Range and the Power/Torque Curve
Maximum speed (RPM) tells you how fast the spindle can spin, but the Power/Torque curve tells you how it will actually cut.
· Constant Torque Zone: Usually found at lower speeds. This is crucial for heavy roughing and cutting hard materials like steel or titanium.
· Constant Power Zone: Found at higher speeds. This is ideal for fast material removal on softer metals like aluminum.
2. Spindle Rigidity and Bearing Configuration
Rigidity prevents the tool from deflecting (bending) under pressure. This depends heavily on the bearings inside the spindle.
◆ Steel Ball Bearings: Cost-effective and highly durable for heavy cutting at lower speeds.
◆ Ceramic Bearings: Lighter and generate less heat. They are the standard for high-speed machining, offering superior thermal stability.
3. Taper Type and Tool Interface
How the tool holder connects to the spindle affects vibration and accuracy.
◆ BT / CAT: The traditional standard. Reliable for general machining but can lose contact at very high speeds.
◆ BBT (Dual Contact): Contacts both the taper and the spindle face. This dramatically improves rigidity and reduces vibration.
◆ HSK: A hollow taper designed specifically for high-speed machining. It actually grips tighter as the spindle spins faster due to centrifugal force.
4. Cooling and Lubrication Systems
Friction generates heat, and heat causes metal to expand, which ruins machining accuracy.
◆ Cooling: High-performance spindles use liquid cooling jackets to stabilize temperatures.
◆ Lubrication: Standard spindles use grease. High-speed spindles often use an oil-air mist system to constantly lubricate and cool the bearings simultaneously.
5. Dynamic Runout
Runout is the measure of how much the tool wobbles while spinning. Measured in microns (µm), excessive runout causes uneven chip loads. This leads to poor surface finishes, rapid tool wear, and broken micro-drills. A premium spindle will guarantee minimal dynamic runout even at maximum RPM.
Belt-Driven, Direct-Drive, or Motor Spindle: Which is Right for You?
Understanding how the motor connects to the spindle shaft is essential for matching the machine to your factory's needs.
Drive Type | Typical RPM Range | Torque output | Core Advantages | Best Machining Applications |
Belt-Driven | 8,000 - 12,000 | High | Great vibration damping, low maintenance cost. | Heavy cutting, cast iron, general steel parts. |
Direct-Drive | 12,000 - 15,000 | Medium | No power loss from belts, fast acceleration. | Aluminum alloys, parts requiring high surface finish. |
Motor Spindle (Built-in) | 18,000 - 40,000+ | Low to Medium | Zero transmission backlash, ultimate dynamic precision. | 3C electronics, precision molds, micro-machining. |
Engineering Selection Guide: Matching Your Machining Needs
To choose the best CNC spindle, always work backward from your specific applications.
◆ By Material: If you primarily machine hardened steel or titanium alloys, prioritize high torque at low speeds (Belt-driven or specialized high-torque Direct-drive). If your focus is aerospace aluminum or consumer electronics casings, prioritize high RPM and fast acceleration (Motor spindles).

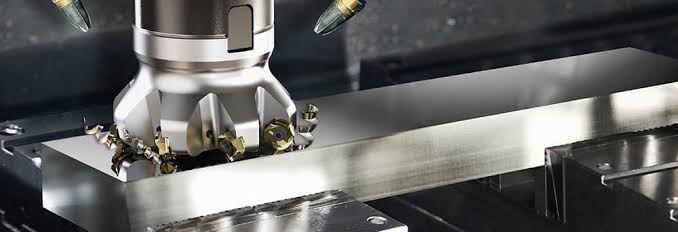

◆ By Tool Size: Using large face mills requires massive torque to push the wide cutting edges through metal. Conversely, using micro-end mills (under 2mm) requires ultra-high RPMs and near-zero runout to prevent the delicate tools from snapping.
Taikan Spindle Technology: Empowering Global Manufacturing
At Taikan, we understand that the spindle is the core of your manufacturing success. We heavily invest in the proprietary design and strict quality control of our spindle architectures. Every Taikan CNC machine undergoes rigorous dynamic balance testing and runout calibration before leaving the factory.
Trusted by over 100 enterprise distributors across more than a dozen countries, Taikan CNC equipment is built to meet world-class standards. Whether showcased at ITM Industry Europe, EXPOMAQ in Mexico, or on your factory floor, our integrated spindle solutions—from high-torque belt drives to ultra-fast built-in motor spindles—are engineered to deliver consistent accuracy and long-term durability.
Frequently Asked Questions (FAQ)
Q: What is the average lifespan of a CNC spindle?
A: With proper maintenance, correct tool balancing, and clean air/coolant supply, a quality spindle can last 3 to 5 years (or 10,000 to 15,000 operating hours) before needing a rebuild. Heavy crashes will significantly reduce this lifespan.
Q: How do I know if my spindle needs dynamic balancing?
A: Watch out for unusual noise, excessive vibration, rapid and uneven tool wear, or a sudden drop in the surface finish quality of your parts.
Q: Can I use standard BT40 tool holders in a BBT40 dual-contact spindle?
A: Yes, you can fit a BT40 holder into a BBT40 spindle, but you will lose the dual-contact advantage. For maximum rigidity, you must use BBT40 tool holders in a BBT40 spindle.
