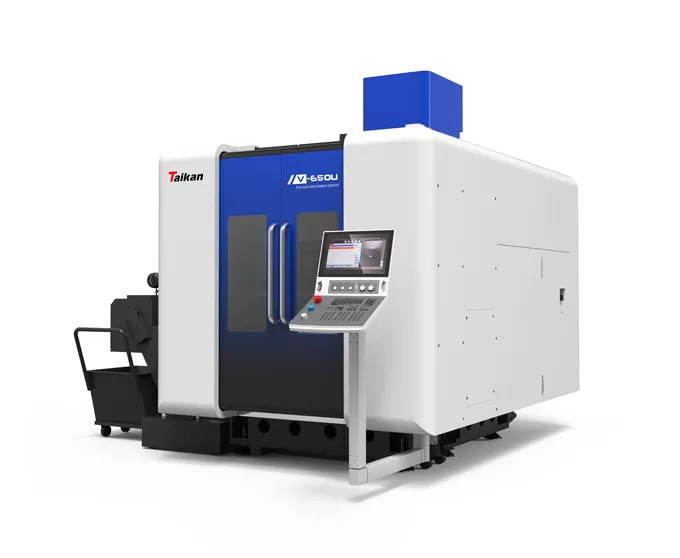

Item | Unit | HV-650U | |
Travel | X/Y/Z travel | mm | 650/800/500 |
A axis rotation range | ° | ±120 | |
C axis rotation range | ° | 360 | |
Distance from spindle nose to worktable surface | mm | 150-650 | |
Table | Table size | mm | Φ650x530 |
Max. load | kg | 500 | |
T-slot (number of slots - slot width * spacing) | mm | 7-18*65 | |
Speed | X/Y/Z axis rapid traverse speed | mm/min | 36000 |
A/C axis rapid traverse rotation speed | r/min | 50/50 | |
Accuracy | X/Y/Z axis positioning accuracy | mm | 0.006/0.006/0.006 |
X/Y/Z axis repeatability accuracy | mm | 0.004/0.004/0.004 | |
A/C axis positioning accuracy | sec | 5/5 | |
A/C axis repeatability accuracy | sec | 3/3 | |
Spindle | Spindle motor power (S1/S6) | kW | 30/35.4 |
Spindle motor torque (S1/S6) | Nm | 72/85 | |
Spindle speed | r/min | 0~18000 | |
Tool holder specifications | / | HSK A63 | |
Tool magazine | Tool magazine structure | / | Chain tool arm magazine |
Tool magazine capacity | T | 40 | |
Max. tool weight | kg | 8 | |
Max. tool length | mm | 300 | |
Max. diameter (full /adjacent empty) | mm | φ80/φ150 | |
Others | CNC system | / | Siemens SINUMERIK ONE |
Air source pressure requirement | MPa | 0.6~0.8 | |
Total electrical capacity | kW | 68 | |
Machine size(length*width*height) | mm | 4300*3900*3300 | |
Main machine weight (approx.) | KG | 15000 | |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
