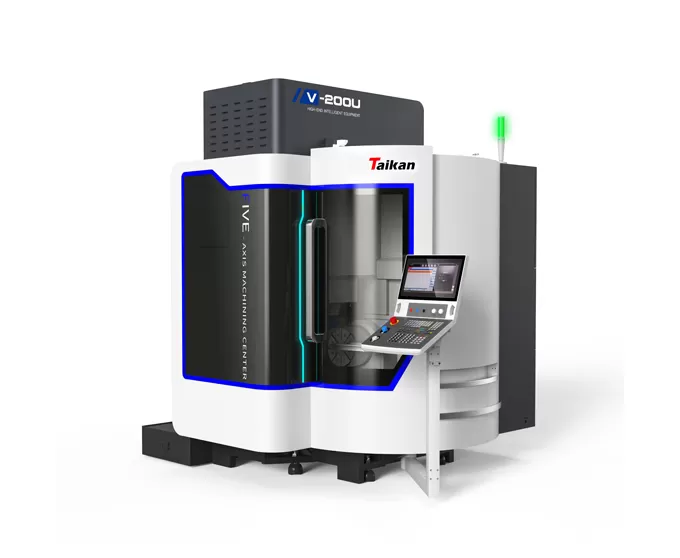

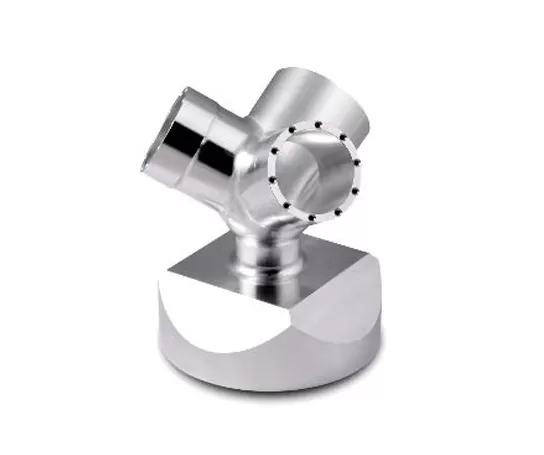

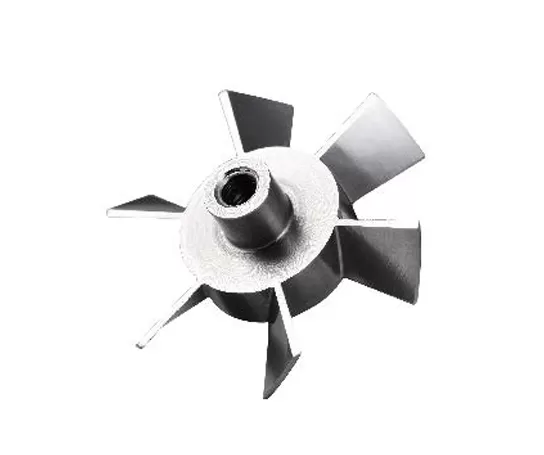

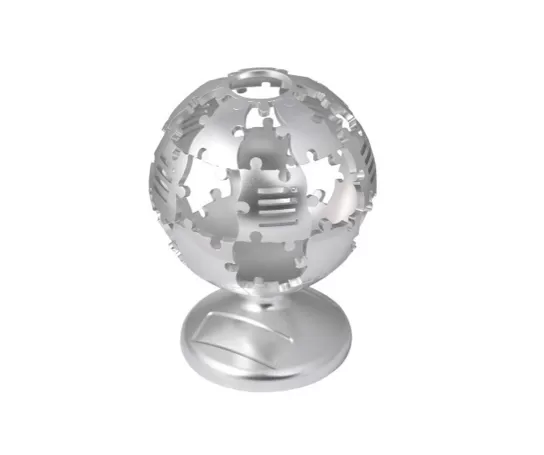

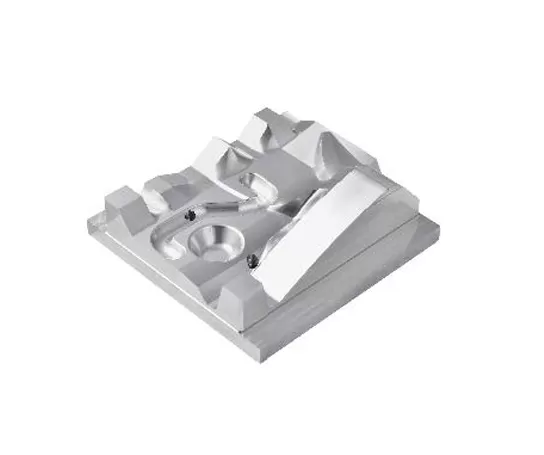

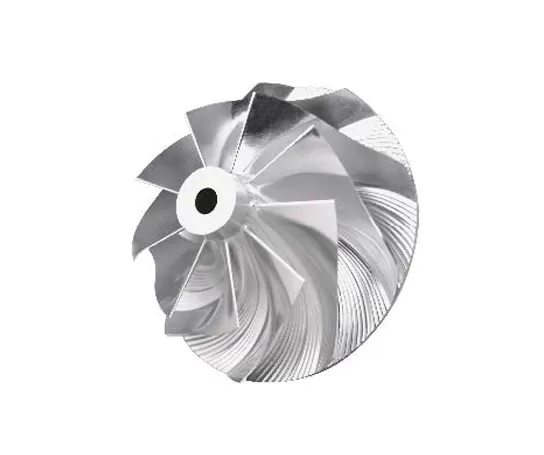

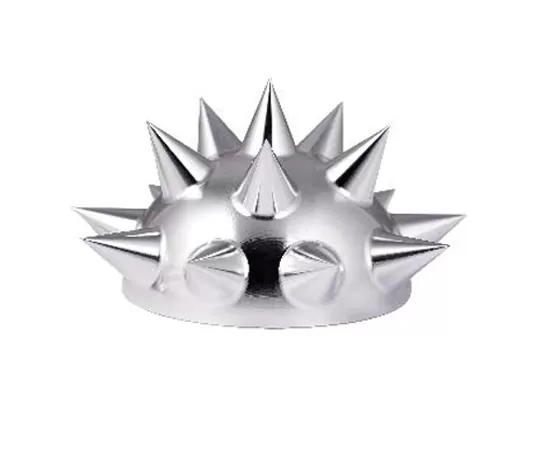

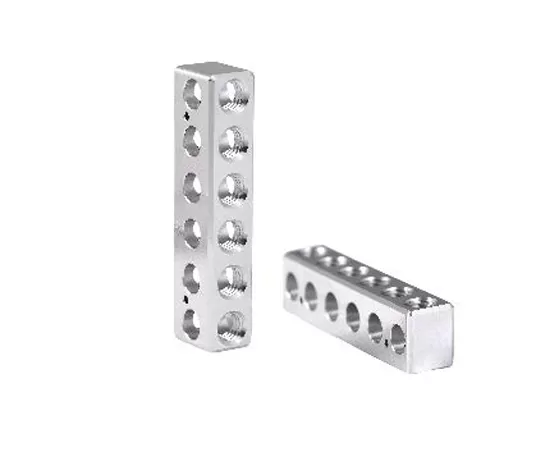

Vertical Five-Axis Machining Center

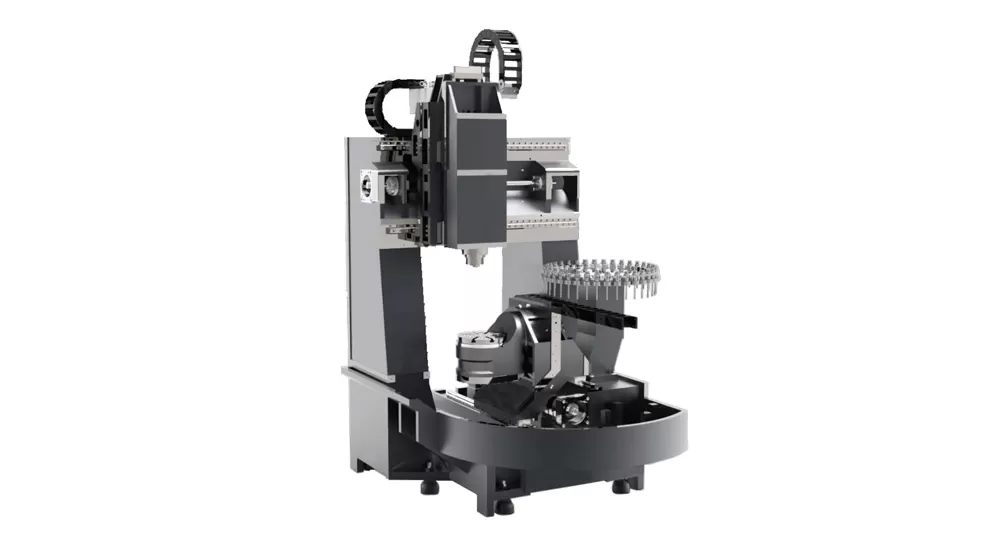

High-Rigidity Structure

High rigidity gantry-type O-shaped structure, high-quality gray cast iron material: Provides strong rigidity and stability, reducing deformation and improving accuracy.
Step-type arrangement of the beam's guide rails, short distance from the spindle to the beam: Enhances rigidity and improves machining accuracy.
Single-arm rotary table, minimized distance from the X-axis drive point to the machining point: Reduces vibration, improving precision and efficiency.

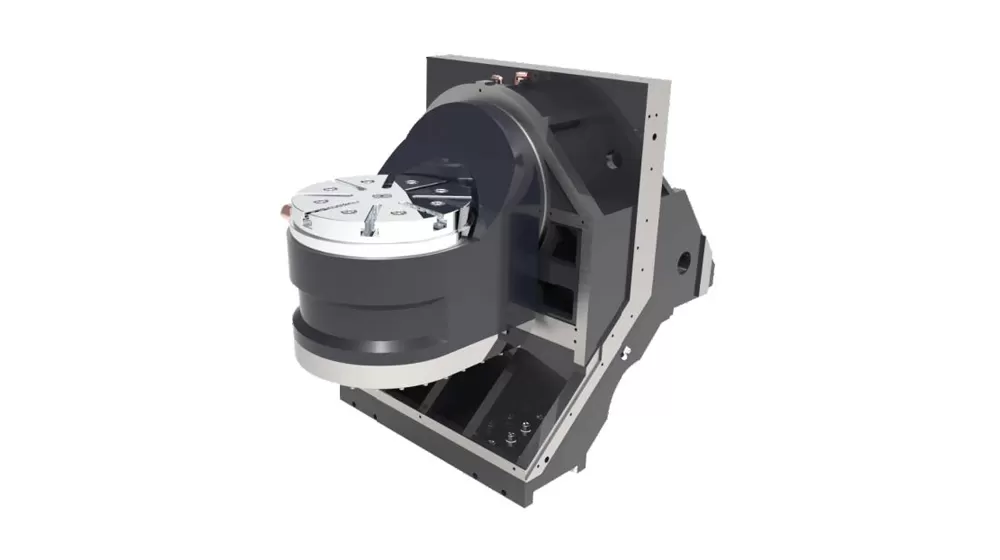

High-Precision Direct-Drive Rotary Table

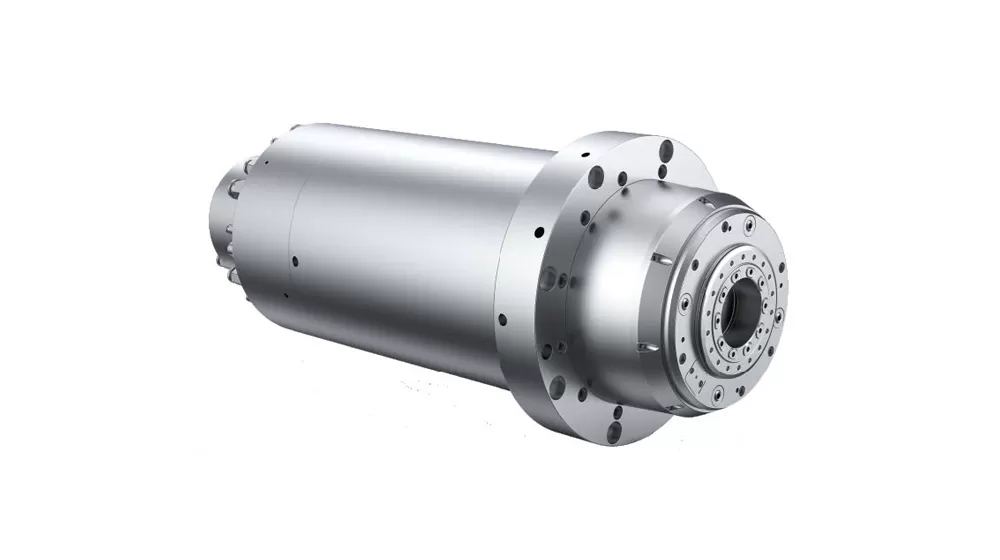

High-Speed Motorized Spindle

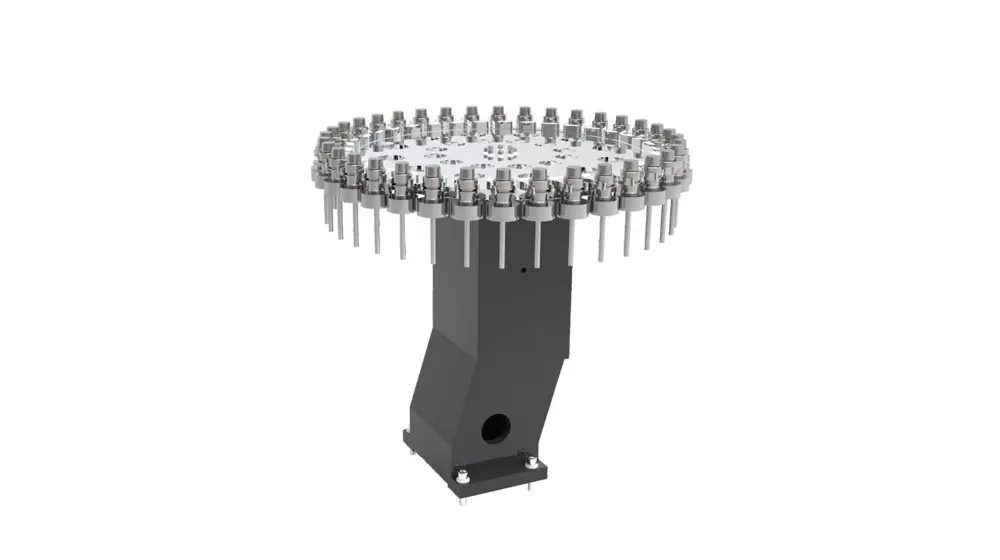

30-Tool Umbrella Magazine

Item		Unit	V-200U
Travel	Travel X/Y/Z	mm	500/280/300
	B axis rotation range	°	+30°~ -120°
	C axis rotation range	°	360°
	Distance from spindle nose to worktable surface	mm	100-400
Table	Table size	mm	Φ260
	Max. load	kg	30
	T-slot (number of slots - slot width * spacing)	mm	8-14*45°(Evenly distributed)
Speed	X/Y/Z axis rapid traverse speed	mm/min	24000
Speed	B/C axis rapid traverse rotation speed	r/min	50/50
Accuracy	X/Y/Z axis positioning accuracy	mm	0.006/0.006/0.006
	X/Y/Z axis repeatability accuracy	mm	0.004/0.004/0.004
	B/C axis positioning accuracy	sec	8/8
	B/C axis repeatability accuracy	sec	5/5
Spindle	Spindle motor power (S1/S6)	kW	11/19
	Spindle motor torque (S1/S6)	Nm	5/8.7
	Spindle speed	r/min	0~30000
	Tool holder specifications	/	HSK E40
Tool magazine	Tool magazine structure	/	Umbrella tool magazine
	Tool magazine capacity	T	30
	Max. tool weight	kg	1.2
	Max. tool length	mm	150
	Max. diameter (full /adjacent empty)	mm	φ40/φ60
Others	CNC system	/	Siemens SINUMERIK ONE
	Air source pressure requirement	MPa	0.6~0.8
	Total electrical capacity	kW	32
	Machine size(lengthwidthheight)	mm	320040002700
	Main machine weight (approx.)	KG	5500
