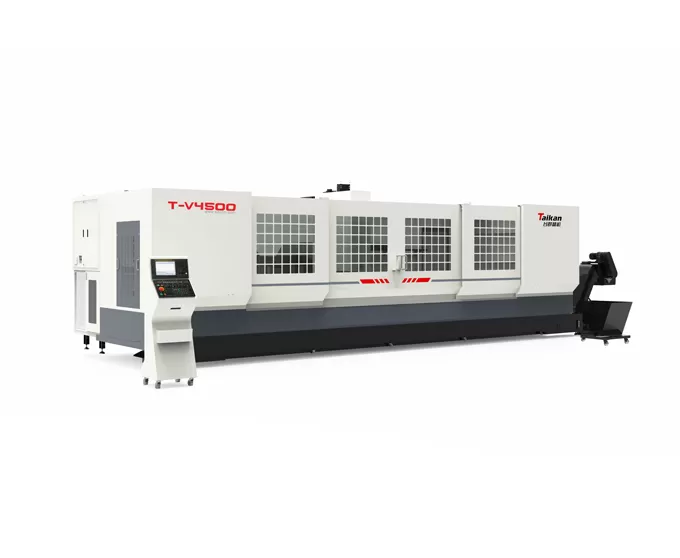

Item | Unit | HT-V4500 | Remarks | ||
Travel | Table travel (X axis) | mm | 4500 | ||
Saddle travel (Y axis) | mm | 550 | |||
Headstock travel (Z axis) | mm | 550 | |||
Distance from spindle nose to table | mm | 150-700 | |||
Table | Table size | mm | 4500*550 | ||
Max. load | Kg | 800 | |||
T-slot (number-width*spacing) | mm | 5-18*100 | |||
Spindle | Motor power (rated/short time) | kW | 7.5/11 | ||
Motor torque (rated/short time) | N.m | 35.8/95.5 | |||
Spindle speed | rpm | 20-12000 | |||
Spindle diameter | mm | Ф150 | |||
Spindle taper | / | BT40 | |||
Speed | Cutting feed speed range | mm/min | 1-10000 | ||
X/Y/Z axis rapid traverse speed | m/min | 50/28/28 | |||
Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.08/0.01/0.01 | GB/T 18400.4 | |
Repeatability (X/Y/Z) | mm | 0.05/0.008/0.008 | (Full travel) | ||
Tool magazine | Tool magazine capacity | T | 24 (disc) | ||
Max. tool weight | kg | 7 | |||
Max. tool length | mm | 250 | |||
Max. tool diameter (full /adjacent empty) | mm | Ф75/Ф150 | |||
Others | CNC system | / | Mitsubishi M80VB | ||
Air source | Flow | L/min | ≥280（ANR） | ||
Air pressure | MPa | 0.6-0.8 | |||
Equipment capacity | kVA | 25 | |||
Coolant tank capacity | L | 400 | |||
Machine size | mm | 9300*3200*2800 | Corresponding to X*Y*Z axis | ||
Weight (approx.) | Kg | 13000 | |||
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
