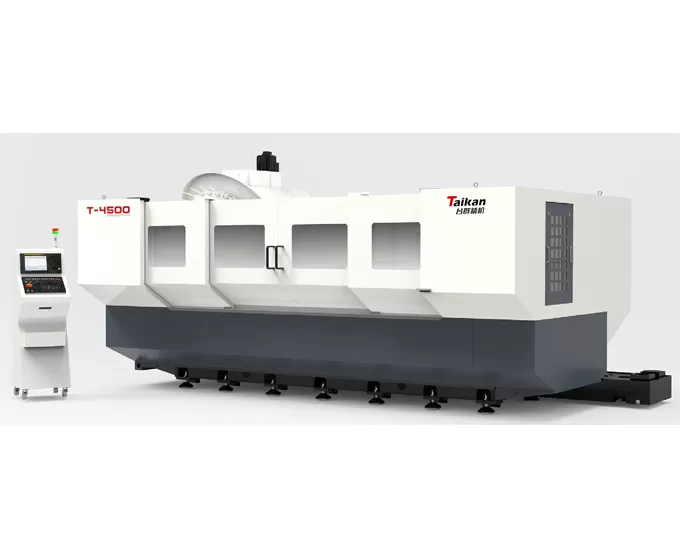

Item | Unit | HT-4500 | Remarks | ||
Travel | Table travel (X axis) | mm | 4500 | ||
Saddle travel (Y axis) | mm | 400 | |||
Headstock travel (Z axis) | mm | 350 | |||
Distance from spindle nose to table | mm | 200-550 | |||
Table | Table size | mm | 4500*400 | ||
Max. load | kg | 800 | |||
T-slot (number-width*spacing) | mm | 4-14*100 | |||
Spindle | Motor power (rated/short time) | kW | 3.7/5.5 | ||
Motor torque (rated/short time) | N.m | 23.6/35 | |||
Spindle speed | rpm | 20-12000 | |||
Spindle diameter | mm | Ф100 | |||
Spindle taper | / | BT30 | |||
Speed | Cutting feed speed range | mm/min | 1-10000 | ||
X/Y/Z axis rapid traverse speed | m/min | 50/30/36 | |||
Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.08/0.01/0.01 | GB/T 18400.4 | |
Repeatability (X/Y/Z) | mm | 0.05/0.006/0.006 | (Full travel) | ||
Tool magazine | Tool magazine capacity | T | 21 | ||
Max. tool weight | kg | 3 | |||
Max. tool length | mm | 200 | |||
Max. tool diameter (full /adjacent empty) | mm | Ф60/Ф80 | |||
Others | CNC system | / | Mitsubishi M80VB | ||
Air source | Flow | L/min | ≥200（ANR） | ||
Air pressure | MPa | 0.6-0.8 | |||
Equipment capacity | kVA | 20 | |||
Coolant tank capacity | L | 400 | |||
Machine size | mm | 7500*2500*2400 | Corresponding to X*Y*Z axis | ||
Weight (approx.) | Kg | 10000 | |||
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
