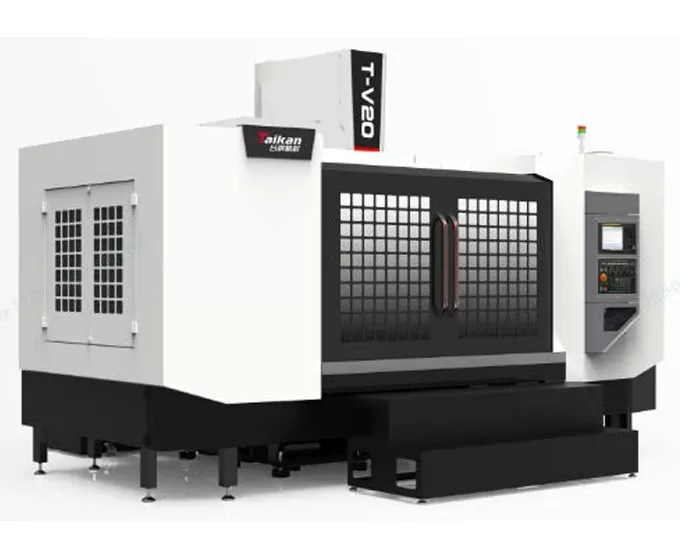

Item | Unit | HT-V20 | Remarks | ||
Travel | Table travel (X axis) | mm | 2000 | ||
Saddle travel (Y axis) | mm | 650 | |||
Headstock travel (Z axis) | mm | 590 | |||
Distance from spindle nose to table surface | mm | 100-690 | |||
Distance from spindle center to column guide surface | mm | 707 | |||
Worktable | Table size | mm | 2000*650 | ||
Max. load (even load-bearing) | kg | 800 | |||
T-slot (number of slots - slot width * spacing) | mm | 5-18*125 | |||
Spindle | Motor power (rated/short time) | kW | 7.5/11 | ||
Motor torque (rated/short time) | N.m | 35.8/95.5 | |||
Speed range | r/min | 20-12000 | |||
Spindle diameter | mm | 150 | |||
Spindle taper | / | BT40 | |||
Rivet specifications | / | 1-15000 | |||
Speed | Cutting feed speed range | mm/min | 27/36/36 | ||
X/Y/Z axis rapid traverse speed | m/min | 0.015 | |||
Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.008 | GB/T18400.4（Full travel） | |
Repeatability (X/Y/Z) | mm | 0.01 | |||
Tool magazine | Tool capacity | pcs | 0.006 | ||
Max. tool weight | kg | 24 | |||
Max. tool length | mm | 7 | |||
Max. tool diameter (full /adjacent empty) | mm | 250 | |||
Others | Z-axis counterweight | φ75/φ150 | |||
CNC system | / | Mitsubishi M80VB | |||
Air source | Flow | L/min | ≥280（ANR） | ||
Air pressure | MPa | 0.6-0.8 | |||
Equipment capacity | KVA | 25 | |||
Coolant tank capacity | L | 400 | |||
Machine size | mm | 4800*3900 (including steps)*2950 | Corresponding to X*Y*Z axis | ||
Weight (approx.) | Kg | 8450 | |||
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
