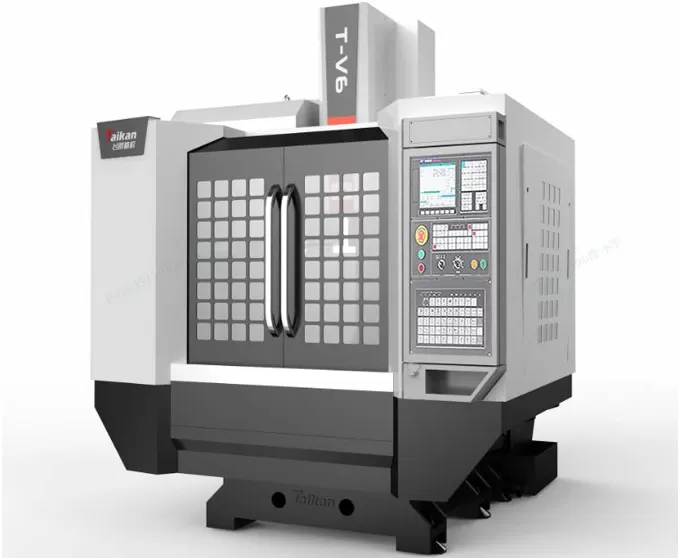

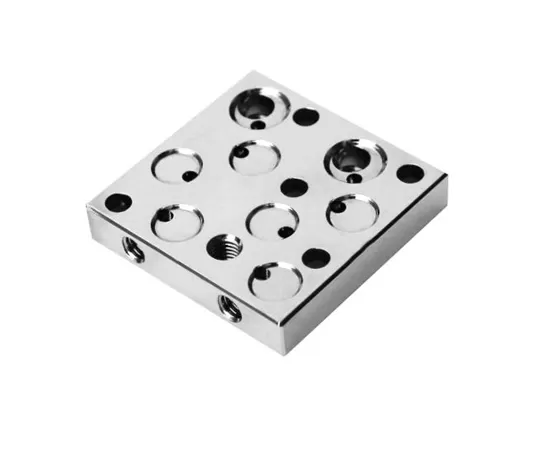

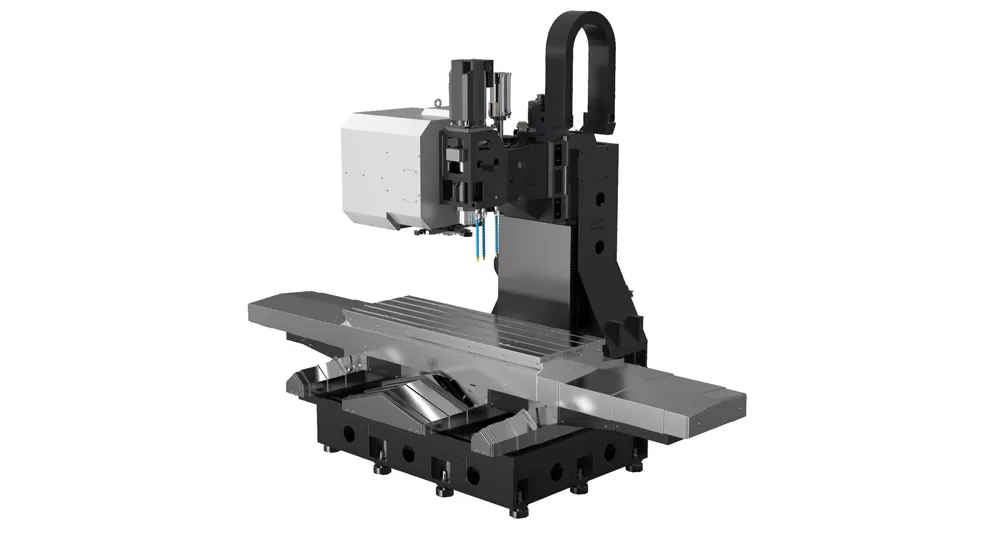

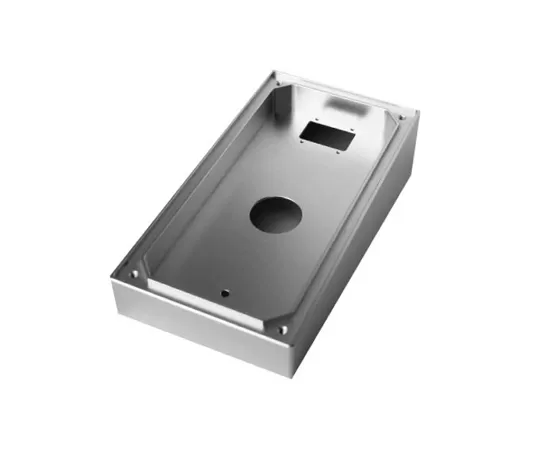

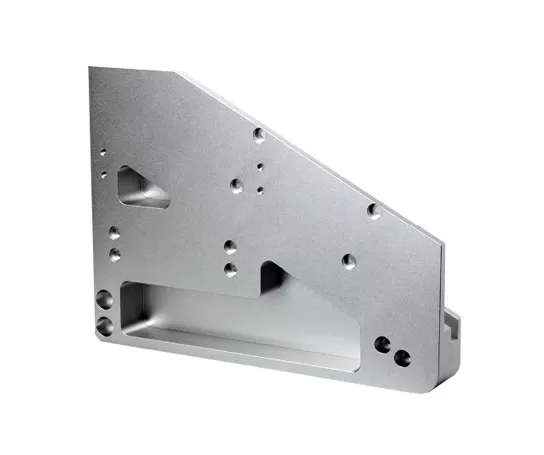

HT-V6 Light Cutting Vertical Machining Center

Travel

Table travel (X axis)

mm

600

Saddle travel (Y axis)

mm

390

Headstock travel (Z axis)

mm

450

Distance from spindle nose to table surface

mm

190～640

Distance from spindle center to column guide surface

mm

455

Worktable

Table size

mm

700*400

Max. load (even load-bearing)

kg

250

T-slot (number of slots - slot width * spacing)

mm

3-18*125

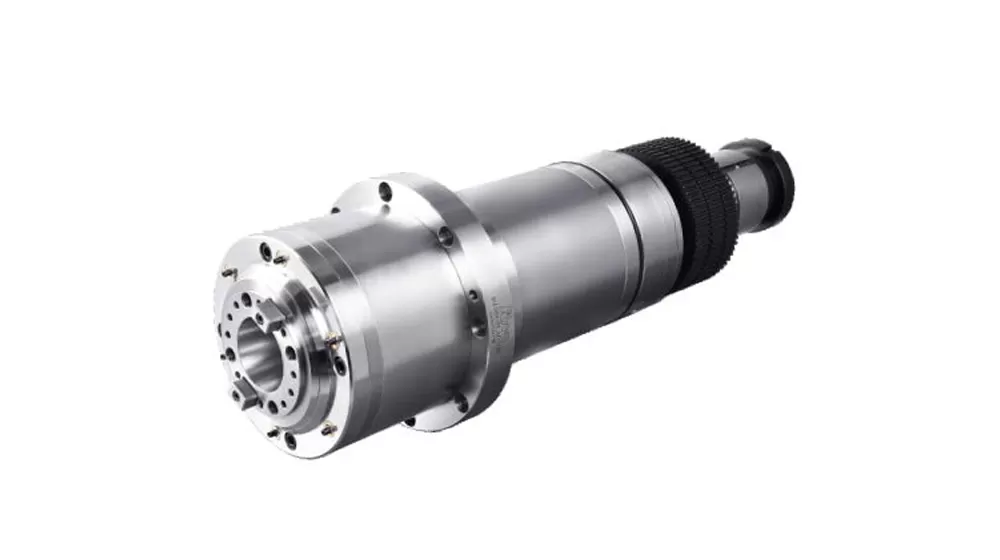

Spindle

Motor power (rated/short time)

kW

3.7/5.5

Motor torque (rated/short time)

N.m

23.6/35

Speed range

r/min

20～12000 (Directly coupled)

Spindle diameter

mm

φ120

Spindle taper

/

BT40

Rivet specifications

/

P40T-I（MAS403）

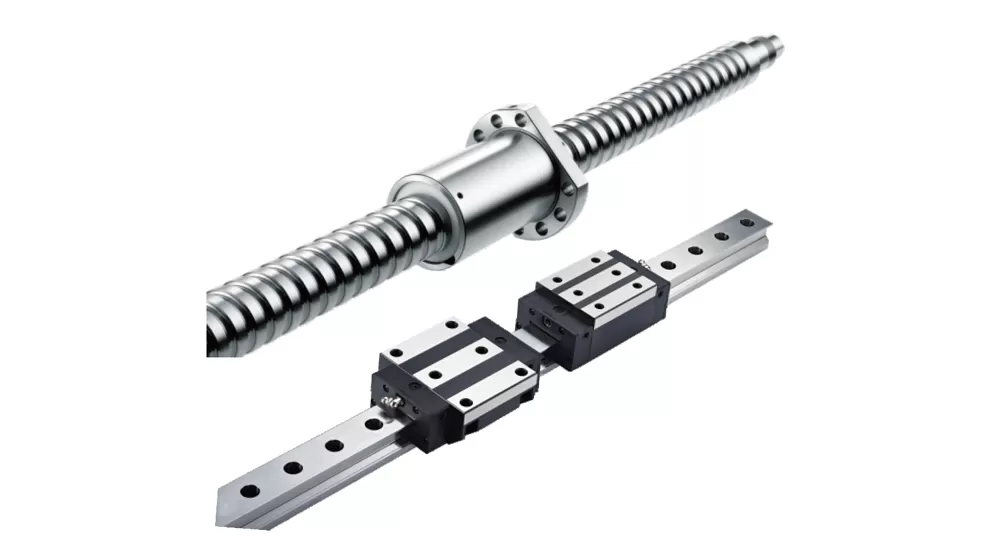

Speed

Cutting feed speed range

mm/min

1-10000

X/Y/Z axis rapid traverse speed

m/min

48/48/48

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.006

GB/T18400.4（Full travel）

Repeatability (X/Y/Z)

mm

0.004

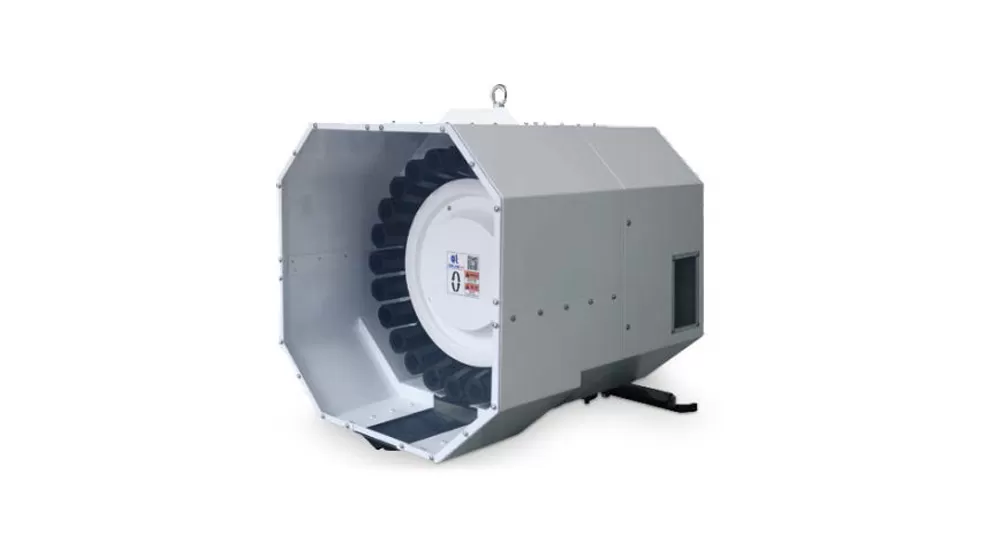

Tool magazine

Tool capacity

pcs

24

Max. tool weight

kg

7

Max. tool length

mm

250

Max. tool diameter (full /adjacent empty)

mm

Φ75/Φ150

Others

Z-axis counterweight

CNC system

/

Mitsubishi M80VB

Air source

Flow

L/min

≥280（ANR)

Air pressure

MPa

0.6~0.8

Equipment capacity

KVA

15

Coolant tank capacity

L

145

Machine size

mm

2100×2580×2670

Corresponding to X*Y*Z axis

Weight (approx.)

Kg

3500
