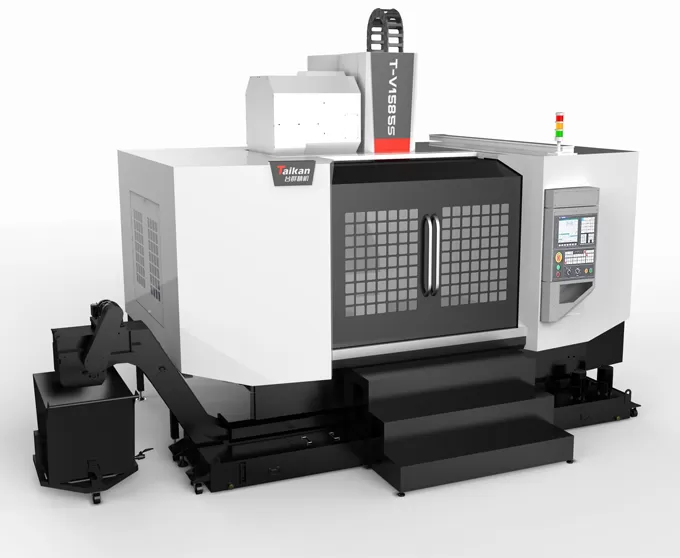

Item | Unit | HT-V1585S | Remarks | ||
Travel | Table travel (X axis) | mm | 1550 | ||
Saddle travel (Y axis) | mm | 850 | |||
Headstock travel (Z axis) | mm | 850 | |||
Distance from spindle nose to table surface | mm | 120～970 | |||
Distance from spindle center to column guide surface | mm | 921 | |||
Worktable | Table size | mm | 1700*850 | ||
Max. load (even load-bearing) | kg | 1500 | |||
T-slot (number of slots - slot width * spacing) | mm | 5-18*125+2-18*100 | |||
Spindle | Motor power (rated/short time) | kW | 15/18.5 | ||
Motor torque (rated/short time) | N.m | 143/191 | |||
Speed range | r/min | 50～6000(belt) | |||
Spindle diameter | mm | Φ190 | |||
Spindle taper | / | BT50 | |||
Rivet specifications | / | P50T-I（MAS403） | |||
Speed | Cutting feed speed range | mm/min | 1-10000 | ||
X/Y/Z axis rapid traverse speed | m/min | 24/24/20 | |||
Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.015 | GB/T18400.4（Full travel） | |
Repeatability (X/Y/Z) | mm | 0.008 | |||
Tool magazine | Tool capacity | pcs | 24 | ||
Max. tool weight | kg | 15 | |||
Max. tool length | mm | 300 | |||
Max. tool diameter (full /adjacent empty) | mm | Φ105/Φ210 | |||
Others | Z-axis counterweight | Nitrogen balance | |||
CNC system | / | FANUC 0i-MF Plus(5) | |||
Air source | Flow | L/min | 280（ANR） | ||
Air pressure | MPa | 0.6~0.8 | |||
Equipment capacity | KVA | 35 | |||
Coolant tank capacity | L | 400 | |||
Machine size | mm | 5240*4054*3662 | With chip conveyor pedal | ||
Weight (approx.) | Kg | 11700 | |||
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
