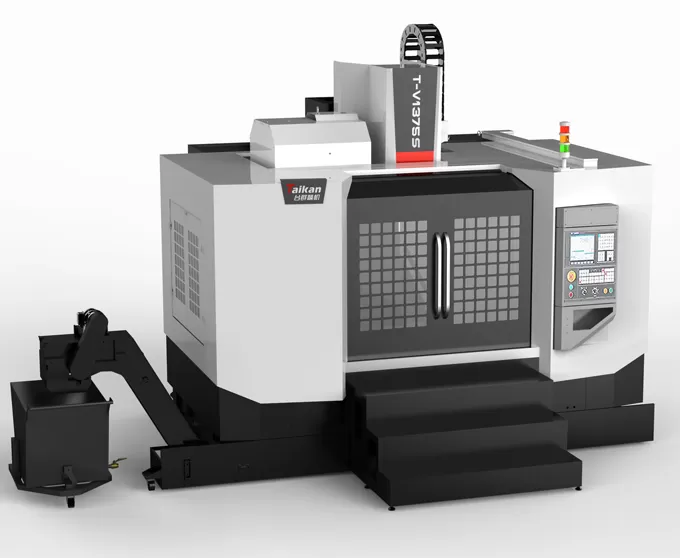

HT-V1375S High-speed and High-efficiency Vertical Machining Center

HT-V1375S High-speed and High-efficiency Vertical Machining Center

Standard Edition with Three Linear Guide Rails

High-speed and high-efficiency—A classic masterpiece

Quantity:




Inquire Add to Basket

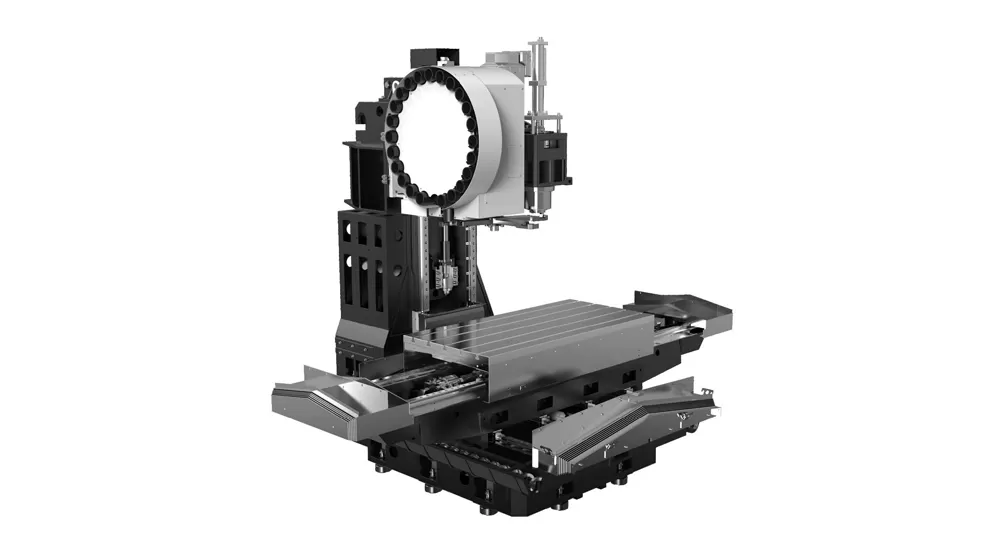

Machine Structure

Fixed column, cross-type sliding table: This design provides solid support and is suitable for high-speed cutting.

Large, stable base, high-rigidity, wide-span A-shaped column: Reduces vibration and deformation, ensuring high rigidity.

High-quality resin sand molding, high-strength cast iron: Ensures the machine's rigidity and stability, reduces deformation, and maintains long-term precision.

Guideways and Ball Screws

Spindle

Tool Magazine

Related Products

HT-V1265S High-speed and High-efficiency Vertical Machining Center

HT-V1685S High-speed and High-efficiency Vertical Machining Center

HT-V1055S High-speed and High-efficiency Vertical Machining Center

HT-V856S High-speed and High-efficiency Vertical Machining Center

HT-V1475S High-speed and High-efficiency Vertical Machining Center

HT-V1165S High-speed and High-efficiency Vertical Machining Center

HT-V1270S High-speed and High-efficiency Vertical Machining Center

HT-V1585S High-speed and High-efficiency Vertical Machining Center

Item			Unit	HT-V1375S	Remarks
Travel	Table travel (X axis)		mm	1350
	Saddle travel (Y axis)		mm	750
	Headstock travel (Z axis)		mm	750
	Distance from spindle nose to table surface		mm	120～870
	Distance from spindle center to column guide surface		mm	826
Worktable	Table size		mm	1500*750
	Max. load (even load-bearing)		kg	1300
	T-slot (number of slots - slot width * spacing)		mm	5-18*150
Spindle	Motor power (rated/short time)		kW	15/18.5
	Motor torque (rated/short time)		N.m	143/191
	Speed range		r/min	50～6000(belt)
	Spindle diameter		mm	Φ190
	Spindle taper		/	BT50
	Rivet specifications		/	P50T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	24/24/20
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.015	GB/T18400.4（Full travel）
Accuracy	Repeatability (X/Y/Z)		mm	0.008	GB/T18400.4（Full travel）
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	15
	Max. tool length		mm	300
	Max. tool diameter (full /adjacent empty)		mm	Φ105/Φ210
Others	Z-axis counterweight			Nitrogen balance
	CNC system		/	FANUC 0i-MF Plus(5)
	Air source	Flow	L/min	280（ANR）
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	35
	Coolant tank capacity		L	400
	Machine size		mm	5050×3680×3440	With chip conveyor pedal
	Weight (approx.)		Kg	10500
