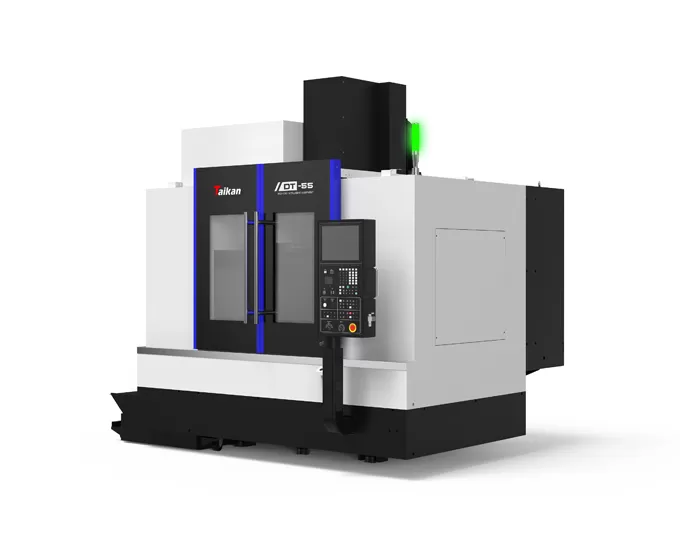

Name | Unit | DT55 | Remarks | ||
Travel | Table travel(X-axis) | mm | 1050 | ||
Saddle travel(Y-axis) | mm | 550 | |||
Spindle box travel(Z-axis) | mm | 550 | |||
Distance from spindle nose to table surface | mm | 120-670 | |||
Distance spindle center to column guide surface | mm | 650 | |||
Table | Table size | mm | 1200*500 | ||
Table loading | kg | 800 | |||
T-SLOT(QTY-Width*Space) | mm | 5-18*100 | |||
Spindle | Motor power (S1/S6) | kW | 11/18.5 | ||
Motor torque (S1/S6) (rated/short-time） | N.m | 52.5/118 | |||
Rotary speed | r/min | 50~12000（direct） | |||
Spindle diameter | mm | Ф150 | |||
Spindle tapper | / | BBT40 | |||
Drive | Motor power X/Y/Z | kW | 3.0/3.0/3.0 | ||
Speed | X/Y/Z axis rapid speed | m/min | 48/48/48 | ||
Accuracy | Position accuracy（X/Y/Z） | mm | 0.006/0.006/0.006 | VDI 3441 | |
Repeatability（X/Y/Z） | mm | 0.004/0.004/0.004 | |||
Tool magazine | Tool capacity | T | 30 | ||
Max. weight | kg | 8 | |||
Max. length | mm | 350 | |||
Max. allowable torque | Nm | ≤10.19 | |||
Max. diameter(full/adjacent) | mm | Ф80/Ф150 | |||
Others | CNC system | / | FANUC 0i MF PLUS | ||
Gas source | Flow | L/min | ≥280（ANR） | ||
Air pressure | MPa | 0.6-0.8 | |||
Equipment capacity | KVA | 25 | |||
Machinery size | mm | 3148*2926*2935 | Corresponding X*Y*Z axis | ||
Machine weight(approx.) | kg | 6000 | |||
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
