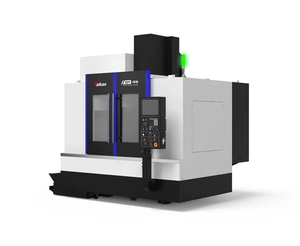

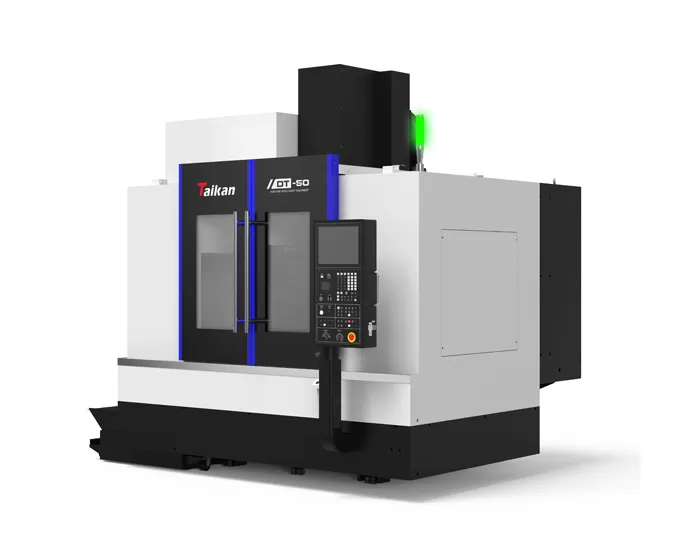

HDT50 High Precision Vertical Machining Center

HDT50 High Precision Vertical Machining Center

High Rigidity & High Efficiency

High speed, high efficiency and high precision

Quantity:




Inquire Add to Basket

Characteristic of DT50 High Precision Vertical Machining Center
Application of DT50 High Precision Vertical Machining Center
Specifications of HDT50 High Precision Vertical Machining Center
Systems Control

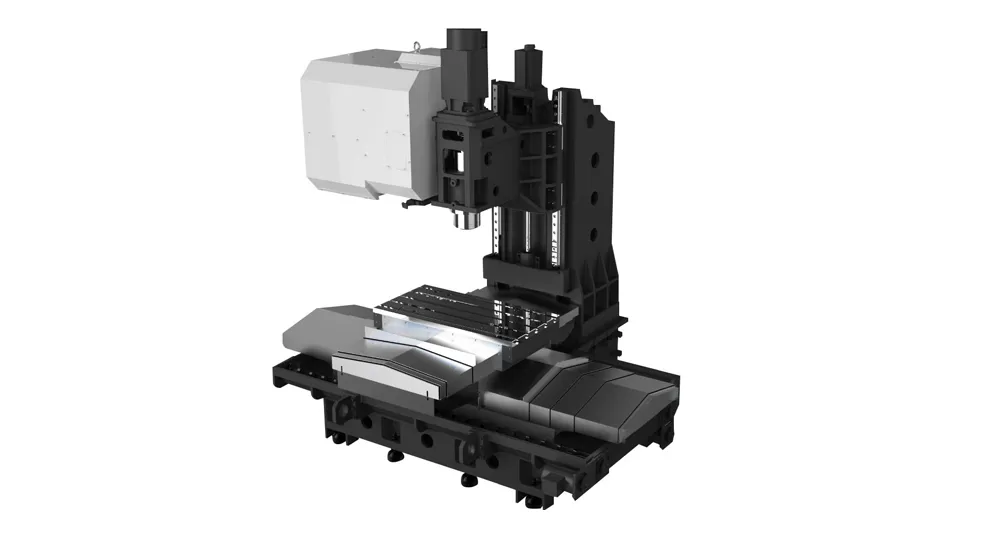

Full Travel Support Structure

The machine features a T-shaped bed, with the saddle moving left and right on the X-axis and the table moving forward and backward on the Y-axis. The full travel support of the table and saddle eliminates the lateral overhang of traditional C-type vertical machining centers, ensuring better dynamic performance and cutting stability.

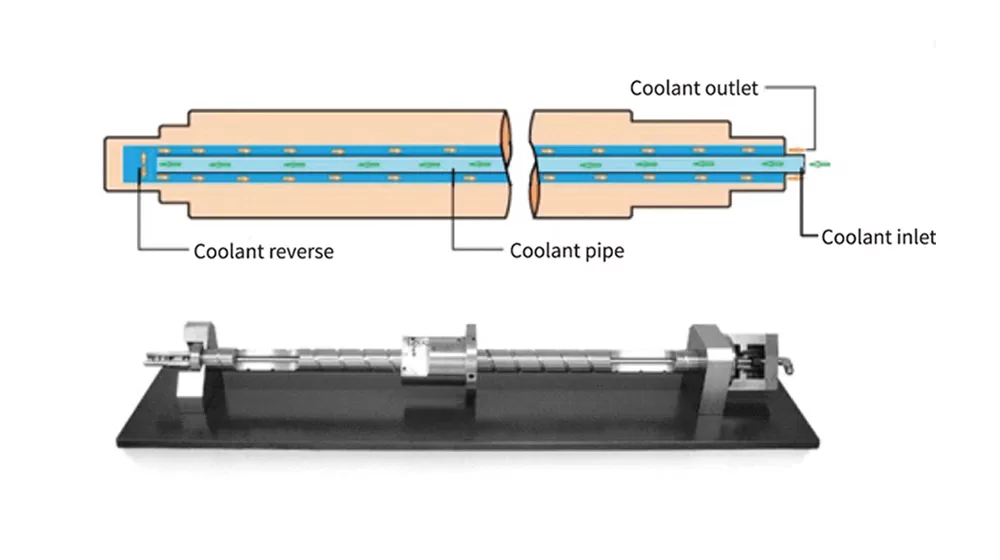

Hollow Cooling Ball Screw

The large-diameter precision ball screw features a hollow cooling system and pre-tension design to reduce thermal deformation, improve machining precision, and extend the screw's service life.

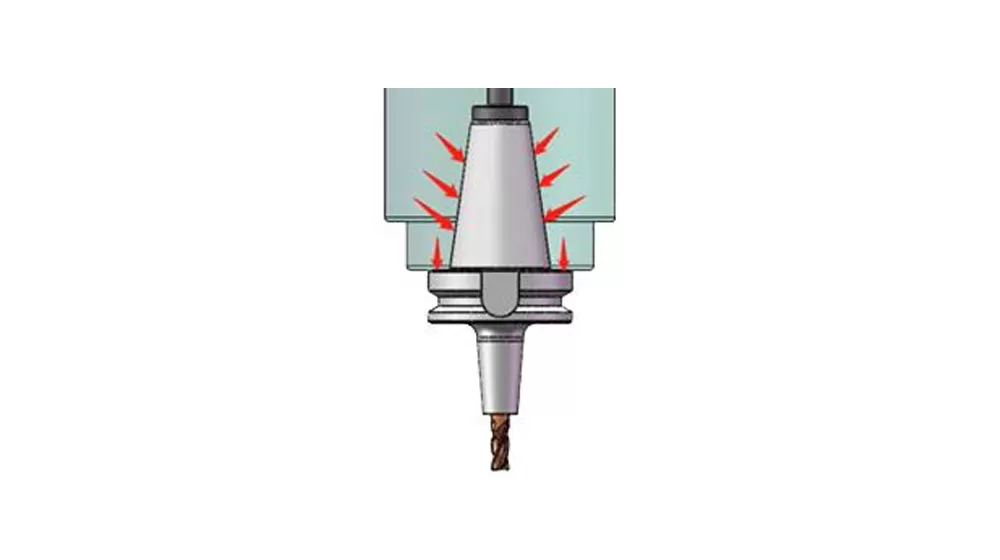

Precision High-Speed Spindle Unit

The spindle uses a BBT40-12000r/min direct-drive system with a cooling system to reduce thermal deformation, improve accuracy, and extend bearing life. The spindle front end has a labyrinth seal and air curtain to prevent coolant from entering the bearings, ensuring long-term stability.

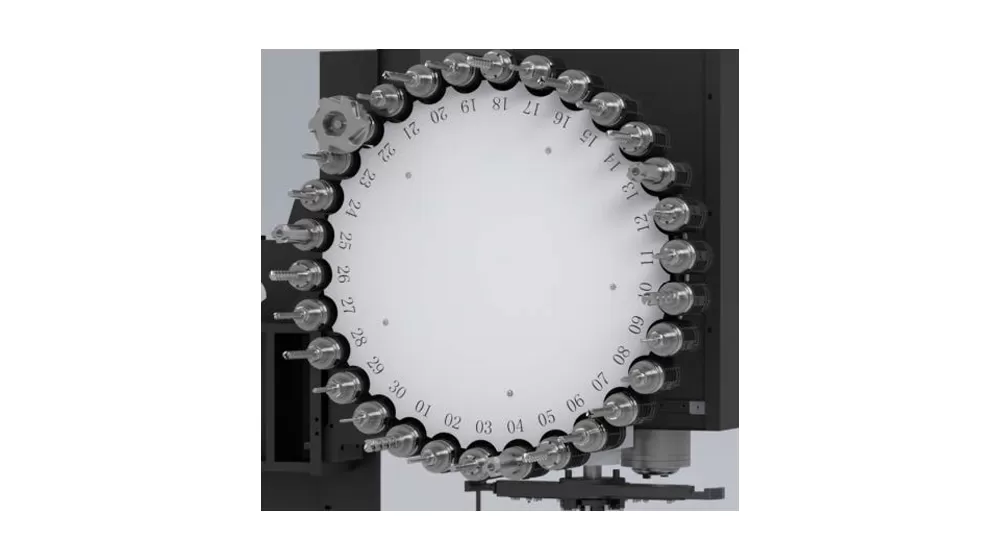

Fully Enclosed Tool Magazine

The fully enclosed tool magazine protects the tools from contamination, keeping them clean. The servo-driven ATC system improves tool change speed, accuracy, and stability, boosting machining efficiency.

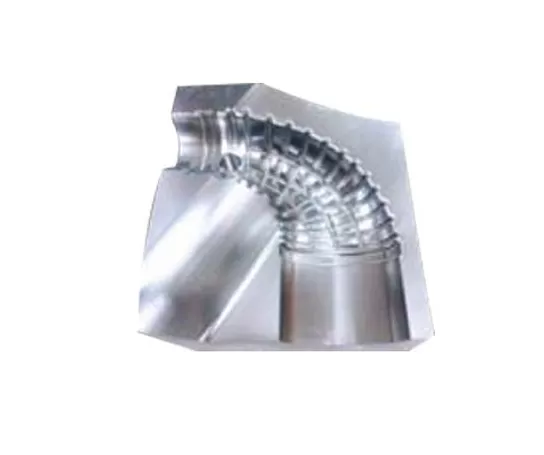

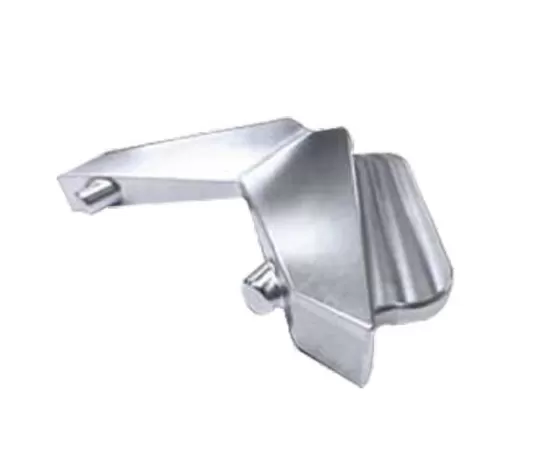

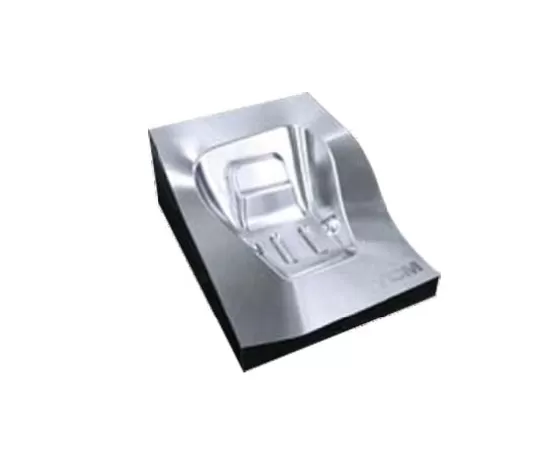

The machine tool is suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.

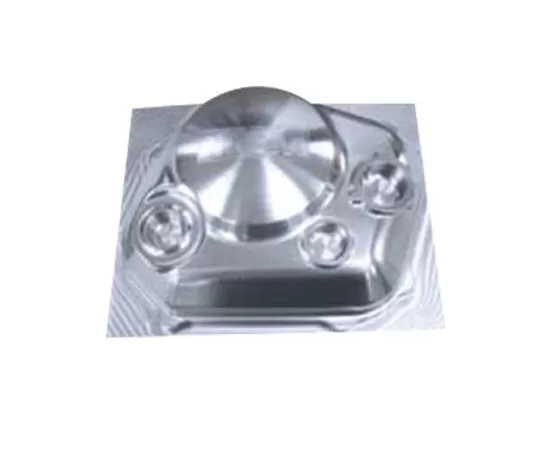

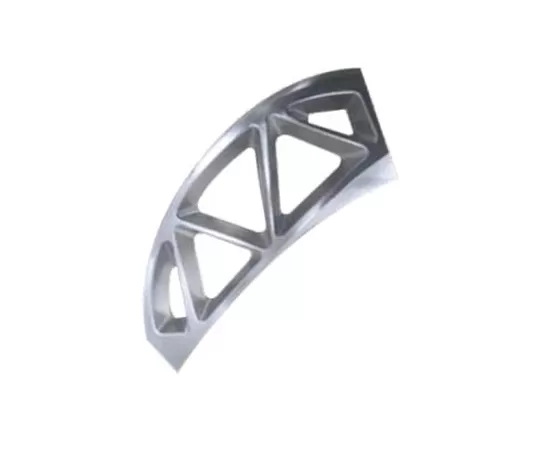

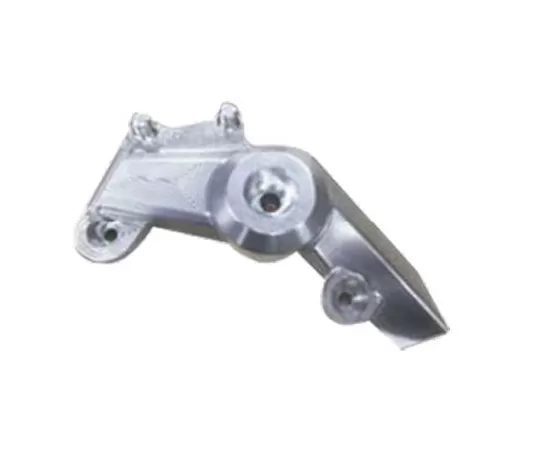

Workpiece Example 3

Workpiece Example 4

Workpiece Example 5

Workpiece Example 6

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 5

Workpiece Example 6

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Name			Unit	HDT50	Remarks
Travel	Table travel(X-axis)		mm	850
	Saddle travel(Y-axis)		mm	500
	Spindle box travel(Z-axis)		mm	500
	Distance from spindle nose to table surface		mm	150-650
	Distance spindle center to column guide surface		mm	/
Table	Table size		mm	1100*450
	Table loading		kg	600
	T-SLOT(QTY-Width*Space)		mm	3-18*125
Spindle	Motor power (S1/S6)		kW	11/18.5
	Motor torque (S1/S6) (rated/short-time）		N.m	52.5/118
	Rotary speed		r/min	50~12000（direct）
	Spindle diameter		mm	Ф150
	Spindle tapper		/	BBT40
Drive	Motor power X/Y/Z		kW	3.0/3.0/3.0
Speed	X/Y/Z axis rapid speed		m/min	48/48/48
Accuracy	Position accuracy（X/Y/Z）		mm	0.006/0.006/0.006	VDI 3441
Accuracy	Repeatability（X/Y/Z）		mm	0.004/0.004/0.004	VDI 3441
Tool magazine	Tool capacity		T	30
	Max. weight		kg	8
	Max. length		mm	350
	Max. allowable torque		Nm	≤10.19
	Max. diameter(full/adjacent)		mm	Ф80/Ф150
Others	CNC system		/	FANUC 0i MF PLUS
	Gas source	Flow	L/min	≥280（ANR）
	Gas source	Air pressure	MPa	0.6-0.8
	Equipment capacity		KVA	25
	Machinery size		mm	302829142935	Corresponding XYZ axis
	Machine weight(approx.)		kg	5600

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
