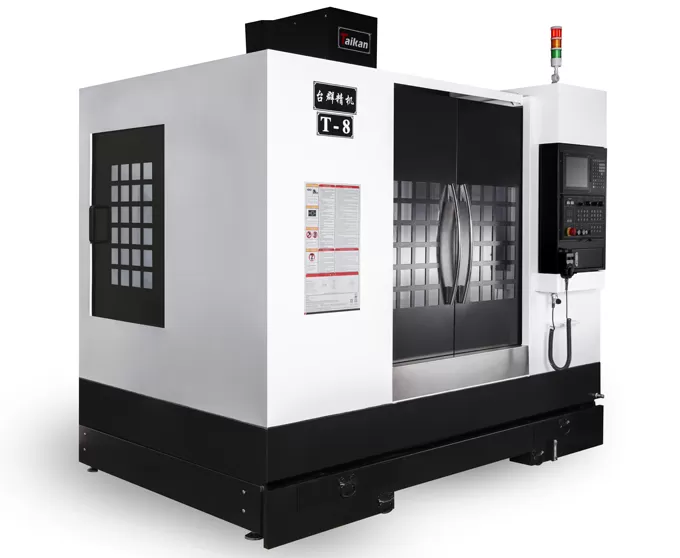

HT-8 Boxway Vertical Machining Center

3-Axis Box Guideway Mold Machining Center

Quantity:




Inquire Add to Basket

Characteristic of HT-8 Boxway Vertical Machining Center
Application of HT-8 Boxway Vertical Machining Center
Specifications of HT-8 Boxway Vertical Machining Center
Systems Control

Machine Structure

Fixed column cross-slide structure with an oversized stable base to ensure high load-bearing capacity.

Made of high-strength cast iron, providing excellent rigidity and stable precision.

Three-Axis Box Guideway

The X, Y, and Z axes are equipped with precision-hardened, ground cast iron guideways, with a surface composite bonded with a PTFE (polytetrafluoroethylene) coating.

This design offers high rigidity and excellent shock absorption, making it ideal for heavy cutting of high-hardness mold steel.

Spindle

High-speed spindle unit (BT40, 8000r/min) with a labyrinth design and air curtain protection, preventing cutting fluid from entering the spindle bearings.

Z-axis Counterweight

Counterweight with central guide aids headstock movement

Optimizing load characteristics of Z-axis

Mainly used in the mold manufacturing industry, it is also widely applicable in aerospace, energy equipment, automotive manufacturing, medical devices, and other industries.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Item			Unit	HT-8	Remarks
Travel	Table Travel (X-axis)		mm	800
	Saddle Travel (Y-axis)		mm	500
	Headstock Travel (Z-axis)		mm	500
	Spindle Nose to Table		mm	130～630
	Spindle Center to Column		mm	500
Table	Table Size		mm	1050×500
	Table Loading Capacity		kg	600
	T-Slots (Qty-Width×Pitch)		mm	5-18×90
Spindle	Motor Power (Cont./30min)		kW	7.5/11
	Speed Range		rpm	50～8000(Belt-driven)
	Spindle Diameter		mm	φ150
	Tool Holder Type		–	BT40
	Pull Stud Type		–	P40T-I（MAS403）
Speed	Feed Rate Range		mm/min	1-10000
Speed	Rapid Traverse Speed(X/Y/Z)		m/min	16/16/16
Accuracy	Positioning Accuracy(X/Y/Z)		mm	0.008	GB/T18400.4 (Full Travel)
Accuracy	Repeatability(X/Y/Z)		mm	0.005
Other	CNC System		–	Mitsubishi M80VA
	Air Supply	Flow	L/min
	Air Supply	Pressure	MPa
	Power Requirement		kVA	25
	Coolant Tank Capacity		L	200
	Machine Dimensions		mm	2710×2320×2740	X/Y/Z axis directions
	Machine Weight(approx.)		kg	4950
