| Quantity: | |
|---|---|

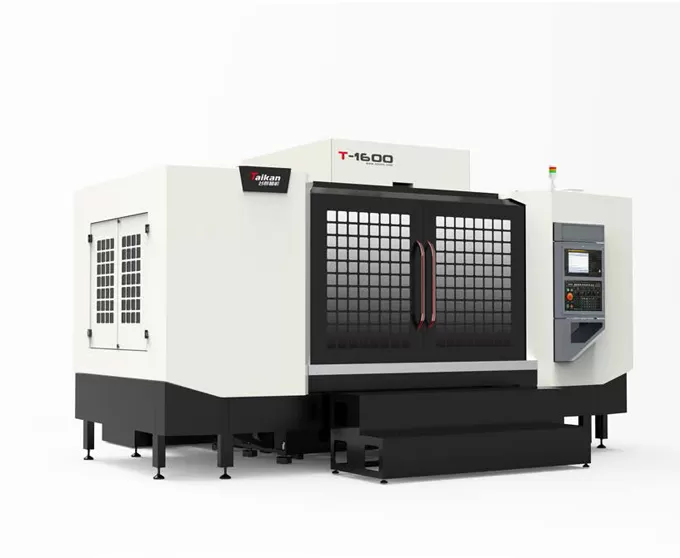

Item | Unit | HT-1600 | Remarks | ||
Travel | Table travel (X axis) | mm | 1600 | ||
Saddle travel (Y axis) | mm | 650 | |||
Headstock travel (Z axis) | mm | 475 | |||
Distance from spindle nose to table surface | mm | 100-575 | |||
Distance from spindle center to column guide surface | mm | 707 | |||
Table | Table size | mm | 1700*650 | ||
Max. load | kg | 600 | |||
T-slot (number of slots - slot width * spacing) | mm | 5-18*125 | |||
Spindle | Motor power (rated/short time) | kW | 3.7/5.5 | ||
Motor torque (rated/short time) | N.m | 14.1/21.0 | |||
Spindle motor speed | rpm | 20-20000 | |||
Spindle taper | / | BT30 | |||
Speed | Cutting feed speed range | mm/min | 1-15000 | ||
X/Y/Z axis rapid traverse speed | m/min | 30/36/36 | |||
Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.015 | GB/T 18400.4（Full travel） | |
Repeatability (X/Y/Z) | mm | 0.008 | |||
Tool magazine | Tool storage capacity | pcs | 21 | ||
Max. tool weight | kg | 3 | |||
Max. tool length | mm | 200 | |||
Max. tool diameter (full /adjacent empty) | mm | Ф60/Ф80 | |||
Other | CNC system | / | Mitsubishi M80VB | ||
Air source | Flow | L/min | ≥200（ANR） | ||
Air pressure | MPa | 0.6-0.8 | |||
Equipment capacity | kVA | 20 | |||
Max. coolant tank capacity | L | 400 | |||
Machine size | mm | 4150*3900*2550 (including steps) | Corresponding to X*Y*Z axis | ||
Weight (approx.) | kg | 6700 | |||
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
