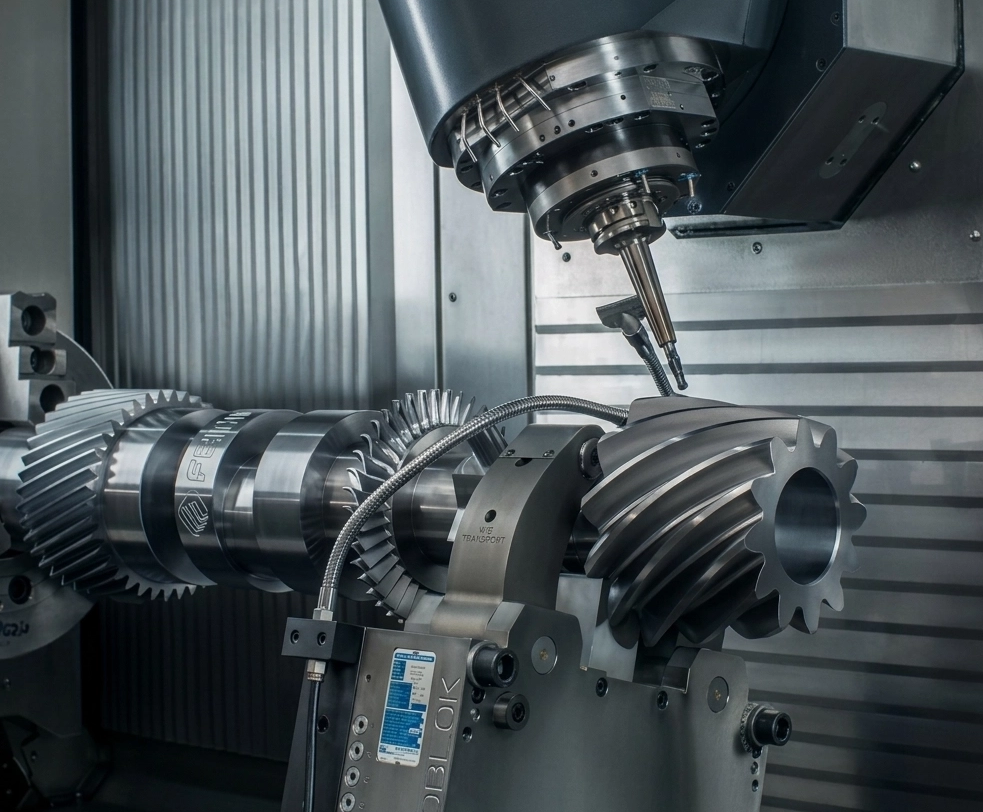

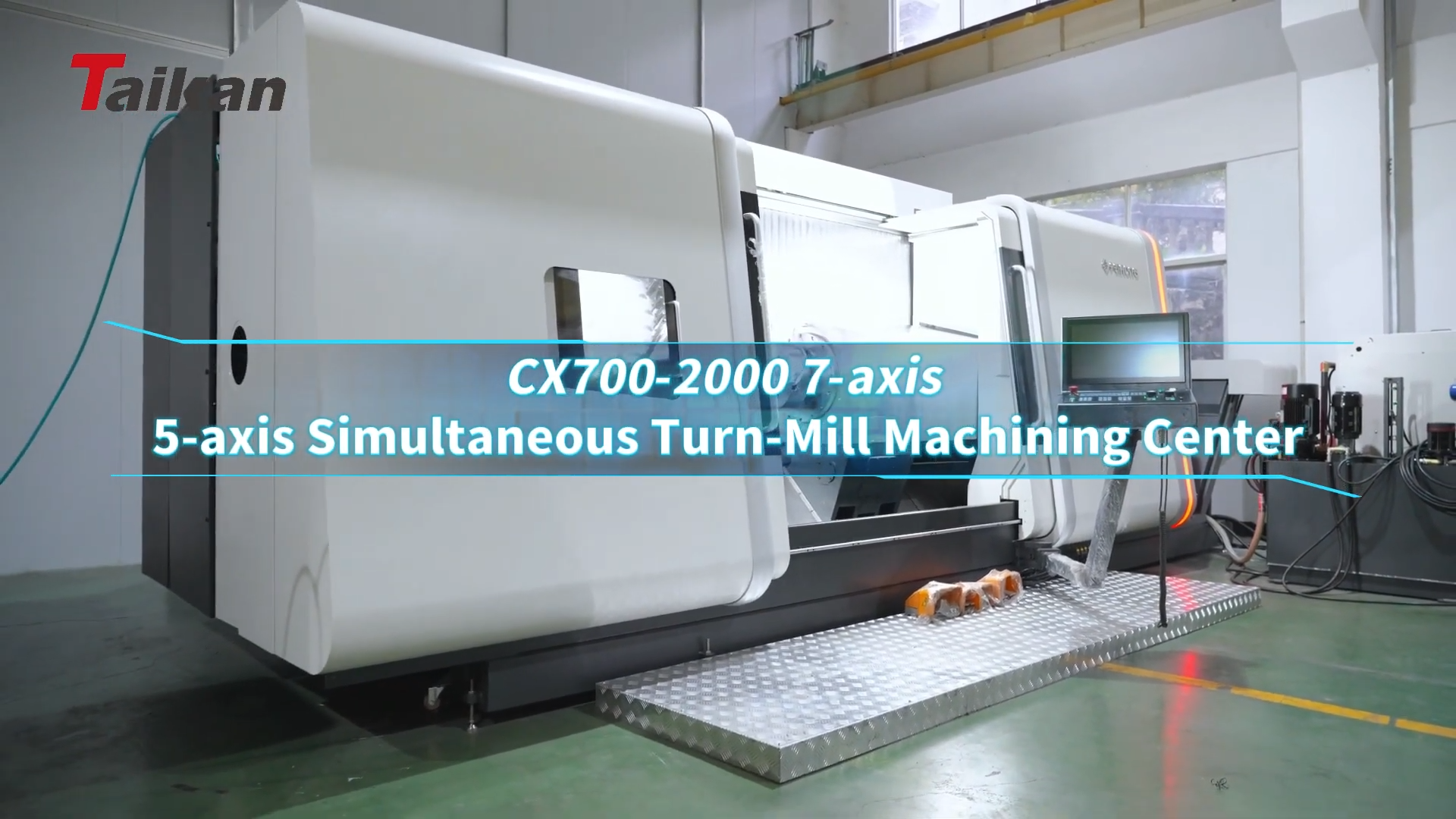

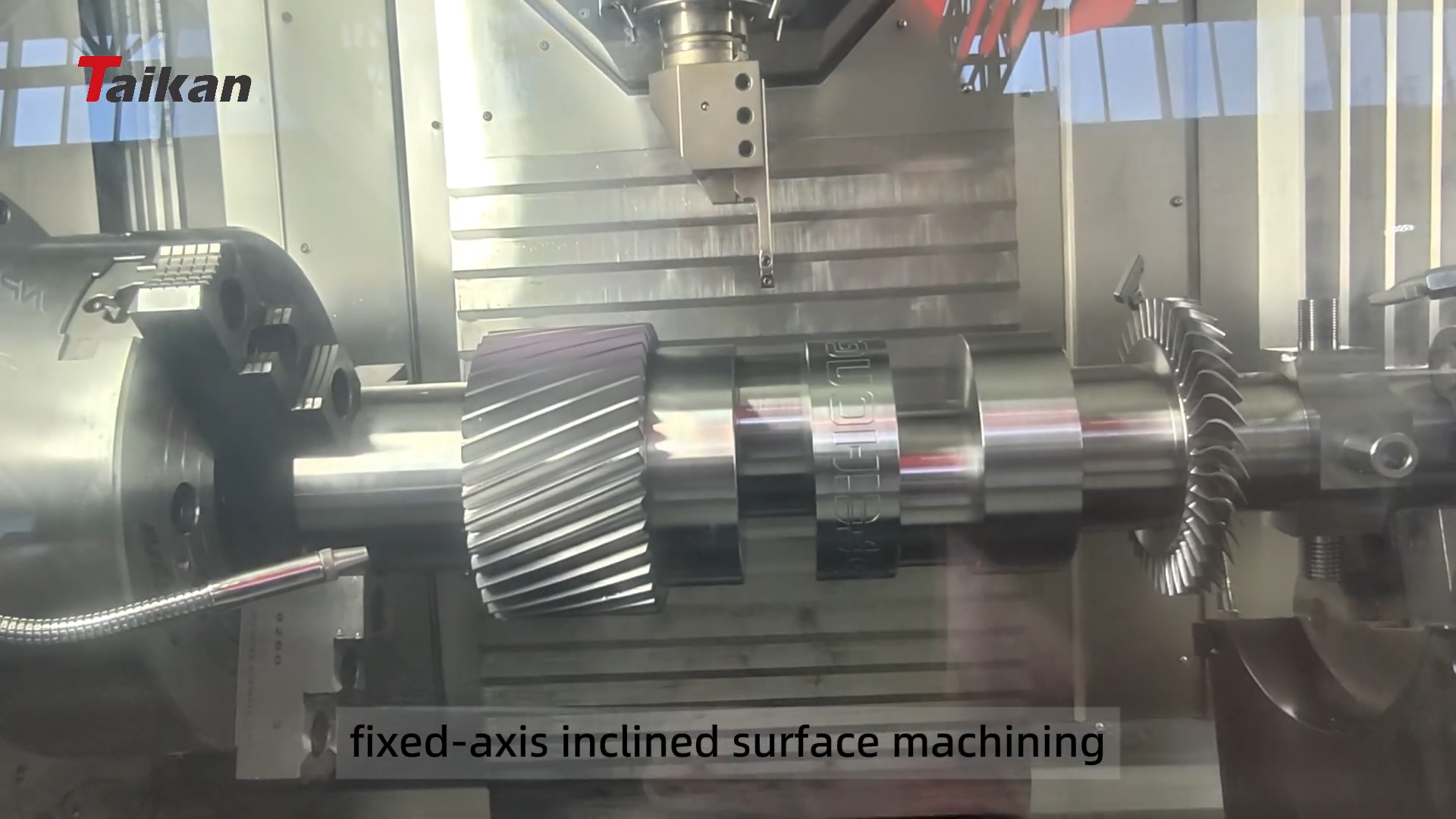

It is a multi-process CNC machine that combines turning, milling, drilling, and complex surface machining in one setup. With seven axes and five-axis simultaneous interpolation, it is designed for high-value, complex parts that require high accuracy and minimal re-clamping.
-

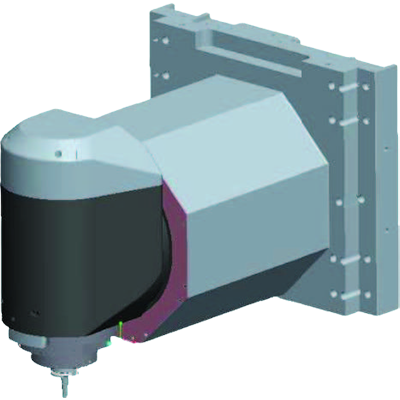

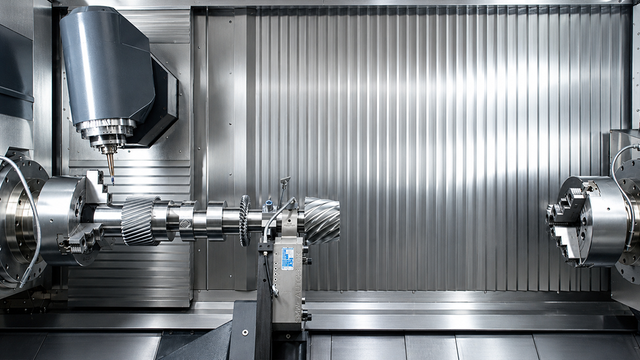

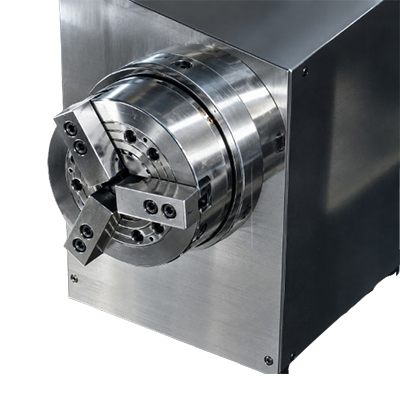

It enables complete 6-sided machining—combining turning, milling, drilling, and tapping—in a single clamping using dual spindles and a B-axis milling head. This drastically reduces setup times, minimizes fixture reliance, and eliminates cumulative accuracy errors caused by re-clamping.
-

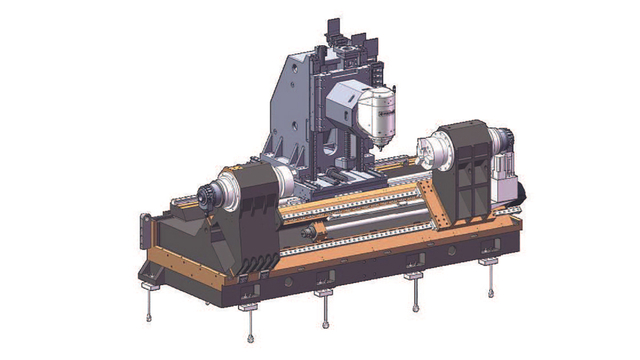

Built with high-grade Meehanite cast iron (or mineral casting base) subjected to natural aging, the machine features a dynamic moving column design and hollow-cooled ball screw drives. This structure effectively dampens vibration, absorbs thermal expansion, and maintains long-term accuracy under heavy cutting conditions.
-

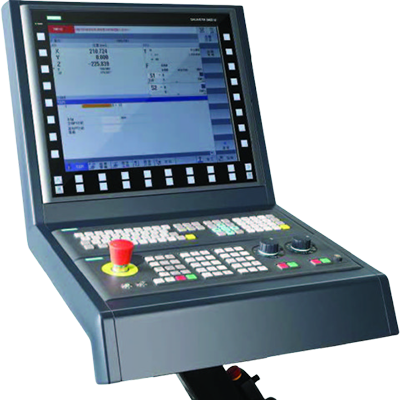

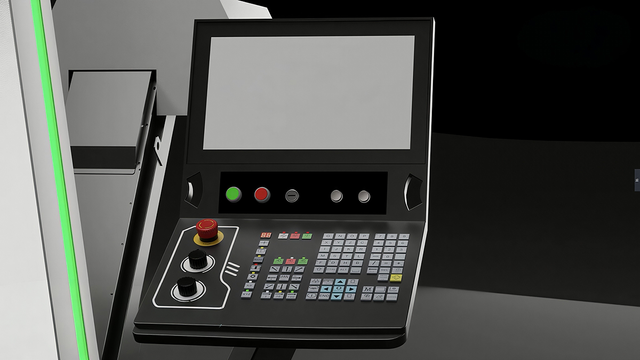

The CX Series is equipped with the high-end Siemens SINUMERIK ONE CNC system with NCU1760. It includes RTCP (Rotational Tool Center Point) functionality, an ergonomic 21.5-inch multi-touch IPS display, AST (Automatic Servo Tuning) for one-touch parameter optimization, and intuitive graphical programming.
-

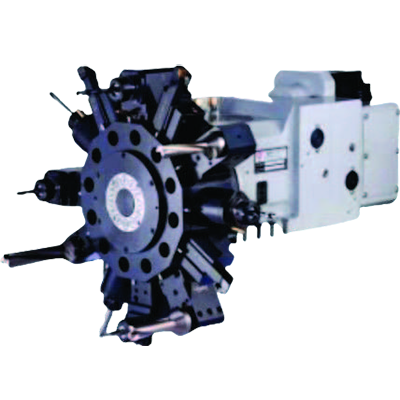

The machine offers servo-driven disc tool magazines with 24, 36, or 48 tool positions supporting HSK-T63 or HSK-T100 tool interfaces. Paired with automatic tool setters and Renishaw probing systems, tool change is fast (4 to 4.5 seconds) and tool management is fully automated.
-
Depending on the model (ranging from CX500 to CX1000), the machine accommodates maximum turning diameters up to 1,000 mm and turning lengths from 1,000 mm up to 6,000 mm, catering to both compact precision parts and long shaft workpieces.
-
Linear axes are fitted with Heidenhain (or optional Fagor) precision linear optical scales, while rotary axes utilize Heidenhain absolute rotary encoders, achieving full closed-loop feedback and repeat positioning accuracy down to 0.008 mm.
-
Yes, the CX Series includes standard energy-saving measures and optimized power management, reducing energy consumption by up to 29% during operation without sacrificing machining performance or cycle speed.
-
Taikan offers 24/7 technical support, rapid global spare parts dispatch, and end-to-end service, including professional on-site lifting, installation, commissioning, and operator training to ensure continuous customer productivity.
