1

Item

Unit

HT-V855S

HT-V856S

HT-V857S

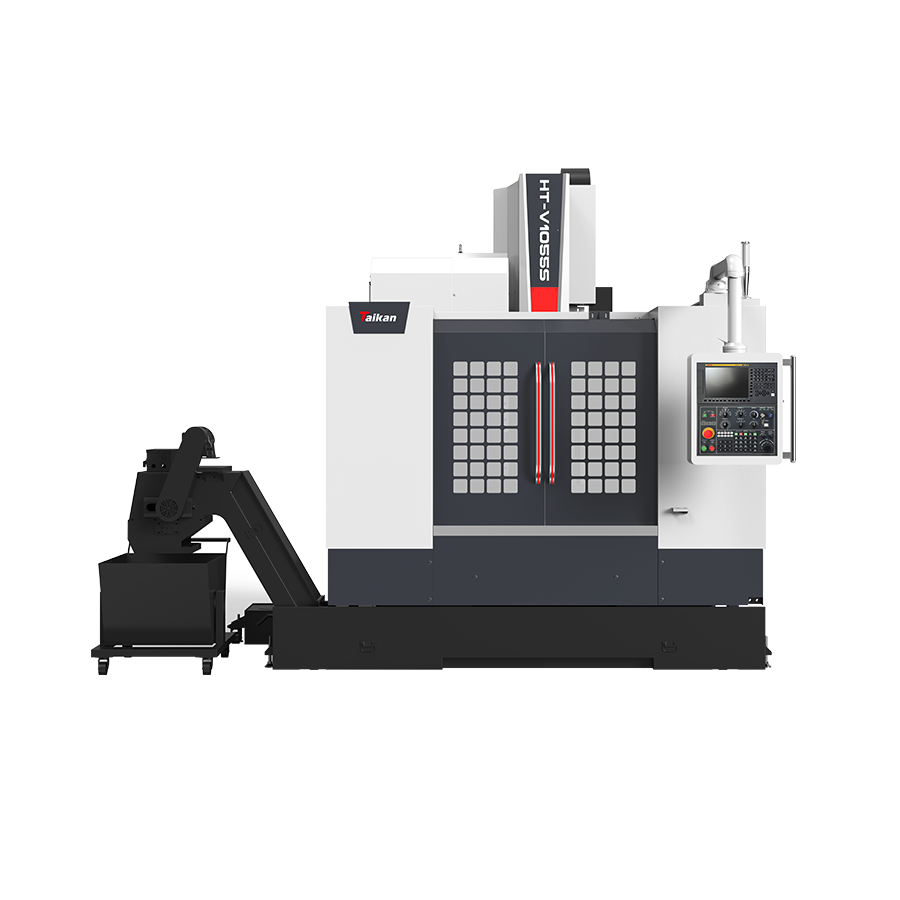

HT-V1055S

HT-V1165S

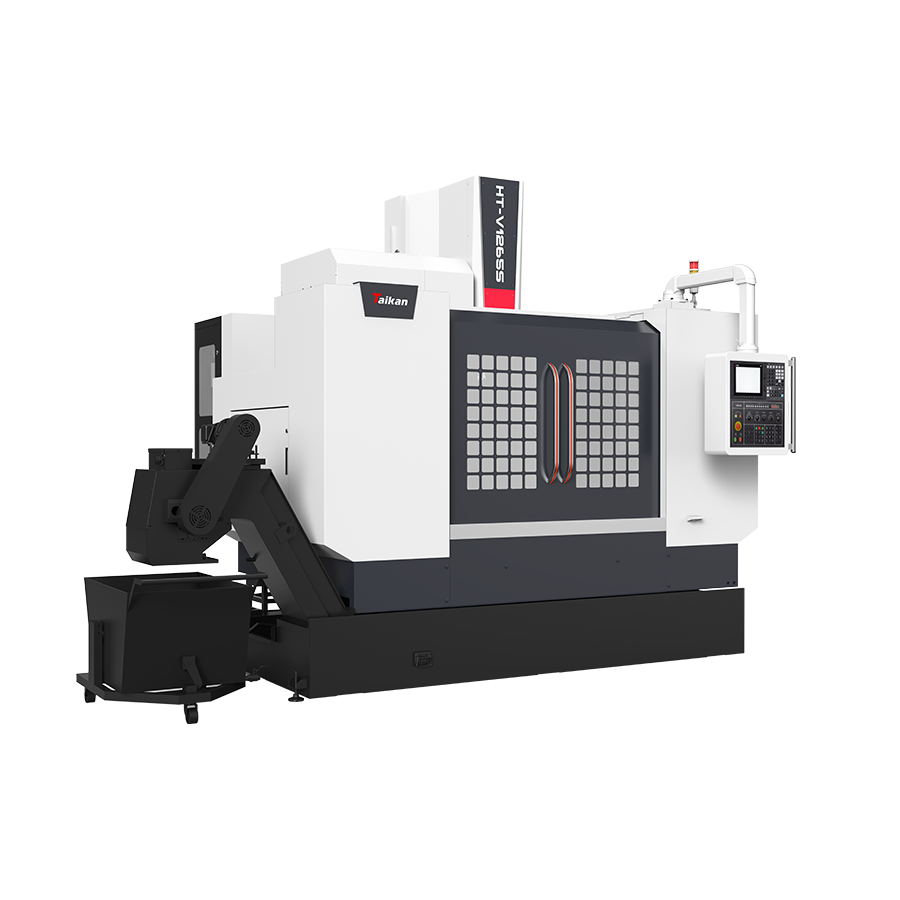

HT-V1265S

HT-V1270S

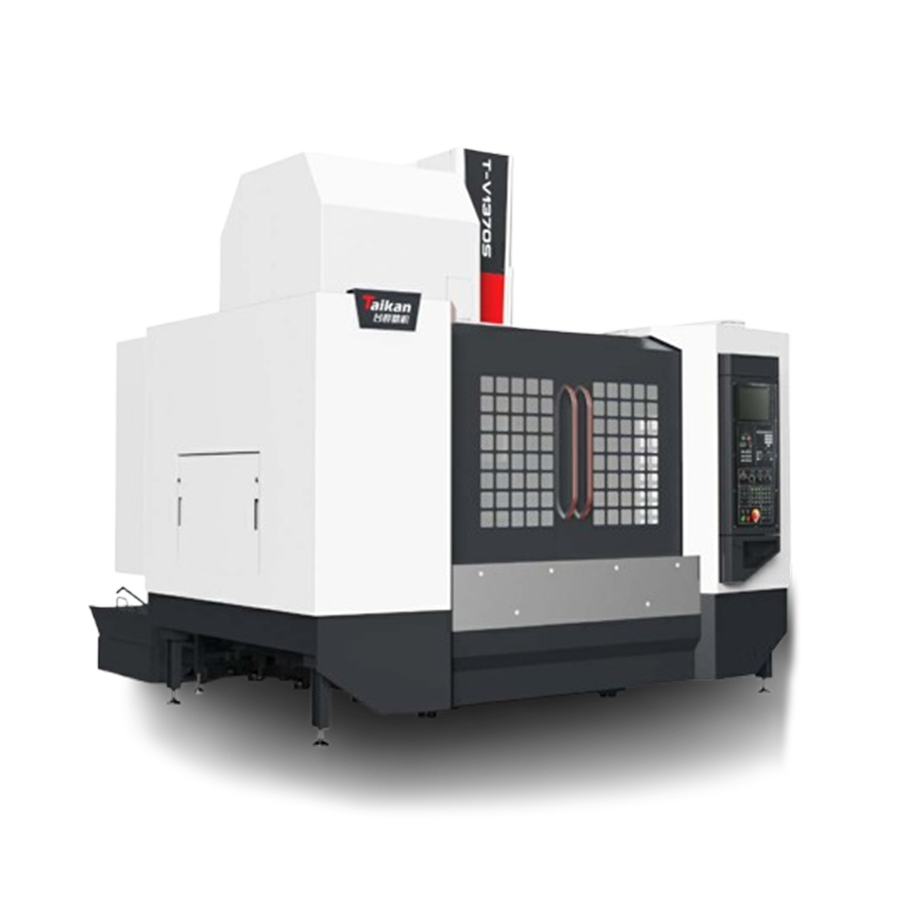

HT-V1370S

HT-V1375S

HT-V1475S

HT-V1585S

HT-V1685S

Travel

X axis

mm

800

800

800

1000

1200

1200

1200

1300

1350

1400

1550

1650

Y axis

mm

500

550

550

550

650

650

700

700

750

750

850

850

Z axis

mm

550

600

700

600

600

600

700

650

750

750

850

850

Worktable

Table size

mm

1000*500

1000*500

1000*500

1100*500

1200*650

1300*650

1300*650

1400*700

1500*750

1500*750

1700*850

1700*850

Max. load

kg

500

500

500

500

800

/

800

1100

1300

1400

1500

1600

Spindle

Speed range

r/min

50~12000 (Directly coupled)

50~12000 (Directly coupled)

50~12000 (Directly coupled)

50~12000 (Directly coupled)

50~12000 (Directly coupled)

50~12000 (Directly coupled)

50~12000 (Directly coupled)

50～6000(belt)

50～6000(belt)

50～6000 (belt)

50～6000(belt)

50～6000(belt)

Spindle diameter

mm

φ150

φ150

φ150

φ150

φ150

φ150

φ150

Φ155

Φ190

Φ190

Φ190

Φ190

Spindle taper

/

BT40

BBT40

BBT40

BBT-40

BBT-40

BBT-40

BT40

BT50

BT50

BT50

BT50

BT50

Speed

Cutting feed speed range

mm/min

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

X/Y/Z rapid speed

m/min

48/48/48

48/48/48

48/48/48

48/48/48

36/36/30

36/36/30

36/36/30

36/36/24

24/24/20

24/24/20

24/24/20

24/24/20

Tool magazine

Tool capacity

pcs

24

24

24

24

24

24

24

24

24

24

24

24

Others

Machine size

mm

2210*3082*2946

2240*3121*3026

2240*3137*3027

3850*2860*3125

2700*2677*3000

3000*2677*3000

3000*3500*3100

3160*3643*3110

5050×3680×3440

5050×3680×3440

5240*4054*3662

5240×4054×3662

Weight (approx.)

Kg

4400

4600

4900

4800

6300

6500

6250

7500

10500

10700

11700

11900
