Profile Machining Center Series

Efficient and Flexible Profile Machining Solutions

Home » Products index » Profile Machining Center » Profile Machining Centers

Types of Profile Machining Center

Best-Selling Profile Machining Center​​​​​​​
This area can be fully edited and gives you the opportunity to introduce yourself.
READ MORE

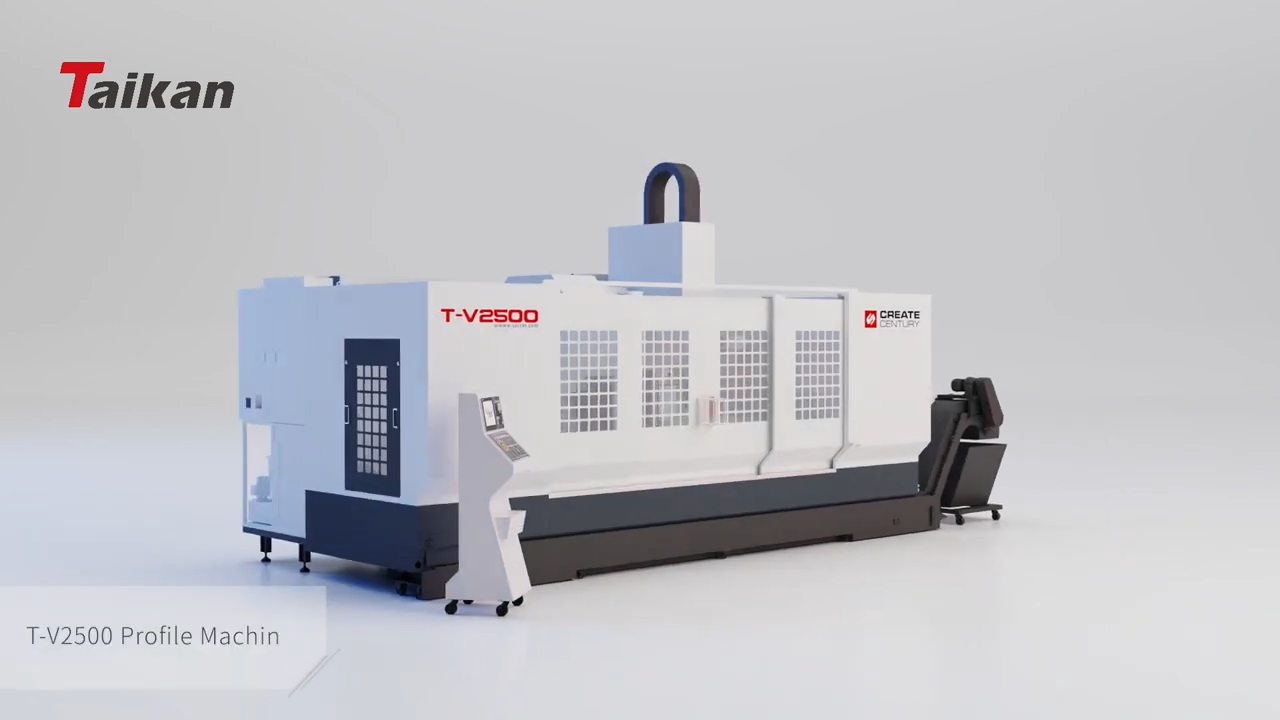

Machining Video

Key Applications of Profile Machining Center

 Automotive Industry
Widely used for precision machining of aluminum profiles for battery trays, transverse rods, longitudinal side plates, sunroof rails, bumpers, and trim parts, meeting the lightweight and high-performance requirements of the automotive industry.

5G Industry
Used for the efficient machining of base station enclosures, aluminum substrates, and frame parts, meeting the high precision and production efficiency requirements of 5G equipment.

New Energy Industry
Mainly used for precision machining of large flat components such as battery trays, battery base plates, and battery enclosures, supporting high-quality production and intelligent manufacturing in the new energy vehicle sector.

Rail Transit Industry
Used for machining large flat components such as battery tray assemblies, battery base plates, and battery enclosures, supporting high-quality production in rail transit equipment.
crop_1791956429965
crop_1791956940654

Features of Profile Machining Center

 Large Stroke Range and High Rapid Traverse Speed
The X-axis stroke range is from 1500mm to 6500mm, with a rapid traverse speed of up to 50 m/min, significantly improving machining efficiency and production capacity, especially suitable for machining large-sized workpieces.

Multiple Structural Models to Flexibly Handle Different Workpieces

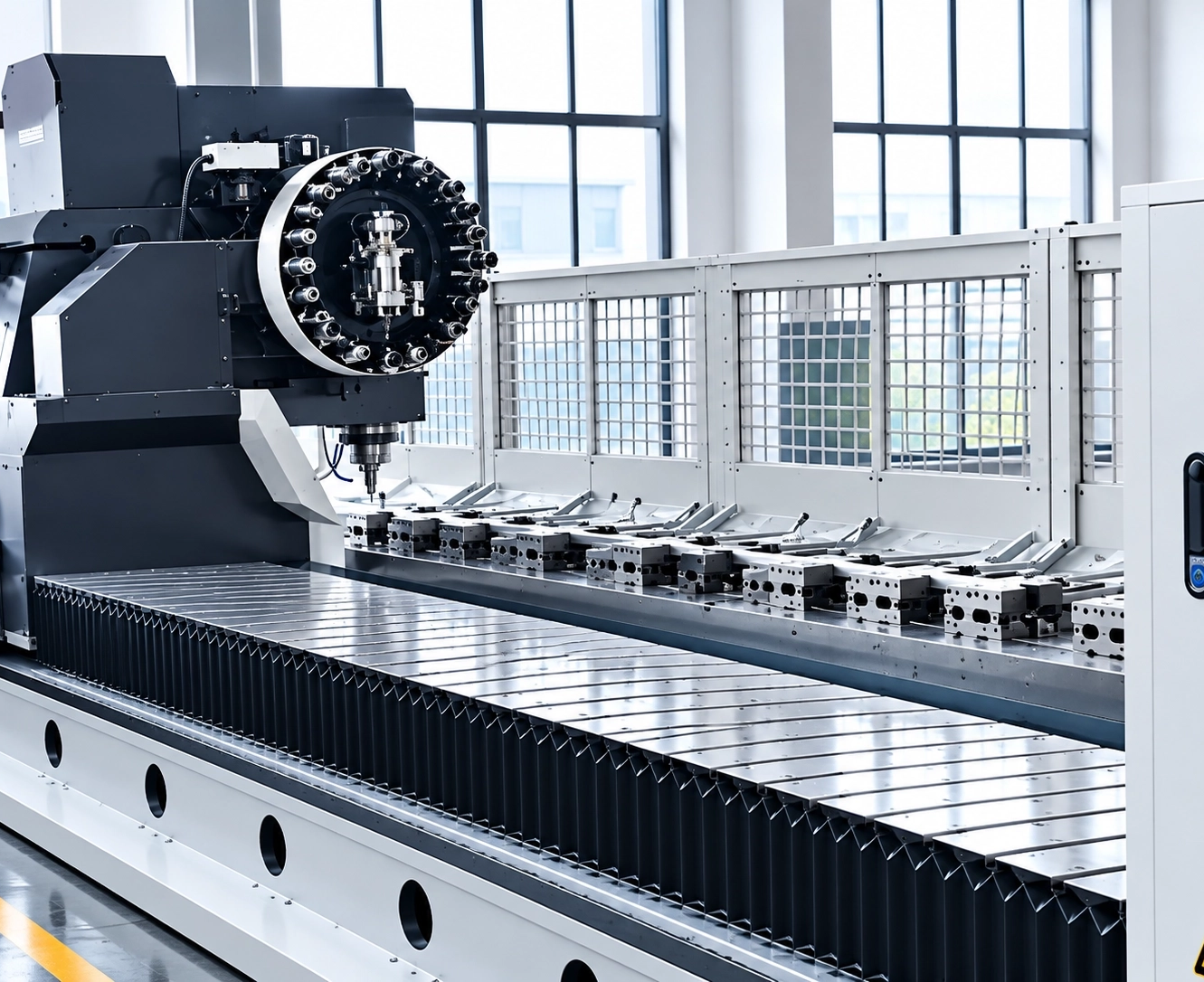

Moving Column Structure Model: Fixed worktable with moving column, suitable for machining long profiles, saving space and improving machining efficiency.

Selectable Base Materials to Suit Various Machining Needs
Welded Base: Cost-effective, short manufacturing lead time, suitable for general machining needs.
Cast Iron Base: Stable structure and high precision, suitable for high-rigidity and high-precision machining requirements.

Multiple Drive System Configurations to Meet Different Machining Scenarios
Rack and Pinion Drive: Suitable for long strokes, fast speed, and strong load-bearing capacity, ideal for high-efficiency machining of large aluminum profiles.

Conclusion of Profile Machining Center

The TAIKAN Profile Machining Center series combines long strokes, high efficiency, and cost-effectiveness, with flexible configurations and powerful machining capabilities, making it one of the most reliable machining tools in various industries. Whether for precision machining of complex-shaped aluminum profiles or high-efficiency mass production, the TAIKAN Profile Machining Center provides exceptional performance, helping customers improve production efficiency, reduce costs, and gain a competitive advantage in the market.

crop_1791957329726
crop_1791958047342

Frequently Asked Questions About Profile Machining Center

  • What materials and industries are Taikan CNC Profile Machining Centers designed for?

    Taikan profile machining centers are purpose-built for the high-efficiency milling, drilling, and tapping of long extruded materials, primarily aluminum alloys, lightweight composites, and thin-walled steel. They are essential equipment for manufacturing New Energy Vehicle (NEV) components (such as battery tray frames, bumper beams, and subframes), aerospace structural parts, rail transit components, and industrial architectural curtain walls.

  • How do Profile Machining Centers differ from standard Vertical Machining Centers (VMCs)?

    While standard VMCs feature a compact work envelope ideal for block-like parts, a Profile Machining Center features a specialized long-bed architecture (often ranging from 3 meters to over 10 meters in X-axis travel). They utilize a moving-column design, allowing the spindle to travel along the stationary extrusion. This prevents the long workpiece from sagging or vibrating, ensuring high precision across massive lengths.

  • How does the machine secure extra-long workpieces to prevent vibration and deformation?

    Securing thin-walled extrusions requires specialized fixturing. Taikan machines are equipped with programmable pneumatic or hydraulic vise systems distributed along the entire length of the bed. These clamps can be automatically repositioned via the CNC program to avoid tool interference (clamp avoidance) while providing rigid support exactly where the cutting action occurs, effectively eliminating chatter and deformation.

  • What are the key structural advantages of Taikan’s moving-column profile machining center?

    Structural advantages include:
    ● Full cast-iron moving column with double stress-relieving for dimensional stability over years of production.
    ● X-axis gear rack drive supports high-speed motion over long travels; Y/Z axes use ball screws for excellent rigidity and precision.
    ● Six guide blocks with multi-point support on X and Y axes evenly distribute cutting forces, enabling aggressive plunging and contouring without chatter, even on thin-walled profiles.
    ● Compact footprint despite the large work envelope, with the Z-axis optionally raised by an additional 100–200 mm for greater vertical clearance.

  • What CNC control systems and automation options are available?

    Taikan profile machining centers come standard with the Mitsubishi M80VB CNC system. Alternative control platforms, including FANUC, Siemens, and Taikan’s own system, are available.
    Automation and productivity options include multi-station fixturing, automatic clamp positioning, and a pendant integrated into the machine body.

Customer Success

See how Taikan’s solutions are helping manufacturers worldwide achieve precision, efficiency, and growth.
What You Know About us
3C Industry | Yihang Precision (China)

Table of Content [Hide] 1. I. Initial Connection: Mutual Recognition Based on Quality2. II. Intelligent Manufacturing Advancement: Breakthroughs in Precision and Efficiency3. III. Production Assurance: A Full-Cycle Machining Partner4. Welcome to contact us! In

Read More
Empowering Xinghuang's Camera Housing Production

Table of Content [Hide] In the prosperous and dynamic Yangtze River Delta manufacturing cluster, Ningbo Xinghuang Optoelectronics Co., Ltd. (hereinafter referred to as "Xinghuang Optoelectronics") — a manufacturing enterprise with 23 years of expertise in the

Read More
Alphacool's Heat dissipation technology with Taikan Machine

Table of Content [Hide] 1. I. A Synergy of German Roots and Localized R&D2. II. The Core of Thermal Management: Balancing Material and Process3. III. Precision Engineering: The Taikan T-1200's Superior Performance4. IV. Driving Efficiency: The T-500S as the "P

Read More

Catalog Download Center

Get instant access to full parameter tables, structural highlights, and performance data across our entire profile machining center lineup.
crop_1791958172704

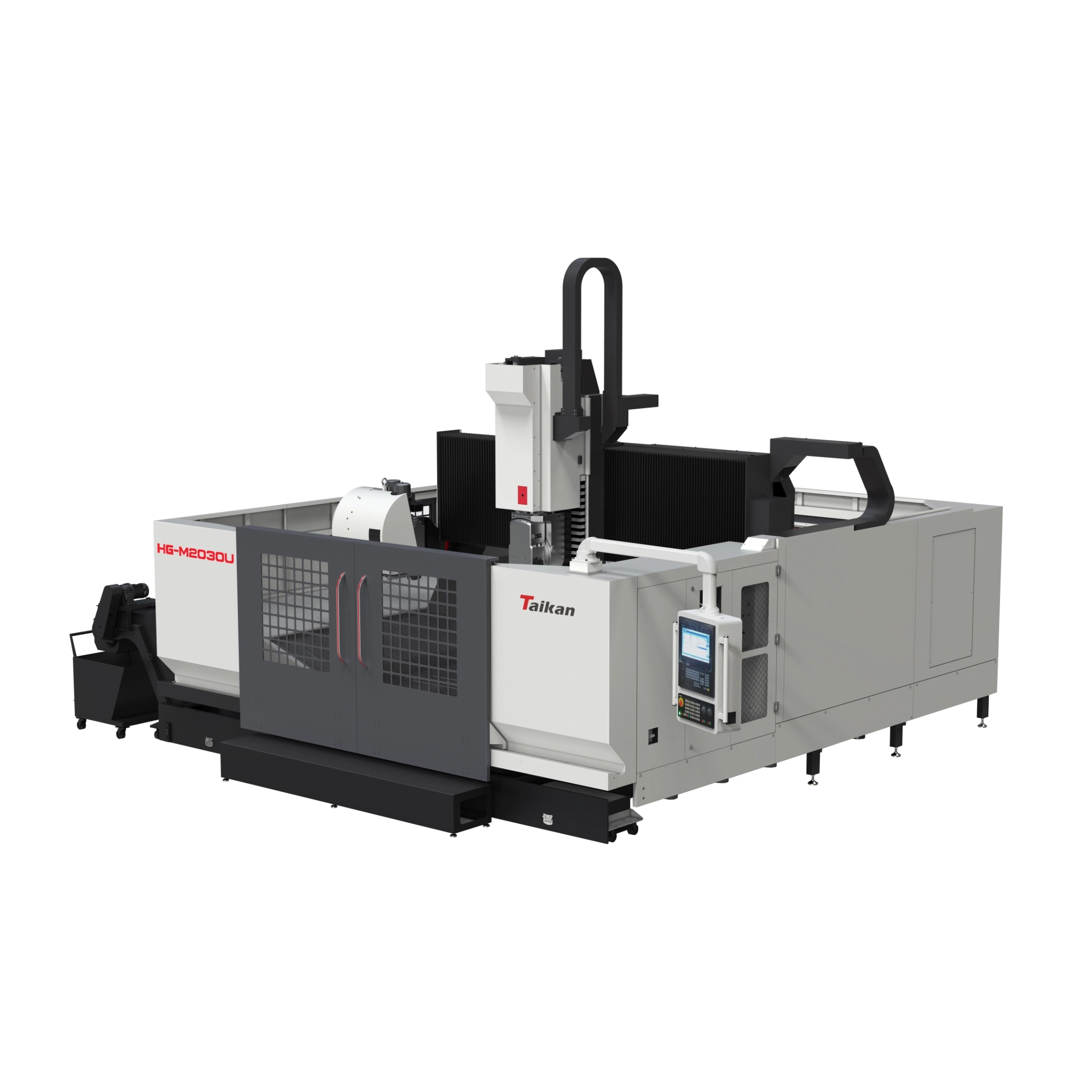

Discover Our Taikan Profile Machining Centers
