Types of Gantry Machining Center

Best-Selling Gantry Machining Centers​​​​​​​​​​​​​​
This area can be fully edited and gives you the opportunity to introduce yourself.
READ MORE

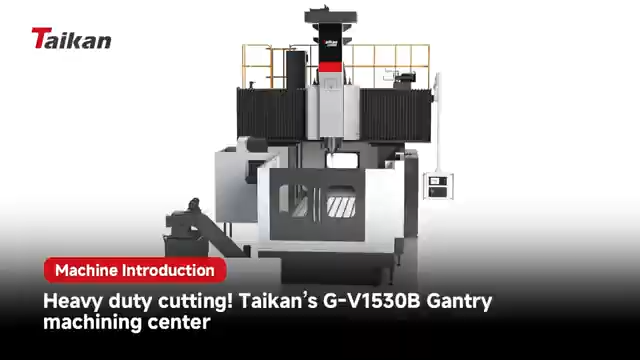

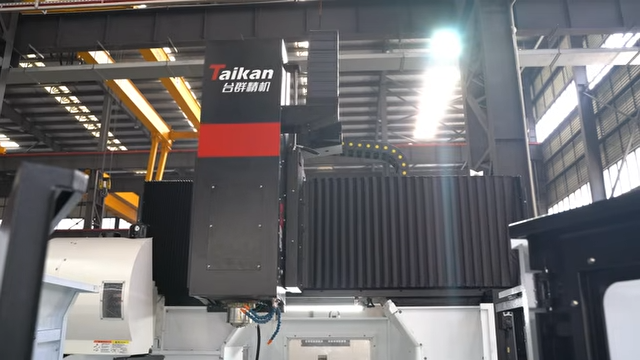

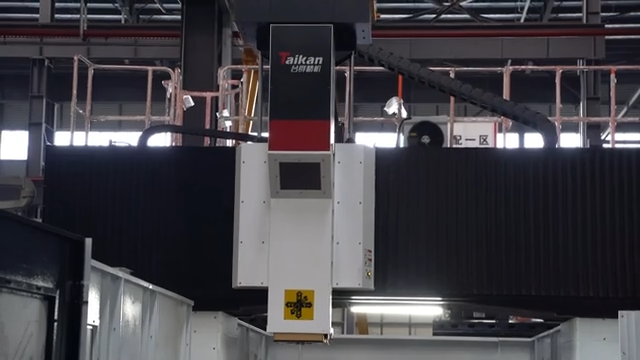

Machining Video

Three-Axis Series

 G-V Series (Three Linear Rails)
Designed for high speed and high precision, ideal for mold making and precision parts production.

G-T Series (Z-Axis T-Type Hard Rail)
Reinforced Z-axis rigidity and vibration resistance, suitable for heavy-duty cutting.

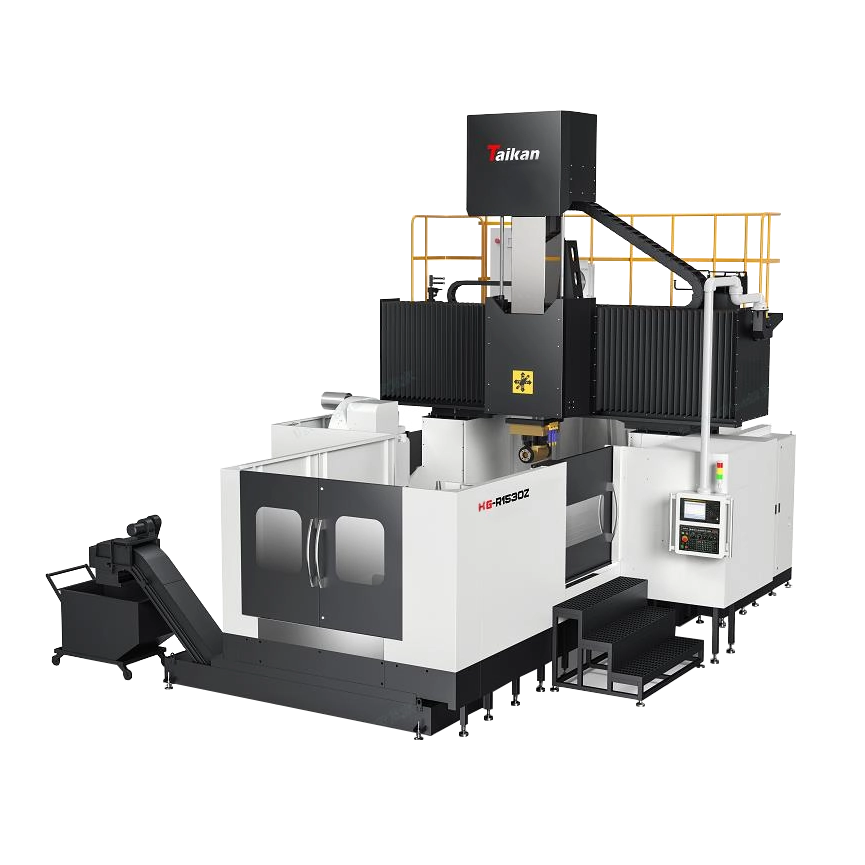

G-R Series (Z-Axis Box Way Hard Rail)
Enhanced Z-axis stability for improved anti-vibration capability in large workpiece machining.

G-M Series (Moving Column)
Moving column structure, suitable for long-travel, large-size workpiece machining.

 G-M Series (Moving Column)
Moving column structure, suitable for long-travel, large-size workpiece machining.
crop_1792030663470

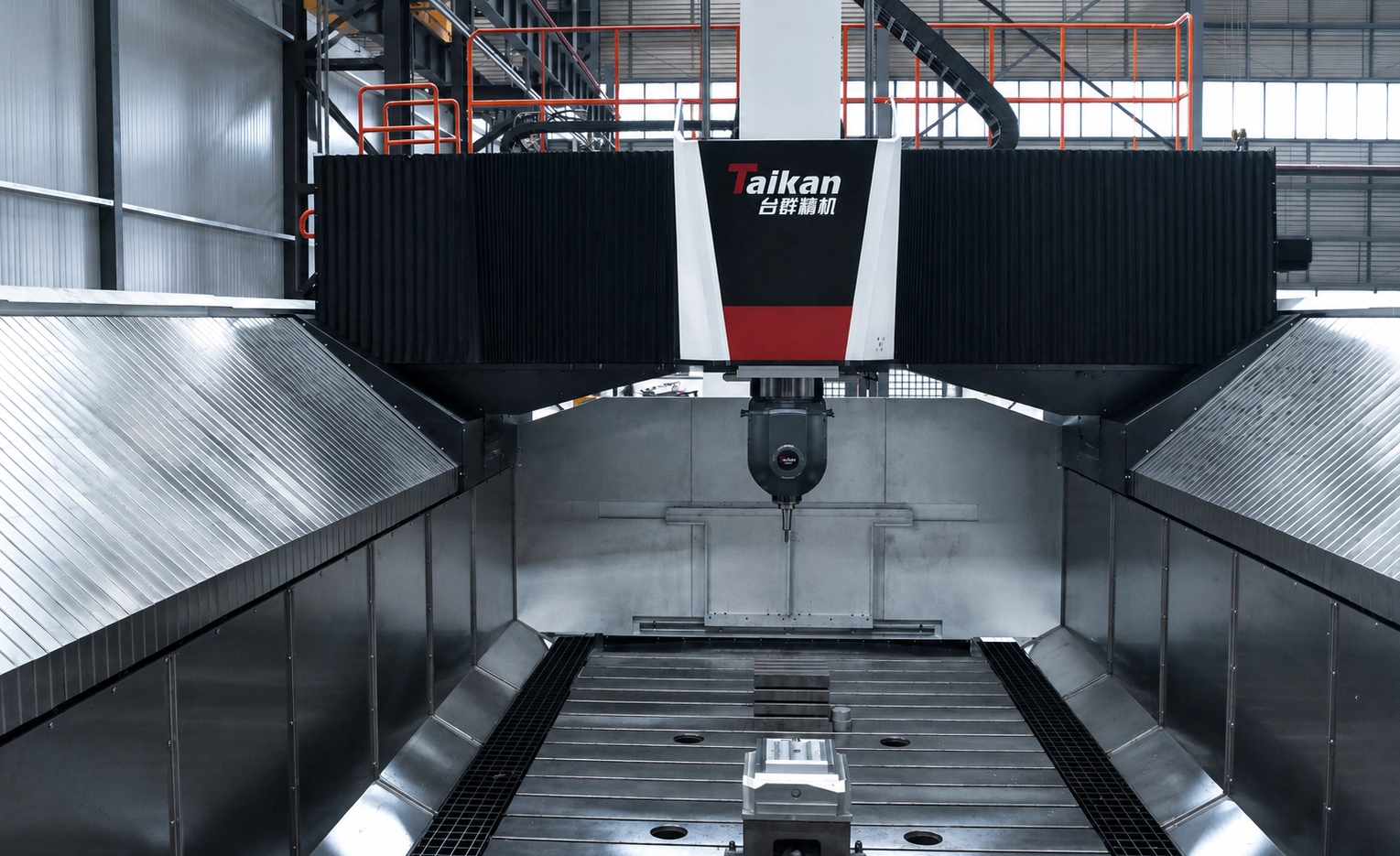

crop_1792030232984

Four Structural Designs for Optimal Stability

To ensure the highest stability and rigidity for different machining applications, TAIKAN provides four types of structural designs:

● Fixed Beam Gantry Structure – The beam remains stationary, ideal for high-precision, heavy-duty cutting.
● Moving Column Gantry Structure – The spindle moves along the X-axis, suitable for long-travel machining of large workpieces.
● Moving Column & Moving Beam Gantry Structure – The combination of moving column and moving beam provides greater flexibility for large-scale machining.
● Bridge-Type Gantry Structure – A highly rigid bridge-style frame, ensuring high dynamic performance for complex five-axis machining.

Three Feed Drive Methods for Optimized Machining Efficiency

TAIKAN offers three feed drive methods to ensure high precision and power efficiency across different machining conditions:

● Direct Drive – The direct-drive motor connects directly to the ball screw, reducing transmission loss and improving dynamic response, ideal for precision machining.
● Belt Drive – The synchronous belt drives the ball screw, ensuring smooth operation for various general machining applications.
● Gearbox Drive – A gear reduction system provides high torque output, perfect for heavy-duty cutting and large workpiece machining.
crop_1792030854110
crop_1792031122122

Three Z-Axis (Spindle Headstock) Configurations for Enhanced Rigidity & Stability

The Z-axis (spindle headstock) is available in three configurations to suit different machining requirements:

● Linear Rail – Ensures smooth movement, suitable for high-speed precision mold machining.
● T-Type Hard Rail – Improves Z-axis rigidity and stability, ideal for heavy-duty cutting.
● Box Way Hard Rail – Enhances vibration resistance and load capacity, making it ideal for machining large workpieces with high rigidity requirements.

Additionally, all Z-axis configurations are equipped with a nitrogen balancing system, effectively reducing spindle weight, increasing servo system lifespan, and improving machining accuracy.

Six Spindle Head Configurations for Expanded Machining Capabilities

To accommodate a wide range of machining requirements, TAIKAN offers six spindle head configurations:

● Direct-Drive Spindle – High speed and precision, suitable for precision part machining.
● Electric Spindle – Low noise and high-speed operation, perfect for high-finish machining.
● Belt Spindle – Stable operation, adaptable to various machining conditions.
● Gear Spindle – High torque output for heavy-duty cutting applications.
● Fully Automatic 90° Head – Enables five-face machining, improving machining flexibility and efficiency by completing multiple surfaces in a single setup.

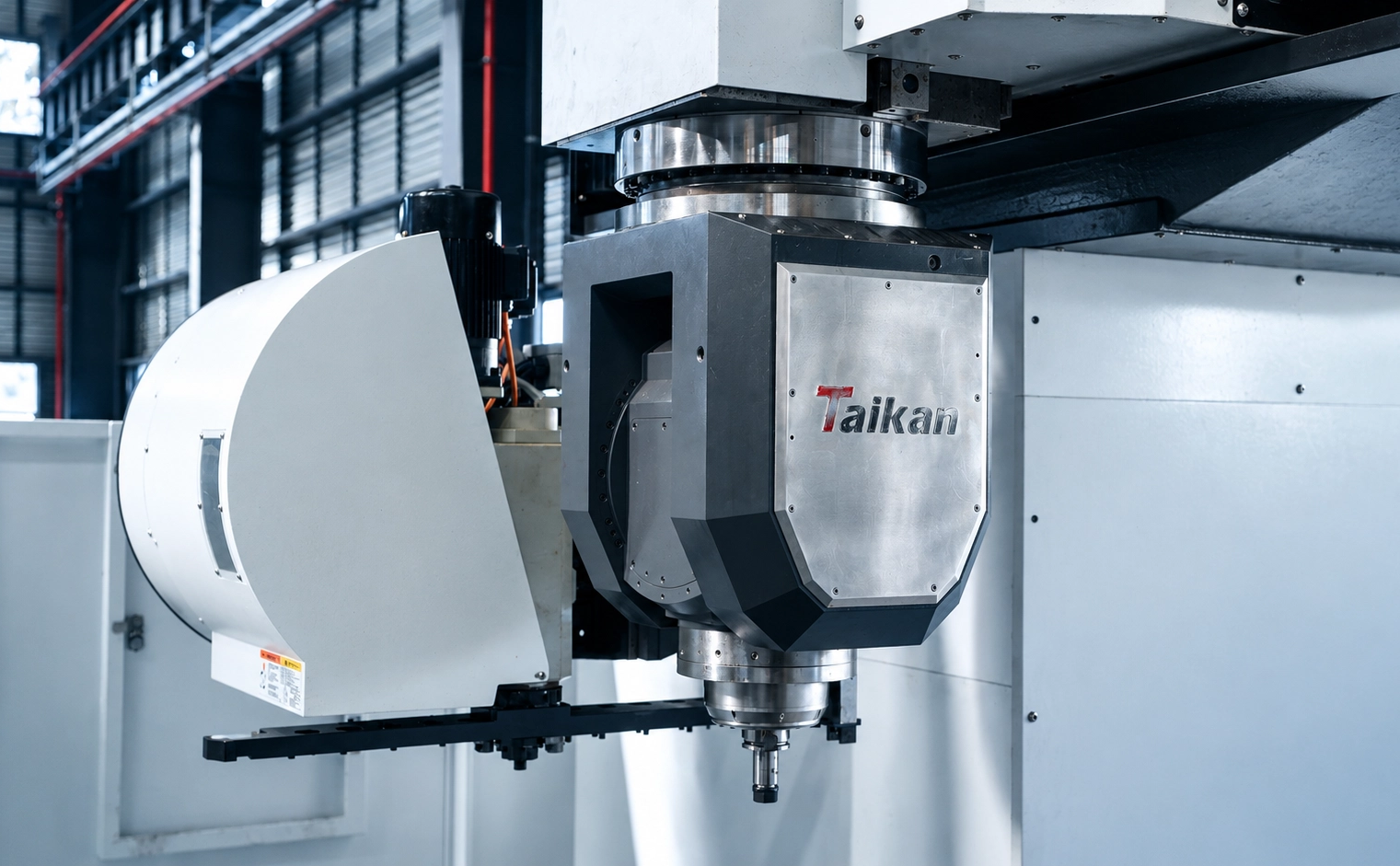

● Fork-Type Dual-Swing Milling Head – Supports multi-angle positioning or five-axis simultaneous machining, ideal for complex-shaped workpieces and high-precision large mold machining.
crop_1792031322559
crop_1792031736462

Understanding Gantry Machining Centers

  • What is the structural advantage of a Double-Column Gantry Machining Center over a large C-frame VMC?

    A traditional large Vertical Machining Center (C-frame) can suffer from spindle overhang deflection during heavy-duty cutting. A double-column gantry (bridge-type) structure supports the crossbeam on both sides, creating a closed-loop box structure. This drastically increases foundational rigidity, eliminates vibration during high-torque machining, and ensures uniform precision across massive X and Y travels.

  • What industries are best suited for Taikan Gantry Machining Centers?

    Engineered for extreme payloads and expansive machining areas, our gantry series is the backbone of heavy industry. They are widely used in automotive manufacturing (large stamping dies and bumper molds), aerospace (wing spars and titanium structural components), rail transit (bogie frames), and general heavy machinery.

  • Can a Taikan Gantry CNC handle complex deep-cavity mold manufacturing?

    Yes. Across our seven versatile gantry series, we offer configurations ranging from high-torque 3-axis models for aggressive material removal to complex 5-axis models equipped with articulating milling heads. For deep-cavity automotive molds, a 5-axis gantry allows shorter tool lengths to reach deep into the mold without interference, achieving high-gloss surface finishes and eliminating the need for secondary EDM processes.

  • Do Taikan Gantry Machining Centers support interchangeable milling heads for multi-sided machining?

    Yes. To maximize productivity on large, cumbersome workpieces like engine blocks or rail frames, our gantry machines can be equipped with fully automatic head-changing systems. Options include 90-degree right-angle heads, universal milling heads, and extension heads. This enables five-face machining in a single setup, drastically reducing workpiece handling time and ensuring perfect geometric alignment across all machined surfaces.

  • How does Taikan ensure thermal stability on large-scale Gantry Machining Centers during long cycle times?

    Machining massive aerospace or mold components often involves continuous operation lasting dozens of hours, where thermal expansion can ruin tolerances. Taikan gantry centers utilize symmetric structural designs paired with active thermal management. This includes spindle oil cooling, hollow ball screw cooling systems, and absolute linear scale feedback, ensuring volumetric accuracy and dimensional consistency regardless of extended machining durations.
