Swiss-Type Lathe

Flexible, expandable tooling for automated micro-precision machining.



Home » Products index » Swiss-Type Lathe » Swiss-Type Lathes

Types of CNC Swiss-Type Lathe

Best-Selling CNC Swiss-Type Lathe​​​​​​​​​​​​​​
This area can be fully edited and gives you the opportunity to introduce yourself.
READ MORE

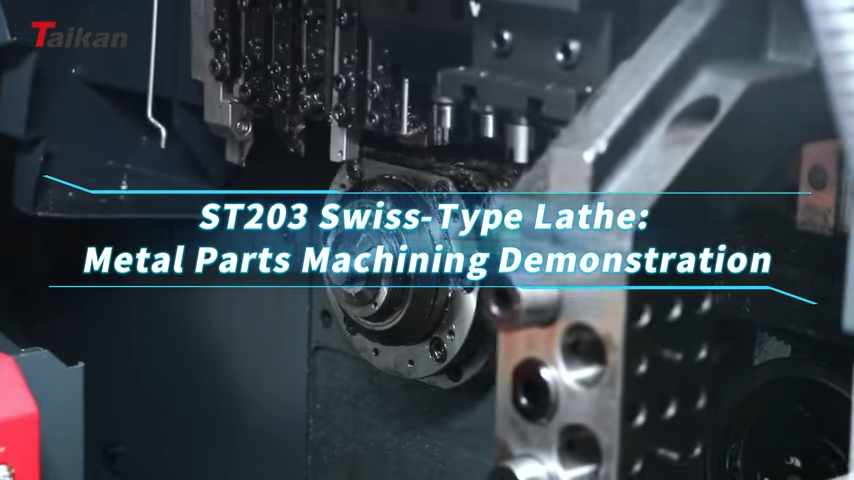

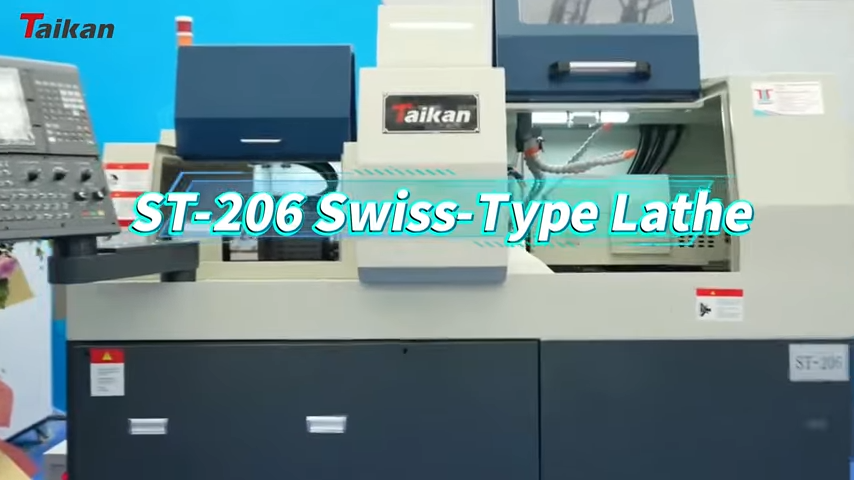

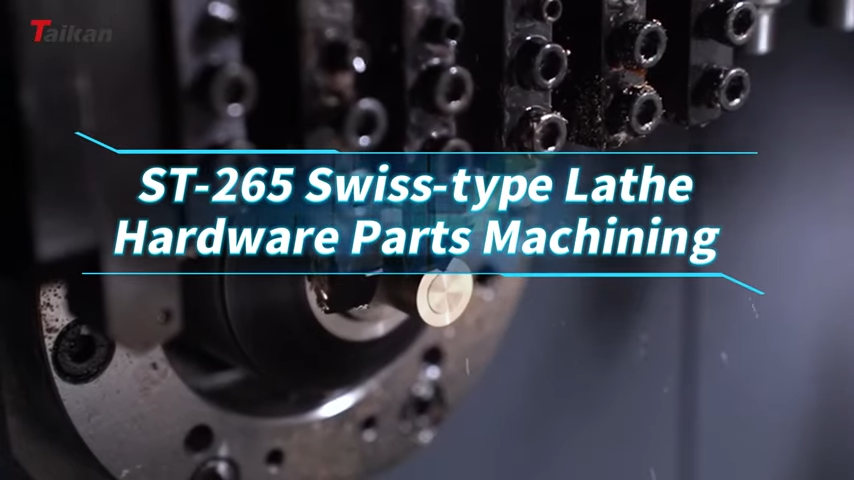

Machining Video

Single-Spindle vs. Dual-Spindle Swiss-Type Lathes​​​​​​​
  • Single-Spindle Swiss Lathes
     Architecture
    Equipped with a single main spindle and guide bushing mechanism.
    Machining Scope
    Performs high-precision front-end turning, thread whirling, cross-drilling, and milling. The part is parted off upon completion.
    Best For
    High-volume production of slender, cylindrical components requiring minimal or no back-end (cutoff face) machining.
    Key Advantage
    Lower capital investment, simpler programming, and faster setup times.
  • Dual-Spindle (Main + Sub-Spindle) Swiss Lathes
    Architecture
    Integrates a main spindle and a fully synchronized opposing secondary (sub) spindle.
    Machining Scope

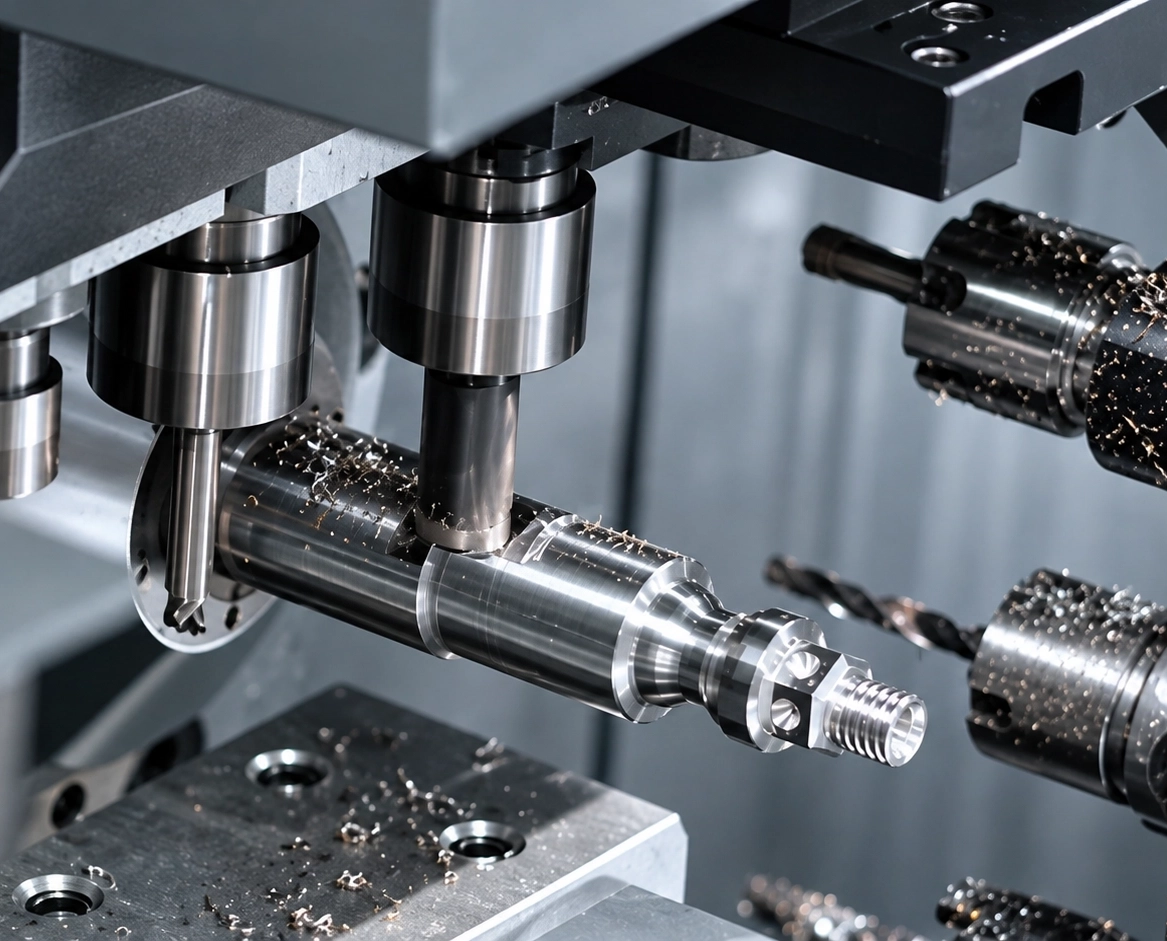

    The sub-spindle picks up the workpiece during or immediately after cutoff to perform automated back-working (back-drilling, back-milling, tapping, deburring) while the main spindle begins machining the next part.
    Best For
    Complex components requiring secondary operations on the rear face.
    Key Advantage
    Eliminates manual secondary handling, achieves complete "Done-in-One" manufacturing, and drastically reduces total cycle times.
crop_1792113804400

Axis Configuration Breakdown: 3-Axis vs. 5-Axis vs. 6-Axis

Axis Configuration Breakdown

 3-Axis (X1, Z1, C1 / Y1)
Scope: Main-spindle machining only; no back-working capability.
Capabilities: Basic turning, axial drilling, grooving, and simple cross-milling.
Best For: Simple shafts, pins, brass fittings, and standard fasteners.

5-Axis (X1, Y1, Z1, C1 + Sub-Spindle)
Scope: Main-spindle Y-axis milling + dedicated sub-spindle back-working.
Capabilities: Off-center drilling, keyway milling, polygon turning, and back-face finishing.
Best For: Medium-complexity connectors, hydraulic valve spools, and medical pins.

6-Axis (X1, Y1, Z1, C1 + X2, Z2, C2 / B-Axis)
Scope: Independent multi-axis dual-spindle control or active tilting B-axis head.
Capabilities: Compound angle machining, simultaneous balanced cutting, and Y2-axis back-milling.
Best For: Medical bone screws, dental implants, and complex aerospace micro-components.

Key Industry Applications

 Medical & Dental
Precision machining of orthopedic bone screws, dental abutments, and surgical instruments using titanium alloys (Ti-6Al-4V), PEEK, and 316L stainless steel.

3C Electronics
High-speed mass production of micro-components like pogo pins, RF connectors, camera shafts, and smartwatch crowns from brass, copper, and stainless steel.

Automotive & NEV
High-volume turning of fuel injection nozzles, ABS valve spools, and EV sensor housings with strict tolerances in alloy steels and aluminum.

Aerospace & Defense
Micro-machining of heat-resistant superalloys (Inconel, Titanium) for avionics pin connectors, micro-turbines, and high-strength fasteners.

 Hydraulics & Pneumatics
Precision manufacturing of miniature spool valves, fluid control needles, and custom pneumatic fittings in brass, aluminum, and free-cutting steel.

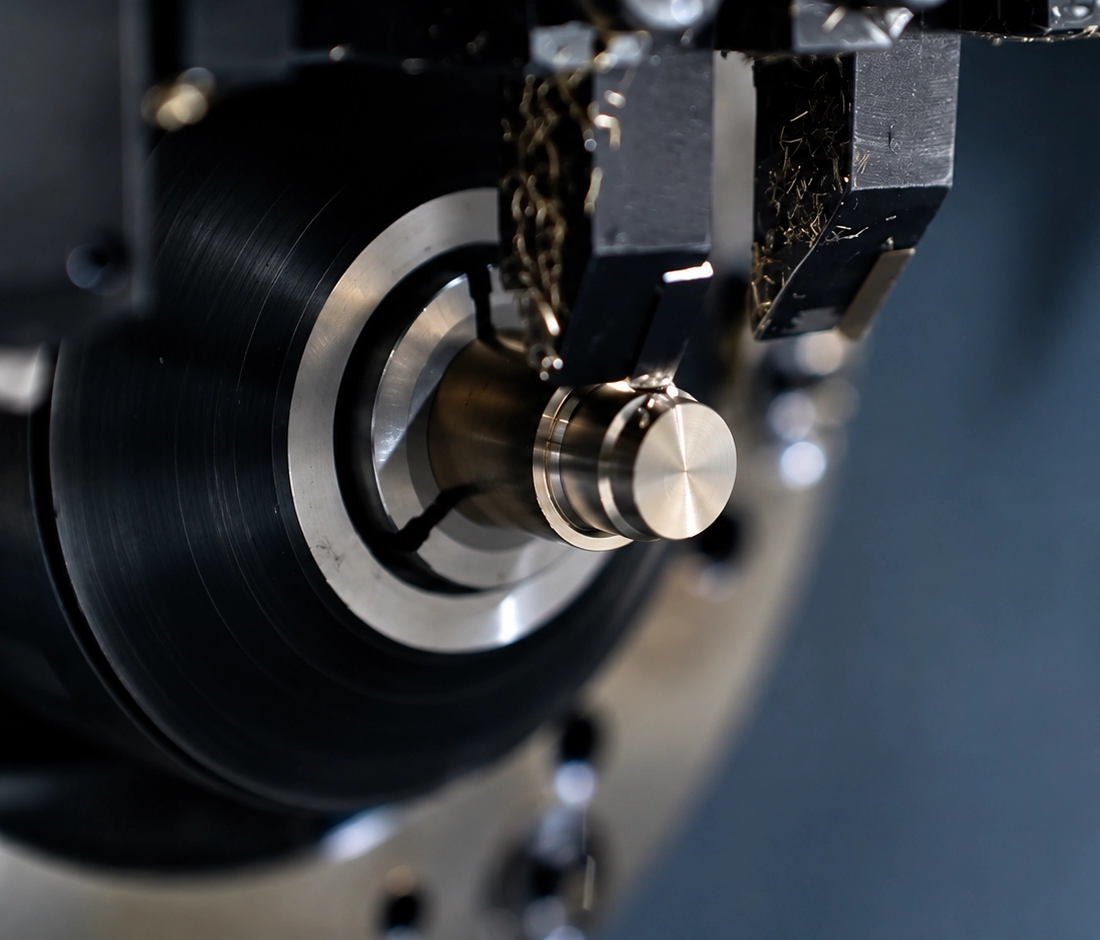

crop_1792114243242

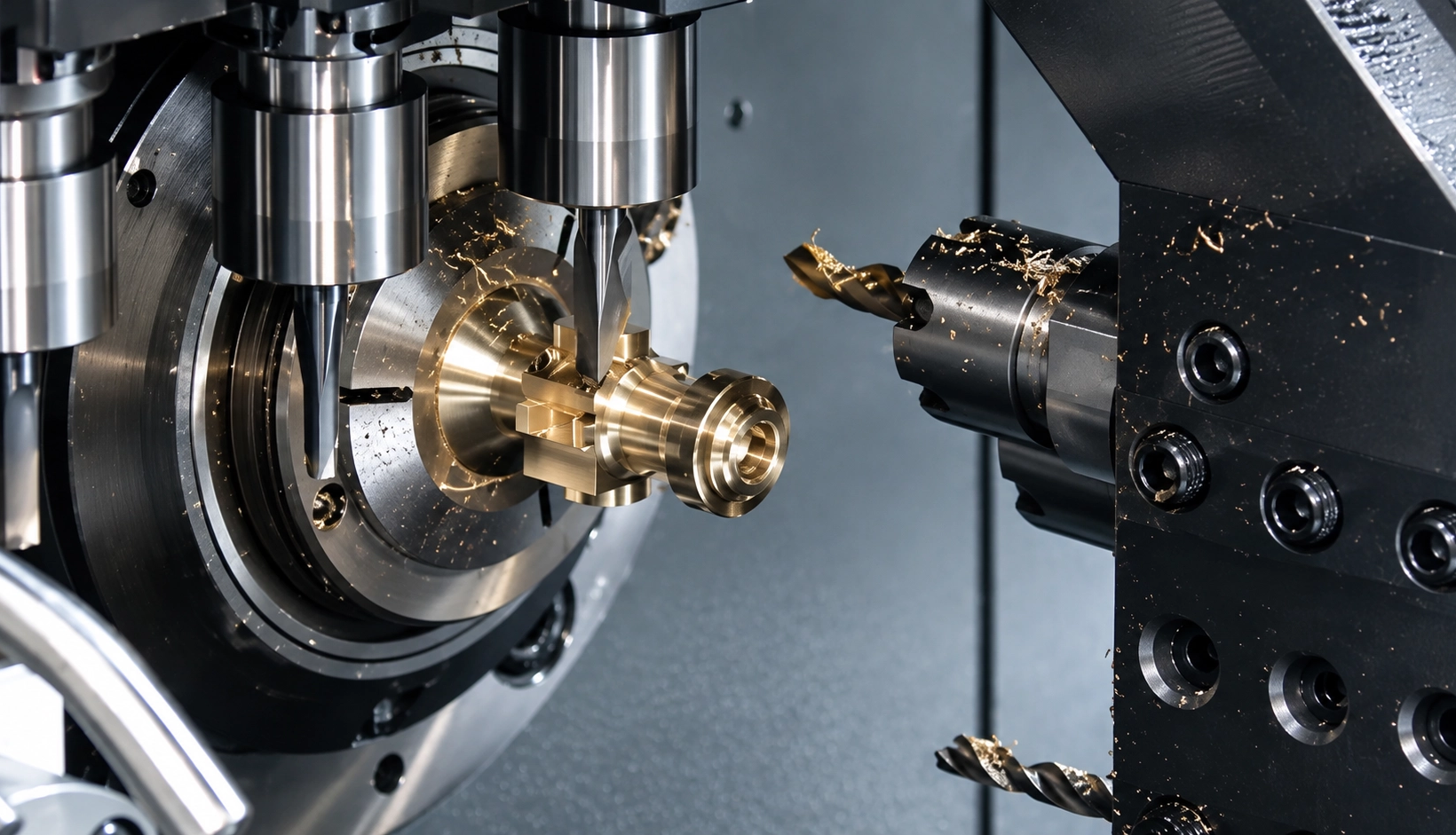

crop_1792114726539

Common Questions About CNC Swiss-Type Lathe

  • Why are Swiss-type lathes superior for machining long, slender parts?

    Unlike conventional turning centers where the workpiece flexes away from the tool, a Swiss-type lathe feeds material through a rigid guide bushing past a fixed cutting tool. By maintaining the cutting zone directly adjacent to the point of support, it eliminates part deflection and chatter, allowing high-precision turning of slender parts with length-to-diameter (L/D) ratios exceeding 20:1.

  • What is the difference between Guide Bushing and Guide Bushingless modes on a Swiss lathe?

    Guide Bushing mode provides maximum support for ultra-long, slender components.
    Guide Bushingless mode removes the guide bushing to machine shorter parts like a conventional lathe. This dramatically reduces remaining bar waste (stub end length) by up to 70%, significantly lowering material costs on expensive metals like Titanium, Inconel, and PEEK.

  • Can Taikan Swiss lathes perform high-speed thread whirling for medical bone screws?

    Yes. When configured with a high-speed thread whirling attachment, Taikan Swiss lathes can machine complex, deep single-pass threads on titanium and stainless steel medical bone screws. Thread whirling prevents workpiece deflection, reduces cycle times, and delivers burr-free, high-precision thread profiles.

  • How do automatic bar feeders integrate with Taikan Swiss lathes for 24/7 manufacturing?

    Taikan Swiss lathes come equipped with standardized M-code interfaces for seamless plug-and-play integration with automatic short or long bar feeders. Combined with automated sub-spindle part unloaders, broken tool detection, and chip conveyors, our machines enable reliable, continuous "lights-out" unmanned production.

Customer Success

See how Taikan’s solutions are helping manufacturers worldwide achieve precision, efficiency, and growth.
What You Know About us
3C Industry | Yihang Precision (China)

Table of Content [Hide] 1. I. Initial Connection: Mutual Recognition Based on Quality2. II. Intelligent Manufacturing Advancement: Breakthroughs in Precision and Efficiency3. III. Production Assurance: A Full-Cycle Machining Partner4. Welcome to contact us! In

Read More
Empowering Xinghuang's Camera Housing Production

Table of Content [Hide] In the prosperous and dynamic Yangtze River Delta manufacturing cluster, Ningbo Xinghuang Optoelectronics Co., Ltd. (hereinafter referred to as "Xinghuang Optoelectronics") — a manufacturing enterprise with 23 years of expertise in the

Read More
Alphacool's Heat dissipation technology with Taikan Machine

Table of Content [Hide] 1. I. A Synergy of German Roots and Localized R&D2. II. The Core of Thermal Management: Balancing Material and Process3. III. Precision Engineering: The Taikan T-1200's Superior Performance4. IV. Driving Efficiency: The T-500S as the "P

Read More

Catalog Download Center

Download the Swiss-Type Lathe brochure to compare model specs, explore core selling points, and make an informed machinery investment.

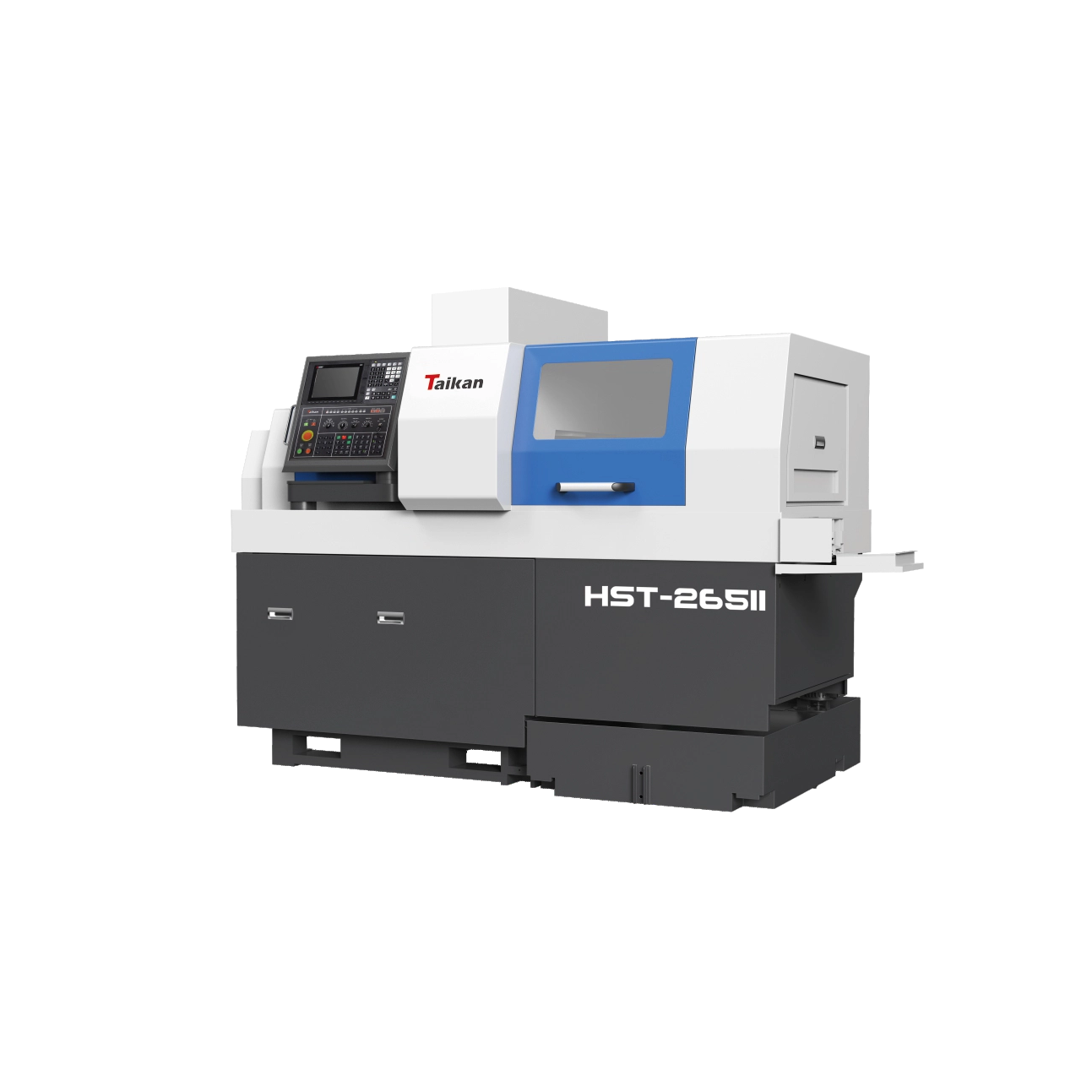

crop_1792114812087
