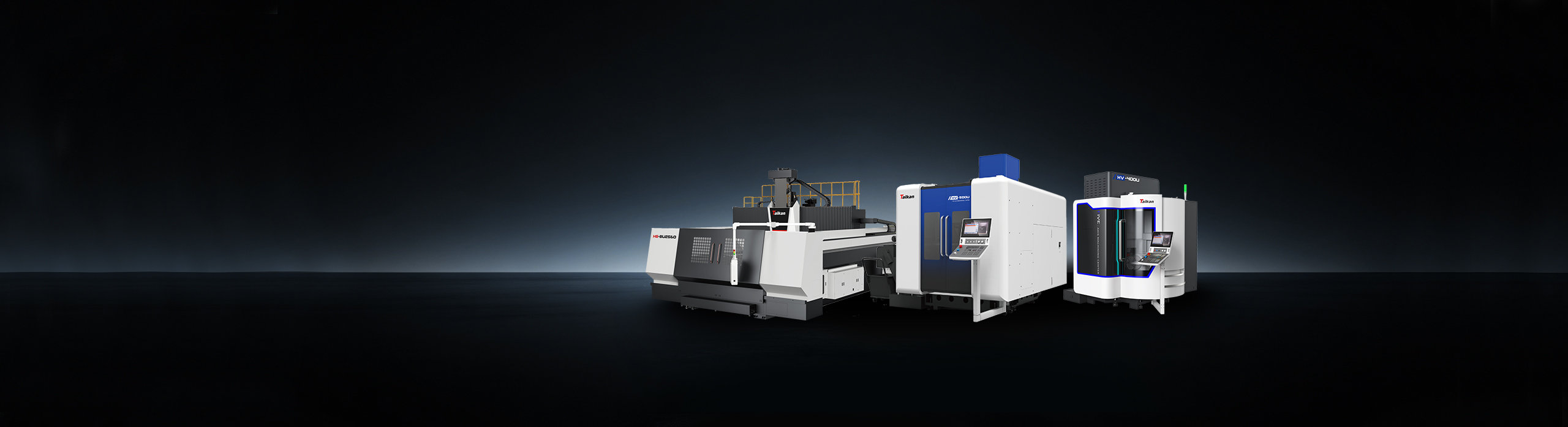

Five-Axis Machining Center

Engineered with high-rigidity structures and advanced precision control, Taikan’s versatile 5-axis machining centers deliver one-stop manufacturing solutions for the aerospace, medical, and automotive sectors.
Home » Products index » Five-Axis Machining Center » 5-Axis Machining Centers

Types of Five-Axis Machining Center

Best-Selling Five-Axis Machining Centers​​​​​​​​​​​​​​
This area can be fully edited and gives you the opportunity to introduce yourself.
READ MORE

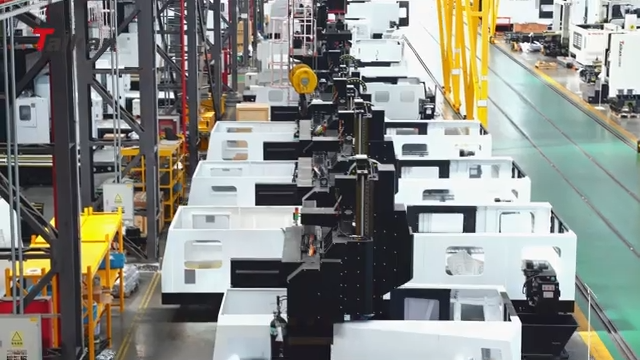

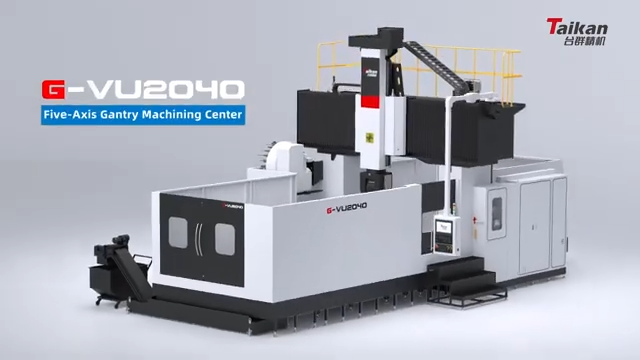

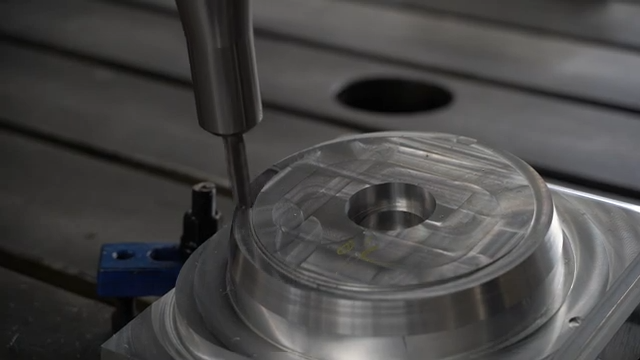

Machining Video

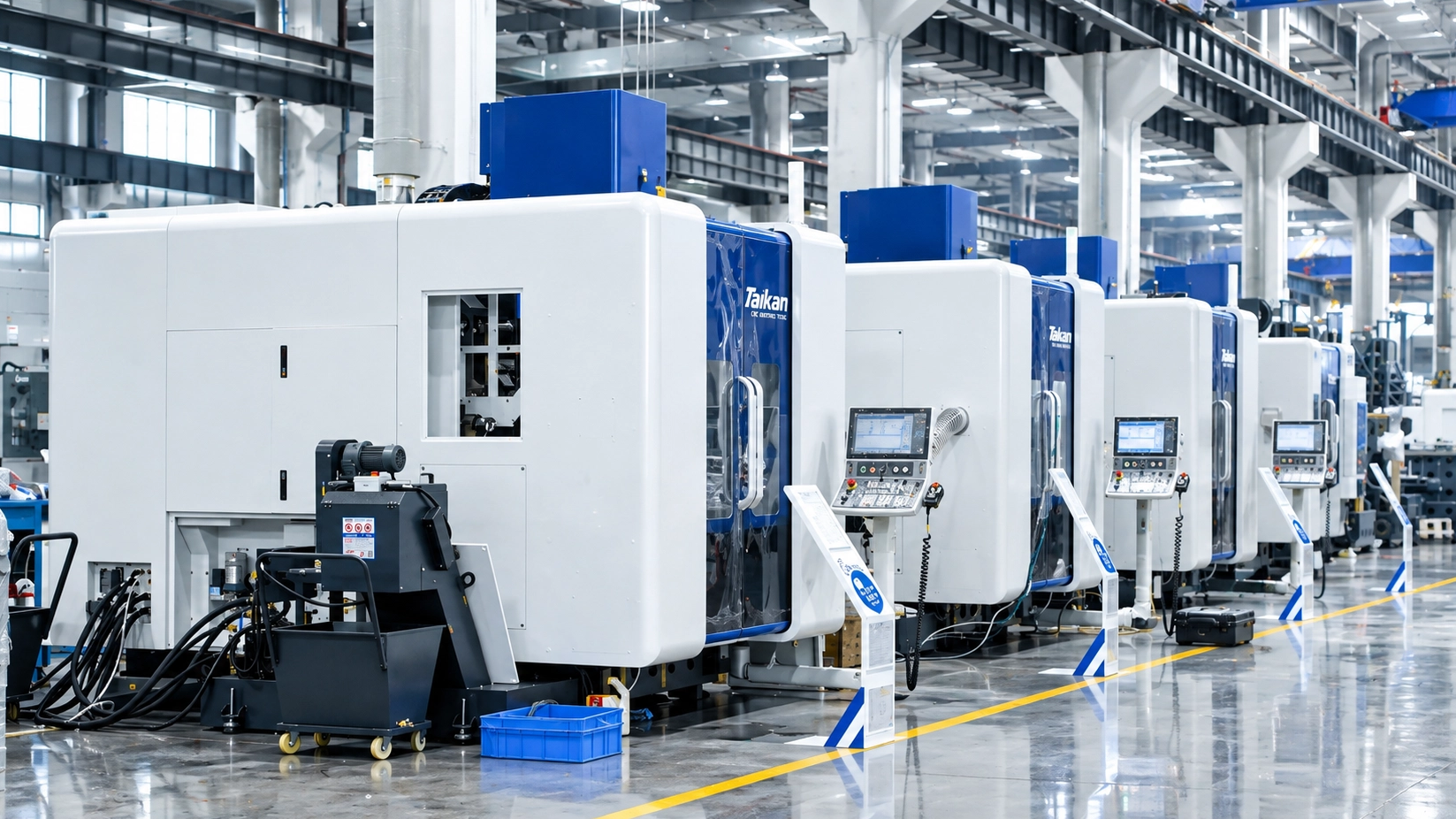

Thermal & Precision Manage System | Long-Term Stability & Accuracy

 Spindle Cooling
Minimizes thermal expansion effects, ensuring consistent accuracy in long-duration machining.

Hollow Ball Screw Cooling for Feed AxesControls heat deformation of ball screws, improving positioning precision.

Linear Scale FeedbackProvides real-time high-accuracy position feedback, ensuring dimensional consistency.
crop_1791967449908
crop_1791968051553

Versatile Industry Applications | Supporting High-End Manufacturing

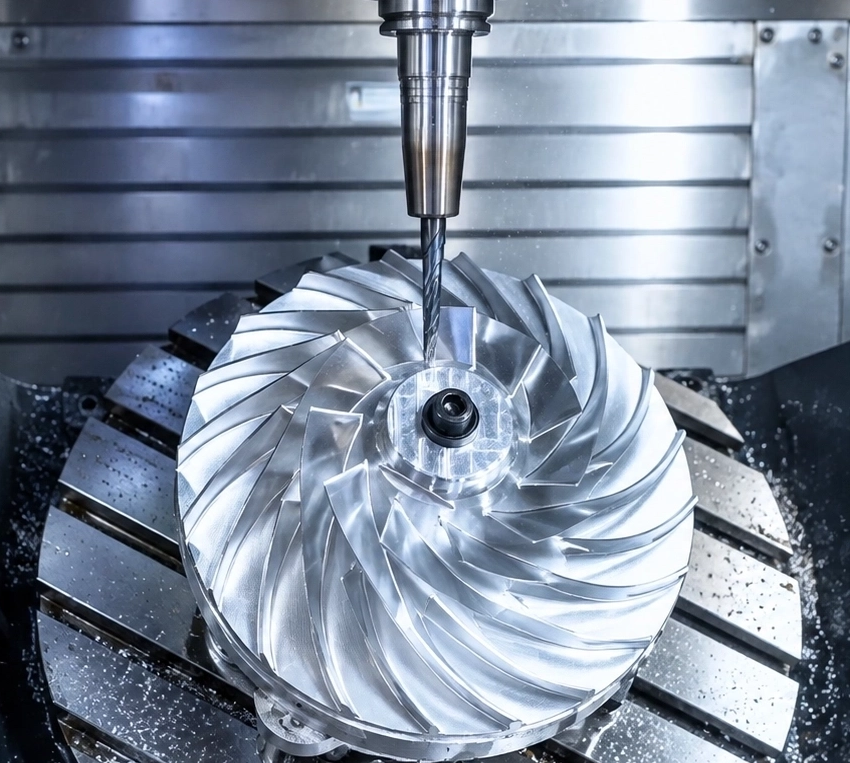

 Impellers
Precision machining of complex flow channels, ensuring high surface quality and minimal post-processing.

Precision Molds
Achieves high-gloss finishing, meeting mirror-surface machining standards.

Medical Devices
Ultra-high precision machining to comply with stringent industry regulations.

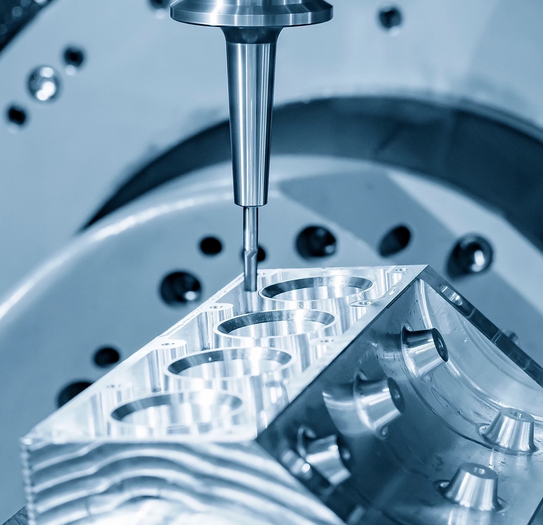

Automotive Components
High-efficiency, high-rigidity processing for mass production.

 Aerospace Components
Lightweight, high-strength material machining to enhance component reliability.

 Die-Cast Parts
Efficient milling for improved consistency and production efficiency.
High-Performance Core Components | Enhanced Efficiency & Precision​​​​​​​
  • Rotary Table:
    ● B/C-Axis Single-Arm Direct-Drive Rotary Table – Compact and agile, with high-speed response and superior positioning accuracy, ideal for small-part machining.

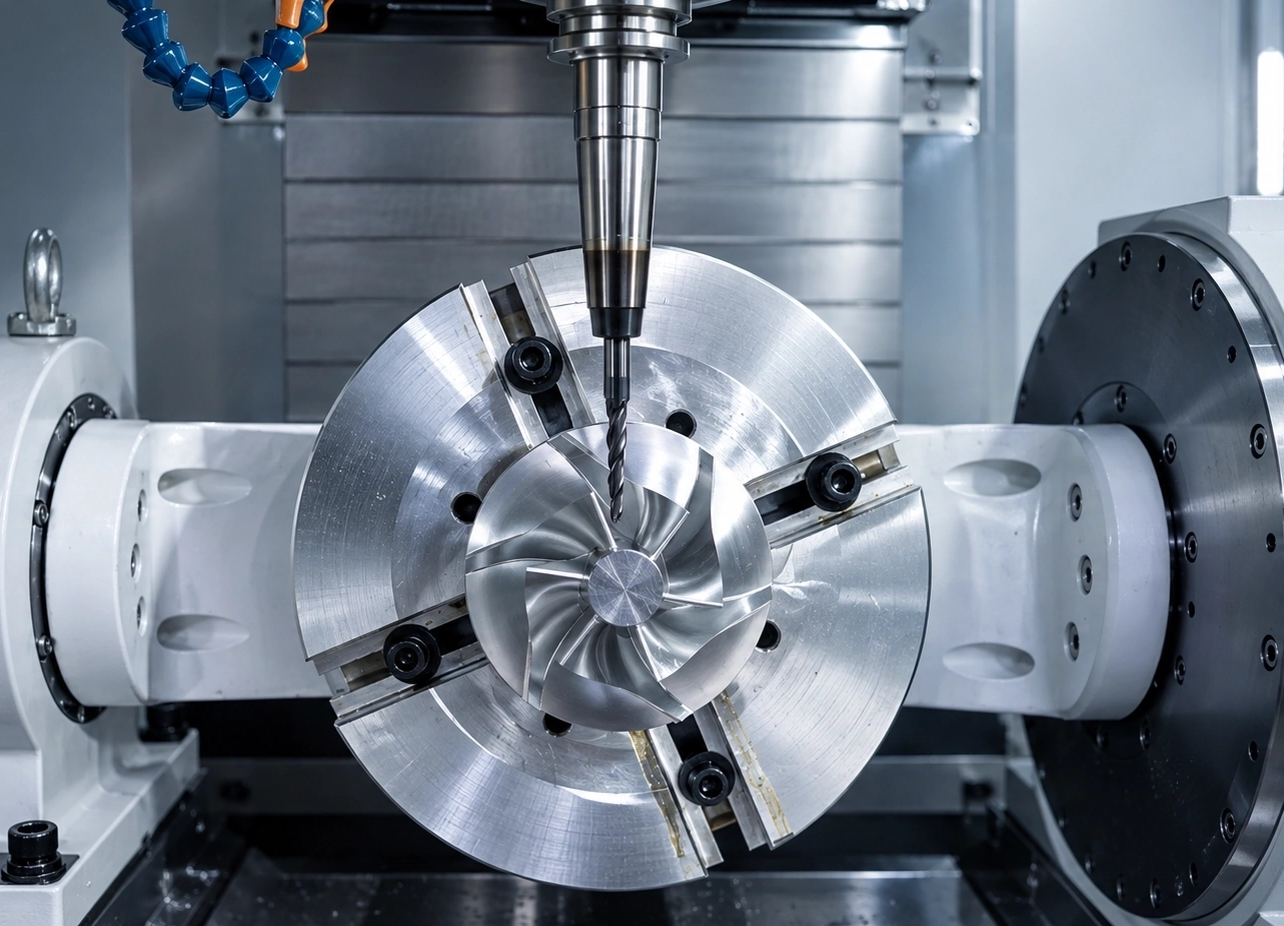

    ● A/C-Axis Cradle-Type Direct-Drive Rotary Table – Sturdy structure for high-precision five-axis simultaneous machining.
    ● C-Axis Mill-Turn Rotary Table – Integrated milling and turning, improving efficiency and reducing repositioning errors.
    ● Non-Orthogonal Rotary Table – Minimizes the distance from the machining point to the rotary axis, optimizing rigidity for high-performance machining.
  • Tilting Head:
    ● Single A-Axis Tilting Head – Designed for specific angle machining, offering increased rigidity and stability.
    ● Single B-Axis Vertical-Horizontal Tilting Head – Flexible transition between vertical and horizontal machining for enhanced versatility.
    ● DualA/C-Axis Tilting Head – Supports high-dynamic motion, ensuring superior surface quality in complex contour machining.
  • Tool Magazine:
    ● Umbrella-Type Tool Magazine – Simple and fast tool changing, ideal for small-to-medium-sized parts.
    ● Chain-Type Tool Magazine – Large tool capacity with smooth tool exchange, suitable for multi-process machining.
    ● Slant-Disc Tool Magazine – High-speed tool changing, optimized for efficient production.
    ● Disc-Type Tool Magazine – Balances speed and stability, providing precise tool switching while minimizing downtime.
crop_1791968678356

12+ Structural Configurations: Optimized for Every Machining Scenario

We offer an industry-leading range of structural options, including:

Drilling-Milling Structure, Fixed-Column Structure, Fixed-Beam Structure, Overhead Structure, T-Type Horizontal Machining Structure, Box-in-Box Horizontal Machining Structure, Horizontal Gantry Structure, L-Wall Column Structure, Portal-Type Structure, Fixed-Beam Gantry Structure, Mobile Gantry Structure, and Bridge-Type Gantry Structure.

Each configuration is meticulously optimized for different materials, part sizes, and machining requirements, ensuring a customized solution for every application. The hybrid use of mineral casting and high-strength cast iron further enhances structural stability, reducing vibration and thermal deformation for superior machining accuracy.

Five-Axis Machining Centers: Expert Answers to Common Questions

  • How do Taikan 5-axis machines prevent thermal deformation during continuous, long-duration machining?

    Long cycle times generate significant heat, which can compromise sub-micron precision. We utilize a comprehensive thermal management system featuring active Spindle Cooling to minimize thermal expansion at the cutting tool, and Hollow Ball Screw Cooling across the feed axes to control heat in the drive system. This active cooling, combined with Linear Scale Feedback for real-time high-accuracy position monitoring, ensures absolute dimensional consistency from the first part to the last.

  • How do I choose between a Cradle-Type Rotary Table and a Tilting Head for 5-axis machining?

    Selection depends entirely on your workpiece size and complexity. An A/C-Axis Cradle-Type Direct-Drive Rotary Table provides a highly sturdy foundation ideal for simultaneous 5-axis machining of medium-sized, complex geometries like impellers or medical devices. Conversely, if you are machining massive, heavy workpieces (such as large aerospace structural parts), utilizing a Dual A/C-Axis Tilting Head combined with a Gantry or Portal structure ensures superior high-dynamic motion and surface quality without needing to rotate the heavy part itself.

  • What is the difference between 3+2 positional machining and simultaneous 5-axis machining?

    In 3+2 positional machining, the cutting tool is locked into a fixed angle using the rotary and tilt axes before the standard X, Y, and Z axes perform the milling. It is excellent for machining flat features on multiple sides of a part. Simultaneous 5-axis machining moves all five axes (X, Y, Z, A, C or B, C) continuously at the same time. Taikan’s machines equipped with A/C-Axis Cradle-Type Direct-Drive Rotary Tables excel at simultaneous machining, which is essential for producing complex, contoured surfaces like aerospace impellers and precision medical implants with a single, continuous toolpath.

  • Can Taikan 5-axis machines handle hard-to-machine materials like titanium and Inconel?

    Yes. Machining lightweight, high-strength aerospace materials or tough medical-grade alloys requires immense dynamic stiffness. By utilizing a hybrid base of mineral casting and high-strength cast iron, combined with rigid configurations like the Portal-Type Structure or Fixed-Beam Gantry, Taikan machines absorb the intense vibrations generated when cutting titanium and Inconel. Paired with active Spindle Cooling, this ensures extended tool life, high surface quality, and precise dimensional accuracy in the toughest materials.

  • What CNC controllers are compatible with Taikan 5-axis machining centers?

    Taikan 5-axis machining centers are equipped with industry-leading controllers, primarily featuring Siemens and Huazhong CNC (HNC) systems. Both options fully support advanced 5-axis kinematics, including RTCP (Rotation Tool Center Point), ensuring high-precision surface machining. Whether you choose Siemens for globally recognized high-dynamic performance or Huazhong CNC for exceptional cost-efficiency, both systems guarantee seamless integration with major CAM software for efficient one-stop manufacturing.
五轴数控铣床的抽象场景。

Customer Success

See how Taikan’s solutions are helping manufacturers worldwide achieve precision, efficiency, and growth.
What You Know About us
3C Industry | Yihang Precision (China)

Table of Content [Hide] 1. I. Initial Connection: Mutual Recognition Based on Quality2. II. Intelligent Manufacturing Advancement: Breakthroughs in Precision and Efficiency3. III. Production Assurance: A Full-Cycle Machining Partner4. Welcome to contact us! In

Read More
Empowering Xinghuang's Camera Housing Production

Table of Content [Hide] In the prosperous and dynamic Yangtze River Delta manufacturing cluster, Ningbo Xinghuang Optoelectronics Co., Ltd. (hereinafter referred to as "Xinghuang Optoelectronics") — a manufacturing enterprise with 23 years of expertise in the

Read More
Alphacool's Heat dissipation technology with Taikan Machine

Table of Content [Hide] 1. I. A Synergy of German Roots and Localized R&D2. II. The Core of Thermal Management: Balancing Material and Process3. III. Precision Engineering: The Taikan T-1200's Superior Performance4. IV. Driving Efficiency: The T-500S as the "P

Read More

Catalog Download Center

Access complete technical specifications, key features, and series comparisons to help you select the ideal Taikan 5-Axis Machining Centers for your shop floor.

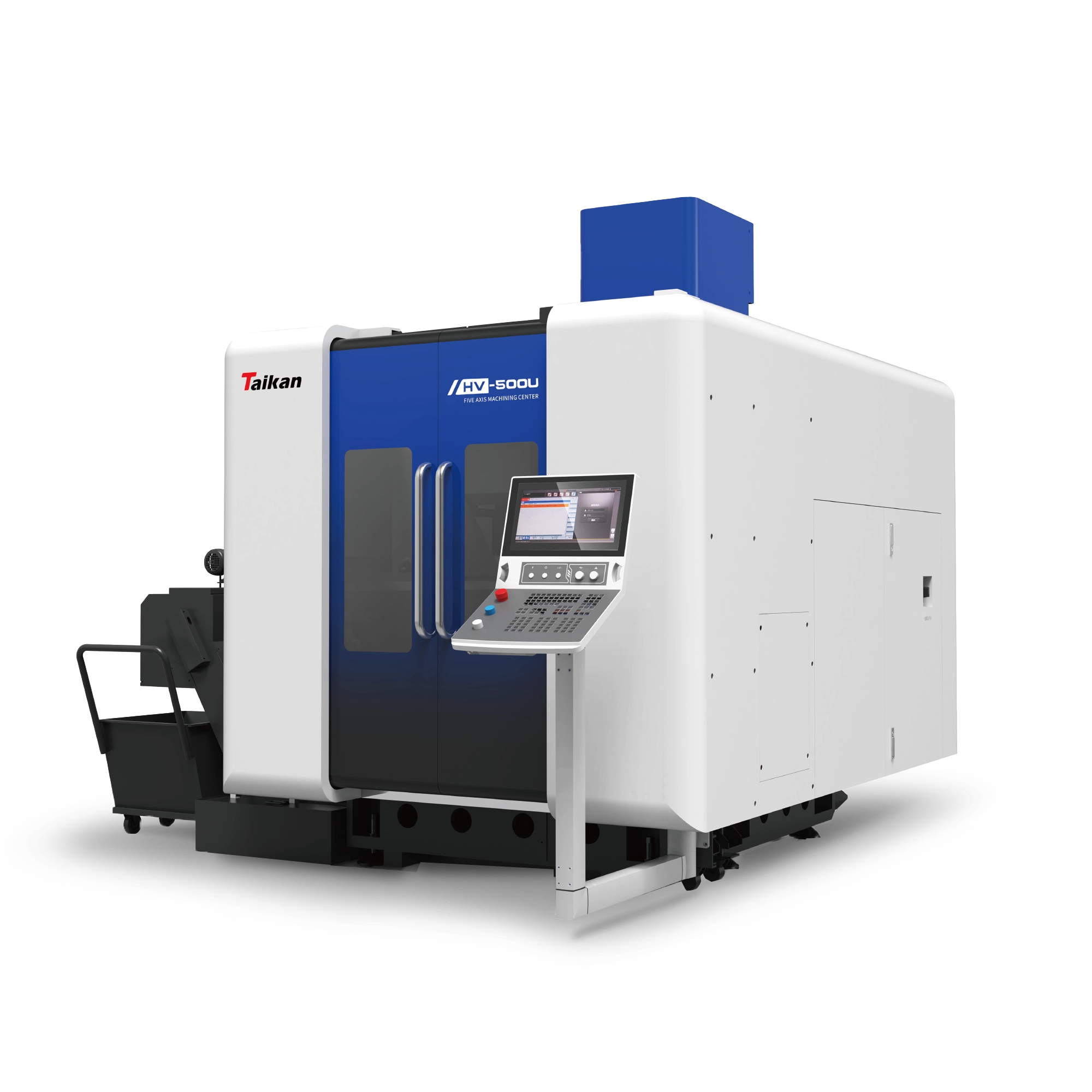

crop_1791969058209

Discover Our Taikan Five-Axis Machining Centers

Taikan Machine is an international high-tech enterprise of CNC intelligent equipment, integrating R&D, production, sales and service. With over 20 years of industry experience, Taikan provides customers with high-quality CNC equipment and intelligent machining solutions.
