Vertical Machining Center

With over 50,000 units shipped annually across 6 series and machining

envelopes from 600 to 2000 mm, Taikan delivers field‑proven performance for NEV, 3C, 5G, medical, and die/mold industries.

Home » Products index » Vertical Machining Center » Vertical Machining Centers

Types of Vertical Machining Center

Best-Selling Vertical Machining Centers

This area can be fully edited and gives you the opportunity to introduce yourself.

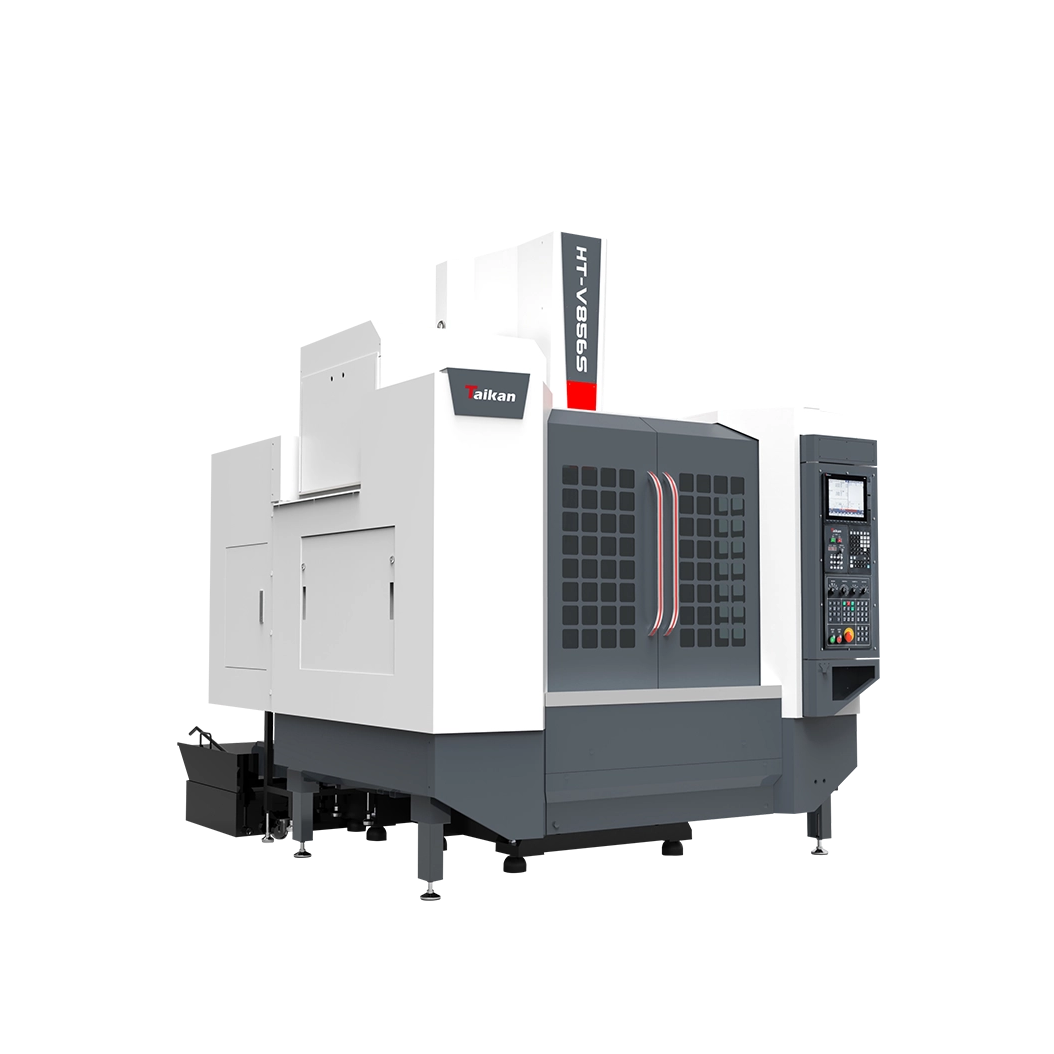

/HT-V856S

X/Y/Z Axis Travel: 800/550/600 mm
Table Size: 1000*500 mm
Max. spindle speed: Direct-coupling 12000 RPM
Tool Capacity: 24 PCS
/ HT-V1055S

X/Y/Z Axis Travel: 1000/550/600 mm
Table Size: 1100*500 mm
Max. spindle speed: Direct-coupling 12000 RPM
Tool Capacity: 24 PCS
/HT-V1265S

X/Y/Z Axis Travel: 1200/650/600 mm
Table Size: 1300*650 mm
Max. spindle speed: Direct-coupling 12000 RPM
Tool Capacity: 24 PCS
/HT-V1165M

X/Y/Z Axis Travel: 1,100/650/600 mm
Table Size: 1,200×650 mm
Spindle speed: Belt 8,000 RPM
Spindle taper: BT40
Tool capacity: 24 PCS

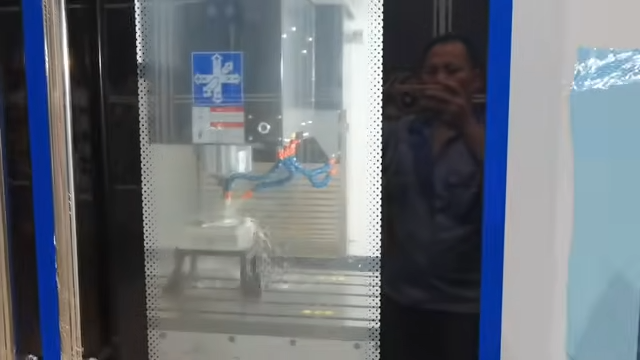

HDT-55 Vertical machining center

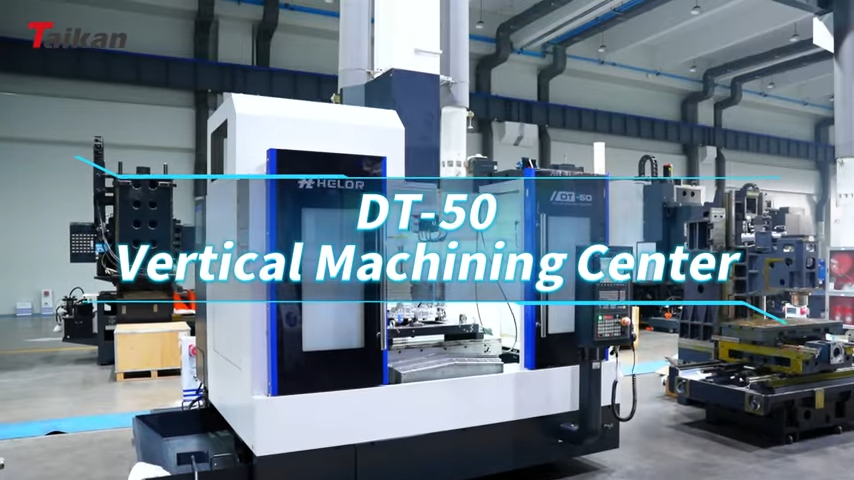

HDT-50 Vertical machining center demos

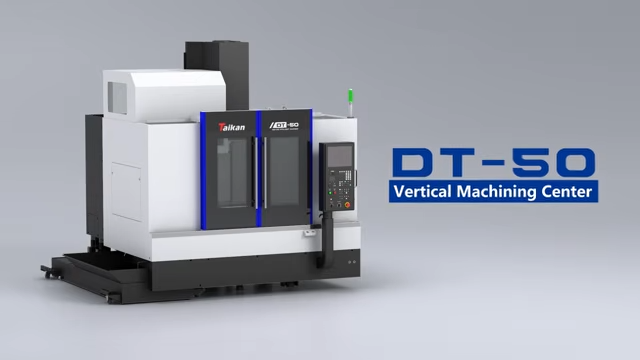

HDT-50 Vertical machining center

Versatile Structures and Guideway Options of Vertical Machining Center

Multiple Structural Designs
Options include single-column, dual-column, and T-type structures, offering flexibility for various applications.

Comprehensive Guideway Configurations
Choose from three-line rail series, two-line rail with one hard rail series, and three-axis hard rail series to suit different machining requirements.

Variety of Spindle Options
Available spindle types include belt-driven, direct-coupled, electric, and gear spindles, allowing customization for specific processes.

Wide System Compatibility
Supports multiple control platforms including Mitsubishi, FANUC, Siemens, and TAIKAN’s proprietary system, ensuring seamless integration and efficient performance.

Diverse Performance Models of Vertical Machining Center

High-Speed & High-Efficiency Series
Optimized for fast, precise machining in various production environments.

High-Speed & High-Precision Series

Perfect for applications demanding both speed and tight tolerances.

High-Rigidity Series

Designed for heavy-duty applications requiring maximum rigidity and stability.

Widely Applicable in Industries

These models are widely applicable in industries such as general machining, mold processing, 5G components, new energy vehicles, valves, and more. TAIKAN specializes in medium to small batch, multi-variety, complex part production.

Features of Vertical Machining Center Characteristics of Processed Parts

Features of Vertical Machining Center

Complex Shape Capability
TAIKAN machines are capable of machining parts with intricate shapes and high motion controllability, ensuring precise profiles even in the most complex designs.
High Flexibility

Excellent flexibility in adapting to changing production demands and varying process requirements, ensuring quick setup and changeover.
High Precision & Stability

TAIKAN centers deliver high machining accuracy and consistent product quality, meeting the most demanding precision standards.
Efficient Production

High production efficiency with reduced labor intensity, making it ideal for large, medium, and small batch production.

Characteristics of Processed Parts

Complex Geometry and Tight Tolerances
Parts often involve intricate curves, complex surfaces, and high precision requirements.
Multi-Process in Single Setup

Designed to complete multiple processes in a single clamping, boosting production efficiency.
Small to Medium Batch Production

Primarily for high-value, low-volume production.
Traditional Machines'Limitations

Unlike conventional machines that require extensive tooling design and lengthy adjustments, TAIKAN machines streamline these processes for better efficiency.
High Precision & Interchangeability

Parts require tight tolerance bands and high interchangeability, ensuring a perfect fit every time.

Common Questions About VMCs

What is a vertical machining center?

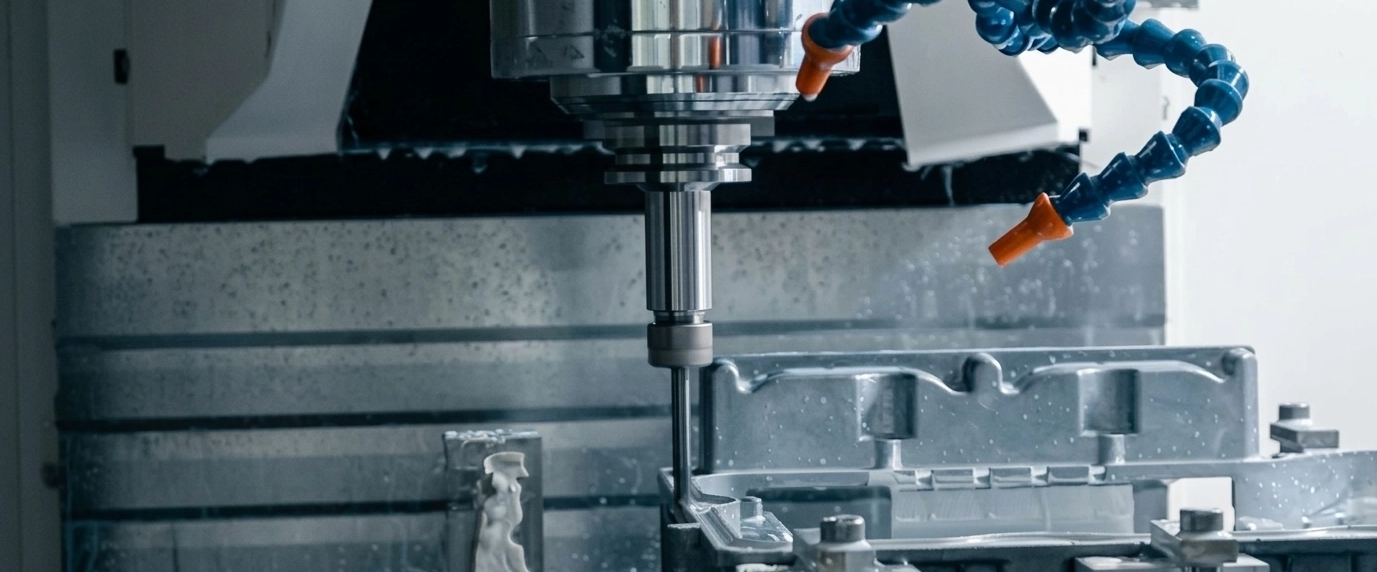

A vertical machining center is a CNC machine tool with a vertically oriented spindle that removes material from a clamped workpiece using rotating cutting tools. It automatically performs milling, drilling, tapping, and boring operations from a stored program, delivering high repeatability, short cycle times, and consistent quality across both series and single-part production
How do I choose the right VMC for my application?

Selection should be based on your workpiece requirements – material type, part size, geometry complexity, and production volume. Key factors to consider include:
· Work envelope: Table size and X/Y/Z travels must accommodate your largest parts
· Spindle: Speed and torque requirements depend on your materials – high-speed for aluminum, high-torque for steel and titanium
· Guideway system: Hard rail (box way) for heavy cutting and rigidity; linear guide for high-speed, high-precision machining
· Tool magazine capacity: 21T, 24T, or 30T depending on your tooling needs
· Control system: Taikan's self-developed CNC with intelligent features for your specific operations
Our sales engineers can help match the right machine to your specific production needs.
What materials can be machined on a Taikan VMC?

Taikan VMCs can machine virtually all metallic materials, including steel, stainless steel, aluminum, titanium, brass, cast iron, and non-ferrous metals. The optimal result depends on the synergy between the machine, cutting tools, cutting parameters, and cooling system. Taikan provides matching accessories – from tool holders and workholding to measuring technology – all from a single source.
What's the difference between hard rail and linear guide systems?

Hard rail (box way) systems feature guideways integrally cast with the bed, offering maximum rigidity, vibration damping, and heavy-cutting capacity. They are ideal for machining tough materials like steel, cast iron, and titanium, as well as mold and die applications.
Linear guide systems use rolling elements (balls or rollers) for reduced friction, enabling higher speeds, faster acceleration, and superior positioning accuracy. They are ideal for high-efficiency production of aluminum, non-ferrous metals, and lighter materials.
Taikan offers both configurations so you can choose based on your material, productivity, and precision requirements.

Customer Success

See how Taikan’s solutions are helping manufacturers worldwide achieve precision, efficiency, and growth.

What You Know About us

3C Industry | Yihang Precision (China)

Table of Content [Hide] 1. I. Initial Connection: Mutual Recognition Based on Quality2. II. Intelligent Manufacturing Advancement: Breakthroughs in Precision and Efficiency3. III. Production Assurance: A Full-Cycle Machining Partner4. Welcome to contact us! In

Empowering Xinghuang's Camera Housing Production

Table of Content [Hide] In the prosperous and dynamic Yangtze River Delta manufacturing cluster, Ningbo Xinghuang Optoelectronics Co., Ltd. (hereinafter referred to as "Xinghuang Optoelectronics") — a manufacturing enterprise with 23 years of expertise in the

Alphacool's Heat dissipation technology with Taikan Machine

Table of Content [Hide] 1. I. A Synergy of German Roots and Localized R&D2. II. The Core of Thermal Management: Balancing Material and Process3. III. Precision Engineering: The Taikan T-1200's Superior Performance4. IV. Driving Efficiency: The T-500S as the "P

Catalog Download Center

Browse our full range of vertical machining centers, compare specifications and key features, and find the right model for your application.

Get the Catalog

Discover Our Taikan Vertical Machining Centers

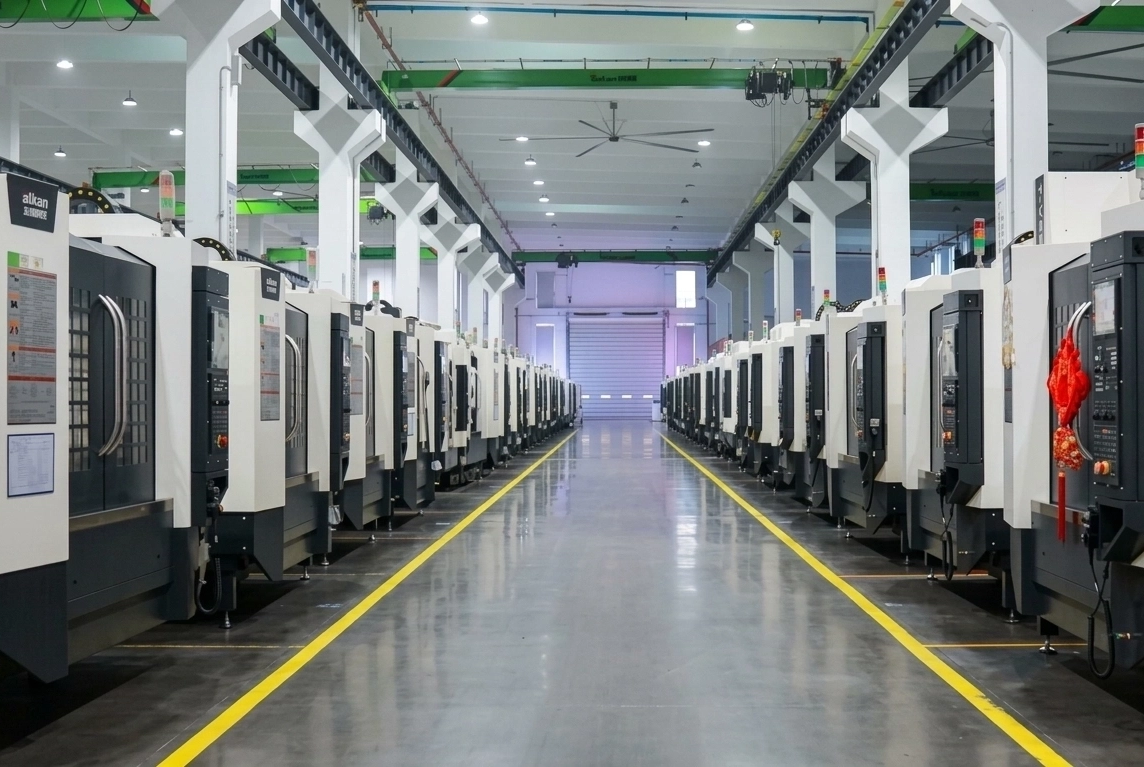

Taikan Machine is an international high-tech enterprise of CNC intelligent equipment, integrating R&D, production, sales and service. With over 20 years of industry experience, Taikan provides customers with high-quality CNC equipment and intelligent machining solutions.
