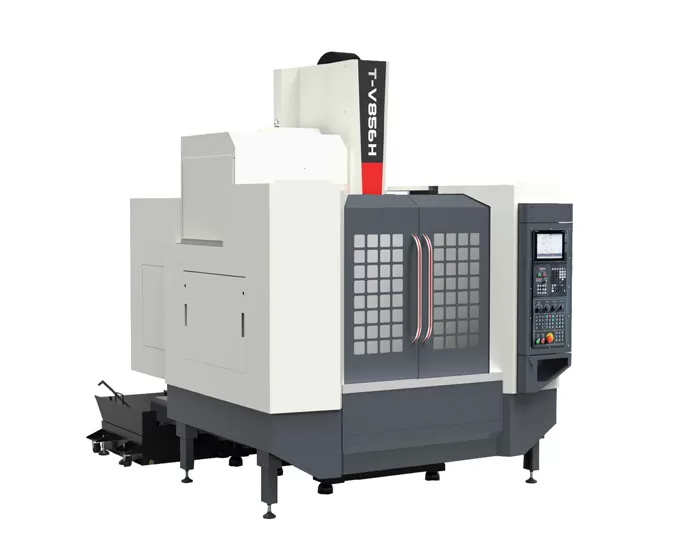

HT-V856H High-speed and High-precision Vertical Machining Center

HT-V856H High-speed and High-precision Vertical Machining Center

Advanced Edition with Three Linear

High speed and high precision-A testament to exquisite craftsmanship

Quantity:




Inquire Add to Basket

Characteristics of HT-V856H High-speed and High-precision Vertical Machining Center
Application of HT-V856H High-speed and High-precision Vertical Machining Center
Specifications of HT-V856H High-speed and High-precision Vertical Machining Center
Systems Control

Machine Structure

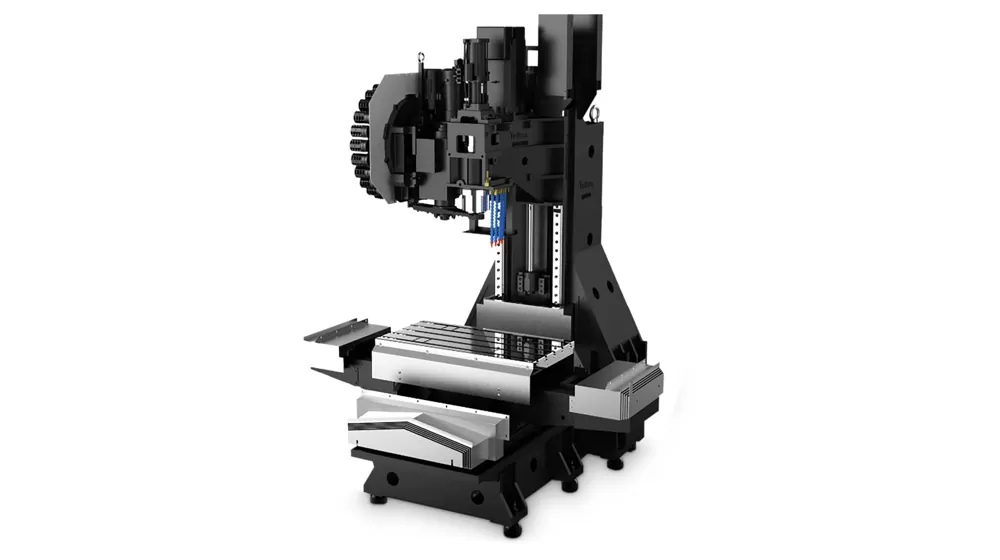

The machine features a fixed column structure with a cross-type sliding table. The body is built with an extra-large stable base and a high-rigidity, wide-span A-shaped column, ensuring vibration-free and deformation-free high-speed cutting.

Hollow Ball Screws

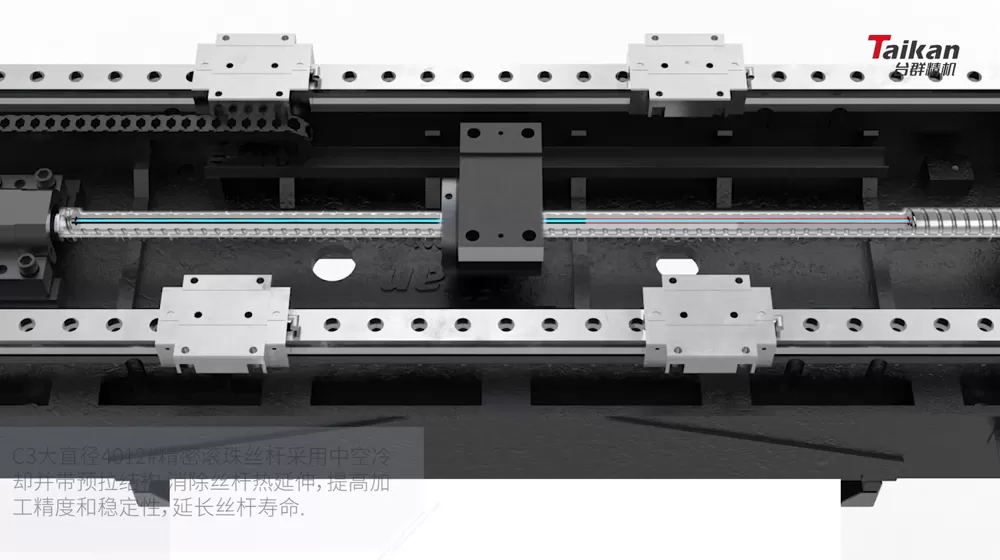

Hollow ball screws with pre-tensioned structure eliminate thermal expansion, enhancing the machine's precision. The ball screw bearings are self-lubricating, extending their lifespan.

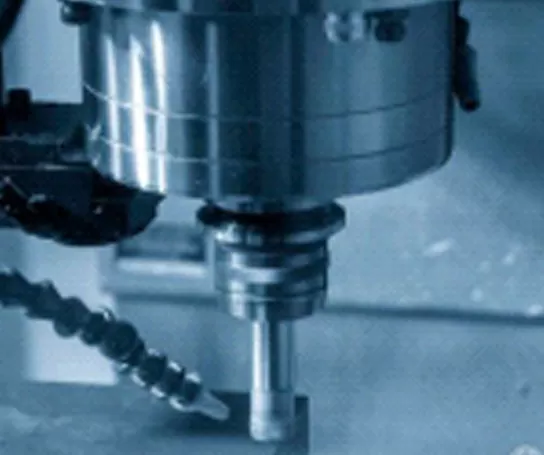

Spindle

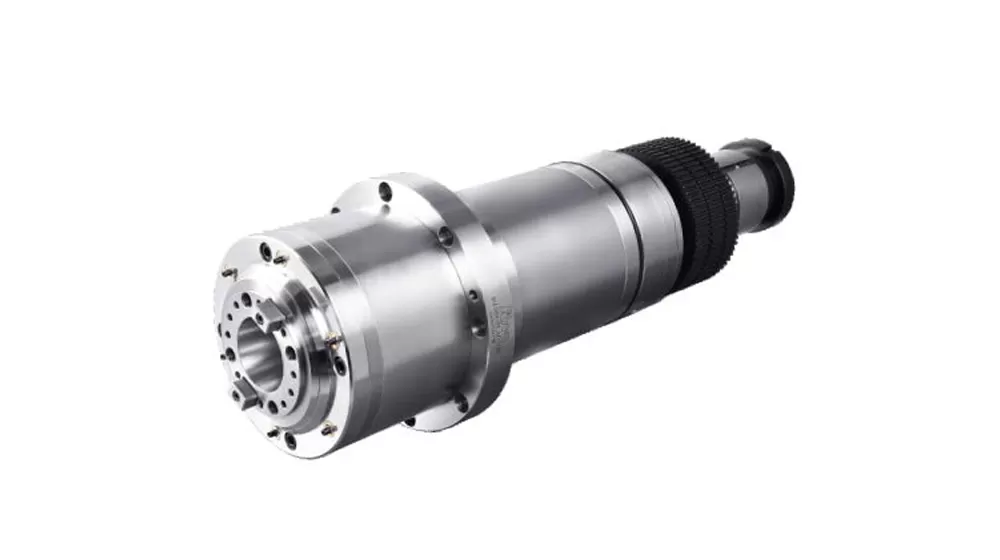

The machine features a high-speed spindle unit from Taikan, equipped with a BT40-12000 rpm direct connection head. The spindle front uses a labyrinth design with an air curtain protection, preventing cutting fluids from entering the spindle bearings.

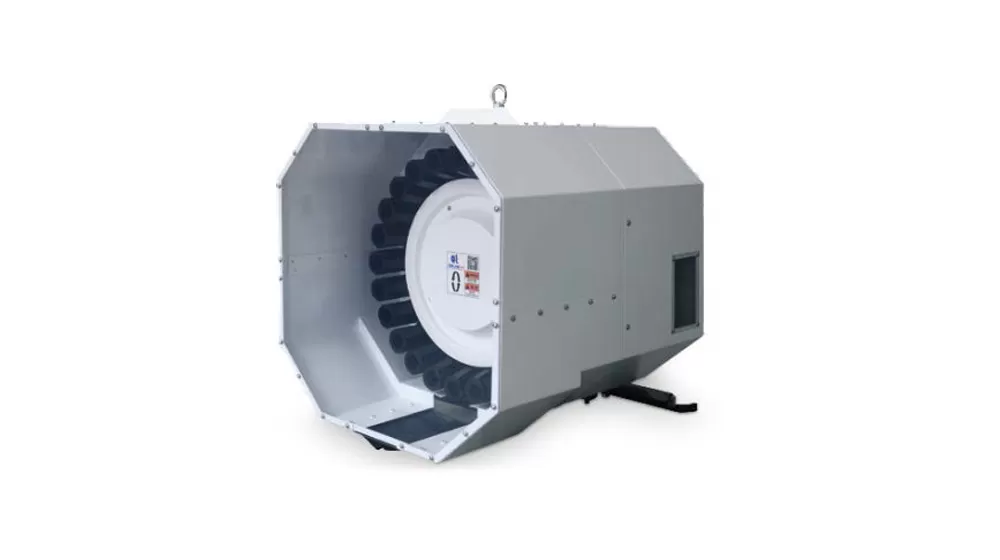

Tool Magazine

The machine is equipped with a 24-pocket arm-type tool magazine from Taikan, known for its reliable quality and stable performance.

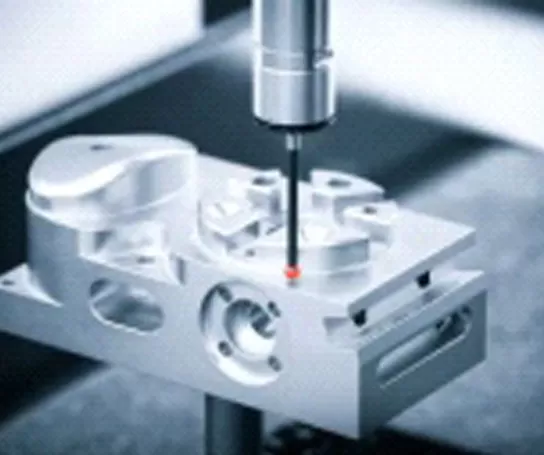

The machine tool is suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.

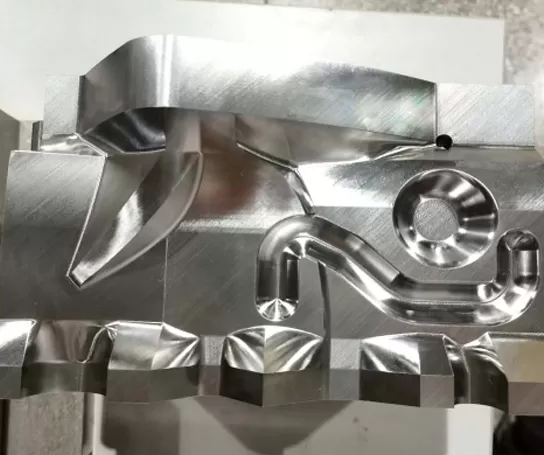

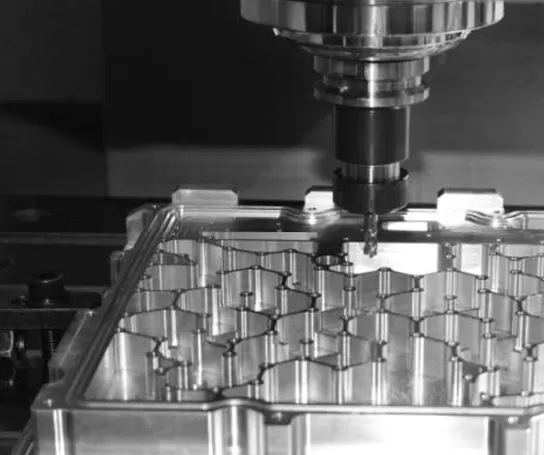

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Item			Unit	HT-V856H	Remarks
Travel	Table travel (X axis)		mm	800
	Saddle travel (Y axis)		mm	550
	Headstock travel (Z axis)		mm	600
	Distance from spindle nose to worktable surface		mm	125～725
	Distance from spindle center to column guide surface		mm	590
Worktable	Table size		mm	1000*500
	Max. load (even load-bearing)		kg	450
	T-slot (number of slots - slot width * spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	11/15
	Motor torque (rated/short time)		N.m	52.5/118
	Speed range		r/min	50~12000 (Directly coupled)
	Spindle diameter		mm	φ150
	Spindle taper		/	BT40
	Rivet specifications		/	P40T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	30/30/30
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.008	GB/T18400.4(Full travel)
Accuracy	Repeatability (X/Y/Z)		mm	0.005	GB/T18400.4(Full travel)
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Φ75/Φ150
Others	CNC system		/	Mitsubishi M80VB
	Air source	Flow	L/min	≥280（ANR)
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	25
	Coolant tank capacity		L	300
	Machine size		mm	224031213026	Corresponding to XYZ axis
	Weight (approx.)		Kg	4600

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
