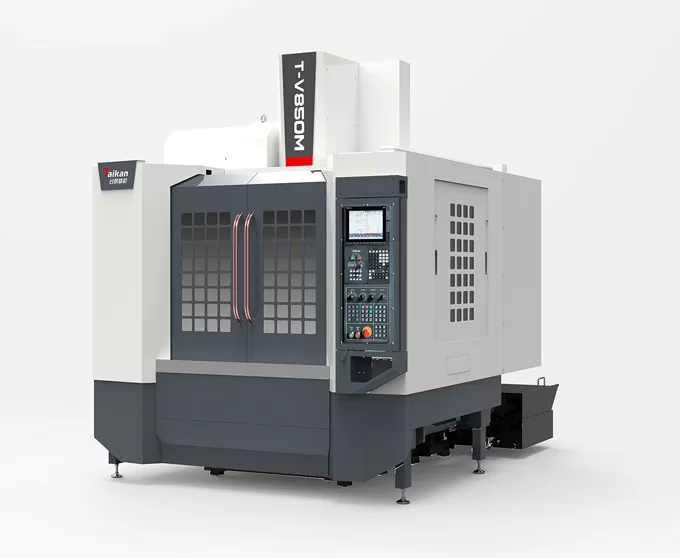

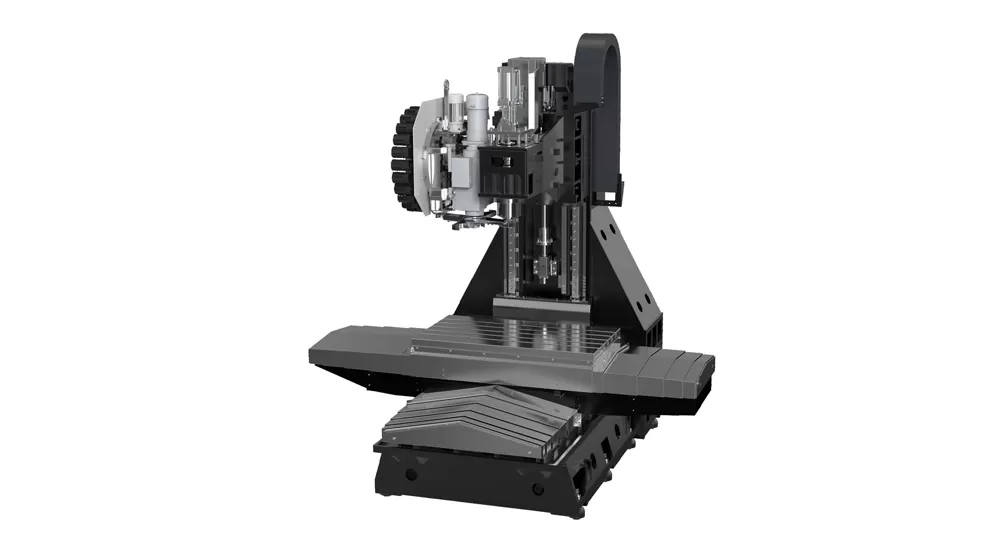

HT-V850M High-speed and High-rigidity Vertical Machining Center

Travel

Table travel (X axis)

mm

850

Saddle travel (Y axis)

mm

550

Headstock travel (Z axis)

mm

550

Distance from spindle nose to table surface

mm

150～700

Distance from spindle center to column guide surface

mm

613

Worktable

Table size

mm

1000*550

Max. load (even load-bearing)

kg

600

T-slot (number of slots - slot width * spacing)

mm

5-18*100

Spindle

Motor power (rated/short time)

kW

11/15

Motor torque (rated/short time)

N.m

52.5/118

Speed range

r/min

50~8000（belt）

Spindle diameter

mm

φ150

Spindle taper

/

BT40

Rivet specifications

/

P40T-I（MAS403）

Speed

Cutting feed speed range

mm/min

1-10000

X/Y/Z axis rapid traverse speed

m/min

36/36/30

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.008

GB/T18400.4（Full travel）

Repeatability (X/Y/Z)

mm

0.005

Tool magazine

Tool capacity

pcs

24

Max. tool weight

kg

7

Max. tool length

mm

250

Max. tool diameter (full /adjacent empty)

mm

Φ75/Φ150

Others

Z-axis counterweight

/

/

CNC system

/

Mitsubishi M80VB

Air source

Flow

L/min

≥280（ANR)

Air pressure

MPa

0.6~0.8

Equipment capacity

KVA

25

Coolant tank capacity

L

300

Machine size

mm

2250*3170*2889

Corresponding to X*Y*Z axis

Weight (approx.)

Kg

6000
