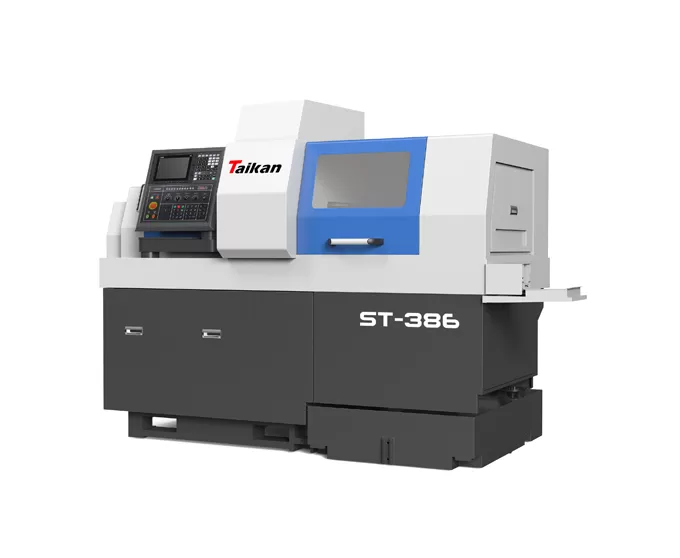

Item | ST-386 |
Max. Machining Diameter | Ø38 mm |
Max. Machining Length | 240 mm |
Front Drilling Diameter | Max. Ø13 (Copper) |
Front Threading Capacity | Max. M8 |
Spindle Through-Hole | Ø40 mm |
Control System | Mitsubishi M80LA System |
Spindle Speed (Max.) | 8,000 r/min |
Side Milling Max. Drilling | Max. Ø13 (Copper) |
Side Milling Max. Tapping | Max. M8 (Copper) |
Side Milling Max. Speed | 5,000 r/min |
Back Spindle Max. Clamping | Ø36 mm |
Back Tool Drilling Diameter | Max. Ø10 |
Back Spindle Threading | Max. M8 |
Back Spindle Speed (Max.) | 8,000 r/min |

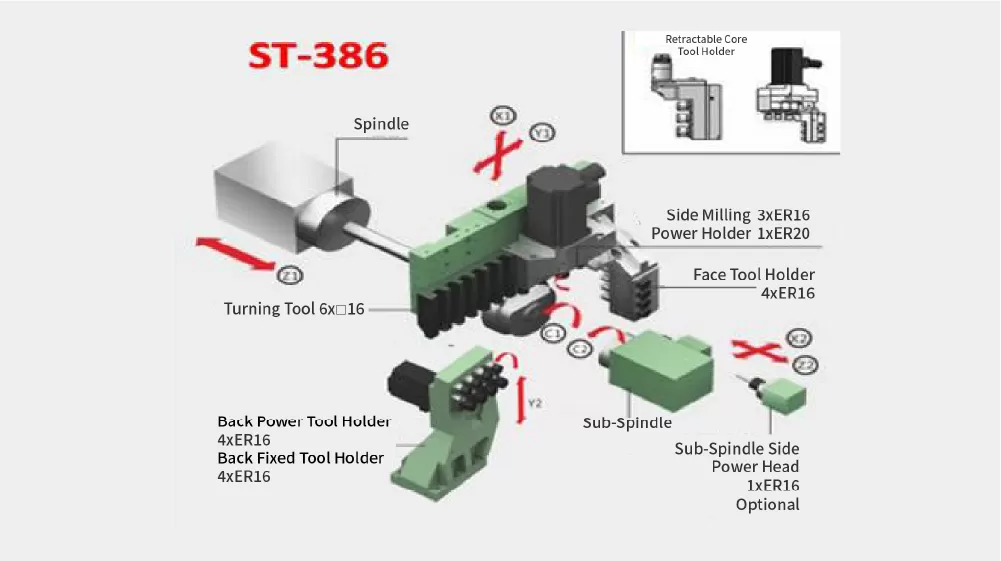

Turning Tools | 6×□16 mm (Square Shank) |
Side Milling Power Tool | 3×ER16 + 1×ER20 |
Front Fixed Tool Holders | 4×ER16 |
Back Spindle Face Tool Holders | 4×ER16 Fixed + 4×ER16 Rotary |
Rapid Traverse Speed | Y1/X2: 32 m/min, X1/Y2: 20 m/min, Z1/Z2: 24 m/min |
Spindle Motor Power | 3.7 kW / 5.5 kW |
Sub-Spindle Motor Power | 1.5 kW / 2.2 kW |
Side Milling & Back Face Milling Power | 1.0 kW (Side Milling), 0.75 kW (Back Face Milling) |
Feed Motor Power | 1.0 kW (X1/Y1/Z1/X2/Z2), 0.75 kW (Y2) |
Total Machine Power | 12 kW |
Machine Weight | 3,100 kg |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
