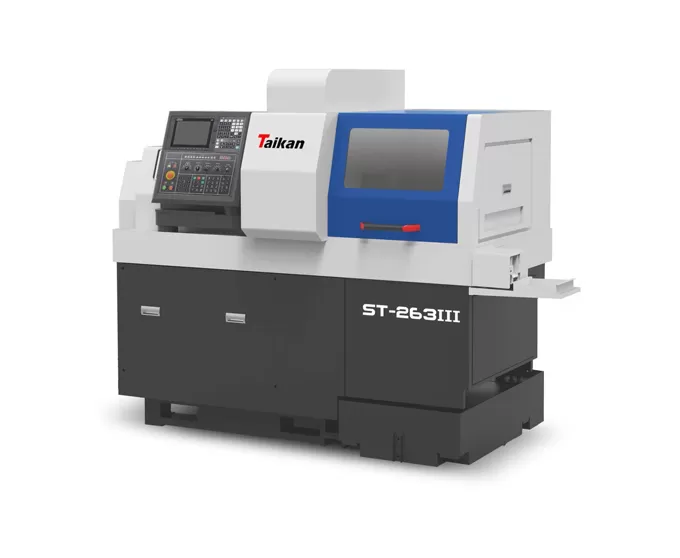

Item | ST-263Ⅲ |
Max. Swing Diameter | Ø26 mm |
Max. Machining Length | 240 mm |
Frontal Drilling Capacity | Max. Ø10 mm |
Frontal Threading Capacity | Max. M8 |
Spindle Bore Diameter | 28 mm |
Control System | Syntec 22TB CNC System |
Spindle Speed | Max. 8,000 rpm |
Side Milling Drilling Capacity | Max. Ø10 mm |
Side Milling Tapping Capacity | Max. M8 (Copper) |
Side Milling Speed | Max. 5,000 rpm |
Turning Tool Stations | 5×□12 +1×□16 mm |
Side Milling Power Units | 2×ER11 + 3×ER16(incl. 2 quick-change units) |
Face Power Units | Fixed 4×ER16 + Rotary 3×ER16(quick-change type) |
Rapid Traverse Rate | X:15/Y:24/Z:18 m/min |
Spindle Motor Power | 3.7/5.5 kW |
Side Milling Motor Power | 1.0 kW |
Face Milling Motor Power | 0.4 kW |
Feed Motor Power | X/Y/Z: 1.0 kW each |
Total Power Consumption | 8 kW |
Machine Weight | 1,800 kg |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
