Item

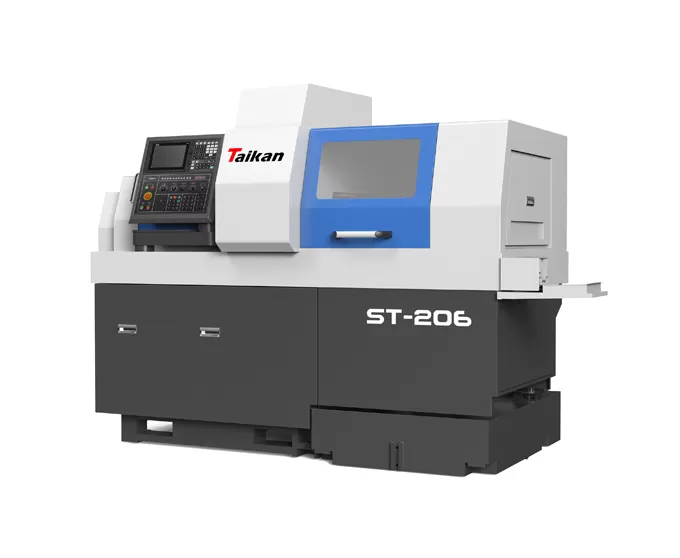

ST-206
Max. Machining Diameter
Ø20 mm
Max. Machining Length
240 mm
Front Drilling Diameter
Max. Ø10
Front Threading Capacity
Max. M8
Spindle Through-Hole
Ø23 mm
Control System
Mitsubishi M80LA System
Spindle Speed (Max.)
8,000 r/min
Side Milling Max. Drilling
Max. Ø10
Side Milling Max. Tapping
Max. M8 (Copper)
Side Milling Max. Speed
5,000 r/min
Back Spindle Max. Clamping
20 mm
Back Spindle Max. Extension
50 mm
Back Spindle Max. Drilling
Max. Ø10
Back Spindle Threading
Max. M8 (Copper)
Back Spindle Speed (Max.)
8,000 r/min
Back Tool Drilling Diameter
Max. Ø10

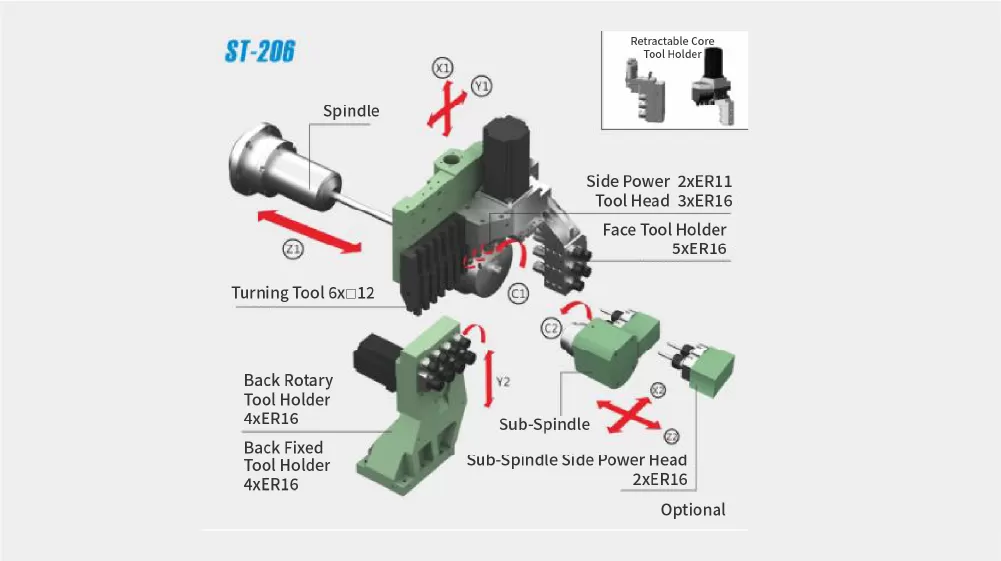

Turning Tools
5×□12 + 1×□16
Side Milling Power Tool
2×ER11 + 3×ER16 (2 Quick-Change Units)
Front Fixed Tool Holders
5×ER16
Back Spindle Face Tool Holders
4×ER16 Fixed + 4×ER16 Rotary
Face Tool Holders (Optional)
3×ER11 + 3×ER16 Bidirectional (Optional)
Rapid Traverse Speed
Y1/X2: 32 m/mi, X1/Y2: 20 m/min, Z1/Z2: 24 m/min
Spindle Motor Power
3.7 kW / 5.5 kW
Sub-Spindle Motor Power
3.7 kW / 5.5 kW
Side Milling Power
1.0 kW (Side Milling) , 0.75 kW (Back Face Milling)
Feed Motor Power
1.0 kW (X1/Y1/Z1/X2/Z2) , 0.75 kW (Y2)
Total Machine Power
12 kW
Machine Weight
2,800 kg
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
