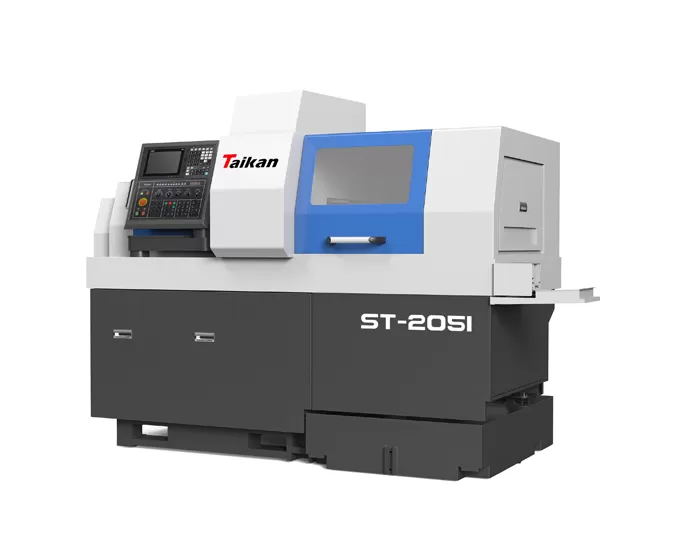

Specification | ST-205Ⅰ |
Max. Machining Diameter | Ø20 |
Max. Machining Length | 240 mm |
Front Drilling Diameter | Max. Ø10 |
Front Threading Capacity | Max. M8 |
Spindle Through-Hole Diameter | 23 mm |
Control System | Mitsubishi M80LA System |
Spindle Speed | Max. 8,000 r/min |
Side Milling Max. Drilling | Max. Ø10 |
Side Milling Max. Tapping | Max. M8 (Copper) |
Side Milling Max. Speed | Max. 5,000 r/min |
Back Spindle Max. Clamping Diameter | 20 mm |
Back Spindle Max. Extension | 50 mm |
Back Spindle Max. Drilling | Max. Ø10 |
Back Spindle Threading | Max. M8 (Copper) |
Back Spindle Speed | Max. 8,000 r/min |
Back Tool Drilling Diameter | Max. Ø10 |

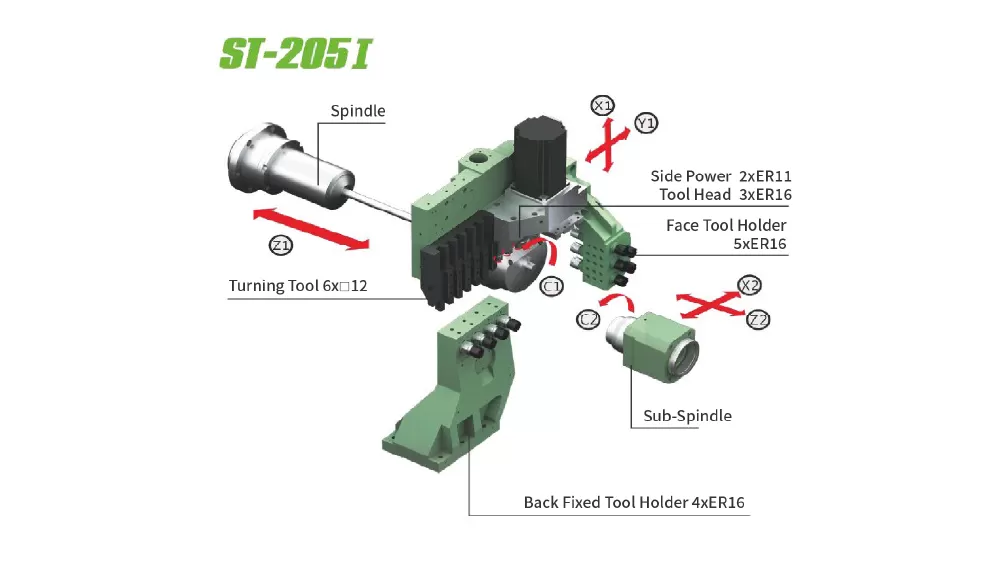

Turning Tools | 5×□12 + 1×□16 |
Side Milling Power Tool Holders | 2×ER11 + 3×ER16 (2 Quick-Change Units) |
Front Fixed Tool Holders | 5×ER16 |
Back Spindle Fixed Tool Holders | 4×ER16 Fixed (Expandable to 6×ER16) |
Rapid Traverse Speed | 32 m/min (Y1/X2), 20 m/min (X1), 24 m/min (Z1/Z2) |
Spindle Motor Power | 3.7 kW / 5.5 kW |
Sub-Spindle Motor Power | 3.7 kW / 5.5 kW |
Side Milling Motor Power | 1.0 kW |
Feed Motor Power | 1.0 kW (X1/Y1/Z1/X2/Z2) |
Total Machine Power | 12 kW |
Machine Weight | 2,600 kg |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
